0049 - TYRE PRESSURE MONITORING SYSTEM

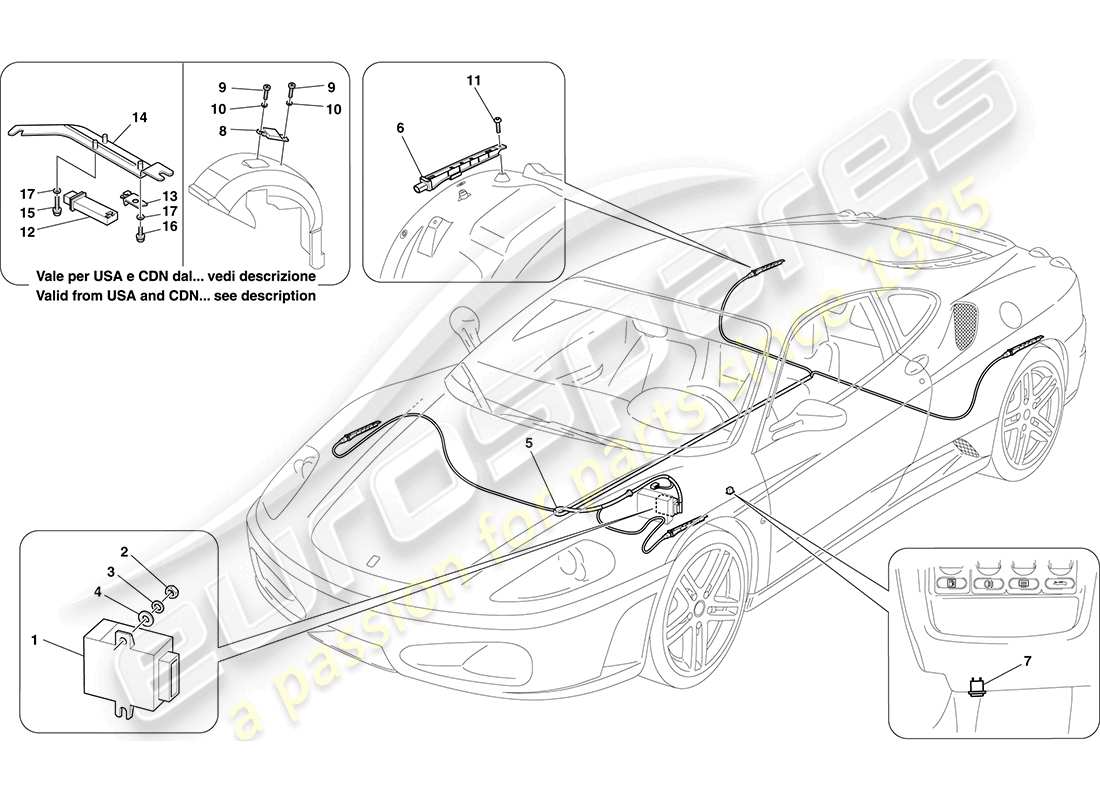

Ferrari F430 Coupe (RHD) TYRE PRESSURE MONITORING SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 211762
TYRE PRESSURE MONITORING SYSTEM ECU
-Not for USA, CDN- -Applicable up to Ass. No. 84422-
from £297.13
from £297.13
This part replaces part number 207778
# 001
MPN: 211762
TYRE PRESSURE MONITORING SYSTEM ECU
-Applicable for USA- -Applicable up to Ass. No. 73780-
from £297.13
from £297.13
This part replaces part number 207778
# 001
MPN: 211762
TYRE PRESSURE MONITORING SYSTEM ECU
-Applicable for CDN- -Applicable up to Ass. No. 75816-
from £297.13
from £297.13
This part replaces part number 207778
# 001
MPN: 211763
TYRE PRESSURE MONITORING SYSTEM ECU
-Applicable for J-
from £337.26
from £337.26
This part replaces part number 207779
# 001
MPN: 238986
TYRE PRESSURE MONITORING SYSTEM ECU
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 244952-
Supersession
Supersession
# 001
MPN: 238986
TYRE PRESSURE MONITORING SYSTEM ECU
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 244952-
Supersession
Supersession
# 001
MPN: 244952
TYRE PRESSURE MONITORING SYSTEM ECU
-Not for USA, CDN, J- -Applicable from Ass. No. 84423-
from £1,124.05
from £1,124.05
This part replaces part number 238986
# 002
MPN: 113647
NUT
from £0.53
from £0.53
# 003
MPN: 12638124
WASHER
from £0.54
from £0.54
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 004
MPN: 14496324
WASHER
from £1.39
from £1.39
This part replaces part number 14496301 which we have in stock
# 005
MPN: 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
-Not for USA, CDN, GD- -Applicable up to Ass. No. 84422-
from £188.10
from £188.10
# 005
MPN: 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
-Applicable for USA- -Applicable up to Ass. No. 73780-
from £188.10
from £188.10
# 005
MPN: 192787
TYRE PRESSURE MONITORING SYSTEM CABLES
-Applicable for CDN- -Applicable up to Ass. No. 75816-
from £188.10
from £188.10
# 005
MPN: 208355
TYRE PRESSURE MONITORING SYSTEM CABLES
-Applicable for GD-
from £419.48
from £419.48
# 005
MPN: 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
-Not for USA, CDN, GD- -Applicable from Ass. No. 84423-
from £233.01
from £233.01
# 005
MPN: 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
-Applicable for USA- -Applicable from Ass. No. 73781-
from £233.01
from £233.01
# 005
MPN: 238983
TYRE PRESSURE MONITORING SYSTEM CABLES
-Applicable for USA- -Applicable from Ass. No. 75817-
from £233.01
from £233.01
# 006
MPN: 185184
TYRE PRESSURE MONITORING SYSTEM ANTENNA
-Applicable for USA, CDN-
from £15.26
from £15.26
# 006
MPN: 185184
TYRE PRESSURE MONITORING SYSTEM ANTENNA
-Not for USA, CDN, J- -Applicable up to Ass. No. 84422-
from £15.26
from £15.26
# 006
MPN: 195588
TYRE PRESSURE MONITORING SYSTEM ANTENNA
-Applicable for J-
from £27.75
from £27.75
This part replaces part number 185333
# 007
MPN: 208848
TYRE PRESSURE SYSTEM CALIBRATION BUTTON
from £39.63
from £39.63
This part replaces part number 184615
# 008
MPN: 238985
TRIGGER
-Applicable for USA- -Applicable from Ass. No. 73781-
from £61.49
from £61.49
# 008
MPN: 238985
TRIGGER
-Applicable for USA- -Applicable from Ass. No. 75817-
from £61.49
from £61.49
# 008
MPN: 238985
TRIGGER
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £61.49
from £61.49
# 009
MPN: 14304021
SCREW
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 14304224-
from £0.51
from £0.51
This part replaces part number 14304024
# 009
MPN: 14304021
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 14304224-
from £0.51
from £0.51
This part replaces part number 14304024
# 009
MPN: 14304021
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423- -No longer supplied- -Replaced by 14304224-
from £0.51
from £0.51
This part replaces part number 14304024
# 009
MPN: 14304124
SCREW
-Applicable for USA- -Applicable from Ass. No. 84423-
from £0.51
from £0.51
# 009
MPN: 14304124
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £0.51
from £0.51
# 009
MPN: 14304124
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £0.51
from £0.51
# 009
MPN: 14304224
SCREW
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 14304124-
from £0.51
from £0.51
# 009
MPN: 14304224
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 14304124-
from £0.51
from £0.51
# 009
MPN: 14304224
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423- -No longer supplied- -Replaced by 14304124-
from £0.51
from £0.51
# 010
MPN: 12620374
WASHER
-Applicable for USA- -Applicable from Ass. No. 73781-
from £0.53
from £0.53
# 010
MPN: 12620374
WASHER
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £0.53
from £0.53
# 010
MPN: 12620374
WASHER
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £0.53
from £0.53
# 010
MPN: 13579107
WASHER
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
# 010
MPN: 13579107
WASHER
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
# 010
MPN: 13579107
WASHER
-Not for USA, CDN- -Applicable from Ass. No. 84423- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
# 011
MPN: 13299211
SCREW
-M5 X 12- -Not for USA, CDN- -Applicable up to Ass. No. 84422-
from £0.71
from £0.71
# 011
MPN: 13299477
SCREW
-M5 X 16- -Not for USA, CDN- -Applicable up to Ass. No. 84422-
from £0.51
from £0.51
This part replaces part number 15937618
# 012
MPN: 239463
TPMS ANTENNA
-Applicable for USA- -Applicable from Ass. No. 73781-
from £50.05
from £50.05
# 012
MPN: 239463
TPMS ANTENNA
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £50.05
from £50.05
# 012
MPN: 239463
TPMS ANTENNA
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £50.05
from £50.05
# 013
MPN: 195646
CLIP
-Applicable for USA- -Applicable from Ass. No. 73781-
from £1.04
from £1.04
# 013
MPN: 195646
CLIP
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £1.04
from £1.04
# 013
MPN: 195646
CLIP
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £1.04
from £1.04
# 014
MPN: 80963800
ANTENNA MOUNTING BRACKET
-Applicable for USA- -Applicable from Ass. No. 73781-
from £14.47
from £14.47
# 014
MPN: 80963800
ANTENNA MOUNTING BRACKET
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £14.47
from £14.47
# 014
MPN: 80963800
ANTENNA MOUNTING BRACKET
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £14.47
from £14.47
# 015
MPN: 14358721
SCREW
-Applicable for USA- -Applicable from Ass. No. 73781-
from £0.80
from £0.80
# 015
MPN: 14358721
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £0.80
from £0.80
# 015
MPN: 14358721
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £0.80
from £0.80
# 016
MPN: 14304021
SCREW
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 14304124-
from £0.53
from £0.53
This part replaces part number 14304024
# 016
MPN: 14304021
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 14304124-
from £0.53
from £0.53
This part replaces part number 14304024
# 016
MPN: 14304021
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423- -No longer supplied- -Replaced by 14304124-
from £0.53
from £0.53
This part replaces part number 14304024
# 016
MPN: 14304124
SCREW
-Applicable for USA- -Applicable from Ass. No. 73781-
from £0.53
from £0.53
# 016
MPN: 14304124
SCREW
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £0.53
from £0.53
# 016
MPN: 14304124
SCREW
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £0.53
from £0.53
# 017
MPN: 12620374
WASHER
-Applicable for USA- -Applicable from Ass. No. 73781-
from £0.53
from £0.53
# 017
MPN: 12620374
WASHER
-Applicable for CDN- -Applicable from Ass. No. 75817-
from £0.53
from £0.53
# 017
MPN: 12620374
WASHER
-Not for USA, CDN- -Applicable from Ass. No. 84423-
from £0.53
from £0.53
# 017
MPN: 13579107
WASHER
-Applicable for USA- -Applicable from Ass. No. 73781- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
# 017
MPN: 13579107
WASHER
-Applicable for CDN- -Applicable from Ass. No. 75817- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
# 017
MPN: 13579107
WASHER
-Not for USA, CDN- -Applicable from Ass. No. 84423- -No longer supplied- -Replaced by 12620374-
Supersession
Supersession
-part-diagram-0050.webp "FERRARI F430 COUPE (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (RHD) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (RHD) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (RHD) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (RHD) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (RHD) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (RHD) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (RHD) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 COUPE (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 COUPE (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 COUPE (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (RHD) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (RHD) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (RHD) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (RHD) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (RHD) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (RHD) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (RHD) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 COUPE (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 COUPE (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 COUPE (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 COUPE (RHD) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 COUPE (RHD) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 COUPE (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (RHD) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (RHD) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (RHD) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (RHD) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (RHD) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (RHD) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (RHD) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (RHD) WHEELS PARTS DIAGRAM")
