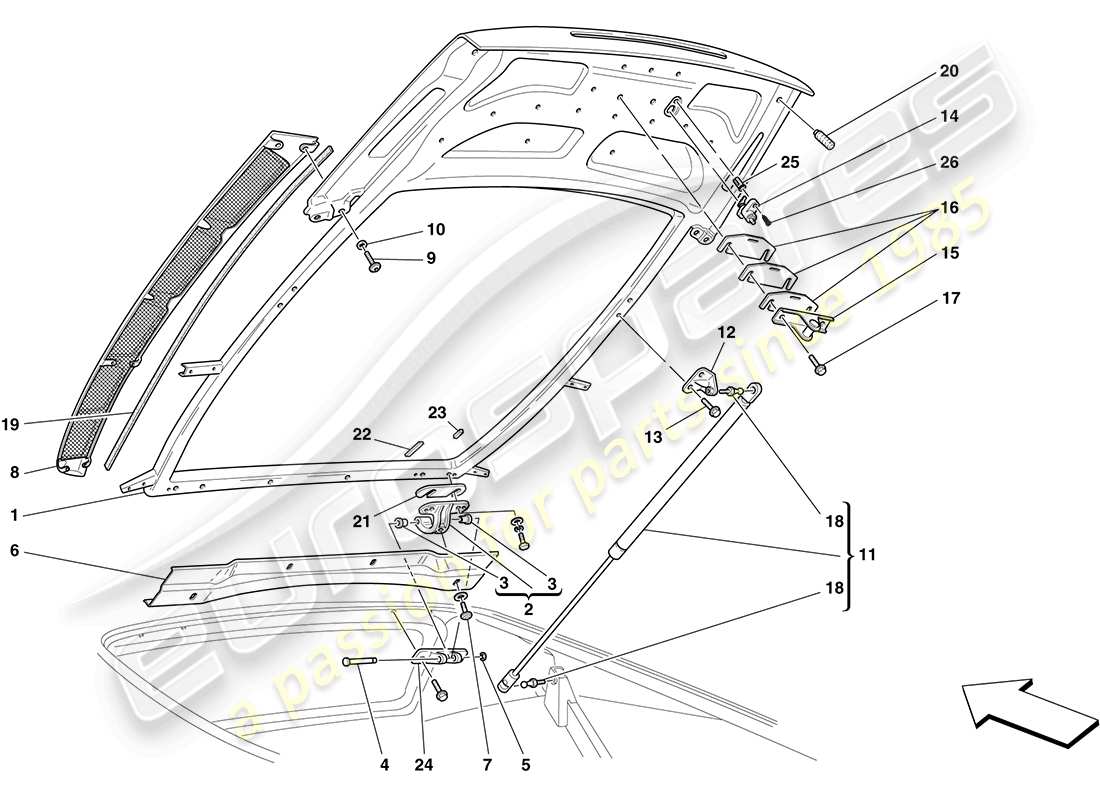

0113 - ENGINE COMPARTMENT LID
Ferrari F430 Coupe (RHD) ENGINE COMPARTMENT LID Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67767511
PRESSED REAR LID
from £1,059.49
from £1,059.49
This part replaces part number 67767500 - and 6 more. Click to view details

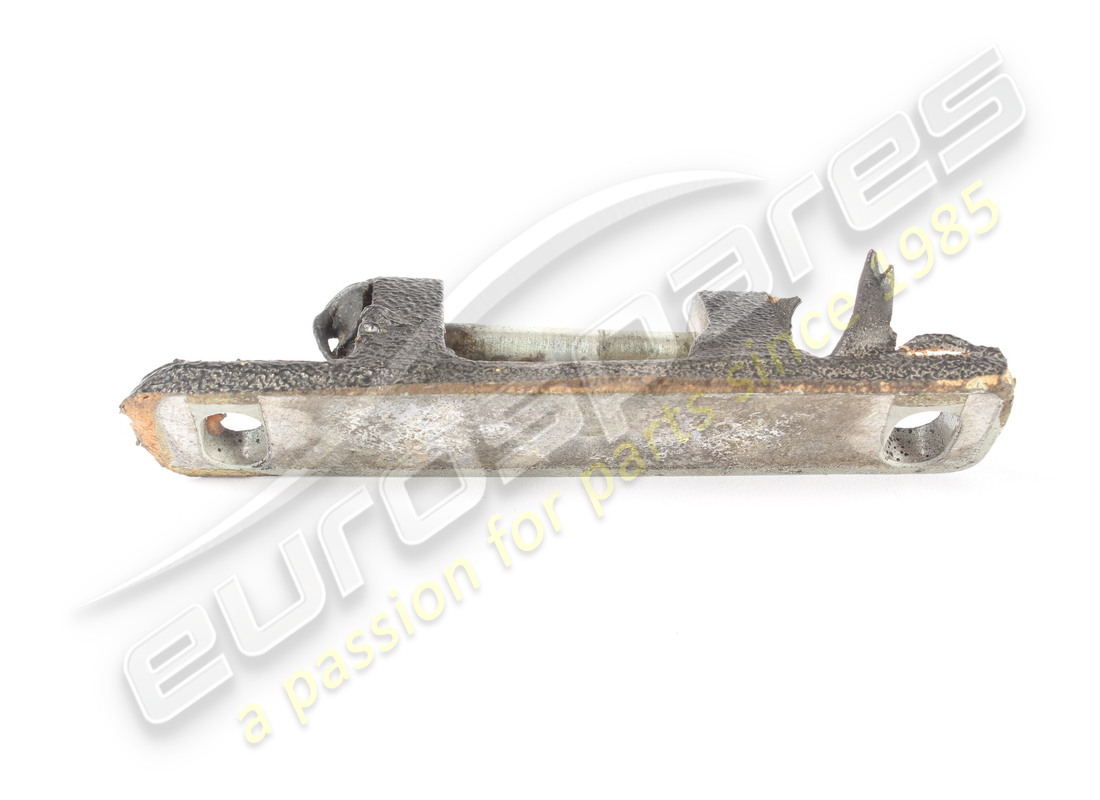

# 002
MPN: 64877500
RH MOBILE HINGE
from £58.34
from £58.34
# 002
MPN: 64877600
LH MOBILE HINGE
from £58.34
from £58.34

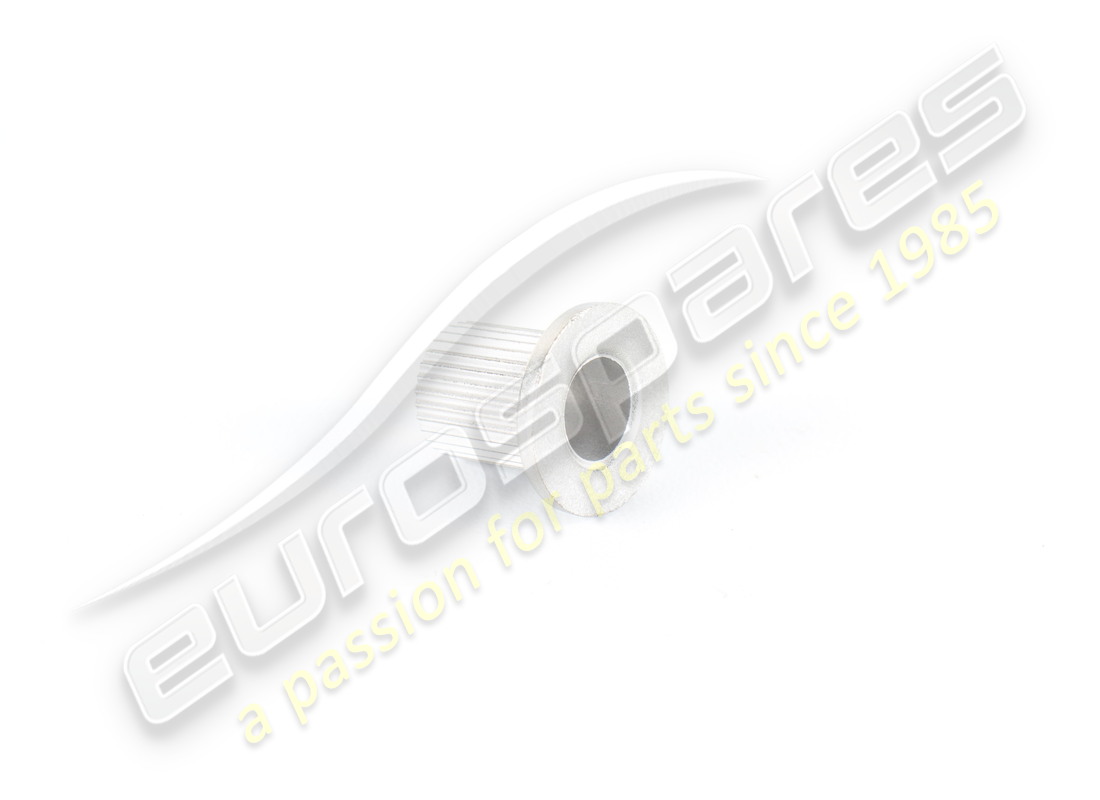

# 003
MPN: 62825300
HINGE BUSHING
from £18.02
from £18.02
# 004
MPN: 64807100
PIN
from £5.83
from £5.83
# 005
MPN: 11087974
SNAP RING
from £0.51
from £0.51
This part replaces part number 11087976
# 006
MPN: 65398800
FRONT LID CHANNEL
from £100.34
from £100.34
# 007
MPN: 65864100
SCREW
from £0.77
from £0.77
This part replaces part number 65864200 which we have in stock
# 008
MPN: 68075000
RH GRILLE
-Grey-
from £73.50
from £73.50
# 008
MPN: 68075100
LH GRILLE
-Grey-
from £75.60
from £75.60

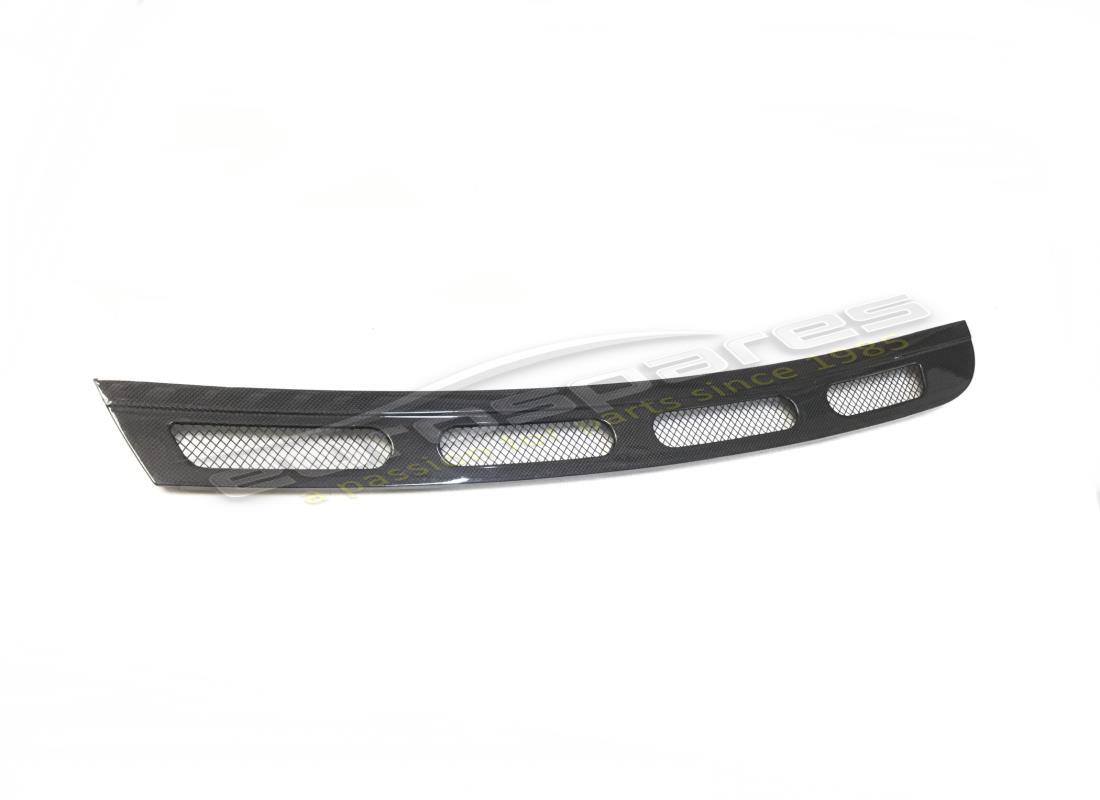

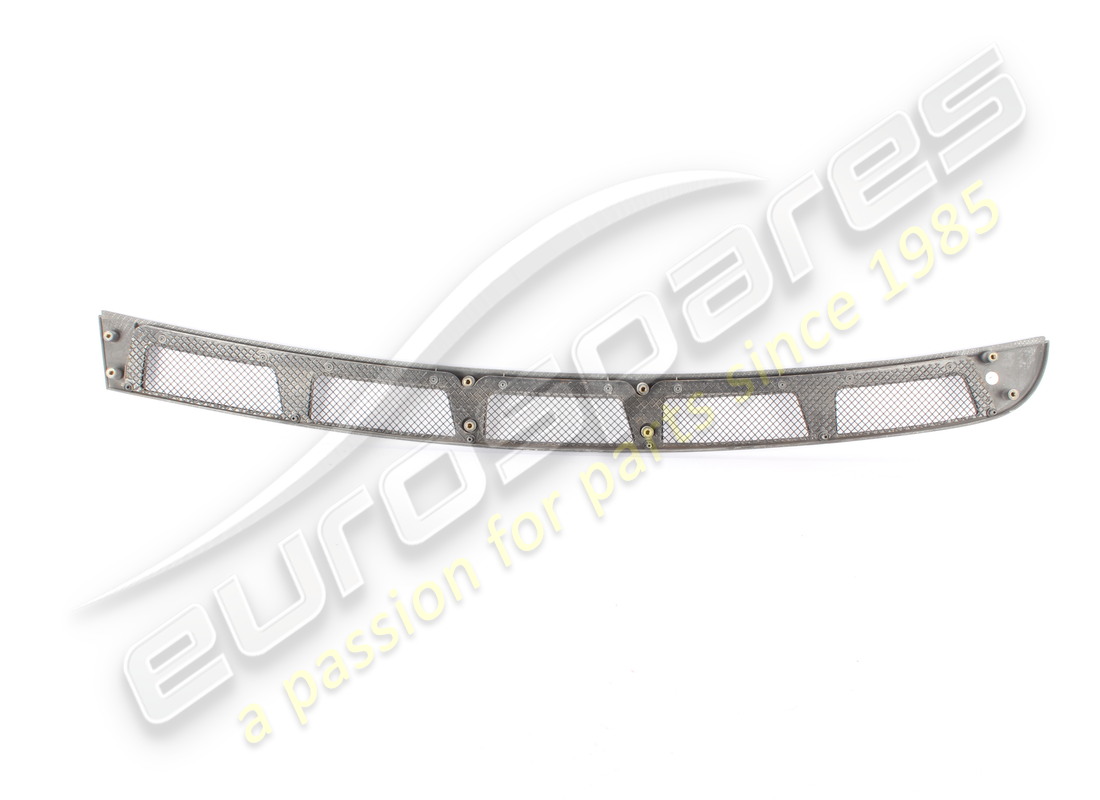

# 008
MPN: 68500900
RH GRILLE
-Carbon version-
from £2,368.97
from £2,368.97

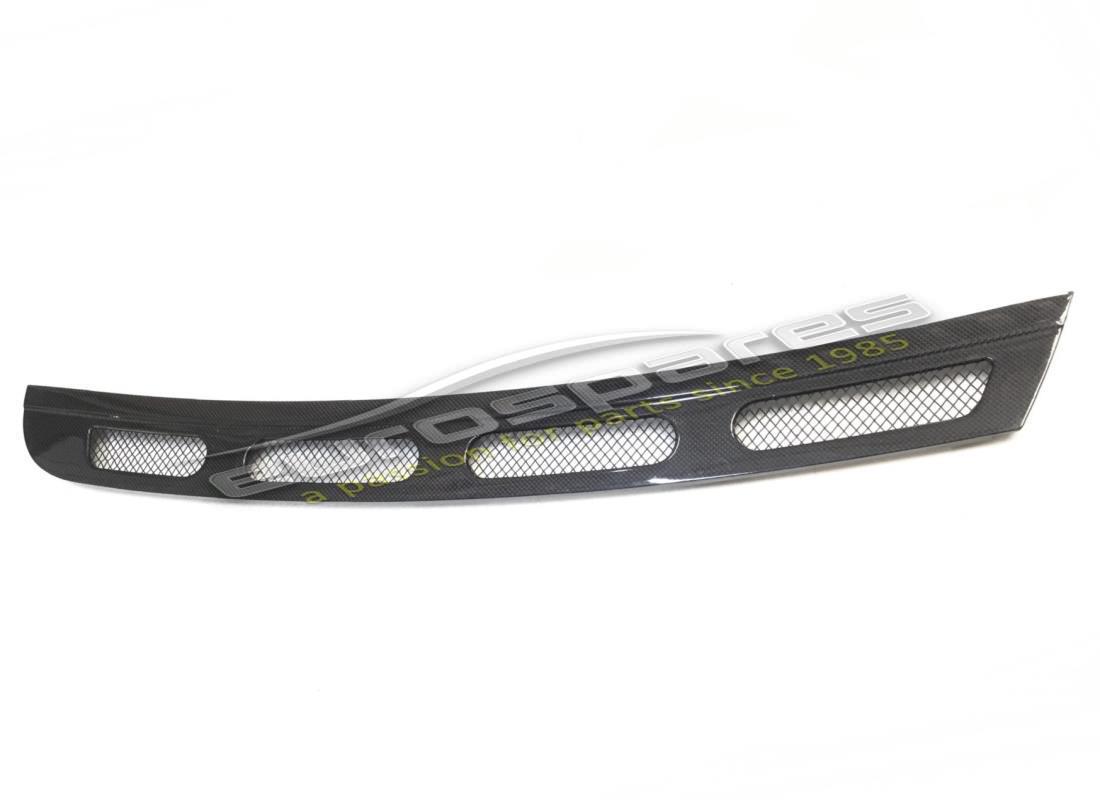

# 008
MPN: 68501000
LH GRILLE
-Carbon version-
from £1,302.93
from £1,302.93
# 008
MPN: 68997800
RH GRILLE
-Black-
from £201.33
from £201.33
# 008
MPN: 68997900
LH GRILLE
-Black-
from £290.39
from £290.39
# 009
MPN: 168133
SCREW
-For carbon fibre grille-
from £0.58
from £0.58
# 009
MPN: 65864100
SCREW
-Standard-
from £0.77
from £0.77
This part replaces part number 65864200 which we have in stock
# 010
MPN: 12644478
WASHER
from £0.47
from £0.47
# 011
MPN: 65855000
GAS STRUT
from £20.36
from £20.36
# 012
MPN: 65526300
BRACKET
from £12.23
from £12.23
# 013
MPN: 16286024
SCREW
from £0.51
from £0.51
# 014
MPN: 143331
THIRD STOP LIGHT MOBILE CONTACT
from £2.27
from £2.27
# 015
MPN: 64867900
LID STRIKER PLATE
from £98.38
from £98.38

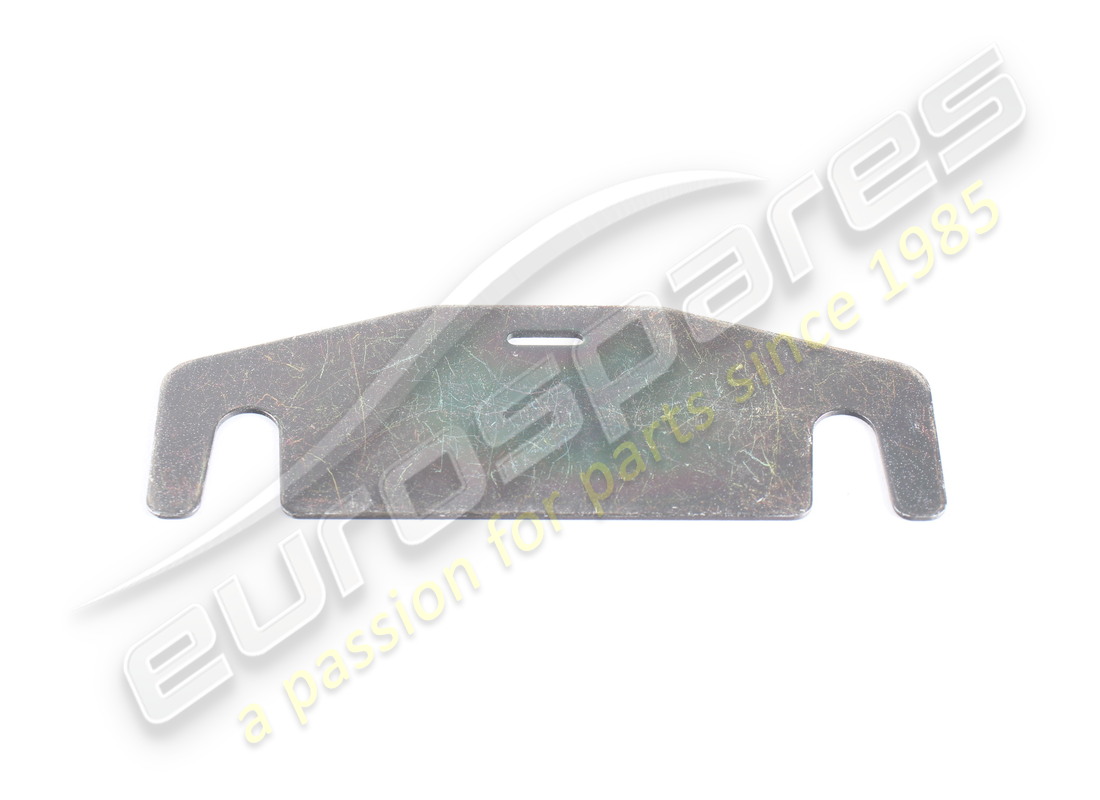

# 016
MPN: 65524800
ADJUSTMENT PLATE
-Installed if necessary-
from £2.67
from £2.67
# 017
MPN: 16286027
SCREW
from £0.53
from £0.53
# 018
MPN: 65939900
PIN
from £1.22
from £1.22
This part replaces part number 63402800 which we have in stock - and 1 more. Click to view details
# 019
MPN: 65979200
GASKET
from £22.05
from £22.05

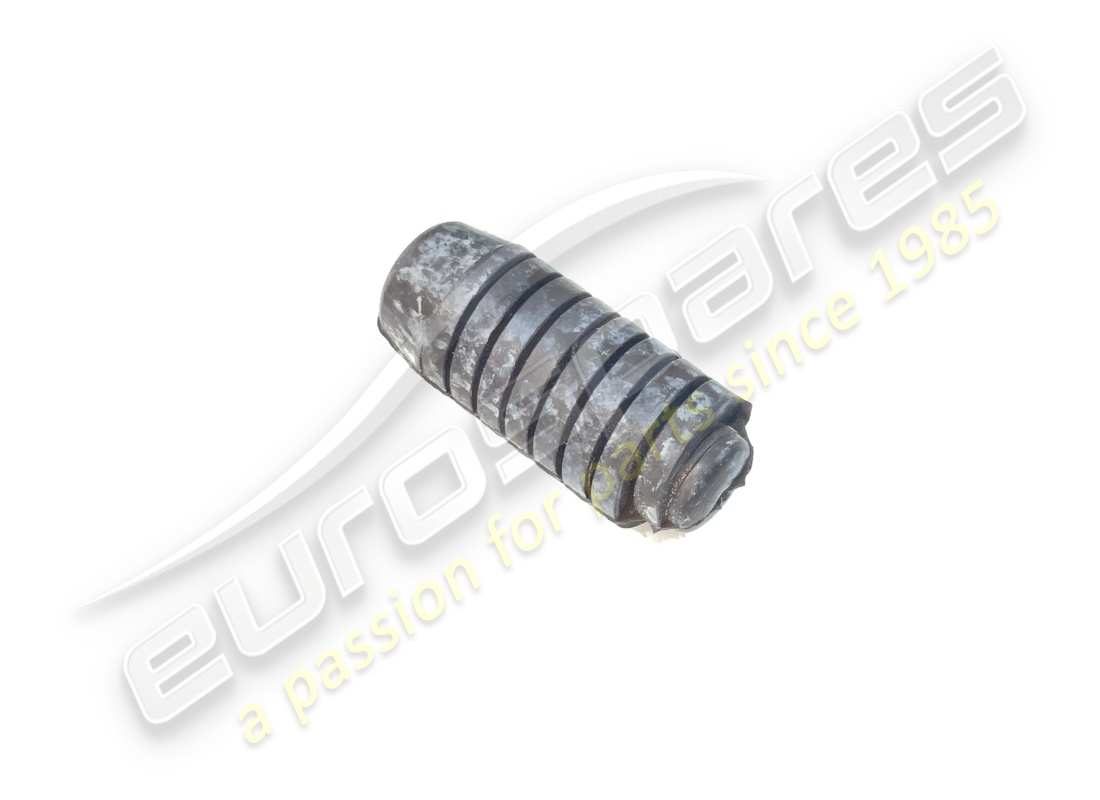

# 020
MPN: 62167600
VIBRATION DAMPER
from £2.41
from £2.41
# 021
MPN: 66073100
SHIM
from £1.77
from £1.77
# 022
MPN: 65714600
SHIM
from £1.12
from £1.12
# 023
MPN: 63023300
SHIM
from £0.53
from £0.53
# 024
MPN: 64806700
RH FIXED HINGE
from £95.98
from £95.98
# 024
MPN: 64806800
LH FIXED HINGE
from £95.98
from £95.98
# 025
MPN: 14115380
BLOCK
from £0.54
from £0.54
# 026
MPN: 16082401
SCREW
from £0.51
from £0.51
