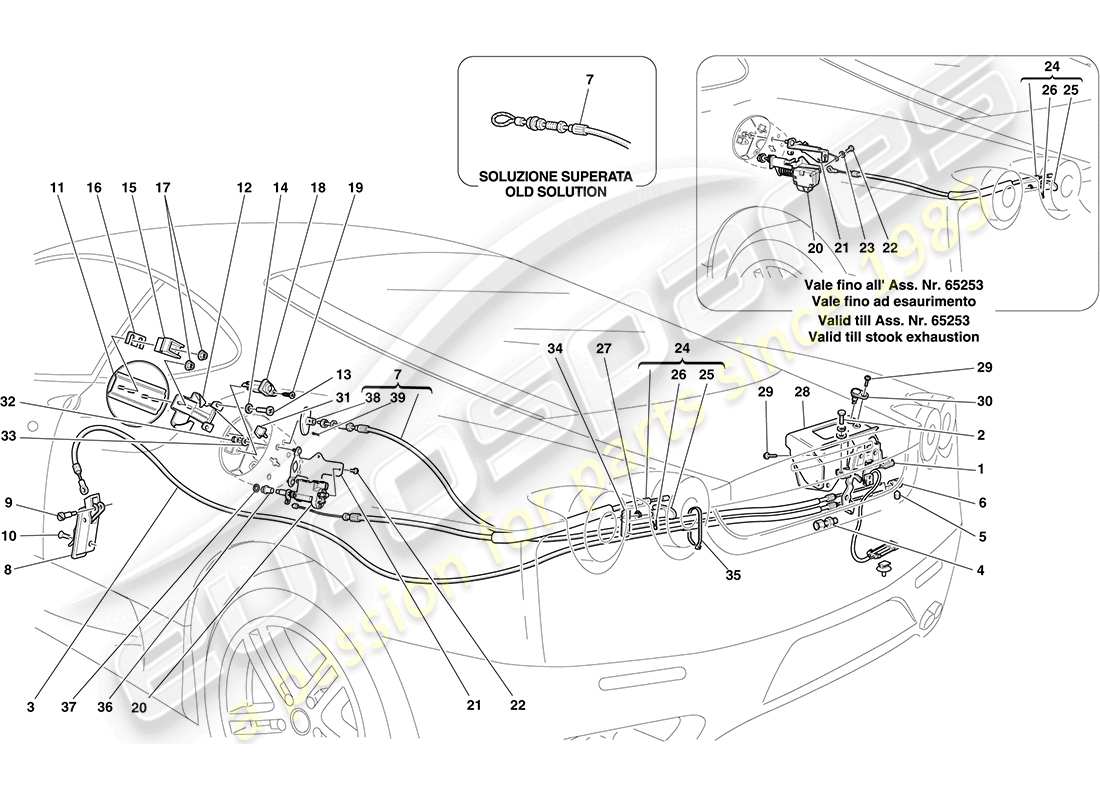

0114 - ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS

Ferrari F430 Coupe (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 001
                                              MPN: 65732400
                                              COMPLETE ENGINE COMPARTMENT LID LOCK
                                              -Not for GD-
                                              from £107.33
                                              from £107.33
                                              LHD ENGINE BONNET LOCK Genuine Ferrari Part - New (to order)
                                              # 001
                                              MPN: 65732500
                                              COMPLETE ENGINE COMPARTMENT LID LOCK
                                              -Applicable for GD-
                                              from £157.85
                                              from £157.85
                                              ENGINE BONNET LOCK COMPLETE RHD Genuine Ferrari Part - New (to order)
                                              # 002
                                              MPN: 16286127
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              SCREW Genuine Ferrari Part - New In stock
                                              # 003
                                              MPN: 68746100
                                              ENGINE COMPARTMENT LID RELEASE CABLE
                                              from £53.82
                                              from £53.82
                                              CABLE FOR MOTOR BONNET OPEN Genuine Ferrari Part - New (to order)
                                              # 004
                                              MPN: 62828900
                                              CABLES ADJUSTER
                                              from £57.89
                                              from £57.89
                                              This part replaces part number 67502400
                                              REGISTER Genuine Ferrari Part - New (to order)
                                              # 005
                                              MPN: 60276805
                                              DOWEL
                                              from £0.71
                                              from £0.71
                                              DOWEL Genuine Ferrari Part - New (to order)
                                              # 006
                                              MPN: 60276607
                                              TERMINAL
                                              from £11.92
                                              from £11.92
                                              This part replaces part number 60276707 - and 4 more. Click to view details
                                              CONNECTION Genuine Ferrari Part - New (to order)
                                              CONNECTION Genuine Ferrari Part - Used In stock
                                              CONNECTION Genuine Ferrari Part - Used In stock
                                              # 007
                                              MPN: 65067300
                                              COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE
                                              -Not for GD- -Applicable until depletion-
                                              Supersession
                                              Supersession
                                              Genuine Ferrari Part (no longer available to order)
                                              # 007
                                              MPN: 69204500
                                              COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE
                                              -Applicable for GD- -Applicable until depletion-
                                              Supersession
                                              Supersession
                                              Genuine Ferrari Part (no longer available to order)
                                              # 007
                                              MPN: 80412000
                                              COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE
                                              -Not for GD- -Applicable after depletion of 65067300-
                                              from £84.31
                                              from £84.31
                                              This part replaces part number 65067300
                                              CPL.SAFETY LOCK CABLE FOR EN Genuine Ferrari Part - New (to order)
                                              # 007
                                              MPN: 80412100
                                              COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE
                                              -Applicable for GD- -Applicable after depletion of 69204500-
                                              from £139.21
                                              from £139.21
                                              This part replaces part number 69204500
                                              COMPLETE SAFETY LOCK CABLE F Genuine Ferrari Part - New (to order)
                                              # 008
                                              MPN: 65808100
                                              REAR COMPARTMENT LID HANDLE
                                              -Applicable until depletion-
                                              Supersession
                                              Supersession
                                              Genuine Ferrari Part (no longer available to order)
                                              # 008
                                              MPN: 80176200
                                              REAR COMPARTMENT LID HANDLE
                                              -Applicable after depletion of 65808100-
                                              from £31.40
                                              from £31.40
                                              This part replaces part number 65808100 - and 5 more. Click to view details
                                              OPENING HANDLE FOR ENGINE HO Genuine Ferrari Part - New (to order)
                                              OPENING HANDLE FOR ENGINE HO Genuine Ferrari Part - Used In stock
                                              OPENING HANDLE FOR ENGINE HO Genuine Ferrari Part - Used In stock
                                              # 009
                                              MPN: 65852000
                                              PIN
                                              from £33.36
                                              from £33.36
                                              PIN Genuine Ferrari Part - New (to order)
                                              # 010
                                              MPN: 13299477
                                              SCREW
                                              -M5 X 16-
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 15937618
                                              SCREW Genuine Ferrari Part - New In stock
                                              SCREW M5X16 (13299477) Genuine Maserati Part - New In stock
                                              # 011
                                              MPN: 68034111
                                              FUEL FILLER FLAP
                                              -Aluminium cover-
                                              from £59.24
                                              from £59.24
                                              This part replaces part number 68034110 which we have in stock
                                              FUEL INLET LID -ALLUMINIUM L Genuine Ferrari Part - New In stock
                                              # 012
                                              MPN: 67934900
                                              FUEL FILLER FLAP HINGE
                                              from £141.49
                                              from £141.49
                                              HINGE FOR GAS UNION DOOR Genuine Ferrari Part - New In stock
                                              HINGE FOR GAS UNION DOOR Genuine Ferrari Part - Used In stock
                                              # 013
                                              MPN: 13274014
                                              SCREW
                                              from £3.54
                                              from £3.54
                                              This part replaces part number 13274011
                                              Genuine Ferrari Part (no longer available to order)
                                              SCREW (13274014) Genuine Maserati Part - New (to order)
                                              # 014
                                              MPN: 12601174
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12601173 - and 5 more. Click to view details
                                              WASHER Genuine Ferrari Part - New In stock
                                              WASHER (12601174) Genuine Maserati Part - New In stock
                                              # 014
                                              MPN: 12605274
                                              WASHER
                                              -No longer supplied- -Replaced by 12601174-
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 12605270 - and 1 more. Click to view details
                                              Genuine Ferrari Part (no longer available to order)
                                              TOOTHED WASHER D. 5.3-10 X0.6 (12605274) Genuine Maserati Part - New (to order)
                                              # 015
                                              MPN: 65396000
                                              STRIKER PLATE
                                              from £1.61
                                              from £1.61
                                              STRIKER PLATE GAS UNION DOOR Genuine Ferrari Part - New (to order)
                                              STRIKER PLATE GAS UNION DOOR Genuine Ferrari Part - Used In stock
                                              # 016
                                              MPN: 65396100
                                              SHIM
                                              from £1.48
                                              from £1.48
                                              SPACER Genuine Ferrari Part - New In stock
                                              # 017
                                              MPN: 14084111
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 14084100
                                              NUT Genuine Ferrari Part - New In stock
                                              NUT FOR SIDE MARKER LIGHT (14084111) Genuine Maserati Part - New (to order)
                                              # 018
                                              MPN: 153069
                                              HATCH OPENING SWITCH
                                              from £2.11
                                              from £2.11
                                              SWITCH (FOR USA) Genuine Ferrari Part - New (to order)
                                              SWITCH (FOR USA) Genuine Ferrari Part - Used In stock
                                              # 019
                                              MPN: 15688875
                                              SCREW
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 15688814
                                              SCREW Genuine Ferrari Part - New In stock
                                              SCREW FOR REAR LOUD SPEAK (15688875) Genuine Maserati Part - New In stock
                                              # 020
                                              MPN: 65395900
                                              ACTUATOR
                                              -Applicable up to Ass. No. 65253- -Applicable until depletion-
                                              from £44.53
                                              from £44.53
                                              ELECTRO-MAGNET Genuine Ferrari Part - New (to order)
                                              ELECTRO-MAGNET Genuine Ferrari Part - Used In stock
                                              # 020
                                              MPN: 69918500
                                              ACTUATOR
                                              -Applicable from Ass. No. 65254- -Applicable after depletion of 65395900-
                                              from £13.33
                                              from £13.33
                                              ACTUATOR Genuine Ferrari Part - New (to order)
                                              ACTUATOR Genuine Ferrari Part - Used In stock
                                              # 021
                                              MPN: 65395800
                                              ACTUATOR MOUNTING BRACKET
                                              -Applicable up to Ass. No. 65253- -Applicable until depletion-
                                              from £2.90
                                              from £2.90
                                              ACTUATOR SUPPORTING BRACKET Genuine Ferrari Part - New (to order)
                                              # 021
                                              MPN: 69729700
                                              ACTUATOR MOUNTING BRACKET
                                              -Applicable from Ass. No. 65254-
                                              from £107.89
                                              from £107.89
                                              ACTUATOR SUPPORTING BRACKET Genuine Ferrari Part - New In stock
                                              # 022
                                              MPN: 15641275
                                              SCREW
                                              -Applicable up to Ass. No. 65253- -Applicable until depletion-
                                              from £0.81
                                              from £0.81
                                              This part replaces part number 15641278 which we have in stock
                                              SCREW Genuine Ferrari Part - New In stock
                                              # 022
                                              MPN: 15689601
                                              SCREW
                                              -Applicable from Ass. No. 65254-
                                              from £0.47
                                              from £0.47
                                              SCREW. Genuine Ferrari Part - New (to order)
                                              SCREW (15689601) Genuine Maserati Part - New (to order)
                                              # 023
                                              MPN: 14496277
                                              WASHER
                                              -Applicable up to Ass. No. 65253- -Applicable until depletion-
                                              from £0.47
                                              from £0.47
                                              WASHER Genuine Ferrari Part - New In stock
                                              # 024
                                              MPN: 65701000
                                              COMPLETE FUEL FILLER FLAP SAFETY CABLE
                                              -Applicable up to Ass. No. 65253- -Applicable until depletion-
                                              from £12.44
                                              from £12.44
                                              SAFETY CABLE FOR GAS UNIONDO Genuine Ferrari Part - New (to order)
                                              SAFETY CABLE FOR GAS UNIONDO Genuine Ferrari Part - Used In stock
                                              # 024
                                              MPN: 69775300
                                              COMPLETE FUEL FILLER FLAP SAFETY CABLE
                                              -Applicable from Ass. No. 65254-
                                              from £25.66
                                              from £25.66
                                              CABLE Genuine Ferrari Part - New (to order)
                                              # 025
                                              MPN: 60710900
                                              EMERGENCY HANDLE
                                              from £5.21
                                              from £5.21
                                              HANDLE Genuine Ferrari Part - New (to order)
                                              # 026
                                              MPN: 60711000
                                              CLIP
                                              from £0.53
                                              from £0.53
                                              CLIP Genuine Ferrari Part - New In stock
                                              # 027
                                              MPN: 11087676
                                              SNAP RING
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 11087675
                                              RING Genuine Ferrari Part - New In stock
                                              WASHER (11087676) Genuine Maserati Part - New (to order)
                                              # 028
                                              MPN: 65756100
                                              ENGINE COMPARTMENT LID LOCK SHIELD
                                              from £179.22
                                              from £179.22
                                              ENGINE BONNET LOCK SHIELD. Genuine Ferrari Part - New In stock
                                              ENGINE BONNET LOCK SHIELD. Genuine Ferrari Part - Used In stock
                                              # 029
                                              MPN: 13297477
                                              SCREW
                                              -M4-
                                              from £0.47
                                              from £0.47
                                              SCREW 4X12 Genuine Ferrari Part - New (to order)
                                              TSIC PZ SCREW M4X12 (13297477) Genuine Maserati Part - New (to order)
                                              # 030
                                              MPN: 62535900
                                              THIRD STOP LIGHT FIXED CONTACT
                                              from £1.80
                                              from £1.80
                                              CONTACT Genuine Ferrari Part - New In stock
                                              # 031
                                              MPN: 63879900
                                              RUBBER VIBRATION DAMPER
                                              from £9.06
                                              from £9.06
                                              RUBBER PAD Genuine Ferrari Part - New In stock
                                              # 032
                                              MPN: 168698
                                              NUT
                                              from £0.93
                                              from £0.93
                                              This part replaces part number 14054048
                                              NUT Genuine Ferrari Part - New In stock
                                              NUT (168698) Genuine Maserati Part - New (to order)
                                              # 033
                                              MPN: 12637878
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12637806
                                              WASHER Genuine Ferrari Part - New In stock
                                              WASHER (12637878) Genuine Maserati Part - New (to order)
                                              # 034
                                              MPN: 65506500
                                              REAR PIPE FASTENER BRACKET
                                              -No longer supplied-
                                              from £3.12
                                              from £3.12
                                              BRACKET. Genuine Ferrari Part - New (to order)
                                              # 035
                                              MPN: 145854
                                              CLAMP
                                              from £0.47
                                              from £0.47
                                              CLAMP Genuine Ferrari Part - New In stock
                                              CLAMP (145854) Genuine Maserati Part - New (to order)
                                              # 036
                                              MPN: 67485800
                                              BUSHING
                                              -Applicable from Ass. No. 65254-
                                              from £4.13
                                              from £4.13
                                              BUSHING Genuine Ferrari Part - New (to order)
                                              # 037
                                              MPN: 67067600
                                              GASKET
                                              -Applicable from Ass. No. 65254-
                                              from £1.86
                                              from £1.86
                                              GASKET Genuine Ferrari Part - New (to order)
                                              # 038
                                              MPN: 60710900
                                              EMERGENCY HANDLE
                                              -Applicable for cable 80412000 gs. and 80412100 gd., ref. 7-
                                              from £5.21
                                              from £5.21
                                              HANDLE Genuine Ferrari Part - New (to order)
                                              # 039
                                              MPN: 60711000
                                              CLIP
                                              -Applicable for cable 80412000 gs. and 80412100 gd., ref. 7-
                                              from £0.53
                                              from £0.53
                                              CLIP Genuine Ferrari Part - New In stock
