0126 - TUNNEL - SUBSTRUCTURE AND ACCESSORIES
Ferrari F430 Coupe (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES Parts Diagram

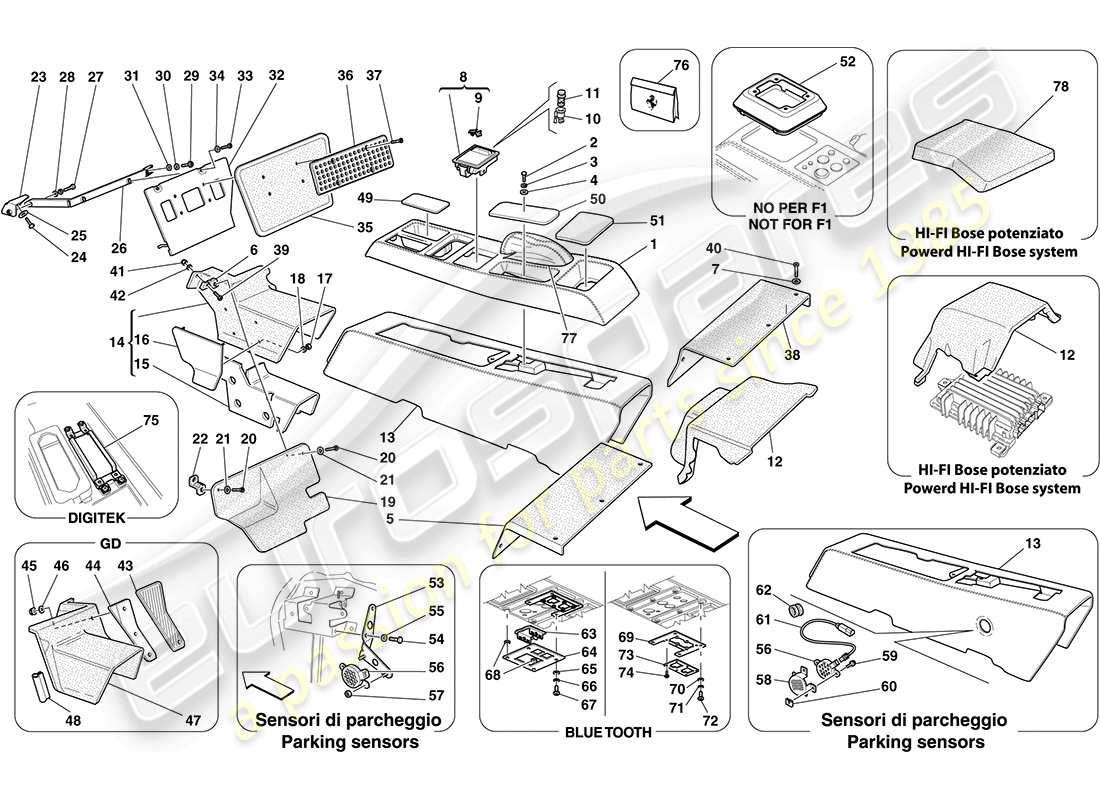

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 680947..
CENTRAL UNIT
-Standard- -Not for F1 gearbox-
Supersession
Supersession
# 001
MPN: 684237..
CENTRAL UNIT
-Standard- -Not for GD- -Applicable for F1 gearbox-
Supersession
Supersession
# 001
MPN: 684597..
CENTRAL UNIT
-Standard- -Applicable for GD- -Applicable for F1 gearbox-
from £483.77
from £483.77
# 001
MPN: 68663400
CENTRAL UNIT
-Carbon- -Optional- -Bluetooth- -Not for F1 gearbox-
from £1,810.54
from £1,810.54
# 001
MPN: 68663600
CENTRAL UNIT
-Carbon- -Optional- -Bluetooth- -Not for GD- -Applicable for F1 gearbox-
from £2,094.00
from £2,094.00
# 001
MPN: 68663700
CENTRAL UNIT
-Carbon- -Optional- -Bluetooth- -Applicable for GD- -Applicable for F1 gearbox-
from £1,810.54
from £1,810.54
# 001
MPN: 68663800
CENTRAL UNIT
-Carbon- -Optional- -Not for F1 gearbox-
from £1,810.54
from £1,810.54
# 001
MPN: 68664000
CENTRAL UNIT
-Carbon- -Optional- -Applicable for Jaeger F1 panel- -Not for GD- -Applicable up to Ass. No. 66453- -Applicable for F1 gearbox- -Applicable until depletion-
from £2,299.55
from £2,299.55
# 001
MPN: 68664100
CENTRAL UNIT
-Carbon- -Optional- -Applicable for Jaeger F1 panel- -Applicable for GD- -Applicable up to Ass. No. 66453- -Applicable for F1 gearbox- -Applicable until depletion-
from £1,810.54
from £1,810.54
# 001
MPN: 80084800
CENTRAL UNIT
-Carbon- -Optional- -Applicable for Digitek F1 panel- -Not for GD- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox-
from £1,495.00
from £1,495.00
# 001
MPN: 80084900
CENTRAL UNIT
-Carbon- -Optional- -Applicable for Digitek F1 panel- -Applicable for GD- -Applicable from Ass. No. 66454- -Applicable for F1 gearbox-
from £1,464.75
from £1,464.75
# 002
MPN: 16043424
SCREW
from £0.53
from £0.53
This part replaces part number 16043421
# 003
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 004
MPN: 13550301
WASHER
from £0.54
from £0.54
# 005
MPN: 679592..
LH ECU TRIM
-Standard- -Not for vehicles with roll bar-
Supersession
Supersession
# 005
MPN: 681438..
LH ECU TRIM
-Optional- -Applicable for vehicles with roll bar-
Supersession
Supersession
# 005
MPN: 804296..
LH ECU TRIM
-Optional- -Luggage set for rear bench- -Not for vehicles with roll bar-
# 005
MPN: 805050..
LH ECU TRIM
-Optional- -Luggage set for rear bench- -Applicable for vehicles with roll bar-
from £241.80
from £241.80
# 006
MPN: 65709200
BRACKET
from £4.04
from £4.04
# 007
MPN: 12611407
WASHER
from £0.53
from £0.53
# 008
MPN: 67505800
COMPLETE ASHTRAY
from £157.94
from £157.94
This part replaces part number 64735500
# 009
MPN: 64460400
Ferrari-PININFARINA FLAGS
from £57.26
from £57.26
# 010
MPN: 226941
CIGARETTE LIGHTER SOCKET
from £17.29
from £17.29
This part replaces part number 61107600 - and 2 more. Click to view details
# 010
MPN: 61107600
CIGARETTE LIGHTER SOCKET
-No longer supplied- -Replaced by 68913000-
Supersession
Supersession
# 010
MPN: 68913000
CIGARETTE LIGHTER SOCKET
-No longer supplied- -Replaced by 226941-
Supersession
Supersession
# 011
MPN: 226942
CIGARETTE LIGHTER
from £11.69
from £11.69
This part replaces part number 61107500
# 011
MPN: 61107500
CIGARETTE LIGHTER
-No longer supplied- -Replaced by 226942-
Supersession
Supersession
This part replaces part number 61504100
# 012
MPN: 680985
REAR CENTRE TUNNEL CONSOLE TRIM
Supersession
Supersession
# 012
MPN: 686036..
REAR CENTRE TUNNEL CONSOLE TRIM
-Applicable for version with amplifier- -Optional-
Supersession
Supersession
# 012
MPN: 804087..
REAR CENTRE TUNNEL CONSOLE TRIM
-Applicable for high power Bose Hi-Fi-
# 013
MPN: 683964..
LOWER UNIT
from £280.51
from £280.51
# 013
MPN: 695975..
LOWER UNIT
-Parking sensors- -Optional- -No longer supplied- -Replaced by 803177..-
Supersession
Supersession
# 013
MPN: 803177..
LOWER UNIT
-Parking sensors- -Optional-
Supersession
Supersession
# 014
MPN: 820991
FRONT CENTRE TUNNEL CONSOLE TRIM
-Optional radio amplifier- -Not for GD-
from £8.58
from £8.58
# 014
MPN: 820992..
FRONT CENTRE TUNNEL CONSOLE TRIM
-Optional applicable for high power Bose Hi-Fi- -Not for GD-
Supersession
Supersession
# 014
MPN: 820993..
FRONT CENTRE TUNNEL CONSOLE TRIM
-Standard- -Not for GD-
Supersession
Supersession
# 015
MPN: 65390900
FRONT INSULATION FOR CENTRE TUNNEL
-Not for GD-
from £106.08
from £106.08
# 016
MPN: 65305300
ACCELERATOR PEDAL GUARD
-Not for GD-
from £18.78
from £18.78
# 017
MPN: 14051811
NUT
-Not for GD-
from £2.44
from £2.44
This part replaces part number 14051611
# 018
MPN: 12642801
WASHER
-Not for GD-
from £0.53
from £0.53
This part replaces part number 12642824
# 019
MPN: 682607..
UNDERPEDAL TRIM
-Not for GD-
Supersession
Supersession
# 019
MPN: 690595..
UNDERPEDAL TRIM
-Applicable for GD-
Supersession
Supersession
# 020
MPN: 13311077
SCREW
from £0.53
from £0.53
# 021
MPN: 12611107
WASHER
from £0.53
from £0.53
This part replaces part number 12611342
# 022
MPN: 65709300
LH UPPER BRACKET
from £3.82
from £3.82
# 023
MPN: 65523500
BRACKET
-Not for GD-
from £24.56
from £24.56
# 023
MPN: 65538800
BRACKET
-Applicable for GD-
from £21.23
from £21.23
# 024
MPN: 10902324
SCREW
-M6 X 18-
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 025
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 026
MPN: 65522900
MOUNTING PIPE
-Not for GD-
from £79.71
from £79.71
# 026
MPN: 65538700
MOUNTING PIPE
-Applicable for GD-
from £194.52
from £194.52
# 027
MPN: 10902324
SCREW
-M6 X 18-
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 028
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 029
MPN: 10902324
SCREW
-M6 X 18-
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 030
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 031
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 032
MPN: 68091200
FOOTREST FRAME
-Not for GD-
from £241.57
from £241.57
# 032
MPN: 68503200
FOOTREST FRAME
-Applicable for GD-
from £152.06
from £152.06
# 033
MPN: 13276211
SCREW
from £0.53
from £0.53
# 034
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 035
MPN: 655381..
MAT
-Applicable for GD-
Supersession
Supersession
# 035
MPN: 685133..
MAT
-Not for GD-
Supersession
Supersession
# 036
MPN: 66122200
COVER
from £61.02
from £61.02
# 037
MPN: 65847800
SCREW
from £1.85
from £1.85
# 038
MPN: 679589..
RH ECU TRIM
-Standard- -Not for vehicles with roll bar-
Supersession
Supersession
# 038
MPN: 681436..
RH ECU TRIM
-Optional- -Applicable for vehicles with roll bar- -No longer supplied- -Replaced by 800886..-
Supersession
Supersession
# 038
MPN: 800886..
RH ECU TRIM
-Optional- -Applicable for vehicles with roll bar-
Supersession
Supersession
# 038
MPN: 804295
RH ECU TRIM
-Optional- -Luggage set for rear bench- -Not for vehicles with roll bar-
from £410.42
from £410.42
# 038
MPN: 805049
RH ECU TRIM
-Optional- -Luggage set for rear bench- -Applicable for vehicles with roll bar-
from £46.81
from £46.81
# 039
MPN: 13274177
SCREW
from £0.53
from £0.53
This part replaces part number 13274172
# 040
MPN: 68927900
SCREW
-M6 X 25-
from £0.52
from £0.52
This part replaces part number 13301277
# 040
MPN: 68928000
SCREW
-M6 X 60-
from £0.53
from £0.53
# 040
MPN: 69193000
SCREW
-M6 X 14-
from £0.53
from £0.53
# 041
MPN: 113647
NUT
from £0.54
from £0.54
# 042
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 043
MPN: 65918000
DRIVER SIDE FOOTREST COVER
-Applicable for GD-
from £72.05
from £72.05
# 044
MPN: 69058900
DRIVER FOOT REST
-Applicable for GD-
from £14.45
from £14.45
# 045
MPN: 14059111
NUT
-Applicable for GD-
from £0.47
from £0.47
# 046
MPN: 14447001
WASHER
-Applicable for GD-
Supersession
Supersession
# 047
MPN: 820994..
FRONT CENTRE TUNNEL CONSOLE TRIM
-Optional radio amplifier- -Applicable for GD-
# 047
MPN: 820995
FRONT CENTRE TUNNEL CONSOLE TRIM
-Optional applicable for high power Bose Hi-Fi- -Applicable for GD-
# 047
MPN: 820996..
FRONT CENTRE TUNNEL CONSOLE TRIM
-Standard- -Applicable for GD-
from £194.25
from £194.25
# 048
MPN: 67681200
GASKET
-Applicable for GD-
from £1.92
from £1.92
# 049
MPN: 684239..
FRONT COVER
-Applicable for F1 gearbox-
Supersession
Supersession
# 050
MPN: 680904
CENTRAL COVER
Supersession
Supersession
# 051
MPN: 680901
REAR COVER
Supersession
Supersession
# 052
MPN: 67895000
EXTERNAL GEARBOX GAITER
-Not for F1 gearbox-
from £186.53
from £186.53
# 053
MPN: 69598800
BUZZER MOUNT
-Parking sensors- -Optional- -Not for GD-
from £9.80
from £9.80
# 053
MPN: 69599400
BUZZER MOUNT
-Parking sensors- -Optional- -Applicable for GD-
from £5.46
from £5.46
# 054
MPN: 16285211
SCREW
-Parking sensors- -Optional-
from £0.53
from £0.53
# 055
MPN: 12644424
WASHER
-Parking sensors- -Optional-
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 056
MPN: 223469
BUZZER
-Parking sensors- -Optional-
from £14.84
from £14.84
# 057
MPN: 10794011
NUT
-Parking sensors- -Optional-
from £0.30
from £0.30
# 058
MPN: 69596700
PROTECTIVE MESH
-Parking sensors- -Optional-
from £18.61
from £18.61
# 059
MPN: 13271872
SCREW
-Parking sensors- -Optional-
from £0.47
from £0.47
# 060
MPN: 14370571
BRACKET
-Parking sensors- -Optional-
from £0.47
from £0.47
# 061
MPN: 223943
WIRING HARNESS
-Parking sensors- -Optional- -Applicable up to Ass. No. 67547-
from £8.35
from £8.35
# 062
MPN: 10396480
CABLE GROMMET
-Parking sensors- -Optional- -Applicable from Ass. No. 67548-
from £2.32
from £2.32
This part replaces part number 103516
# 063
MPN: 67354100
CLIP
from £25.34
from £25.34
# 064
MPN: 68744600
PLATE
from £12.24
from £12.24
# 065
MPN: 13506624
WASHER
from £0.53
from £0.53
# 066
MPN: 12601074
WASHER
from £0.53
from £0.53
This part replaces part number 12601070 which we have in stock
# 067
MPN: 14302924
SCREW
from £0.51
from £0.51
# 068
MPN: 12647604
WASHER
from £0.53
from £0.53
# 069
MPN: 69220700
PLATE
-Applicable for USA, CDN-
from £26.39
from £26.39
# 070
MPN: 13506624
WASHER
-Applicable for USA, CDN-
from £0.53
from £0.53
# 071
MPN: 12601074
WASHER
-Applicable for USA, CDN-
from £0.54
from £0.54
This part replaces part number 12601070 which we have in stock
# 072
MPN: 14302924
SCREW
-Applicable for USA, CDN-
from £0.53
from £0.53
# 073
MPN: 69177300
FIXING PLATE
-Applicable for USA, CDN-
from £6.99
from £6.99
# 074
MPN: 13270216
SCREW
-Applicable for USA, CDN-
Supersession
Supersession
# 075
MPN: 69927500
BRACKET
from £12.18
from £12.18
# 076
MPN: 81059300
GEARBOX CONTROL PANEL KIT
-Leather- -Not for USA, CDN, GD- -Applicable for F1 gearbox-
from £1,511.93
from £1,511.93
# 076
MPN: 810595..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Not for USA, CDN, GD- -Applicable for F1 gearbox-
Supersession
Supersession
# 076
MPN: 810596..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Bluetooth- -Not for USA, CDN, GD- -Applicable for F1 gearbox-
Supersession
Supersession
# 076
MPN: 81059700
GEARBOX CONTROL PANEL KIT
-Leather- -Applicable for USA, CDN- -Applicable for F1 gearbox-
from £787.77
from £787.77
# 076
MPN: 810599..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Applicable for USA, CDN- -Applicable for F1 gearbox-
Supersession
Supersession
# 076
MPN: 810600..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Bluetooth- -Applicable for USA, CDN- -Applicable for F1 gearbox-
Supersession
Supersession
# 076
MPN: 81060100
GEARBOX CONTROL PANEL KIT
-Leather- -Applicable for GD- -Applicable for F1 gearbox-
from £929.56
from £929.56
# 076
MPN: 810603..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Applicable for GD- -Applicable for F1 gearbox-
Supersession
Supersession
# 076
MPN: 810604..
GEARBOX CONTROL PANEL KIT
-Carbon version- -Bluetooth- -Applicable for GD- -Applicable for F1 gearbox-
Supersession
Supersession
# 077
MPN: 680892..
GAITER
-Leather- -Applicable for console unit in carbon fibre-
Supersession
Supersession
# 078
MPN: 80488000
REAR CENTRE TUNNEL CONSOLE INSULATION
-Applicable for high power Bose Hi-Fi- -No longer supplied-
-part-diagram-0127.webp "FERRARI F430 COUPE (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 COUPE (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (RHD) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (RHD) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (RHD) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (RHD) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (RHD) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (RHD) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (RHD) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 COUPE (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 COUPE (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 COUPE (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 COUPE (RHD) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 COUPE (RHD) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 COUPE (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (RHD) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (RHD) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (RHD) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (RHD) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (RHD) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (RHD) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (RHD) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 COUPE (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 COUPE (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (RHD) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (RHD) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (RHD) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (RHD) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (RHD) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (RHD) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (RHD) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
