0127 - DASHBOARD

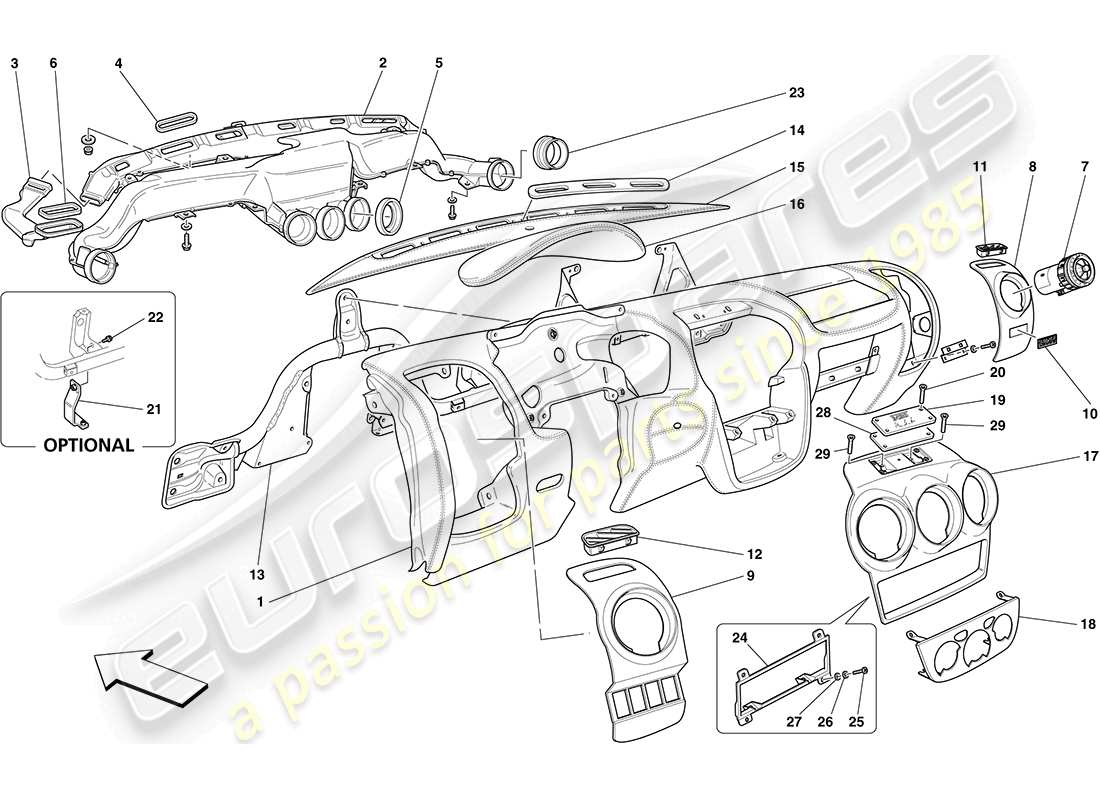

Ferrari F430 Coupe (RHD) DASHBOARD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 676850..
DASHBOARD
-Airbag disable system- -Not for UK- -No longer supplied-
from £2,619.75
from £2,619.75
# 001
MPN: 683583..
DASHBOARD
-Airbag disable system- -Applicable for UK- -No longer supplied-
Supersession
Supersession
# 001
MPN: 684429..
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
-With airbag disable system- -Not for GD-
Supersession
Supersession
# 001
MPN: 687158..
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
-With airbag disable system- -Applicable for GD-
# 001
MPN: 691414..
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
-Without airbag disable system- -Not for GD-
Supersession
Supersession
# 001
MPN: 691417..
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
-Without airbag disable system- -Applicable for GD-
Supersession
Supersession
# 001
MPN: 691418..
DASHBOARD
-Standard- -Applicable for J- -No longer supplied-
Supersession
Supersession
# 001
MPN: 691419..
DASHBOARD
-Standard- -Applicable for AUS- -No longer supplied-
# 001
MPN: 692126..
DASHBOARD
-Standard- -Applicable for USA- -No longer supplied-
Supersession
Supersession
# 001
MPN: 693051..
DASHBOARD
-Standard- -Applicable for CDN- -No longer supplied-
# 001
MPN: 802694..
DASHBOARD
-Standard- -Not for USA, CDN, J, GD- -No longer supplied-
Supersession
Supersession
# 001
MPN: 802697..
DASHBOARD
-Standard- -Applicable for UK- -No longer supplied-
Supersession
Supersession
# 002
MPN: 63352900
AIR DUCT
-Not for GD-
from £93.86
from £93.86
# 002
MPN: 65536200
AIR DUCT
-Applicable for GD-
from £95.74
from £95.74
# 003
MPN: 65132300
RH LATERAL DUCT
from £7.67
from £7.67
# 003
MPN: 65132400
LH LATERAL DUCT
from £11.61
from £11.61
# 004
MPN: 66050600
GASKET
from £3.80
from £3.80
This part replaces part number 63352700
# 005
MPN: 63353300
CENTRAL AIR VENT GASKET
from £0.69
from £0.69
This part replaces part number 68603400 - and 1 more. Click to view details
# 005
MPN: 68603400
CENTRAL AIR VENT GASKET
-No longer supplied- -Replaced by 63353300-
Supersession
Supersession
# 006
MPN: 65132500
GASKET
from £0.71
from £0.71
# 007
MPN: 68811300
AIR VENT
from £67.60
from £67.60
# 008
MPN: 67796810
RH LATERAL VENT PANEL
-PPG236411 matte sm.met.gr. 682 W- -Standard-
from £839.27
from £839.27
This part replaces part number 67796800
# 008
MPN: 68648100
RH LATERAL VENT PANEL
-Carbon version- -Optional- -Applicable until depletion-
Supersession
Supersession
# 008
MPN: 81200800
RH LATERAL VENT PANEL
-Carbon version- -Optional- -Applicable after depletion of 68648100-
from £281.14
from £281.14
This part replaces part number 68648100 - and 3 more. Click to view details
# 009
MPN: 67916310
LH LATERAL VENT PANEL
-PPG236411 matte sm.met.gr. 682 W- -Standard-
from £839.27
from £839.27
This part replaces part number 67916300
# 009
MPN: 68648200
LH LATERAL VENT PANEL
-Carbon version- -Optional- -Applicable until depletion-
Supersession
Supersession
# 009
MPN: 81200900
LH LATERAL VENT PANEL
-Carbon version- -Optional- -Applicable after depletion of 68648200-
from £363.87
from £363.87
This part replaces part number 68648200 - and 2 more. Click to view details
# 010
MPN: 68124210
CAMPIONI DEL MONDO 2003 LABEL
from £170.19
from £170.19
This part replaces part number 68124200
# 010
MPN: 69065010
CAMPIONI DEL MONDO 2004 LABEL
-No longer supplied- -Replaced by 69833810-
from £96.92
from £96.92
# 010
MPN: 69833810
CAMPIONI DEL MONDO PLAQUE
from £173.03
from £173.03
# 010
MPN: 80462510
60 YEARS LABEL
from £107.20
from £107.20
This part replaces part number 80462500
# 010
MPN: 81190900
CAMPIONI DEL MONDO 2007 LABEL
Supersession
Supersession
# 010
MPN: 82262900
CAMPIONI DEL MONDO 2008 LABEL
from £99.38
from £99.38
This part replaces part number 82253500 - and 1 more. Click to view details
# 011
MPN: 67919000
RH SEAT BELT SLOT SURROUND
from £56.88
from £56.88
# 012
MPN: 67919100
LH SEAT BELT SLOT SURROUND
from £103.41
from £103.41
# 013
MPN: 67790600
DASHBOARD SUBFRAME ASSEMBLY
-Not for GD-
from £202.29
from £202.29
# 013
MPN: 68356100
DASHBOARD SUBFRAME ASSEMBLY
-Applicable for GD-
from £209.61
from £209.61
# 014
MPN: 65018200
RH AIR VENT SURROUND
-Not for GD-
from £48.83
from £48.83
# 014
MPN: 65018300
LH AIR VENT SURROUND
-Not for GD-
from £48.83
from £48.83
# 014
MPN: 65891000
LH AIR VENT SURROUND
-Applicable for GD-
from £31.70
from £31.70
# 014
MPN: 65891100
RH AIR VENT SURROUND
-Applicable for GD-
from £31.70
from £31.70
# 015
MPN: 696595..
WINDSCREEN AIR VENT TRIM PANEL
-Not for GD-
Supersession
Supersession
# 015
MPN: 696596..
WINDSCREEN AIR VENT TRIM PANEL
-Applicable for GD-
Supersession
Supersession
# 016
MPN: 684217..
BINNACLE
Supersession
Supersession
# 017
MPN: 67796610
UPPER CENTRAL VENT PANEL
-PPG236411 matte sm.met.gr. 682 W- -Standard-
from £353.23
from £353.23
This part replaces part number 67796600 - and 3 more. Click to view details
# 017
MPN: 68648300
UPPER CENTRAL VENT PANEL
-Carbon version- -Optional- -Applicable until depletion-
Supersession
Supersession
# 017
MPN: 81201800
UPPER CENTRAL VENT PANEL
-Carbon version- -Optional- -Applicable after depletion of 68648300-
from £1,035.80
from £1,035.80
This part replaces part number 68648300 - and 2 more. Click to view details
# 018
MPN: 67797010
LOWER CENTRAL VENT PANEL
-PPG236411 matte sm.met.gr. 682 W- -Standard-
from £109.25
from £109.25
This part replaces part number 67797000 - and 1 more. Click to view details
# 018
MPN: 68648400
LOWER CENTRAL VENT PANEL
-Carbon version- -Optional- -Applicable until depletion-
Supersession
Supersession
# 018
MPN: 68971600
LOWER CENTRAL VENT PANEL
-Carbon version- -Optional- -Applicable after depletion of 68648400- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 68648400
# 018
MPN: 81200300
LOWER CENTRAL VENT PANEL
-Carbon version- -Optional- -Applicable after depletion of 68971600-
from £211.93
from £211.93
This part replaces part number 68971600 - and 5 more. Click to view details
# 019
MPN: 68719900
MODEL PLATE
-Standard-
from £73.45
from £73.45
# 019
MPN: 68872700
MODEL PLATE
-Carbon- -Optional-
from £195.53
from £195.53
# 019
MPN: 69119900
DEDICATION PLAQUE
-Optional- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 68148500
# 019
MPN: 80728900
DEDICATION PLAQUE
-Optional- -Applicable after depletion of 69119900-
from £330.39
from £330.39
This part replaces part number 69119900
# 020
MPN: 64214100
SCREW
-Self-locking-
from £0.53
from £0.53
# 020
MPN: 68927600
SCREW
-Black-
from £0.47
from £0.47
# 021
MPN: 68615200
AMPLIFIER BOX FASTENER BRACKET
-Optional- -Applicable for vehicles with amplifier- -Not for GD-
from £29.59
from £29.59
# 021
MPN: 69074200
AMPLIFIER BOX FASTENER BRACKET
-Optional- -Applicable for vehicles with amplifier- -Applicable for GD-
from £33.75
from £33.75
# 022
MPN: 16285127
SCREW
-Optional- -Applicable for vehicles with amplifier-
from £0.53
from £0.53
# 023
MPN: 68134900
RH LATERAL AIR VENT GASKET
from £5.28
from £5.28
# 023
MPN: 68135000
LH LATERAL AIR VENT GASKET
from £5.28
from £5.28
# 024
MPN: 68662200
RADIO FRAME
from £13.20
from £13.20
# 025
MPN: 14304024
SCREW
from £0.53
from £0.53
# 026
MPN: 12637801
WASHER
from £0.53
from £0.53
# 027
MPN: 12620374
WASHER
from £0.53
from £0.53
# 028
MPN: 69140100
DEDICATION PLAQUE MOUNTING
from £33.14
from £33.14
# 029
MPN: 13270216
SCREW
Supersession
Supersession
-part-diagram-0128.webp "FERRARI F430 COUPE (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (RHD) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (RHD) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (RHD) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (RHD) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (RHD) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (RHD) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (RHD) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 COUPE (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 COUPE (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 COUPE (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 COUPE (RHD) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 COUPE (RHD) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 COUPE (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (RHD) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (RHD) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (RHD) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (RHD) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (RHD) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (RHD) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (RHD) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (RHD) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (RHD) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 COUPE (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 COUPE (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (RHD) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (RHD) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (RHD) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (RHD) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (RHD) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (RHD) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (RHD) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (RHD) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (RHD) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (RHD) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 COUPE (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
