0143 - HIGH POWER BOSE HI FI SYSTEM

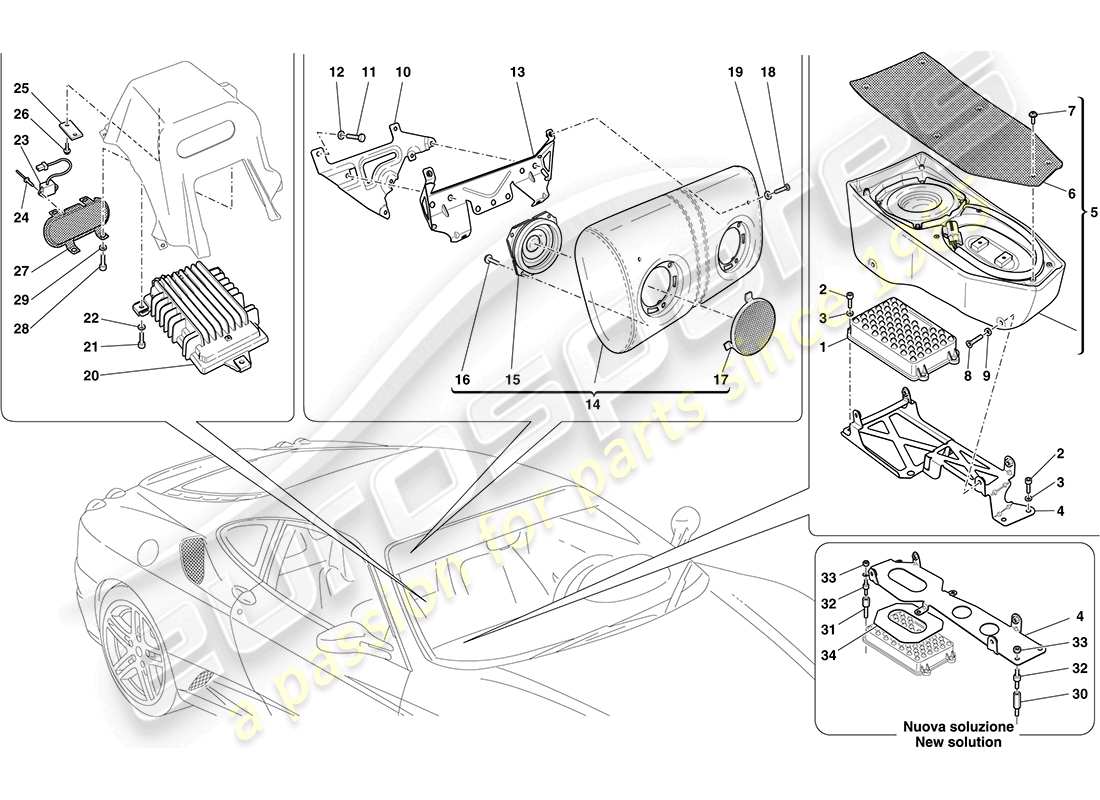

Ferrari F430 Coupe (RHD) HIGH POWER BOSE HI FI SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 233478
BOSE BASS-BOX AMPLIFIER
from £758.16
from £758.16
# 002
MPN: 14358624
SCREW
-Applicable up to Ass. No. 74795-
from £0.50
from £0.50
# 003
MPN: 12638107
WASHER
-Applicable up to Ass. No. 74795-
from £0.58
from £0.58
# 004
MPN: 80409000
BRACKET
-Applicable up to Ass. No. 74795-
from £225.90
from £225.90
# 004
MPN: 80946800
BRACKET
-Applicable from Ass. No. 74796-
from £156.39
from £156.39
# 005
MPN: 801991..
BOSE BASS-BOX SUBSTRUCTURE
Supersession
Supersession
# 006
MPN: 80199300
GRILLE
from £110.92
from £110.92
# 007
MPN: 16085177
SCREW
from £1.51
from £1.51
# 008
MPN: 68927900
SCREW
-M6 X 25-
from £0.53
from £0.53
This part replaces part number 13301277
# 009
MPN: 12611107
WASHER
from £0.51
from £0.51
This part replaces part number 12611342
# 010
MPN: 80569100
RH RECESS
from £291.92
from £291.92
# 010
MPN: 80569300
LH RECESS
from £291.92
from £291.92
# 011
MPN: 10902124
SCREW
-L. 14 mm-
from £0.50
from £0.50
This part replaces part number 10902111 - and 1 more. Click to view details
# 012
MPN: 13550201
WASHER
from £0.53
from £0.53
# 013
MPN: 80481600
MOUNTING BRACKET
from £328.42
from £328.42
# 014
MPN: 804827..
COMPLETE RH TWIDDLER CONTAINER
-Not for USA, CDN-
Supersession
Supersession
# 014
MPN: 804838..
COMPLETE RH TWIDDLER CONTAINER
-Applicable for USA, CDN-
Supersession
Supersession
# 014
MPN: 806021..
COMPLETE LH TWIDDLER CONTAINER
Supersession
Supersession
# 014
MPN: 811299..
COMPLETE RH TWIDDLER CONTAINER
-Applicable for vehicles with rollbar-
# 014
MPN: 811300..
COMPLETE LH TWIDDLER CONTAINER
-Applicable for vehicles with rollbar-
# 015
MPN: 227270
TWIDDLER
from £56.19
from £56.19
# 016
MPN: 16082777
SCREW
from £0.73
from £0.73
# 017
MPN: 80584300
FIXING PLATE
from £182.44
from £182.44
This part replaces part number 66854100
# 018
MPN: 68927400
SCREW
from £1.08
from £1.08
# 019
MPN: 12611107
WASHER
from £0.48
from £0.48
This part replaces part number 12611342
# 020
MPN: 233479
BOSE 8800 AMPLIFIER
from £1,716.48
from £1,716.48
# 021
MPN: 14305321
SCREW
Supersession
Supersession
# 022
MPN: 12643724
WASHER
from £0.52
from £0.52
This part replaces part number 109684 - and 3 more. Click to view details
# 023
MPN: 192522
BOSE AUDIOPILOT MICROPHONE
from £26.08
from £26.08
# 024
MPN: 15960250
RIVET
Supersession
Supersession
# 025
MPN: 80552200
CABLE RETAINER BRACKET
from £3.86
from £3.86
# 026
MPN: 16082977
SCREW
from £4.29
from £4.29
# 027
MPN: 80554000
GRILLE
from £88.01
from £88.01
# 028
MPN: 14418924
SCREW
from £0.53
from £0.53
This part replaces part number 82609400
# 029
MPN: 13550077
WASHER
from £1.98
from £1.98
# 030
MPN: 80858000
STUD BOLT
-Applicable from Ass. No. 74796-
from £5.78
from £5.78
# 031
MPN: 80858100
STUD BOLT
-Applicable from Ass. No. 74796-
from £4.99
from £4.99
# 032
MPN: 80858400
MOUNTING
-Applicable from Ass. No. 74796-
from £4.49
from £4.49
# 033
MPN: 12577821
NUT
-Applicable from Ass. No. 74796-
from £0.52
from £0.52
# 034
MPN: 81017800
GASKET
from £5.80
from £5.80
