0001 - crankcase

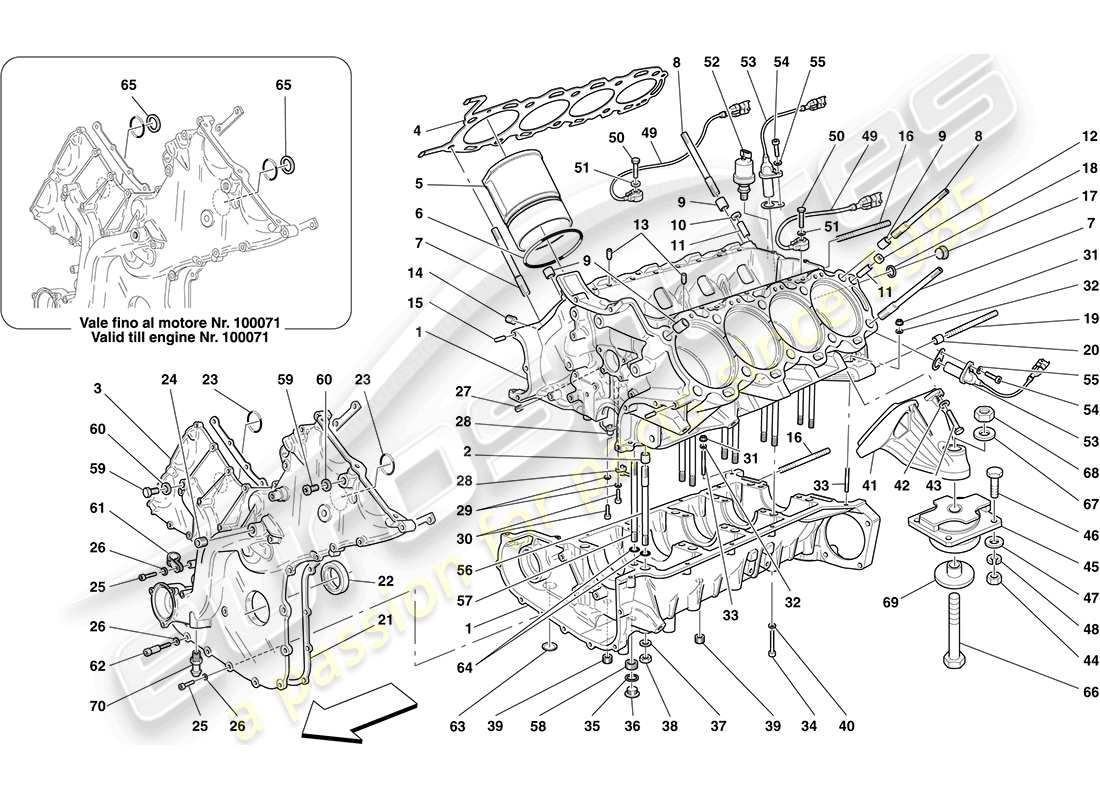

Ferrari F430 Coupe (USA) CRANKCASE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 202077
COMPLETE CRANKCASE
-Applicable up to engine No. 89098-
from £10,063.44
from £10,063.44
# 001
MPN: 215926
COMPLETE CRANKCASE
-Also replace (mount 227197, O-ring 104212, shims 222874)- -Applicable from engine No. 89099 up to engine No. 116245- -No longer supplied- -Replaced by 236095-
from £10,063.44
from £10,063.44
# 001
MPN: 233052
COMPLETE CRANKCASE
-Applicable with shims 222874, Table 2 pos.4 and 5- -Applicable up to Ass. No. 72741- -Applicable from engine No. 116246- -No longer supplied- -Replaced by 236095-
Supersession
Supersession
# 001
MPN: 236095
COMPLETE CRANKCASE
-Replaces 233052- -Applicable with shims 222874, Table 2 pos.4 and 5- -Applicable from Ass. No. 72742-
from £3,270.15
from £3,270.15
This part replaces part number 233052
# 002
MPN: 176421
CENTRING DOWEL
from £2.55
from £2.55
# 003
MPN: 198203
FRONT COVER
-See detail in TI 1544- -Applicable up to engine No. 100071- -No longer supplied- -Replaced by 221367-
from £879.24
from £879.24
# 003
MPN: 221367
FRONT COVER
-See detail in TI 1544- -Applicable from engine No. 100072 up to engine No. 117478- -No longer supplied- -Replaced by 229253-
Supersession
Supersession
# 003
MPN: 229253
FRONT COVER
-See detail in TI 1544- -Applicable from engine No. 117479-
from £524.48
from £524.48
This part replaces part number 198203 which we have in stock - and 1 more. Click to view details
# 004
MPN: 184966
RH HEAD GASKET
from £41.59
from £41.59
# 004
MPN: 184967
LH HEAD GASKET
from £41.59
from £41.59
# 005
MPN: 190770
CYLINDER SLEEVE
from £109.14
from £109.14
# 006
MPN: 186251
GASKET
from £1.57
from £1.57
# 007
MPN: 194754
STUD BOLT
-No longer supplied- -Replaced by 217967-
from £11.40
from £11.40
# 007
MPN: 217967
STUD BOLT
from £6.44
from £6.44
This part replaces part number 194754
# 008
MPN: 194755
STUD BOLT
-No longer supplied- -Replaced by 217968-
from £10.01
from £10.01
# 008
MPN: 217968
STUD BOLT
from £7.64
from £7.64
This part replaces part number 194755
# 009
MPN: 185360
CENTRING DOWEL
from £1.75
from £1.75
# 010
MPN: 201850
DOWEL
from £2.88
from £2.88
# 011
MPN: 200458
CHECK VALVE
from £5.50
from £5.50
# 012
MPN: 201849
DOWEL
from £3.40
from £3.40
# 013
MPN: 177727
CENTRING DOWEL
from £1.68
from £1.68
# 014
MPN: 164400
THREADED PLUG
from £2.16
from £2.16
This part replaces part number 194490
# 015
MPN: 175611
CENTRING DOWEL
from £1.14
from £1.14
# 016
MPN: 13546734
STUD BOLT
from £0.76
from £0.76
# 017
MPN: 10275011
THREADED PLUG
-Applicable after depletion of 193885- -No longer supplied- -Replaced by 10304511-
from £1.08
from £1.08
This part replaces part number 10275001 - and 3 more. Click to view details
# 017
MPN: 10304511
THREADED PLUG
from £1.56
from £1.56
# 017
MPN: 193885
THREADED PLUG
-Applicable until depletion-
from £1.90
from £1.90
# 018
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 019
MPN: 13546934
STUD BOLT
from £1.17
from £1.17
# 020
MPN: 100052
CENTRING DOWEL
from £1.52
from £1.52
# 021
MPN: 193656
FRONT COVER GASKET
-Applicable until depletion-
Supersession
Supersession
# 021
MPN: 245464
FRONT COVER GASKET
-Applicable after depletion of 193656- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 193656
# 021
MPN: 323979
FRONT COVER GASKET
-Applicable after depletion of 245464-
from £29.43
from £29.43
This part replaces part number 245464
# 022
MPN: 188717
COVER STRIP
from £15.77
from £15.77
# 023
MPN: 183010
O-RING
from £1.04
from £1.04
# 024
MPN: 14324940
THREADED PLUG
from £1.08
from £1.08
# 025
MPN: 14303924
SCREW
-M6 X 70-
from £0.53
from £0.53
# 025
MPN: 14305524
SCREW
-M6 X 30-
from £0.53
from £0.53
# 025
MPN: 14305624
SCREW
-M6 X 35-
from £0.53
from £0.53
This part replaces part number 14305621
# 025
MPN: 14305924
SCREW
-M6 X 45-
from £0.53
from £0.53
# 025
MPN: 14306024
SCREW
-M6 X 50-
from £1.31
from £1.31
# 025
MPN: 14432224
SCREW
-M6 X 22- -No longer supplied- -Replaced by 231619-
from £0.53
from £0.53
This part replaces part number 14432221
# 025
MPN: 14433124
SCREW
-M6 X 18-
from £0.49
from £0.49
This part replaces part number 14433121
# 025
MPN: 231619
SCREW
-M6 X 22-
from £0.54
from £0.54
# 026
MPN: 11197774
WASHER
from £0.50
from £0.50
This part replaces part number 11197770 - and 3 more. Click to view details
# 027
MPN: 13525770
THREADED INSERT
from £1.50
from £1.50
This part replaces part number 103830
# 028
MPN: 175657
PISTON COOLING NOZZLE
from £5.28
from £5.28
# 029
MPN: 11181474
WASHER
-No longer supplied-
from £0.51
from £0.51
# 030
MPN: 14302921
SCREW
-No longer supplied- -Replaced by 252274-
from £0.51
from £0.51
This part replaces part number 3099423
# 030
MPN: 252274
SCREW WITH WASHER
from £0.51
from £0.51
# 031
MPN: 132877
NUT
from £1.75
from £1.75
This part replaces part number 67190100
# 032
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 033
MPN: 13541624
STUD BOLT
from £8.22
from £8.22
This part replaces part number 13541621
# 034
MPN: 14305324
SCREW
from £0.53
from £0.53
This part replaces part number 14305321
# 034
MPN: 14305424
SCREW
-M6 X 25- -No longer supplied- -Replaced by 231620-
from £0.47
from £0.47
This part replaces part number 14305421 - and 2 more. Click to view details
# 034
MPN: 231620
SCREW
from £0.51
from £0.51
# 035
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 036
MPN: 104280
THREADED PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 037
MPN: 178348
WASHER
from £0.47
from £0.47
# 038
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 039
MPN: 14325140
THREADED PLUG
from £1.01
from £1.01
# 040
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 041
MPN: 207220
RH ENGINE MOUNTING STRUT
from £838.91
from £838.91
# 041
MPN: 207221
LH ENGINE MOUNTING STRUT
from £461.40
from £461.40
# 042
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 043
MPN: 11306934
SCREW
-Applicable from Ass. No. 60389-
from £0.47
from £0.47
This part replaces part number 11306921
# 043
MPN: 15970734
SCREW
-Applicable up to Ass. No. 60388-
from £0.51
from £0.51
# 044
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 045
MPN: 209069
ENGINE MOUNTING BUSH
-Applicable until depletion-
Supersession
Supersession
# 045
MPN: 216357
ENGINE MOUNTING BUSH
-Applicable after depletion of 209069-
from £99.75
from £99.75
This part replaces part number 209069 - and 1 more. Click to view details
# 046
MPN: 15970634
SCREW
from £1.55
from £1.55
# 047
MPN: 12646824
WASHER
from £0.48
from £0.48
# 048
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 049
MPN: 187739
KNOCK SENSOR
-Flywheel side- -Replaced by 219872 and 219873- -No longer supplied-
from £55.20
from £55.20
# 049
MPN: 187740
KNOCK SENSOR
-Timing side- -Replaced by 219872 and 219873- -No longer supplied-
from £32.46
from £32.46
# 049
MPN: 219868
RH KNOCK SENSOR
-Flywheel side-
from £68.76
from £68.76
# 049
MPN: 219869
RH KNOCK SENSOR
-Timing side-
from £68.76
from £68.76
# 049
MPN: 219870
LH KNOCK SENSOR
-Timing side-
from £55.00
from £55.00
# 049
MPN: 219871
LH KNOCK SENSOR
-Flywheel side-
from £68.76
from £68.76
# 050
MPN: 16043834
SCREW
-No longer supplied- -Replaced by 231629-
from £0.51
from £0.51
This part replaces part number 16043824
# 050
MPN: 231629
SCREW
from £0.53
from £0.53
# 051
MPN: 11198074
WASHER
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 052
MPN: 201207
PRESSURE TRANSMITTER
-Applicable until depletion-
Supersession
Supersession
# 052
MPN: 304074
PRESSURE TRANSMITTER
-Applicable after depletion of 201207-
from £127.40
from £127.40
This part replaces part number 201207
# 053
MPN: 182194
ROTATION SPEED SENSOR
-Replaced by 219872 and 219873- -No longer supplied-
from £48.44
from £48.44
This part replaces part number 164937
# 053
MPN: 219872
RH CYLINDER BANK RPM SENSOR
from £73.48
from £73.48
# 053
MPN: 219873
LH CYLINDER BANK RPM SENSOR
from £81.42
from £81.42
# 054
MPN: 14305724
SCREW
from £0.53
from £0.53
This part replaces part number 11567624 - and 2 more. Click to view details
# 055
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 056
MPN: 194756
STUD BOLT
-No longer supplied- -Replaced by 217794-
from £35.74
from £35.74
# 056
MPN: 217794
STUD BOLT
from £5.46
from £5.46
This part replaces part number 194756
# 057
MPN: 194757
STUD BOLT
-No longer supplied- -Replaced by 215652-
from £4.02
from £4.02
This part replaces part number 185084 which we have in stock
# 057
MPN: 215652
STUD BOLT
-No longer supplied- -Replaced by 217796-
Supersession
Supersession
# 057
MPN: 217796
STUD BOLT
from £5.39
from £5.39
This part replaces part number 215652
# 058
MPN: 112254
THREADED INSERT
-No longer supplied- -Replaced by 223577-
from £2.41
from £2.41
# 058
MPN: 223577
THREADED INSERT
from £2.31
from £2.31
# 059
MPN: 187718
BLEED PLUG
from £3.65
from £3.65
# 060
MPN: 10284460
GASKET
from £0.47
from £0.47
# 061
MPN: 10441590
BRACKET WITH SHEATH
from £0.53
from £0.53
This part replaces part number 10113600
# 062
MPN: 206672
STUD BOLT
from £3.38
from £3.38
# 063
MPN: 10158801
EXPANDABLE CAP
from £0.81
from £0.81
This part replaces part number 10158800
# 064
MPN: 134704
O-RING
from £0.94
from £0.94
# 065
MPN: 191620
WATER OUTLET RESTRICTOR
-Applicable up to engine No. 100071-
from £12.17
from £12.17
# 066
MPN: 11369634
SCREW
from £5.84
from £5.84
This part replaces part number 11369624
# 067
MPN: 12601774
WASHER
from £0.71
from £0.71
This part replaces part number 12601779
# 068
MPN: 176573
NUT
from £1.08
from £1.08
This part replaces part number 158307
# 069
MPN: 182141
RETAINER WASHER
from £13.01
from £13.01
# 070
MPN: 213389
CONNECTOR
from £14.10
from £14.10
-part-diagram-0002.webp "FERRARI F430 COUPE (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 COUPE (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 COUPE (USA) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 COUPE (USA) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 COUPE (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (USA) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (USA) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (USA) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (USA) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (USA) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (USA) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (USA) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (USA) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (USA) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (USA) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (USA) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (USA) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (USA) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (USA) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (USA) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (USA) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (USA) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (USA) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (USA) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 COUPE (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 COUPE (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (USA) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (USA) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (USA) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (USA) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (USA) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (USA) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (USA) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (USA) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (USA) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (USA) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (USA) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (USA) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (USA) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (USA) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (USA) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (USA) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 COUPE (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 COUPE (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 COUPE (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (USA) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (USA) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (USA) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (USA) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (USA) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (USA) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (USA) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (USA) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (USA) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (USA) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
