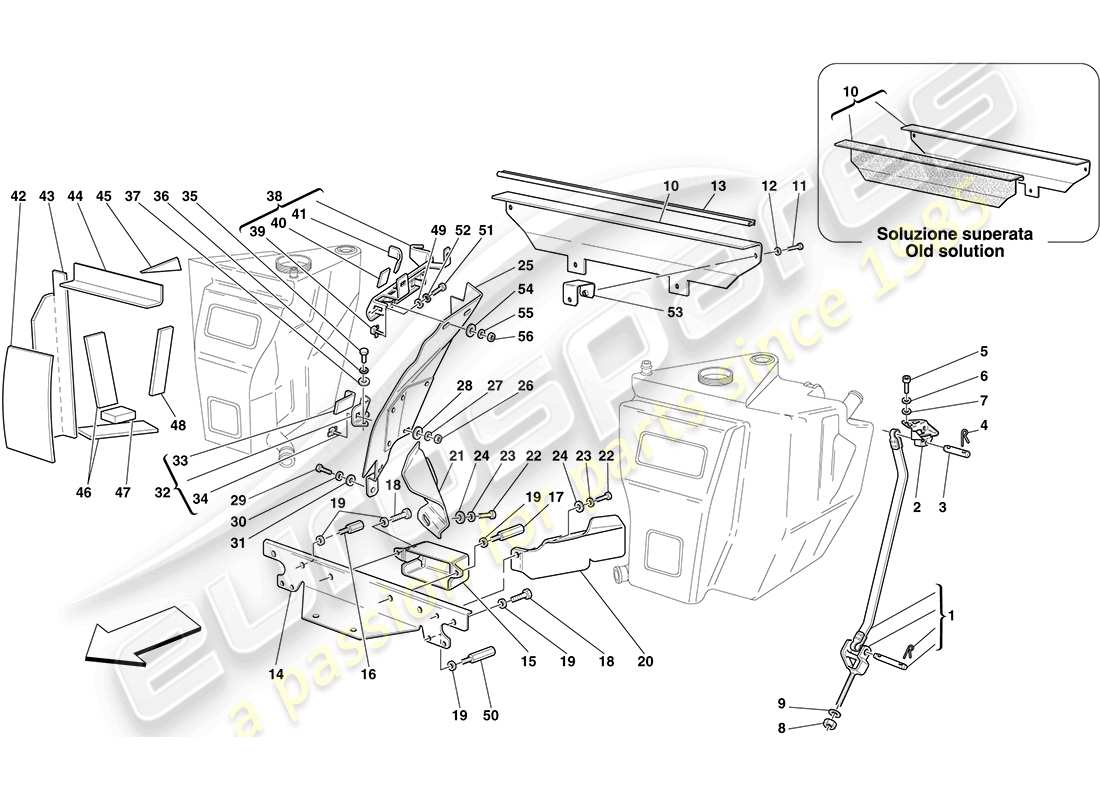

0011 - FUEL TANKS - FASTENERS AND GUARDS
Ferrari F430 Coupe (USA) FUEL TANKS - FASTENERS AND GUARDS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 180348
TANK FASTENING STRAP
from £26.46
from £26.46
This part replaces part number 174098 - and 2 more. Click to view details
# 002
MPN: 174445
RH BRACKET
from £10.09
from £10.09
# 002
MPN: 175768
LH BRACKET
from £3.67
from £3.67
# 003
MPN: 103447
PIN
from £12.86
from £12.86
# 004
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 005
MPN: 14305324
SCREW
from £0.50
from £0.50
This part replaces part number 14305321
# 006
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.52
from £0.52
This part replaces part number 12601221 - and 5 more. Click to view details
# 006
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 007
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 008
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 009
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 010
MPN: 209657
SEPARATOR HEAT SHIELD
-No longer supplied- -Replaced by 210814-
Supersession
Supersession
# 010
MPN: 210814
SEPARATOR HEAT SHIELD
from £47.20
from £47.20
This part replaces part number 209657 - and 1 more. Click to view details
# 011
MPN: 10902424
SCREW
-No longer supplied- -Replaced by 16285127-
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 011
MPN: 16285127
SCREW
from £0.51
from £0.51
# 012
MPN: 12638177
WASHER
-No longer supplied- -Replaced by 12638178-
from £1.08
from £1.08
This part replaces part number 12638108 - and 1 more. Click to view details
# 012
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 012
MPN: 12644424
WASHER
-No longer supplied- -Replaced by 12638177-
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 013
MPN: 190115
RUBBER GASKET
from £19.66
from £19.66
# 014
MPN: 198222
GUARD BRACKET
from £23.69
from £23.69
# 015
MPN: 186045
CHASSIS
from £19.33
from £19.33
This part replaces part number 176994 - and 1 more. Click to view details
# 016
MPN: 178772
STUD BOLT
from £5.78
from £5.78
# 017
MPN: 179242
STUD BOLT
-No longer supplied- -Replaced by 182363-
from £4.13
from £4.13
# 017
MPN: 182363
STUD BOLT
from £15.64
from £15.64
# 018
MPN: 10902421
SCREW
from £0.53
from £0.53
# 019
MPN: 13550221
WASHER
from £0.47
from £0.47
# 020
MPN: 180233
LH LOWER HEAT SHIELD
-Applicable until depletion-
from £21.86
from £21.86
# 020

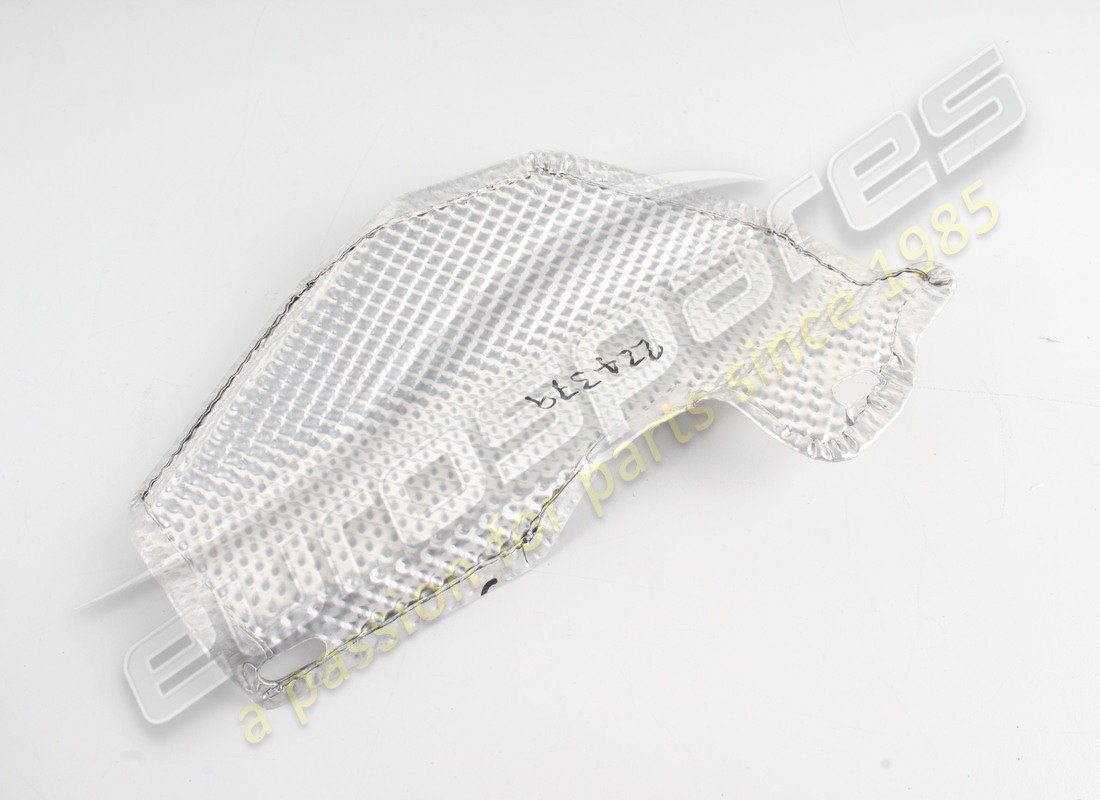

MPN: 224379
LH LOWER HEAT SHIELD
-Applicable after depletion of 180233-
from £187.58
from £187.58
This part replaces part number 180233 which we have in stock
# 021
MPN: 188471
RH LOWER HEAT SHIELD
-Applicable until depletion-
from £25.51
from £25.51
# 021
MPN: 224381
RH LOWER HEAT SHIELD
-Applicable after depletion of 188471-
from £103.17
from £103.17
This part replaces part number 188471 which we have in stock - and 1 more. Click to view details
# 022
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 023
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 023
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 024
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 025
MPN: 208492
LH HEAT SHIELD
-Applicable until depletion-
from £88.60
from £88.60
# 025
MPN: 208493
RH HEAT SHIELD
-Applicable until depletion-
from £88.60
from £88.60
# 025
MPN: 224386
LH HEAT SHIELD
-Applicable after depletion of 208492-
from £234.99
from £234.99
This part replaces part number 208492 which we have in stock - and 2 more. Click to view details
# 025
MPN: 224387
RH HEAT SHIELD
-Applicable after depletion of 208493-
from £112.19
from £112.19
This part replaces part number 208493 which we have in stock - and 1 more. Click to view details
# 026
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 027
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 027
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 028
MPN: 12644424
WASHER
from £0.54
from £0.54
This part replaces part number 12644401 - and 1 more. Click to view details
# 029
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 030
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 030
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 031
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 032
MPN: 177774
LOWER LH TANK FASTENER BRACKET
from £5.49
from £5.49
# 032
MPN: 177775
LOWER RH TANK FASTENER BRACKET
from £22.13
from £22.13
# 033
MPN: 177772
LH RUBBER SPACER
from £1.23
from £1.23
# 033
MPN: 177773
RH RUBBER SPACER
from £1.23
from £1.23
# 034
MPN: 14664790
CAGE SCREW
from £0.53
from £0.53
# 035
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 036
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 036
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 037
MPN: 12647624
WASHER
from £0.51
from £0.51
This part replaces part number 12647611
# 038
MPN: 177770
RH TANK FASTENER BRACKET
from £48.56
from £48.56
# 038
MPN: 177771
LH TANK FASTENER BRACKET
from £48.56
from £48.56
# 039
MPN: 14664790
CAGE SCREW
from £0.53
from £0.53
# 040
MPN: 177769
RUBBER SHIM
from £0.71
from £0.71
# 041
MPN: 177768
RUBBER SHIM
from £0.47
from £0.47
# 042
MPN: 177752
RUBBER SHIM
from £7.58
from £7.58
# 043
MPN: 181191
RH RUBBER SPACER
from £6.68
from £6.68
# 043
MPN: 181192
LH RUBBER SPACER
from £6.68
from £6.68
# 044
MPN: 181377
RUBBER SHIM
from £3.05
from £3.05
# 045
MPN: 177753
RH RUBBER SPACER
from £1.81
from £1.81
# 045
MPN: 177763
LH RUBBER SPACER
from £1.81
from £1.81
# 046
MPN: 177749
RUBBER SHIM
from £2.32
from £2.32
# 047
MPN: 177748
RUBBER SHIM
from £1.62
from £1.62
# 048
MPN: 159147
RUBBER SHIM
from £0.53
from £0.53
# 049
MPN: 12647624
WASHER
from £0.53
from £0.53
This part replaces part number 12647611
# 050
MPN: 182363
STUD BOLT
from £15.64
from £15.64
# 051
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 052
MPN: 12601274
WASHER
-Applicable after depletion of 12605374-
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 052
MPN: 12605374
WASHER
-Applicable until depletion-
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 053
MPN: 211384
LH BRACKET
-Applicable up to Ass. No. 72001-
from £6.30
from £6.30
# 053
MPN: 212275
RH BRACKET
-Applicable up to Ass. No. 72001-
from £6.10
from £6.10
# 053
MPN: 231369
LH BRACKET
-Applicable from Ass. No. 72002-
from £8.75
from £8.75
# 053
MPN: 231370
RH BRACKET
-Applicable from Ass. No. 72002-
from £8.75
from £8.75
# 054
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 055
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 056
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
-part-diagram-0012.webp "FERRARI F430 COUPE (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 COUPE (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 COUPE (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 COUPE (USA) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 COUPE (USA) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 COUPE (USA) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 COUPE (USA) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 COUPE (USA) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 COUPE (USA) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 COUPE (USA) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 COUPE (USA) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 COUPE (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 COUPE (USA) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 COUPE (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 COUPE (USA) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 COUPE (USA) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 COUPE (USA) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 COUPE (USA) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 COUPE (USA) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 COUPE (USA) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 COUPE (USA) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 COUPE (USA) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 COUPE (USA) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 COUPE (USA) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 COUPE (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 COUPE (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 COUPE (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 COUPE (USA) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 COUPE (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 COUPE (USA) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 COUPE (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 COUPE (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 COUPE (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 COUPE (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 COUPE (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 COUPE (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 COUPE (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 COUPE (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 COUPE (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 COUPE (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 COUPE (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 COUPE (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 COUPE (USA) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 COUPE (USA) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 COUPE (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 COUPE (USA) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 COUPE (USA) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 COUPE (USA) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 COUPE (USA) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 COUPE (USA) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 COUPE (USA) ROOF - STRUCTURE PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 COUPE (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 COUPE (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 COUPE (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 COUPE (USA) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 COUPE (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 COUPE (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 COUPE (USA) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 COUPE (USA) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 COUPE (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 COUPE (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 COUPE (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 COUPE (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 COUPE (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 COUPE (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 COUPE (USA) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 COUPE (USA) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 COUPE (USA) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 COUPE (USA) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 COUPE (USA) RACING SEAT-4 POINT SEAT HARNESS-ROLLBAR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 COUPE (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 COUPE (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 COUPE (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 COUPE (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 COUPE (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 COUPE (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 COUPE (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 COUPE (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 COUPE (USA) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 COUPE (USA) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 COUPE (USA) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 COUPE (USA) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 COUPE (USA) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 COUPE (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 COUPE (USA) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 COUPE (USA) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 COUPE (USA) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 COUPE (USA) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 COUPE (USA) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 COUPE (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 COUPE (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 COUPE (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 COUPE (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 COUPE (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 COUPE (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 COUPE (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 COUPE (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 COUPE (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 COUPE (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 COUPE (USA) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 COUPE (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 COUPE (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
