0022 - OIL / WATER PUMP

Ferrari F430 Scuderia Spider 16M (Europe) OIL / WATER PUMP Parts Diagram

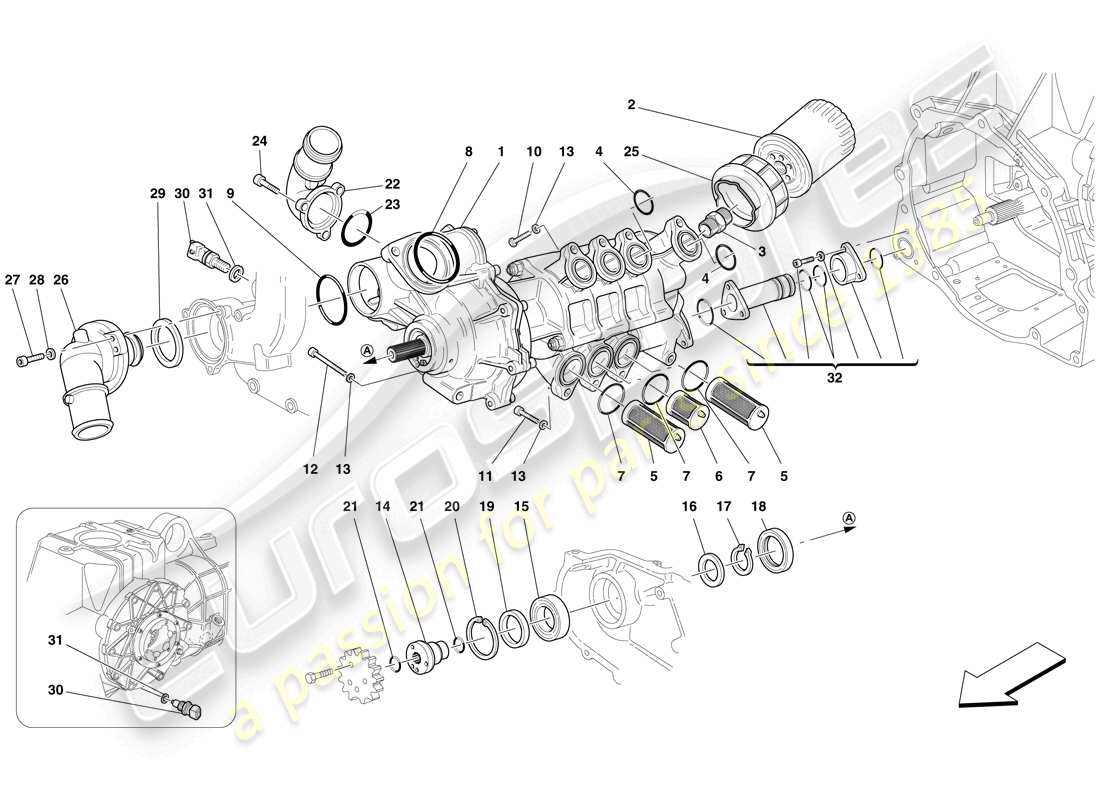

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 001
                                                      MPN: 217628
                                                      COMPLETE OIL-WATER PUMP
                                                      from £1,355.33
                                                      from £1,355.33
                                                      COMPLETE WATER AND OIL PUMP Genuine Ferrari Part - New In stock
                                                      # 002
                                                      MPN: 234742
                                                      OIL FILTER CARTRIDGE
                                                      from £29.23
                                                      from £29.23
                                                      This part replaces part number 200595
                                                      OIL FILTER Genuine Ferrari Part - New In stock
                                                      OIL FILTER Original Equipment - New In stock
                                                      # 003
                                                      MPN: 177604
                                                      THREADED CONNECTOR
                                                      from £7.44
                                                      from £7.44
                                                      THREADED UNION Genuine Ferrari Part - New (to order)
                                                      THREADED UNION M.25X1.5-1 Genuine Maserati Part - New (to order)
                                                      # 004
                                                      MPN: 133938
                                                      O-RING
                                                      from £0.53
                                                      from £0.53
                                                      GASKET Genuine Ferrari Part - New In stock
                                                      O-RING D.28.3X1.7 Genuine Maserati Part - New In stock
                                                      # 005
                                                      MPN: 187051
                                                      LATERAL OIL RECOVERY FILTER
                                                      from £16.76
                                                      from £16.76
                                                      OIL PUMP FILTER Genuine Ferrari Part - New (to order)
                                                      OIL PUMP FILTER Genuine Maserati Part - New (to order)
                                                      # 006
                                                      MPN: 187162
                                                      CENTRAL OIL RECOVERY FILTER
                                                      from £16.10
                                                      from £16.10
                                                      CENTRAL OIL RECOVERY FILTER. Genuine Ferrari Part - New In stock
                                                      OIL PUMP FILTER Genuine Maserati Part - New (to order)
                                                      # 007
                                                      MPN: 148225
                                                      O-RING
                                                      from £0.53
                                                      from £0.53
                                                      GASKET Genuine Ferrari Part - New In stock
                                                      O-RING D. 31.47X Genuine Maserati Part - New (to order)
                                                      # 008
                                                      MPN: 132829
                                                      O-RING
                                                      from £0.83
                                                      from £0.83
                                                      gasket. Genuine Ferrari Part - New In stock
                                                      O-RING D. 45.69- 8X 100 Genuine Maserati Part - New (to order)
                                                      # 009
                                                      MPN: 141250
                                                      O-RING
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 227203
                                                      GASKET Genuine Ferrari Part - New In stock
                                                      O RING GASKET Genuine Maserati Part - New (to order)
                                                      # 010
                                                      MPN: 185345
                                                      SCREW
                                                      -M8 X 25-
                                                      from £1.80
                                                      from £1.80
                                                      SCREW. Genuine Ferrari Part - New In stock
                                                      SMALL-SIZED HH SCREW M8X1.25X25 Genuine Maserati Part - New (to order)
                                                      # 011
                                                      MPN: 231628
                                                      SCREW
                                                      -M8 X 25-
                                                      from £0.52
                                                      from £0.52
                                                      SCREW -M 8X25- Genuine Ferrari Part - New (to order)
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      # 011
                                                      MPN: 231629
                                                      SCREW
                                                      -M8 X 30-
                                                      from £0.54
                                                      from £0.54
                                                      SCREW -M 8X30- Genuine Ferrari Part - New (to order)
                                                      SOCKET HEAD SCREW WITH WASHER M8X Genuine Maserati Part - New (to order)
                                                      # 012
                                                      MPN: 231630
                                                      SCREW
                                                      -M8 X 65-
                                                      from £0.71
                                                      from £0.71
                                                      SCREW -M 8X65- Genuine Ferrari Part - New (to order)
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      # 013
                                                      MPN: 11198074
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                      WASHER Genuine Ferrari Part - New In stock
                                                      TAPERED RUBBER WASHER D8.5-15X1.8 Genuine Maserati Part - New (to order)
                                                      # 014
                                                      MPN: 189778
                                                      JOINT
                                                      from £18.53
                                                      from £18.53
                                                      COUPLING Genuine Ferrari Part - New (to order)
                                                      PUMP CONTROL SHAFT DRIVING JOINT Genuine Maserati Part - New (to order)
                                                      # 015
                                                      MPN: 155996
                                                      BALL BEARING
                                                      from £6.69
                                                      from £6.69
                                                      BALL BEARING. Genuine Ferrari Part - New (to order)
                                                      GROOVED BALL BEARING D.25-47X Genuine Maserati Part - New (to order)
                                                      # 017
                                                      MPN: 11067276
                                                      SEEGER RING
                                                      from £0.53
                                                      from £0.53
                                                      SNAP RING Genuine Ferrari Part - New In stock
                                                      SEEGER RING FOR SHAFT D.24 Genuine Maserati Part - New (to order)
                                                      # 018
                                                      MPN: 236418
                                                      GASKET
                                                      from £12.62
                                                      from £12.62
                                                      GASKET Genuine Ferrari Part - New (to order)
                                                      # 020
                                                      MPN: 11381076
                                                      SEEGER RING
                                                      from £1.12
                                                      from £1.12
                                                      This part replaces part number 11060276
                                                      SEEGER RING. Genuine Ferrari Part - New In stock
                                                      SEEGER RING FOR HOLE D.47 Genuine Maserati Part - New (to order)
                                                      # 021
                                                      MPN: 186272
                                                      O-RING
                                                      from £0.53
                                                      from £0.53
                                                      O.R. GASKET Genuine Ferrari Part - New In stock
                                                      O-RING D.15 X1 Genuine Maserati Part - New (to order)
                                                      # 022
                                                      MPN: 196104
                                                      WATER INLET COVER
                                                      -No longer supplied- -Replaced by 241609-
                                                      from £138.95
                                                      from £138.95
                                                      WATER INLET COVER Genuine Ferrari Part - New (to order)
                                                      WATER INLET COVER TO PUMP Genuine Maserati Part - New (to order)
                                                      # 022
                                                      MPN: 241609
                                                      WATER INLET COVER
                                                      from £408.69
                                                      from £408.69
                                                      WATER INLET COVER Genuine Ferrari Part - New (to order)
                                                      # 023
                                                      MPN: 154191
                                                      GASKET
                                                      from £0.79
                                                      from £0.79
                                                      GASKET Genuine Ferrari Part - New In stock
                                                      O-RING D. 44.17- 8X 100 Genuine Maserati Part - New In stock
                                                      # 024
                                                      MPN: 231619
                                                      SCREW
                                                      -M6 X 22-
                                                      from £0.54
                                                      from £0.54
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New (to order)
                                                      # 024
                                                      MPN: 231625
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      # 025
                                                      MPN: 231414
                                                      RUBBER COVER
                                                      from £38.51
                                                      from £38.51
                                                      OIL FILTER CAP Genuine Ferrari Part - New In stock
                                                      # 026
                                                      MPN: 230887
                                                      THERMOSTAT COVER
                                                      from £88.96
                                                      from £88.96
                                                      This part replaces part number 222348 - and 3 more. Click to view details
                                                      THERMOSTAT COVER Genuine Ferrari Part - New In stock
                                                      # 026
                                                      MPN: 234584
                                                      THERMOSTAT COVER
                                                      -No longer supplied- -Replaced by 230887-
                                                      Supersession
                                                      Supersession
                                                      Genuine Ferrari Part (no longer available to order)
                                                      # 027
                                                      MPN: 231618
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      # 028
                                                      MPN: 11197774
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                      WASHER Genuine Ferrari Part - New In stock
                                                      WASHER Genuine Maserati Part - New (to order)
                                                      # 029
                                                      MPN: 137873
                                                      GASKET
                                                      from £2.95
                                                      from £2.95
                                                      THEROMSTAT GASKET Genuine Ferrari Part - New (to order)
                                                      THERMOSTAT GASKET Genuine Maserati Part - New In stock
                                                      # 031
                                                      MPN: 10298460
                                                      GASKET
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 93353
                                                      GASKET Genuine Ferrari Part - New In stock
                                                      GASKET 12- 18X 1.5 Genuine Maserati Part - New In stock
                                                      GASKET Original Equipment - New In stock
                                                      # 032
                                                      MPN: 240169
                                                      FLANGE AND PIPE REPLACEMENT KIT
                                                      from £148.30
                                                      from £148.30
                                                      This part replaces part number 70001438 - and 1 more. Click to view details
                                                      FLANGE AND OIL SUCTION PIPE Genuine Ferrari Part - New In stock
                                                      FLANGE AND OIL SUCTION PIPE Genuine Ferrari Part - Used In stock
