0027 - Pedal Board

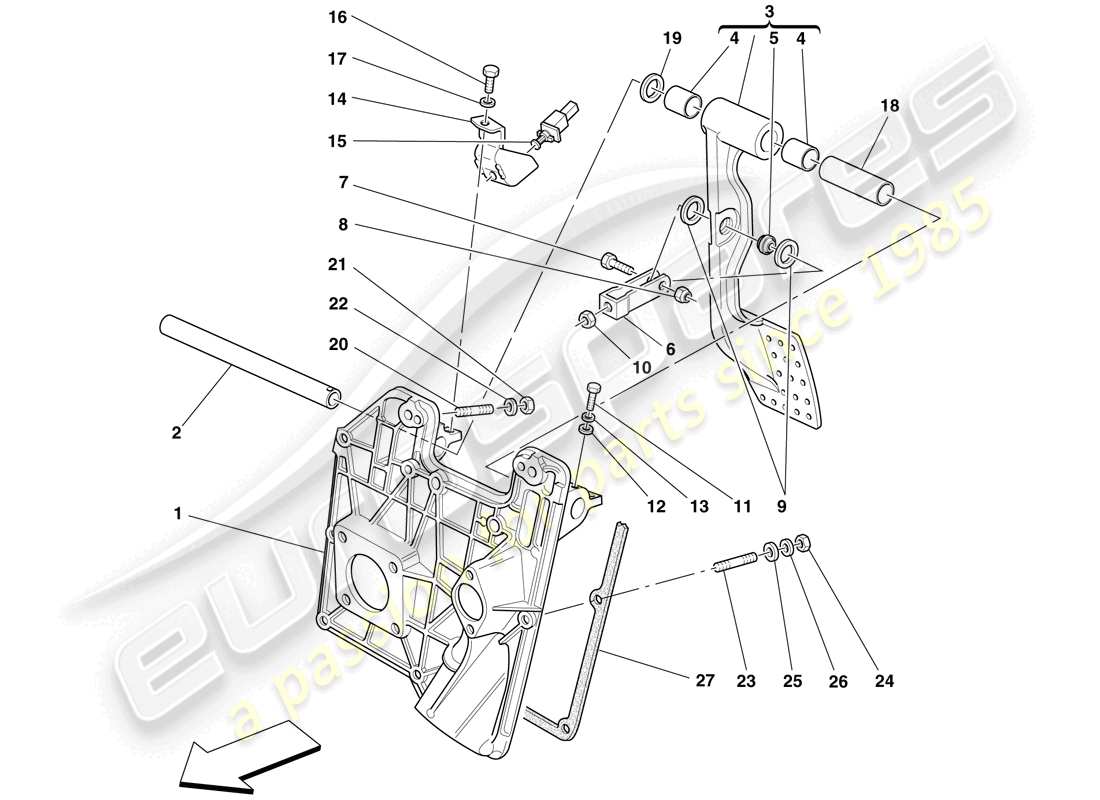

Ferrari F430 Scuderia Spider 16M (Europe) PEDAL BOARD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 176464
PEDAL BOARD MOUNTING
-Not for GD-
from £472.50
from £472.50
# 002
MPN: 176466
PEDALS MOUNTING PIN
-Not for GD-
from £88.42
from £88.42
# 003
MPN: 196272
COMPLETE BRAKE PEDAL
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 196791
COMPLETE BRAKE PEDAL
-Not for GD- -Applicable after depletion of 196272-
from £311.85
from £311.85
This part replaces part number 196272 - and 1 more. Click to view details
# 004
MPN: 103163
SELF-LUBRICATING BUSHING
-Not for GD-
from £2.85
from £2.85
# 005
MPN: 176475
BALL-JOINT
-Not for GD-
from £102.72
from £102.72
# 006
MPN: 199754
FORK
-Not for GD-
from £48.08
from £48.08
# 007
MPN: 16043724
SCREW
-Not for GD-
from £0.71
from £0.71
This part replaces part number 16043721
# 008
MPN: 147985
NUT
-Not for GD-
from £0.54
from £0.54
# 009
MPN: 176522
PLASTIC WASHER
-Not for GD-
from £14.07
from £14.07
# 010
MPN: 16102314
NUT
-Not for GD-
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 011
MPN: 10902424
SCREW
-Not for GD-
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details

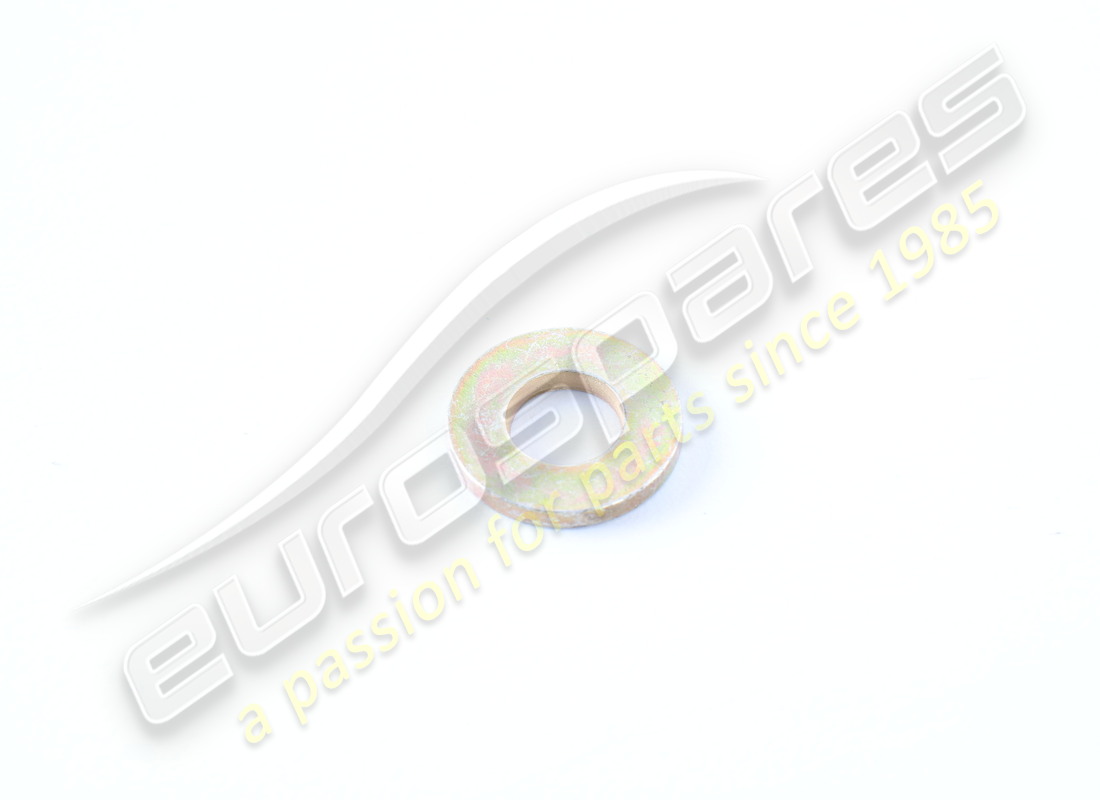

# 012
MPN: 10519424
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 013
MPN: 127494
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 014
MPN: 219558
SWITCH MOUNTING
-Not for GD-
from £109.48
from £109.48
This part replaces part number 218606
# 015
MPN: 201957
PUSHBUTTON SWITCH
-Not for GD-
from £13.11
from £13.11
This part replaces part number 187869 - and 5 more. Click to view details
# 016
MPN: 16043224
SCREW
-Not for GD-
from £0.53
from £0.53
# 017
MPN: 106852
WASHER
-Not for GD-
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 018
MPN: 176918
SHIM
-Not for GD-
from £40.13
from £40.13
# 019
MPN: 113834
WASHER
-Th. 1.2 mm- -Installed if necessary- -Not for GD-
from £2.07
from £2.07
# 019
MPN: 113835
WASHER
-Th. 1.3 mm- -Installed if necessary- -Not for GD-
from £1.85
from £1.85
# 019
MPN: 113836
WASHER
-Th. 1.4 mm- -Installed if necessary- -Not for GD-
from £2.32
from £2.32
# 019
MPN: 178340
WASHER
-Not for GD-
from £2.37
from £2.37
# 020
MPN: 13516924
STUD BOLT
-Not for GD-
from £1.30
from £1.30
This part replaces part number 13516921
# 021
MPN: 104030
NUT
-Not for GD-
from £0.52
from £0.52
This part replaces part number 16104125
# 022
MPN: 12646724
WASHER
-Not for GD-
from £0.53
from £0.53
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 023
MPN: 13517024
STUD BOLT
-Not for GD-
from £0.53
from £0.53
# 024
MPN: 16102377
NUT
-Not for GD-
from £1.15
from £1.15
# 025
MPN: 13550321
WASHER
-Not for GD-
from £0.53
from £0.53
# 026
MPN: 12601374
WASHER
-Not for GD-
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 027
MPN: 176524
PEDAL BOARD MOUNTING GASKET
-Not for GD-
from £15.65
from £15.65
