ferrari f430 spider (europe) injection - ignition system parts diagram

0007 - injection - ignition system

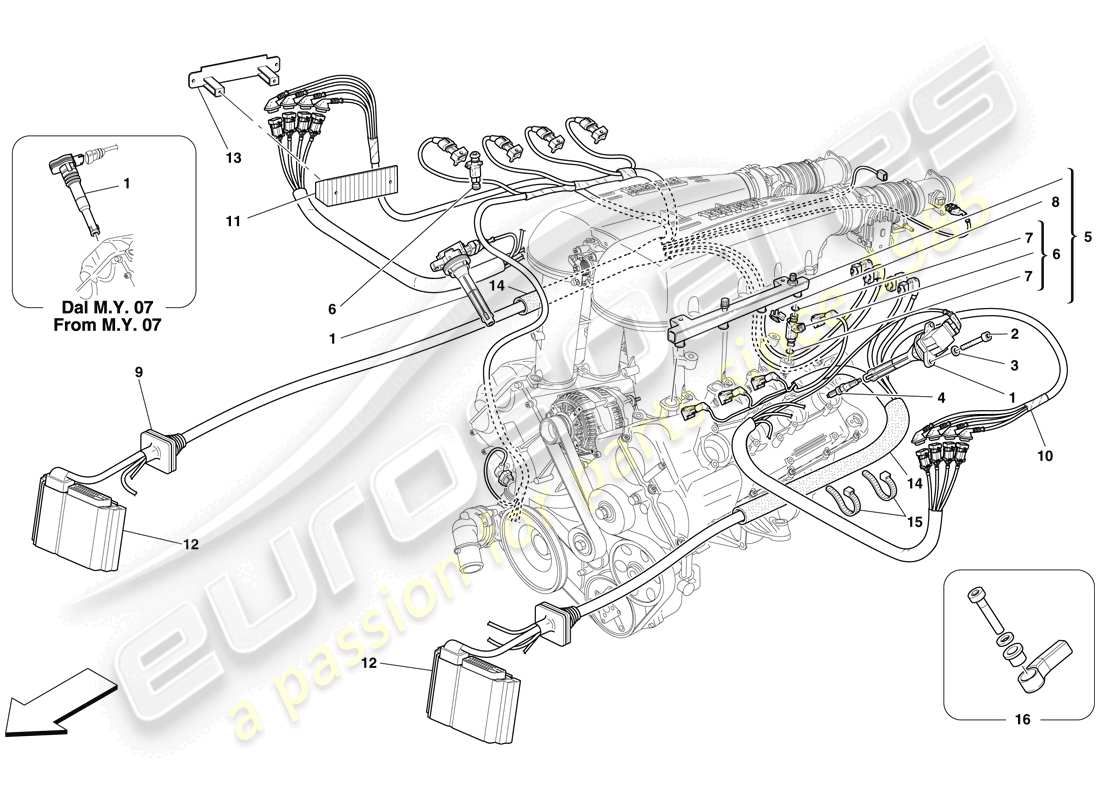

Ferrari F430 Spider (Europe) INJECTION - IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 186914
SINGLE IGNITION COIL
-For cylinders 3,4,5,6- -Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
from £59.12
from £59.12
IGNITION COIL Genuine Ferrari Part - New In stock
LONG LEAD COIL
IGNITION COIL Original Equipment - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
# 001
MPN: 186914
SINGLE IGNITION COIL
-For cylinders 3,4,5,6- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
from £59.12
from £59.12
IGNITION COIL Genuine Ferrari Part - New In stock
LONG LEAD COIL
SINGLE IGNITION COIL Genuine Maserati Part - New In stock
IGNITION COIL Original Equipment - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
# 001
MPN: 188504
SINGLE IGNITION COIL
-For cylinders 1,2,7,8- -Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
from £59.12
from £59.12
IGNITION COIL Genuine Ferrari Part - New In stock
SHORT LEAD COIL
IGNITION COIL. Original Equipment - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
# 001
MPN: 188504
SINGLE IGNITION COIL
-For cylinders 1,2,7,8- -Not for USA, CDN- -Applicable up to Ass. No. 69638-
from £59.12
from £59.12
IGNITION COIL Genuine Ferrari Part - New In stock
SHORT LEAD COIL
IGNITION COIL. Original Equipment - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - New In stock
SINGLE IGNITION COIL Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
# 001
MPN: 227876
SINGLE IGNITION COIL
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460- -No longer supplied- -Replaced by 248404-
from £67.14
from £67.14
This part replaces part number 219969
IGNITION COIL Genuine Ferrari Part - New In stock
Genuine Maserati Part (no longer available to order)
# 001
MPN: 227876
SINGLE IGNITION COIL
from £67.14
from £67.14
This part replaces part number 219969
IGNITION COIL Genuine Ferrari Part - New In stock
Genuine Maserati Part (no longer available to order)
# 001
MPN: 248404
SINGLE IGNITION COIL
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460-
Supersession
Supersession
This part replaces part number 227876 which we have in stock
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 001
MPN: 248404
SINGLE IGNITION COIL
-Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639-
Supersession
Supersession
This part replaces part number 227876 which we have in stock
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 002
MPN: 201599
SCREW
from £0.47
from £0.47
SCREW Genuine Ferrari Part - New (to order)
SOCKET HEAD SCREW M 6X 20 Genuine Maserati Part - New (to order)
# 003
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
WASHER Genuine Ferrari Part - New In stock
WASHER Genuine Maserati Part - New In stock
# 004
MPN: 192637
SPARK PLUG
from £14.74
from £14.74
This part replaces part number 168325
SPARK PLUG Genuine Ferrari Part - New (to order)
Spark Plug (NGK) Genuine Maserati Part - New In stock
SPARK PLUG Eurospares Approved Part - New (to order)
# 005
MPN: 191390
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from £817.70
from £817.70
LH COMPLETE FUEL TUBE WITH Genuine Ferrari Part - New (to order)
# 005
MPN: 191392
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from £912.96
from £912.96
RH COMPLETE FUEL TUBE WITH Genuine Ferrari Part - New (to order)
# 005
MPN: 216542
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
-Applicable from MY 06- -Applicable from engine No. 99608-
from £817.70
from £817.70
RH DELIVERY FUEL PIPE Genuine Ferrari Part - New (to order)
# 005
MPN: 216543
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
-Applicable from MY 06- -Applicable from engine No. 99608-
from £817.70
from £817.70
LH DELIVERY FUEL PIPE Genuine Ferrari Part - New (to order)
# 006
MPN: 191393
ELECTRO-INJECTOR
-Applicable up to MY 06- -Applicable up to engine No. 99607-
from £183.77
from £183.77
ELECTRO-INIECTORS Genuine Ferrari Part - New (to order)
# 006
MPN: 213635
ELECTRO-INJECTOR
-Applicable from MY 06- -Applicable from engine No. 99608-
from £127.26
from £127.26
ELECTRO-INJECTOR Genuine Ferrari Part - New (to order)
ELETTROINIETTORE EV14 Genuine Maserati Part - New In stock
ELECTRO-INJECTOR Original Equipment - New In stock
# 007
MPN: 133902
GASKET
from £3.05
from £3.05
INJECTOR O'RING Genuine Ferrari Part - New (to order)
INJECTOR O'RING Genuine Maserati Part - New In stock
INJECTOR O'RING Eurospares Approved Part - New In stock
# 008
MPN: 144730
INJECTORS RETENTION CLIP
from £2.15
from £2.15
CLIP Genuine Ferrari Part - New (to order)
INJECTOR RETAINING CLIP Genuine Maserati Part - New In stock
# 009
MPN: 209438
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
from £906.74
from £906.74
RH INJECTION CABLE Genuine Ferrari Part - New (to order)
# 009
MPN: 215268
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable up to Ass. No. 69638-
from £1,402.66
from £1,402.66
This part replaces part number 202974
RH SIDE INJECTION CONNECTI Genuine Ferrari Part - New (to order)
# 009
MPN: 219904
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460-
from £576.85
from £576.85
RH SIDE INJECTION CONNECTI Genuine Ferrari Part - New (to order)
RH SIDE INJECTION CONNECTI Genuine Ferrari Part - Used In stock
# 009
MPN: 221338
RH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable from Ass. No. 69639-
from £1,254.75
from £1,254.75
RH SIDE INJECTION CONNECTI Genuine Ferrari Part - New In stock
# 010
MPN: 209437
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
from £918.61
from £918.61
LH INJECTION CABLE Genuine Ferrari Part - New (to order)
# 010
MPN: 215269
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable up to Ass. No. 69638-
from £1,800.98
from £1,800.98
This part replaces part number 204427
LH SIDE INJECTION CONNECTI Genuine Ferrari Part - New (to order)
# 010
MPN: 219905
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460-
from £1,101.69
from £1,101.69
LH SIDE INJECTION CONNECTI Genuine Ferrari Part - New In stock
# 010
MPN: 221339
LH CYLINDER BANK INJECTION CONNECTOR CABLES
-Not for USA, CDN- -Applicable from Ass. No. 69639-
from £1,626.74
from £1,626.74
LH SIDE INJECTION CONNECTI Genuine Ferrari Part - New In stock
# 011
MPN: 201732
RH REAR SHIELD
-Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 011
MPN: 201733
LH REAR SHIELD
-Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 011
MPN: 224383
RH REAR SHIELD
-Applicable after depletion of 201732-
from £25.47
from £25.47
This part replaces part number 201732
RH ANTI-HEAT SHIELD Genuine Ferrari Part - New (to order)
# 011
MPN: 224384
LH REAR SHIELD
-Applicable after depletion of 201733-
from £25.47
from £25.47
This part replaces part number 201733
LH ANTI-HEAT SHIELD Genuine Ferrari Part - New (to order)
# 012
MPN: 216390
IGNITION ECU
-Applicable up to MY 06- -Applicable for USA, CDN- -Not for F1 gearbox-
from £2,630.99
from £2,630.99
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 216391
IGNITION ECU
-Applicable up to MY 06- -Applicable for USA, CDN- -Applicable for F1 gearbox-
from £2,631.05
from £2,631.05
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 218064
IGNITION ECU
-Not for USA, CDN- -Applicable up to Ass. No. 62225- -Applicable for F1 gearbox-
from £1,564.50
from £1,564.50
IGNITION CONTROL UNIT Genuine Ferrari Part - New (to order)
IGNITION CONTROL UNIT Genuine Ferrari Part - Used In stock
# 012
MPN: 218065
IGNITION ECU
-Not for USA, CDN- -Applicable up to Ass. No. 62225- -Not for F1 gearbox-
from £2,630.99
from £2,630.99
CONTROL UNIT IGNITION -NOT F Genuine Ferrari Part - New (to order)
# 012
MPN: 222251
IGNITION ECU
-Applicable from MY 06- -Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
from £2,630.99
from £2,630.99
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 222264
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 62226 up to Ass. No. 69627-
from £2,630.99
from £2,630.99
CONTROL UNIT Genuine Ferrari Part - New (to order)
# 012
MPN: 224751
IGNITION ECU
-Germany- -Applicable from MY 06- -Applicable for sound kit-
from £1,224.65
from £1,224.65
CONTROL UNIT Genuine Ferrari Part - New (to order)
# 012
MPN: 227392
IGNITION ECU
-Taiwan- -Applicable from MY 06- -Applicable up to Ass. No. 69627-
from £1,396.29
from £1,396.29
CONTROL UNIT IGNITION -TAIWA Genuine Ferrari Part - New (to order)
# 012
MPN: 230386
IGNITION ECU
-Not applicable for sound kit- -Not for USA, CDN- -Applicable up to Ass. No. 69627-
from £2,637.97
from £2,637.97
IGNITION CONTROL UNIT Genuine Ferrari Part - New (to order)
# 012
MPN: 231042
IGNITION ECU
-Applicable from MY 07- -Applicable for USA, CDN- -Applicable up to Ass. No. 71293-
from £2,630.99
from £2,630.99
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 235220
IGNITION ECU
-Not for USA, CDN- -Applicable from Ass. No. 69628 up to Ass. No. 73459-
from £1,450.20
from £1,450.20
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
CONTROL UNIT IGNITION Genuine Ferrari Part - Used In stock
# 012
MPN: 235222
IGNITION ECU
-Taiwan- -Applicable from Ass. No. 69628 up to Ass. No. 73459-
IGNITION CONTROL UNIT Genuine Ferrari Part - New (to order)
# 012
MPN: 236837
IGNITION ECU
-Applicable from MY 07- -No temperature sensors- -Applicable up to MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 71294 up to Ass. No. 74556-
from £2,675.38
from £2,675.38
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 240790
IGNITION ECU
-Applicable up to MY 08- -Not for USA, CDN- -Applicable from Ass. No. 73460 up to Ass. No. 74556-
from £2,675.38
from £2,675.38
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 240791
IGNITION ECU
-Taiwan- -Applicable from Ass. No. 73460-
from £2,675.38
from £2,675.38
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 241764
IGNITION ECU
-Applicable from MY 08- -Not for USA, CDN, J- -Applicable from Ass. No. 74557-
from £2,685.72
from £2,685.72
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 241765
IGNITION ECU
-Applicable from MY 08- -Applicable for USA, CDN- -Applicable from Ass. No. 74557-
from £2,675.38
from £2,675.38
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 246747
IGNITION ECU
-Applicable from MY 08- -Applicable for J-
from £2,675.38
from £2,675.38
CONTROL UNIT IGNITION Genuine Ferrari Part - New (to order)
# 012
MPN: 250922
IGNITION ECU
-Applicable from MY 09- -Applicable for USA, CDN-
from £2,947.98
from £2,947.98
CONTROL UNIT IGNITION -VALID Genuine Ferrari Part - New (to order)
# 013
MPN: 192535
RH BRACKET
from £15.96
from £15.96
RH BRACKET Genuine Ferrari Part - New (to order)
# 013
MPN: 200163
LH BRACKET
from £72.97
from £72.97
LH BRACKET Genuine Ferrari Part - New (to order)
# 014
MPN: 216545
PROTECTIVE PIPE
from £5.80
from £5.80
PROTECTION PIPE. Genuine Ferrari Part - New (to order)
# 015
MPN: 206739
CABLE TIE
from £3.63
from £3.63
This part replaces part number 243232
CLAMP Genuine Ferrari Part - New (to order)
COLLAR 4,8 X 186 MM Genuine Maserati Part - New (to order)
# 016
MPN: 227941
COMPL. COIL SHIELD
-Applicable for CINA, USA, CDN-
from £6.63
from £6.63
This part replaces part number 227940
SHELTER COIL Genuine Ferrari Part - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
