ferrari f430 spider (europe) air intake parts diagram

0014 - AIR INTAKE

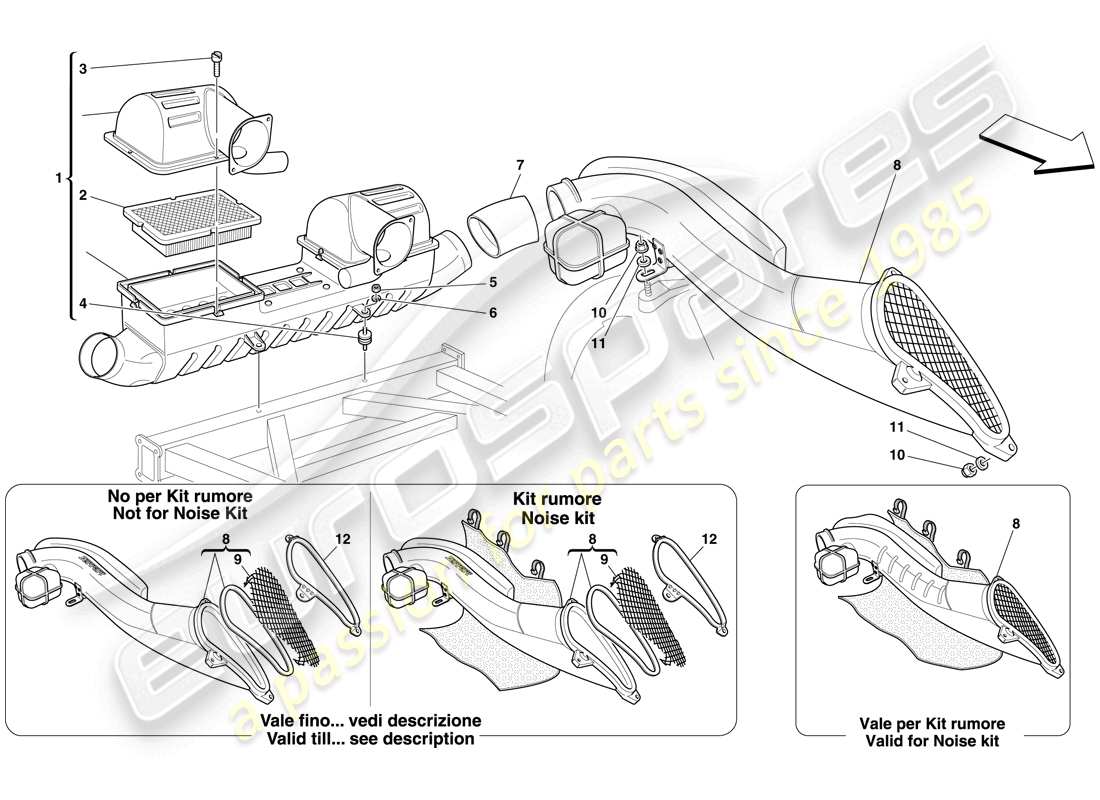

Ferrari F430 Spider (Europe) AIR INTAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price

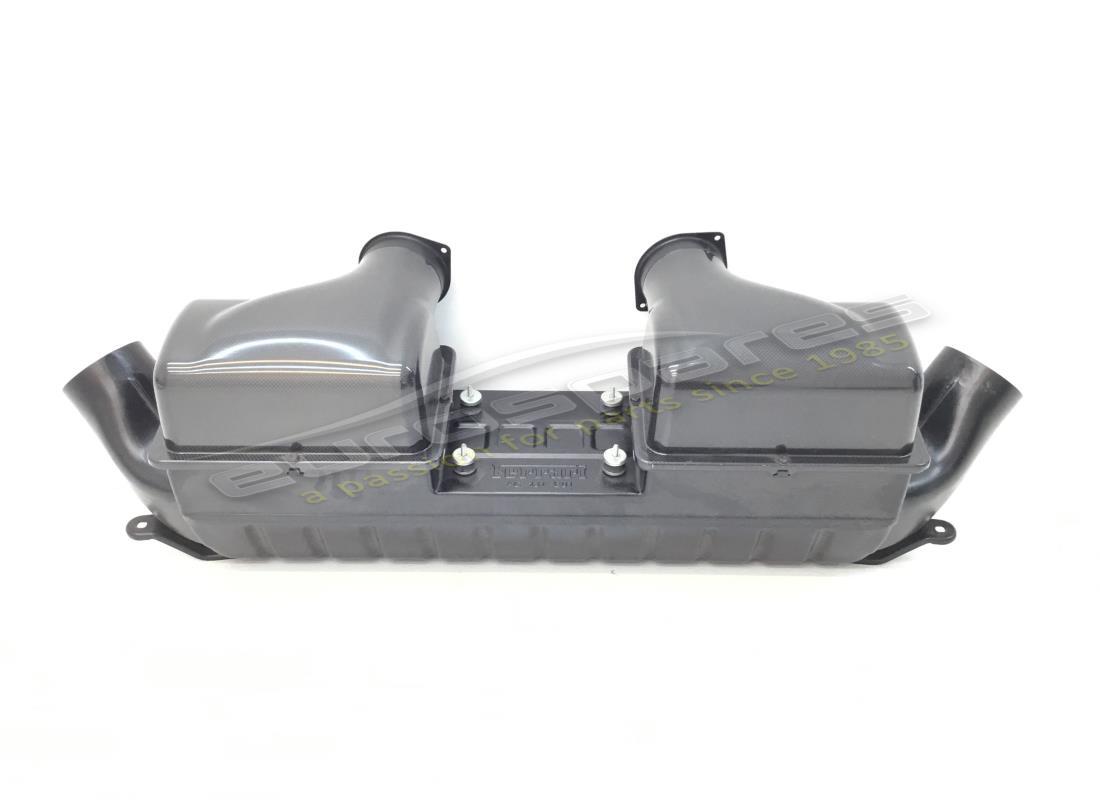

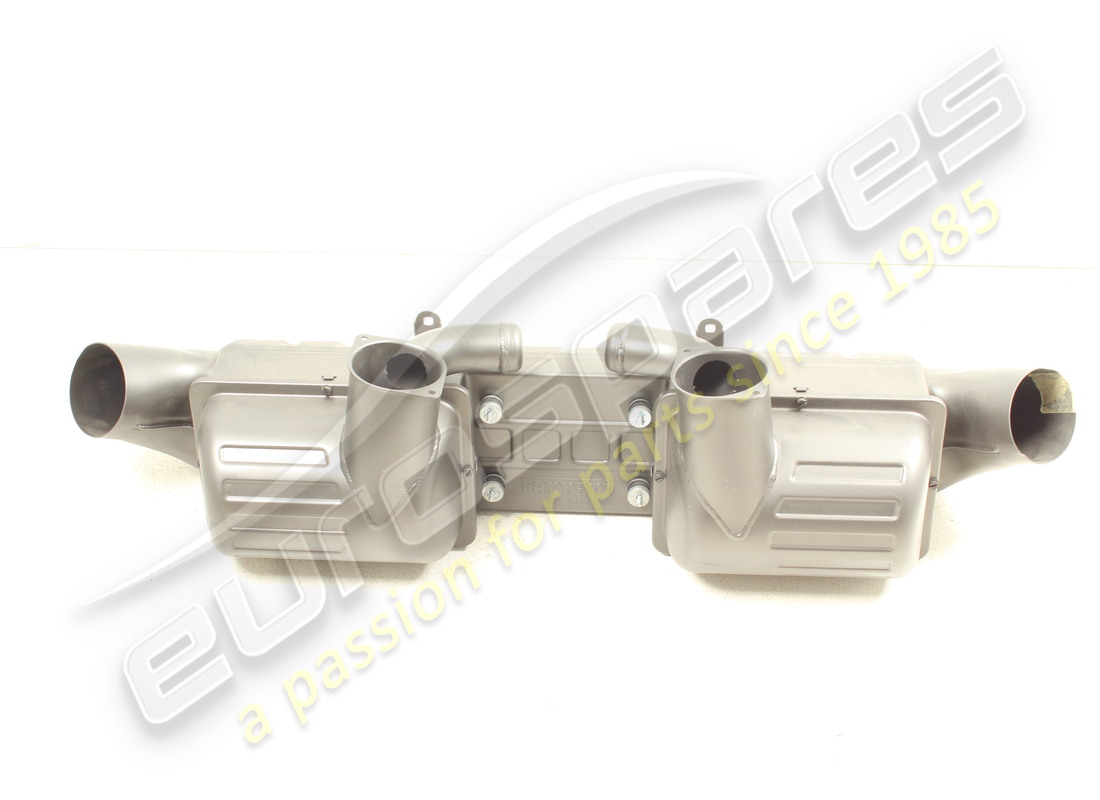

                  # 001
                  MPN: 191204
                  COMPLETE FILTER BOX
                  -In aluminium-
                  from £924.59
                  from £924.59
                  SCATOLA FILTRO COMPLETA Genuine Ferrari Part - New In stock
                  SCATOLA FILTRO COMPLETA Genuine Ferrari Part - Used In stock

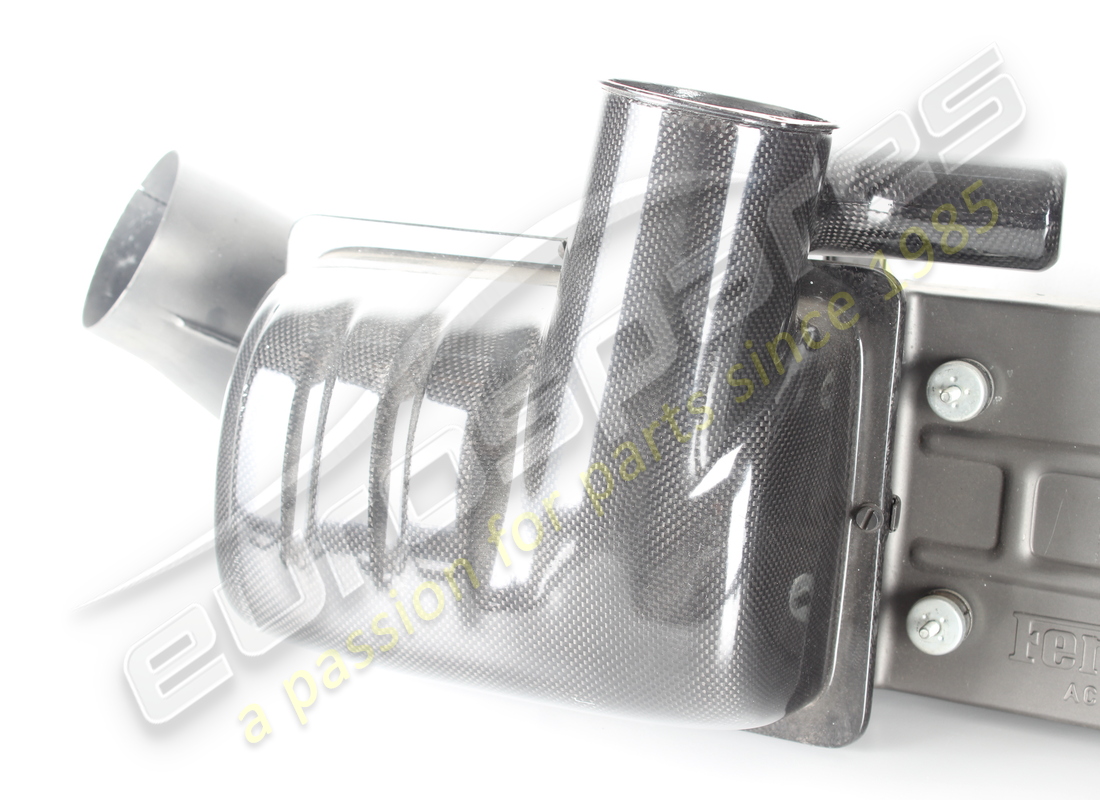

                  # 001
                  MPN: 212208
                  COMPLETE FILTER BOX
                  -In carbon-
                  from £3,804.92
                  from £3,804.92
                  COMPLETE FILTER BOX -IN CARB Genuine Ferrari Part - New In stock
                  COMPLETE FILTER BOX -IN CARB Genuine Ferrari Part - New (other) In stock
                  damaged inlet pipe

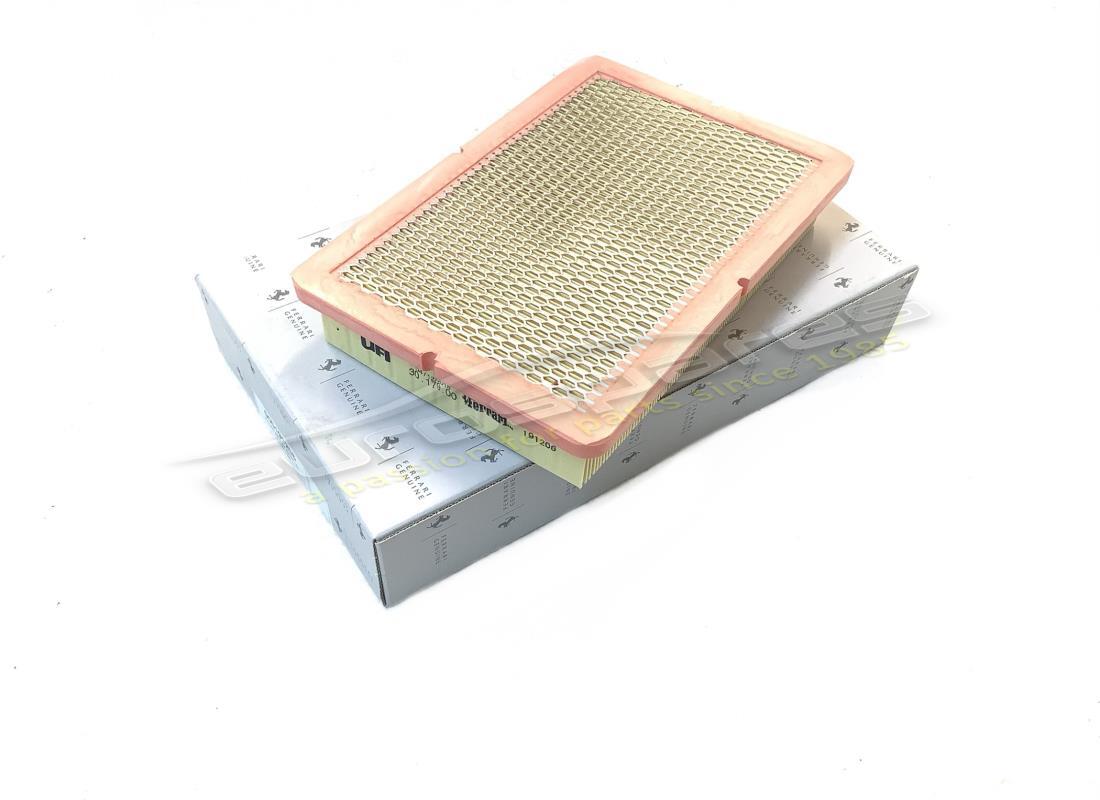

                  # 002
                  MPN: 191206
                  AIR FILTER
                  from £28.19
                  from £28.19
                  AIR FILTER Genuine Ferrari Part - New In stock
                  # 003
                  MPN: 157757
                  SCREW
                  from £2.56
                  from £2.56
                  SCREW Genuine Ferrari Part - New (to order)
                  SCREW M6X1X24 Genuine Maserati Part - New (to order)
                  # 004
                  MPN: 142202
                  VIBRATION DAMPER
                  from £14.21
                  from £14.21
                  SUPPORT Genuine Ferrari Part - New In stock
                  PAD Genuine Maserati Part - New (to order)
                  SUPPORT Eurospares Approved Part - New In stock
                  # 005
                  MPN: 15896214
                  NUT
                  from £0.53
                  from £0.53
                  This part replaces part number 15896211
                  NUT Genuine Ferrari Part - New In stock
                  NUT Genuine Maserati Part - New In stock
                  # 006
                  MPN: 12643724
                  WASHER
                  from £0.51
                  from £0.51
                  This part replaces part number 109684 - and 4 more. Click to view details
                  WASHER Genuine Ferrari Part - New In stock
                  WASHER Genuine Maserati Part - New In stock

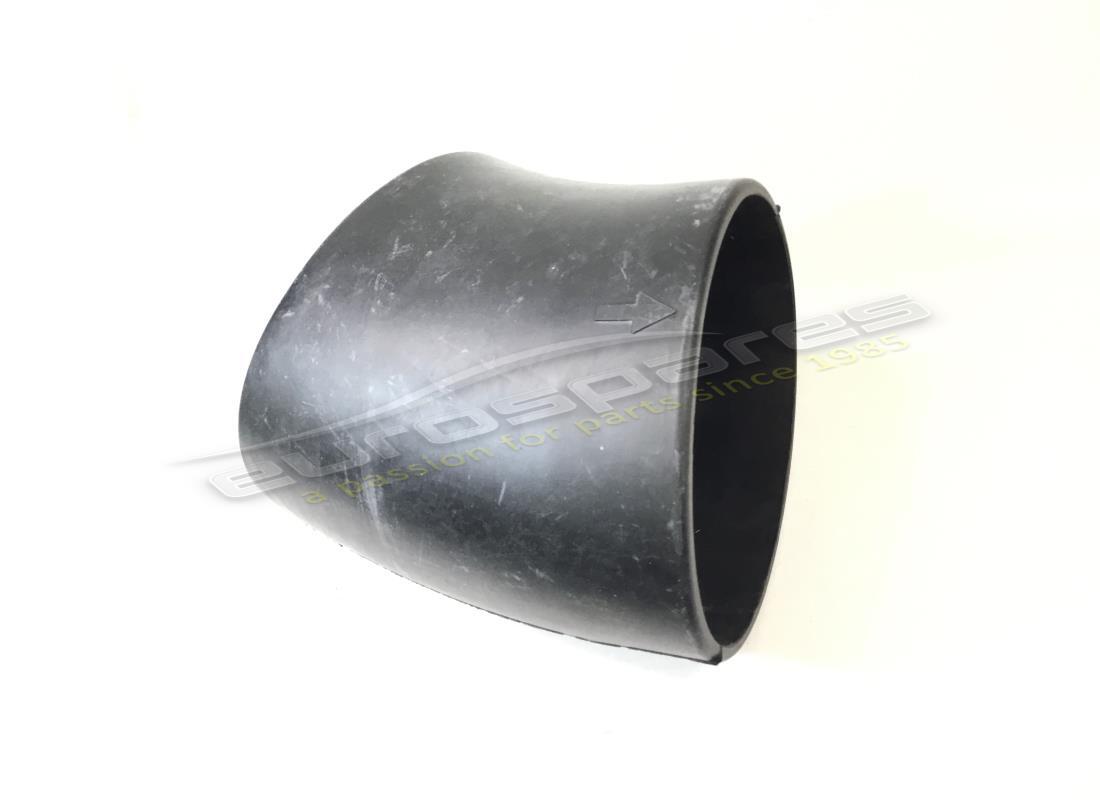

                  # 007
                  MPN: 207497
                  SLEEVE
                  from £14.53
                  from £14.53
                  SLEEVE Genuine Ferrari Part - New (to order)
                  SLEEVE Genuine Ferrari Part - Used In stock
                  # 008
                  MPN: 209895
                  RH AIR DUCT
                  -Not applicable for sound kit- -After depletion, replace as a pair- -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  from £203.47
                  from £203.47
                  RH AIR DUCT Genuine Ferrari Part - New In stock
                  # 008
                  MPN: 209896
                  LH AIR DUCT
                  -Not applicable for sound kit- -After depletion, replace as a pair- -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 008
                  MPN: 223134
                  RH AIR DUCT
                  -Applicable for sound kit- -After depletion, replace as a pair- -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 008
                  MPN: 223135
                  LH AIR DUCT
                  -Applicable for sound kit- -After depletion, replace as a pair- -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 008
                  MPN: 226058
                  RH AIR DUCT
                  -Not applicable for sound kit- -Applicable from Ass. No. 67583- -Applicable after depletion of 209895-
                  from £245.38
                  from £245.38
                  This part replaces part number 209895 which we have in stock
                  RH AIR INLET Genuine Ferrari Part - New (to order)
                  # 008
                  MPN: 226059
                  LH AIR DUCT
                  -Not applicable for sound kit- -Applicable from Ass. No. 67583- -Applicable after depletion of 209896-
                  from £134.96
                  from £134.96
                  This part replaces part number 209896 - and 1 more. Click to view details
                  LH AIR INLET Genuine Ferrari Part - New In stock
                  LH AIR INLET Genuine Ferrari Part - Used In stock
                  # 008
                  MPN: 226060
                  RH AIR DUCT
                  -Applicable for sound kit- -Applicable from Ass. No. 67583- -Applicable after depletion of 223134-
                  from £256.58
                  from £256.58
                  This part replaces part number 223134
                  RH AIR INLET Genuine Ferrari Part - New (to order)
                  # 008
                  MPN: 226061
                  LH AIR DUCT
                  -Applicable for sound kit- -Applicable from Ass. No. 67583- -Applicable after depletion of 223135-
                  from £245.38
                  from £245.38
                  This part replaces part number 223135
                  LH AIR INLET Genuine Ferrari Part - New (to order)
                  # 009
                  MPN: 211968
                  COMPLETE GRILLE
                  -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  from £24.68
                  from £24.68
                  GRILL Genuine Ferrari Part - New (to order)
                  GRILL Genuine Ferrari Part - Used In stock
                  # 010
                  MPN: 113647
                  NUT
                  from £0.51
                  from £0.51
                  NUT Genuine Ferrari Part - New In stock
                  DADO E NYLON STOP M5X5 Genuine Maserati Part - New (to order)
                  # 011
                  MPN: 14496324
                  WASHER
                  from £1.43
                  from £1.43
                  This part replaces part number 14496301 which we have in stock
                  WASHER Genuine Ferrari Part - New In stock
                  SPLIT WASHER D. 5.30X9.55 Genuine Maserati Part - New In stock
                  # 012
                  MPN: 69487200
                  RH GASKET
                  -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  from £55.37
                  from £55.37
                  RH GASKET Genuine Ferrari Part - New (to order)
                  # 012
                  MPN: 69487300
                  LH GASKET
                  -Applicable up to Ass. No. 67582- -Applicable until depletion-
                  from £57.81
                  from £57.81
                  LH GASKET Genuine Ferrari Part - New (to order)
