0021 - Cooling System

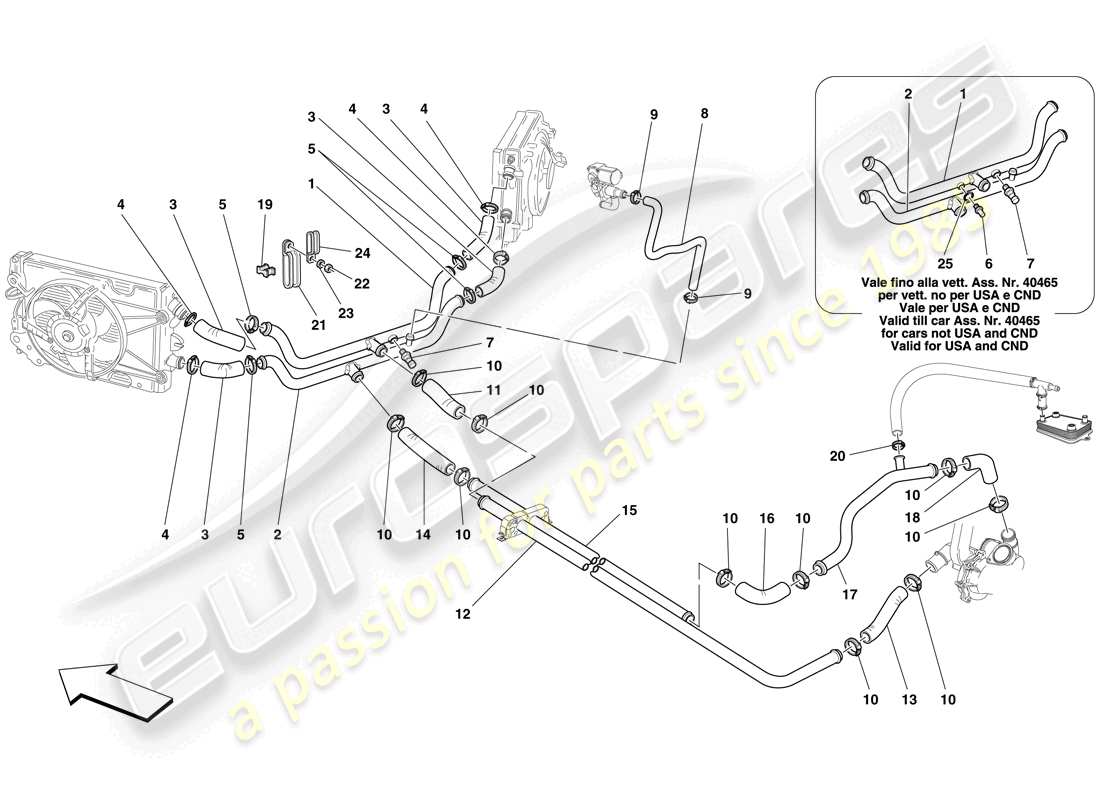

Ferrari F430 Spider (Europe) COOLING SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198533
WATER DELIVERY PIPE
-No longer supplied- -Replaced by 216372-
Supersession
Supersession
# 001
MPN: 216372
WATER DELIVERY PIPE
-Applicable for USA, CDN-
from £70.78
from £70.78
This part replaces part number 198533 - and 1 more. Click to view details
# 001
MPN: 216372
WATER DELIVERY PIPE
-Not for USA, CDN- -Applicable up to Ass. No. 40465-
from £70.78
from £70.78
This part replaces part number 198533 - and 1 more. Click to view details
# 001
MPN: 217917
WATER DELIVERY PIPE
-Not for USA, CDN- -Applicable from Ass. No. 40466-
from £62.73
from £62.73
# 002
MPN: 198534
WATER RETURN PIPE
-No longer supplied- -Replaced by 216373-
Supersession
Supersession
# 002
MPN: 216373
WATER RETURN PIPE
from £43.31
from £43.31
This part replaces part number 198534 - and 2 more. Click to view details
# 003
MPN: 181757
RUBBER PIPE
-No longer supplied- -Replaced by 214281-
from £66.23
from £66.23
# 003
MPN: 214281
RUBBER PIPE
-Applicable until depletion-
Supersession
Supersession
# 003
MPN: 220948
RUBBER PIPE
-Replaced by 238691 and 238695- -Applicable after depletion of 214281- -No longer supplied-
from £38.63
from £38.63
This part replaces part number 214281
# 003
MPN: 238691
RUBBER PIPE
-Lower- -Replaces 220948-
from £21.44
from £21.44
# 003
MPN: 238695
RUBBER PIPE
-Upper- -Replaces 220948-
from £52.29
from £52.29
# 004
MPN: 13001690
SCREW COLLAR
from £0.75
from £0.75
# 005
MPN: 13000590
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 105622 - and 2 more. Click to view details
# 006
MPN: 180137
TEMPERATURE SENSOR
-Not for USA, CDN- -Applicable up to Ass. No. 40465-
from £9.88
from £9.88
# 006
MPN: 180137
TEMPERATURE SENSOR
-Applicable for USA, CDN-
from £9.88
from £9.88
# 007
MPN: 176322
THERMAL CONTACT
from £78.00
from £78.00
# 008
MPN: 65231800
PIPE FROM TGK VALVE TO RETURN PIPE
-Not for GD-
from £53.79
from £53.79
# 008
MPN: 68641200
PIPE FROM TGK VALVE TO RETURN PIPE
-Applicable for GD-
from £21.81
from £21.81
# 009
MPN: 13000390
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
# 010
MPN: 13001690
SCREW COLLAR
from £0.73
from £0.73
# 011
MPN: 202547
RUBBER DELIVERY PIPE
from £83.93
from £83.93
# 012
MPN: 206621
UNDERBODY ALUMINIUM DELIVERY PIPE
from £21.51
from £21.51
# 013
MPN: 208338
RUBBER PIPE
from £58.50
from £58.50
# 014
MPN: 202548
RUBBER RETURN PIPE
from £62.62
from £62.62
# 015
MPN: 206728
UNDERBODY ALUMINIUM RETURN PIPE
from £21.51
from £21.51
# 016
MPN: 193463
RUBBER RETURN PIPE
from £53.59
from £53.59
# 017
MPN: 209686
ALUMINIUM PIPE
from £16.41
from £16.41
# 018
MPN: 206717
RUBBER PIPE
from £24.30
from £24.30
# 019
MPN: 183641
SHIM
from £2.88
from £2.88
# 020
MPN: 177995
CLAMP
from £0.66
from £0.66
# 021
MPN: 183642
BRACKET WITH SHEATH
from £11.34
from £11.34
# 022
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 023
MPN: 10730114
WASHER
from £0.53
from £0.53
# 024
MPN: 61712500
BRACKET WITH SHEATH
from £1.03
from £1.03
# 025
MPN: 10298460
GASKET
-Not for USA, CDN- -Applicable up to Ass. No. 40465-
from £0.47
from £0.47
This part replaces part number 93353
# 025
MPN: 10298460
GASKET
-Applicable for USA, CDN-
from £0.47
from £0.47
This part replaces part number 93353
