0022 - Cooling System Radiators

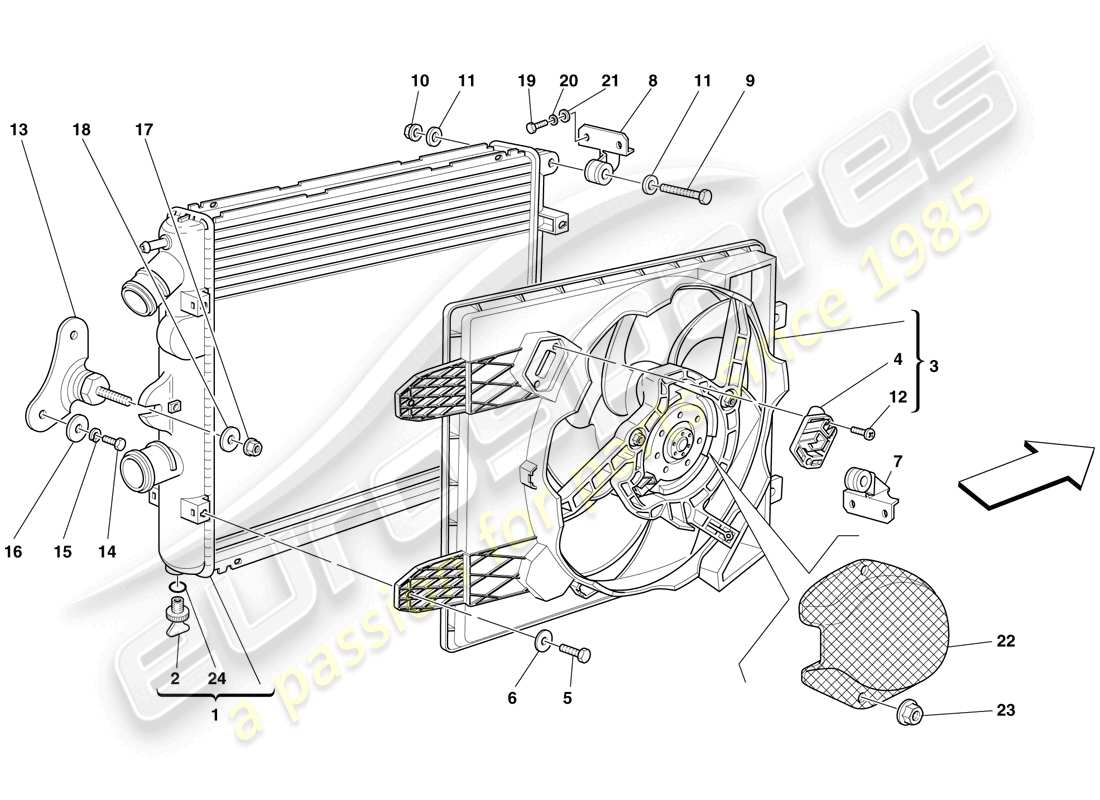

Ferrari F430 Spider (Europe) COOLING SYSTEM RADIATORS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 194078
WATER RADIATOR
Supersession
Supersession
This part replaces part number 223954
# 002
MPN: 198965
WATER DRAIN PLUG
from £25.14
from £25.14
# 003
MPN: 194085
RH COMPLETE ELECTRIC FAN
from £602.70
from £602.70
# 003
MPN: 194086
COMPLETE LH ELECTRIC FAN
Supersession
Supersession
# 004
MPN: 185543
RESISTOR
from £159.30
from £159.30
# 005
MPN: 16286024
SCREW
from £0.52
from £0.52
# 006
MPN: 12647624
WASHER
from £0.52
from £0.52
This part replaces part number 12647611
# 007
MPN: 194519
LOWER RADIATOR MOUNTING
from £119.07
from £119.07
# 008
MPN: 194530
UPPER RADIATOR MOUNTING
-No longer supplied- -Replaced by 242995-
Supersession
Supersession
# 008
MPN: 242995
UPPER RADIATOR MOUNTING
from £56.69
from £56.69
This part replaces part number 194530
# 009
MPN: 16044324
SCREW
from £0.53
from £0.53
# 010
MPN: 14058511
NUT
from £0.53
from £0.53
# 011
MPN: 12646724
WASHER
from £0.53
from £0.53
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 012
MPN: 15958801
SCREW
from £0.54
from £0.54
# 013
MPN: 205354
RH RADIATOR CENTRAL MOUNTING
from £23.11
from £23.11
# 013
MPN: 205658
LH RADIATOR CENTRAL MOUNTING
from £27.95
from £27.95
# 014
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 015
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 016
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 017
MPN: 14058511
NUT
from £0.53
from £0.53
# 018
MPN: 124338
WASHER
from £4.12
from £4.12
This part replaces part number 219344
# 019
MPN: 14305324
SCREW
from £0.48
from £0.48
This part replaces part number 14305321
# 020
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 021
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 022
MPN: 220970
GUARD
from £3.10
from £3.10
# 023
MPN: 14058411
NUT
-M6 X 6-
from £0.52
from £0.52
# 024
MPN: 260425
O-RING
from £2.20
from £2.20
