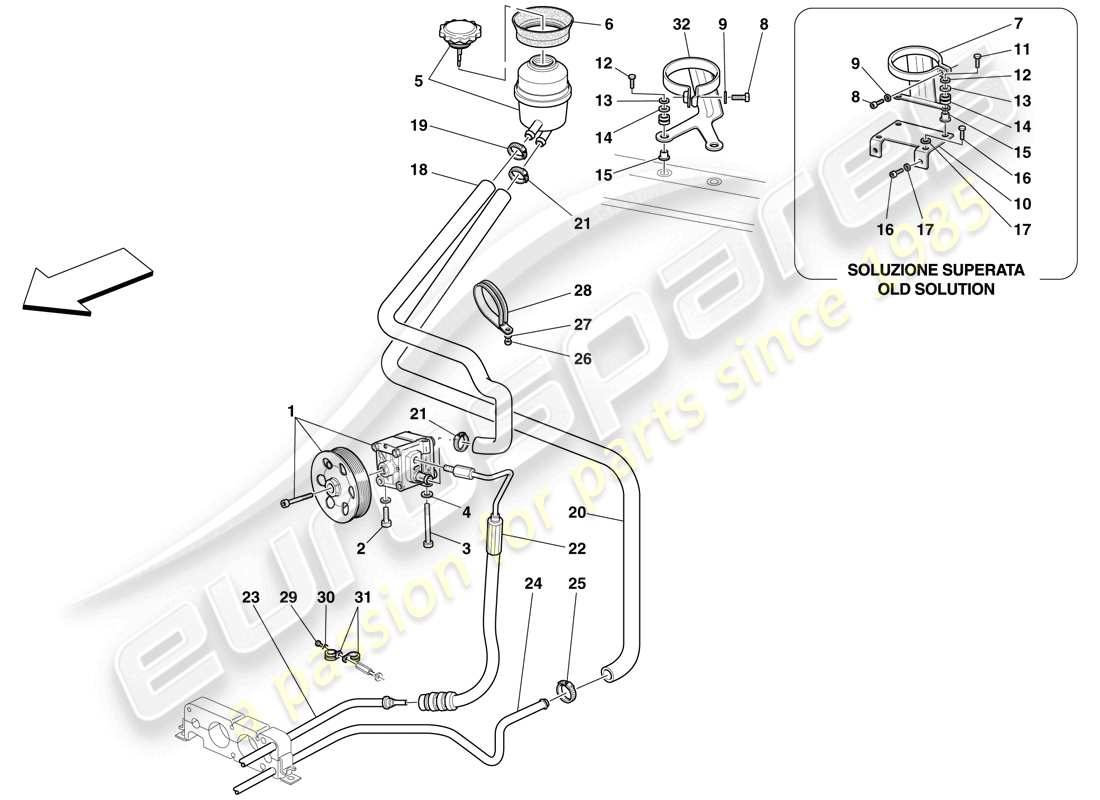

0043 - POWER STEERING PUMP AND RESERVOIR
Ferrari F430 Spider (Europe) POWER STEERING PUMP AND RESERVOIR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198680
COMPLETE HYDRAULIC PUMP
from £332.78
from £332.78
# 002
MPN: 198519
SCREW
from £3.62
from £3.62
# 003
MPN: 180604
SCREW
from £2.13
from £2.13
This part replaces part number 160531
# 004
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 005
MPN: 170877
POWER STEERING FLUID RESERVOIR
from £26.03
from £26.03
# 007
MPN: 184137
UPPER BRACKET
-Replaced by 229765 ref. 32- -No longer supplied-
from £10.16
from £10.16
# 008
MPN: 10902124
SCREW
-L. 14 mm-
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 009
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 010
MPN: 195428
INFERIOR BRACKET
-Replaced by 229765 ref. 32- -No longer supplied-
from £10.80
from £10.80
# 011
MPN: 10902524
SCREW
from £0.53
from £0.53
# 012
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 013
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 014
MPN: 103549
CABLE GROMMET
from £0.69
from £0.69
# 015
MPN: 149707
SHIM
from £0.78
from £0.78
# 016
MPN: 10902324
SCREW
-M6 X 18-
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 017
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details

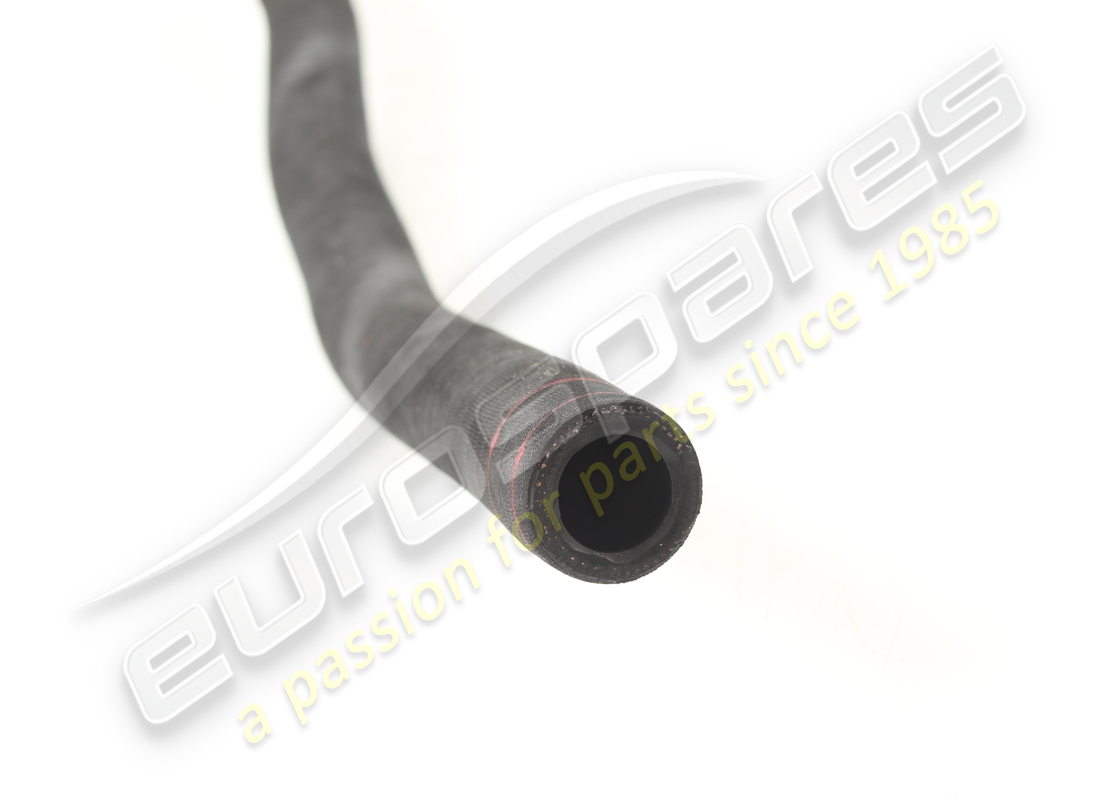

# 018
MPN: 196892
PIPE FROM TANK TO PUMP
from £13.49
from £13.49
# 019
MPN: 177996
CLAMP
from £2.31
from £2.31
# 020
MPN: 211916
DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION
from £44.01
from £44.01
# 021
MPN: 178051
CLAMP
from £1.92
from £1.92
# 022
MPN: 211642
DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE
-No longer supplied- -Replaced by 214668-
from £160.15
from £160.15
# 022
MPN: 214668
DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE
from £197.31
from £197.31
This part replaces part number 211642 which we have in stock
# 023
MPN: 211536
JUNCTION TO LH STEERING BOX DELIVERY PIPE
from £123.86
from £123.86
# 024
MPN: 202552
UNDERBODY RETURN PIPE
from £108.47
from £108.47
# 025
MPN: 178051
CLAMP
from £1.92
from £1.92
# 026
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 027
MPN: 14499324
WASHER
from £0.51
from £0.51
This part replaces part number 14499301 which we have in stock
# 028
MPN: 124034
BRACKET WITH SHEATH
from £1.75
from £1.75
# 029
MPN: 10902124
SCREW
-L. 14 mm-
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 030
MPN: 14488624
WASHER
from £0.54
from £0.54
# 031
MPN: 10441390
BRACKET WITH SHEATH
from £0.51
from £0.51
# 032
MPN: 229765
TANK FASTENER BRACKET
-Replaces 184137 ref. 7 and 195428 ref. 10-
from £95.65
from £95.65
