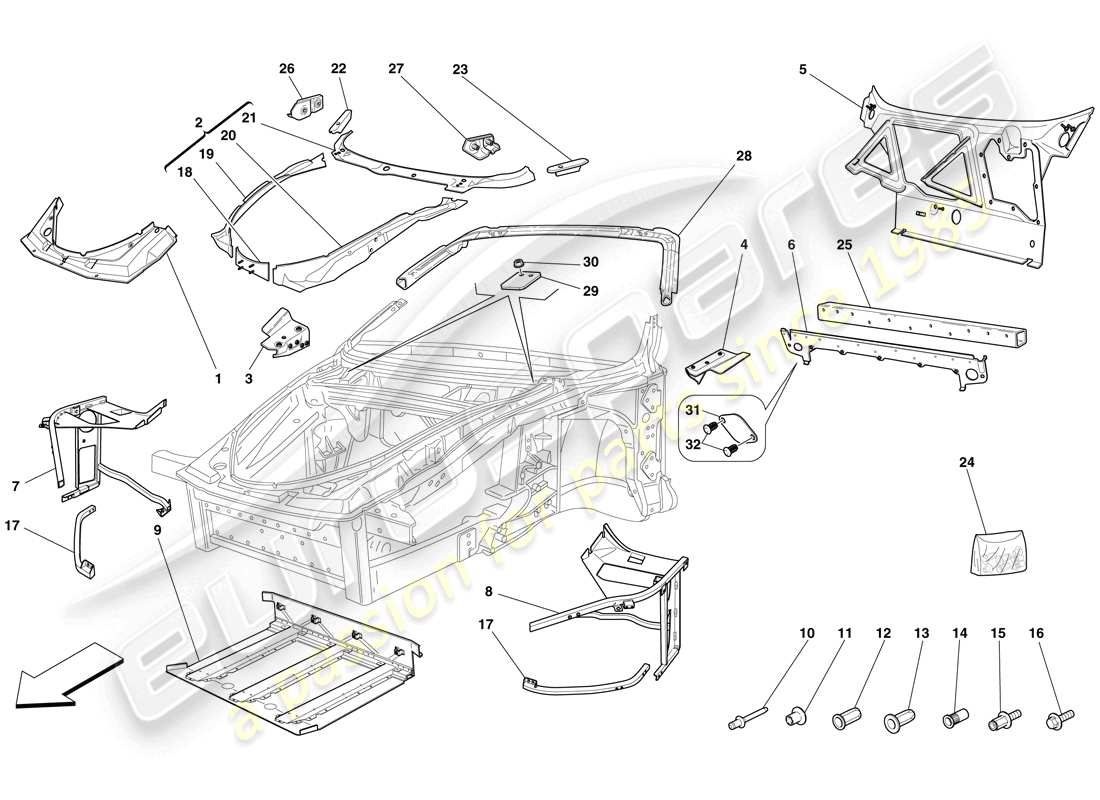

0101 - CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

Ferrari F430 Spider (Europe) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 65393611
                                    COMPLETE FRONT CROSS MEMBER
                                    from £298.27
                                    from £298.27
                                    This part replaces part number 65316700 - and 2 more. Click to view details
                                    COMPLETE FRONT CROSS MEMBER Genuine Ferrari Part - New In stock
                                    # 002
                                    MPN: 68037611
                                    UNDER WINDSCREED FRAME
                                    -Not for USA, CDN-
                                    from £1,568.61
                                    from £1,568.61
                                    This part replaces part number 66120311 which we have in stock - and 1 more. Click to view details
                                    OSSATURA ANTERIORE CPL.+CATA Genuine Ferrari Part - New (to order)
                                    # 002
                                    MPN: 69113511
                                    COMPLETE FRONT SUBSTRUCTURE
                                    -Applicable for USA, CDN-
                                    from £1,599.98
                                    from £1,599.98
                                    COMPLETE FRONT MOULDING -VAL Genuine Ferrari Part - New (to order)
                                    # 003
                                    MPN: 65393811
                                    FRONT RH LID HINGE FASTENER COLUMN
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 004
                                    MPN: 65393911
                                    LH FRONT LID HINGE FASTENER PLATE
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 005
                                    MPN: 985202382
                                    FRONT FIREWALL
                                    -Not for GD-
                                    from £337.98
                                    from £337.98
                                    This part replaces part number 202382 which we have in stock
                                    FRONT SHIELD -NOT FOR GD- Genuine Ferrari Part - New (to order)
                                    # 005
                                    MPN: 985212400
                                    FRONT FIREWALL
                                    -Applicable for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 006
                                    MPN: 67962711
                                    LUGGAGE COMPARTMENT UPPER REAR WALL
                                    from £66.82
                                    from £66.82
                                    This part replaces part number 67962700
                                    TRUNK COMPARTMENT UPPER REAR Genuine Ferrari Part - New (to order)
                                    # 007
                                    MPN: 67289311
                                    RH FRONT LATERAL TRELLIS
                                    -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 007
                                    MPN: 69735911
                                    RH FRONT LATERAL TRELLIS
                                    -Applicable after depletion of 67289311-
                                    from £418.74
                                    from £418.74
                                    This part replaces part number 67289311 - and 1 more. Click to view details
                                    RH FRONT SIDE FRAME Genuine Ferrari Part - New In stock
                                    # 008
                                    MPN: 67289411
                                    LH FRONT LATERAL TRELLIS
                                    -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    This part replaces part number 67289400
                                    Genuine Ferrari Part (no longer available to order)
                                    # 008
                                    MPN: 69736011
                                    LH FRONT LATERAL TRELLIS
                                    -Applicable after depletion of 67289411-
                                    from £426.62
                                    from £426.62
                                    This part replaces part number 67289411 - and 1 more. Click to view details
                                    LH FRONT SIDE FRAME Genuine Ferrari Part - New (to order)
                                    # 009
                                    MPN: 67656611
                                    COMPLETE LUGGAGE COMPARTMENT BACK PANEL
                                    from £565.50
                                    from £565.50
                                    This part replaces part number 67656600
                                    LAMIERA FONDO BAULE CPL-CATA Genuine Ferrari Part - New (to order)
                                    # 010
                                    MPN: 14642891
                                    POP RIVET
                                    -L. 14 mm-
                                    from £0.71
                                    from £0.71
                                    ALUMINIUM RIVET 14MM Genuine Ferrari Part - New (to order)
                                    # 011
                                    MPN: 65133800
                                    SELF-PIERCING RIVET
                                    -L. 6.4 mm-
                                    from £0.47
                                    from £0.47
                                    RIVET Genuine Ferrari Part - New (to order)
                                    # 012
                                    MPN: 15180411
                                    HEXAGONAL BLIND RIVET
                                    from £0.81
                                    from £0.81
                                    BLIND ESAGONAL RIVET Genuine Ferrari Part - New In stock
                                    RIVETTO EF/TC CIECO M 6X22.5 (15180411) Genuine Maserati Part - New (to order)
                                    # 012
                                    MPN: 15624211
                                    HEXAGONAL RIVET
                                    -M4-
                                    from £0.81
                                    from £0.81
                                    ESAGONAL RIVET M4 Genuine Ferrari Part - New In stock
                                    # 012
                                    MPN: 15624311
                                    HEXAGONAL RIVET
                                    -M5-
                                    from £1.90
                                    from £1.90
                                    ESAGONAL RIVET M5 Genuine Ferrari Part - New In stock
                                    RIVET FOR BRACKET ON INTE (15624311) Genuine Maserati Part - New (to order)
                                    # 012
                                    MPN: 15624411
                                    HEXAGONAL RIVET
                                    -M6- -No longer supplied- -Replaced by 248146-
                                    from £0.87
                                    from £0.87
                                    Genuine Ferrari Part (no longer available to order)
                                    RIVET (15624411) Genuine Maserati Part - New (to order)
                                    # 012
                                    MPN: 15624511
                                    HEXAGONAL RIVET
                                    -M8-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 012
                                    MPN: 248146
                                    HEXAGONAL RIVET
                                    -M6-
                                    from £0.56
                                    from £0.56
                                    This part replaces part number 15624411
                                    RIVET M6X16 Genuine Ferrari Part - New (to order)
                                    # 013
                                    MPN: 65151200
                                    RIVET
                                    -M6-
                                    from £0.47
                                    from £0.47
                                    RIVET M6 Genuine Ferrari Part - New In stock
                                    # 014
                                    MPN: 166101
                                    KNURLED RIVET
                                    -M4-
                                    from £0.73
                                    from £0.73
                                    RIVET M4 Genuine Ferrari Part - New (to order)
                                    # 014
                                    MPN: 60853400
                                    RIVET
                                    from £0.87
                                    from £0.87
                                    BLACK POP RIVET - LARGE HEAD - 3.2X8 Genuine Ferrari Part - New (to order)
                                    # 014
                                    MPN: 65135000
                                    KNURLED RIVET
                                    -M8-
                                    from £0.62
                                    from £0.62
                                    RIVET M8 Genuine Ferrari Part - New In stock
                                    # 014
                                    MPN: 65319800
                                    NUT KNURLED RIVET
                                    -M5-
                                    from £0.47
                                    from £0.47
                                    RIVET M8 BLIND Genuine Ferrari Part - New In stock
                                    # 014
                                    MPN: 65930400
                                    KNURLED RIVET
                                    -M6-
                                    from £0.50
                                    from £0.50
                                    RIVET M6 Genuine Ferrari Part - New (to order)
                                    # 015
                                    MPN: 65065400
                                    HEXAGONAL HEAD STUD BOLT
                                    -M6-
                                    from £1.66
                                    from £1.66
                                    STUD ESAGONAL HEAD M6 Genuine Ferrari Part - New In stock
                                    # 016
                                    MPN: 13836771
                                    SCREW
                                    from £1.08
                                    from £1.08
                                    SCREW. Genuine Ferrari Part - New In stock
                                    # 017
                                    MPN: 68079811
                                    RH PLATE MOBILE PIPE
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 017
                                    MPN: 68086311
                                    LH PLATE MOBILE PIPE
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 018
                                    MPN: 66219811
                                    LUGGAGE COMPARTMENT UPPER SUBSTRUCTURE SHIELD
                                    from £128.33
                                    from £128.33
                                    This part replaces part number 66219800
                                    TRUNK COMPARTMENT UPPER MOUL Genuine Ferrari Part - New (to order)
                                    # 019
                                    MPN: 67963111
                                    RH FENDER SUPPORT WALL
                                    from £1,060.53
                                    from £1,060.53
                                    This part replaces part number 67963100
                                    RH FRONT WING SUPPORT Genuine Ferrari Part - New (to order)
                                    # 020
                                    MPN: 68031911
                                    LH FENDER SUPPORT WALL
                                    from £1,010.03
                                    from £1,010.03
                                    This part replaces part number 68031900
                                    LH FENDER SUPPORT WALL Genuine Ferrari Part - New (to order)
                                    # 021
                                    MPN: 66120311
                                    UNDERWINDSCREEN BOX ELEMENT
                                    -No longer supplied-
                                    from £536.45
                                    from £536.45
                                    SCREEN SCUTTLE PANEL Genuine Ferrari Part - New In stock
                                    # 022
                                    MPN: 65317411
                                    RH BRACKET
                                    from £32.59
                                    from £32.59
                                    This part replaces part number 65317400
                                    RH BRACKET Genuine Ferrari Part - New (to order)
                                    # 023
                                    MPN: 65317511
                                    LH BRACKET
                                    from £32.59
                                    from £32.59
                                    This part replaces part number 65317500
                                    LH BRACKET Genuine Ferrari Part - New (to order)
                                    # 024
                                    MPN: 70000950
                                    REPAIR INSERTS KIT
                                    from £957.91
                                    from £957.91
                                    INSERT KIT FOR REPAIRS. Genuine Ferrari Part - New (to order)
                                    # 025
                                    MPN: 202381
                                    COMPLETE UPPER FRONT SUSPENSION CONNECTION CROSS MEMBER
                                    -Applicable after depletion of 985202381-
                                    from £228.85
                                    from £228.85
                                    This part replaces part number 207547
                                    SUSPENSION CROSSMEMBER Genuine Ferrari Part - New In stock
                                    # 025
                                    MPN: 985202381
                                    COMPLETE UPPER FRONT SUSPENSION CONNECTION CROSS MEMBER
                                    -Applicable until depletion-
                                    from £483.62
                                    from £483.62
                                    This part replaces part number 202381 which we have in stock
                                    COMPLETE FRONT SUSPENSION UP Genuine Ferrari Part - New (to order)
                                    # 026
                                    MPN: 65709811
                                    RH HINGE FIXED FASTENING BRACKET
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 027
                                    MPN: 65709911
                                    LH FIXED HINGE FIXED FASTENER BRACKET
                                    Supersession
                                    Supersession
                                    This part replaces part number 65709900 which we have in stock
                                    Genuine Ferrari Part (no longer available to order)
                                    # 028
                                    MPN: 65782911
                                    COMPLETE WINDSCREEN UPPER CROSS MEMBER
                                    -No longer supplied- -Replaced by 69665511-
                                    Supersession
                                    Supersession
                                    This part replaces part number 65782900 which we have in stock
                                    Genuine Ferrari Part (no longer available to order)
                                    # 028
                                    MPN: 69665511
                                    COMPLETE WINDSCREEN UPPER CROSS MEMBER
                                    from £1,392.12
                                    from £1,392.12
                                    This part replaces part number 65782911 - and 1 more. Click to view details
                                    UPPER WINDSCREEN CROSSMEMBER COMPLETE Genuine Ferrari Part - New (to order)
                                    # 029
                                    MPN: 65548800
                                    PLATE
                                    from £1.74
                                    from £1.74
                                    SEAL Genuine Ferrari Part - New (to order)
                                    # 030
                                    MPN: 65897200
                                    NUT
                                    from £0.47
                                    from £0.47
                                    NUT Genuine Ferrari Part - New (to order)
                                    # 031
                                    MPN: 70001259
                                    PLATE
                                    -Applicable from Ass. No. 70821 up to Ass. No. 71567-
                                    from £6.41
                                    from £6.41
                                    PLATE Genuine Ferrari Part - New (to order)
                                    # 032
                                    MPN: 14591687
                                    FASTENING BUTTON
                                    -Applicable from Ass. No. 70821 up to Ass. No. 71567-
                                    from £0.30
                                    from £0.30
                                    This part replaces part number 69767700 - and 1 more. Click to view details
                                    PLUG Genuine Ferrari Part - New In stock
                                    PLUG Genuine Ferrari Part - Used In stock
                                    FIXING BUTTON FOR TRUNK C (14591687) Genuine Maserati Part - New In stock
