ferrari f430 spider (europe) front compartment trim parts diagram

0109 - FRONT COMPARTMENT TRIM

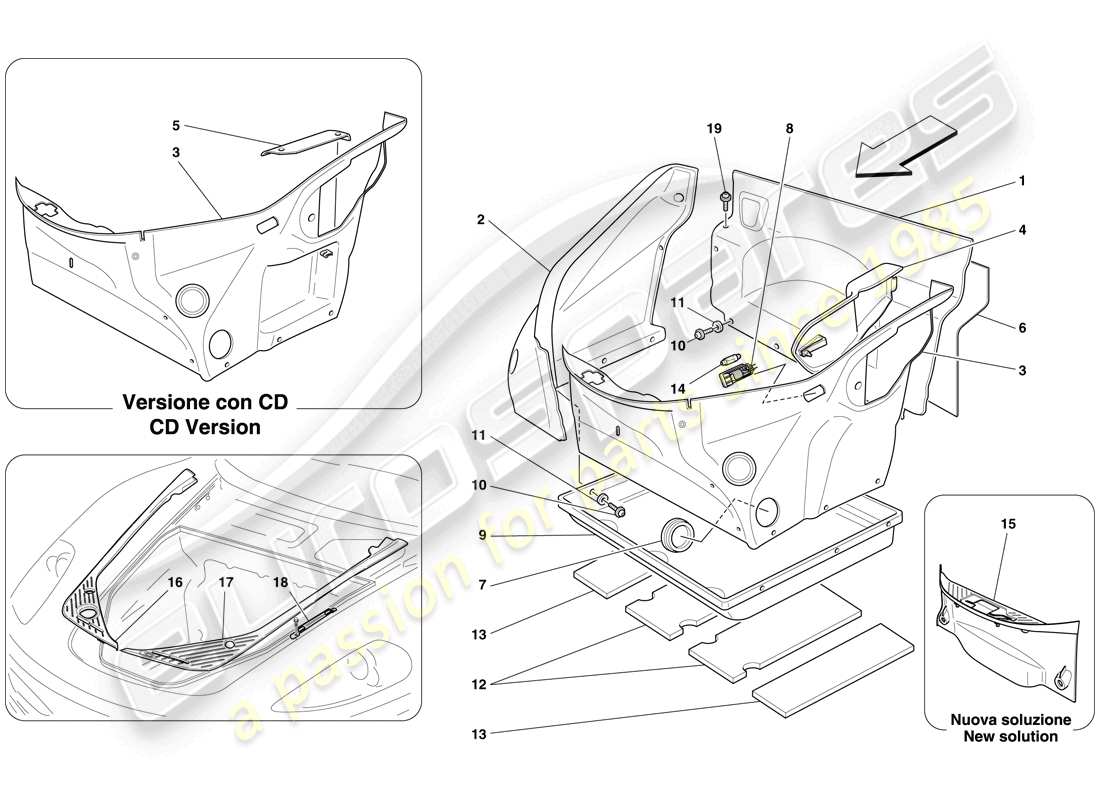

Ferrari F430 Spider (Europe) FRONT COMPARTMENT TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 68140000
                                REMOVABLE REAR LUGGAGE COMPARTMENT PANEL
                                from £315.82
                                from £315.82
                                TRUNK HOOD MOBILE REAR WALL Genuine Ferrari Part - New In stock
                                TRUNK HOOD MOBILE REAR WALL Genuine Ferrari Part - Used In stock
                                # 002
                                MPN: 68511100
                                RH LATERAL TRIM
                                from £187.52
                                from £187.52
                                RH SIDE SHIELD Genuine Ferrari Part - New In stock
                                RH SIDE SHIELD Genuine Ferrari Part - Used In stock
                                RH SIDE SHIELD Genuine Ferrari Part - New (other) In stock
                                SIDE SHIELD
                                # 003
                                MPN: 68511200
                                LH LATERAL TRIM
                                -Not for CD version- -No longer supplied- -Replaced by 80665800-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 003
                                MPN: 68511400
                                LH LATERAL TRIM
                                -CD version- -Applicable until depletion-
                                from £237.28
                                from £237.28
                                LH TRUNK CARPET Genuine Ferrari Part - New In stock
                                LH TRUNK CARPET Genuine Ferrari Part - Used In stock
                                # 003
                                MPN: 80665800
                                LH LATERAL TRIM
                                -Not for CD version-
                                from £291.56
                                from £291.56
                                This part replaces part number 68511200 - and 1 more. Click to view details
                                LH SIDE SHIELD Genuine Ferrari Part - New (to order)
                                LH SIDE SHIELD Genuine Ferrari Part - Used In stock
                                # 003
                                MPN: 80665900
                                LH LATERAL TRIM
                                -CD version- -Applicable after depletion of 68511400-
                                from £544.93
                                from £544.93
                                This part replaces part number 68511400 which we have in stock
                                LH SIDE SHIELD Genuine Ferrari Part - New (to order)
                                # 004
                                MPN: 68511300
                                FUSE INSPECTION HATCH
                                from £125.00
                                from £125.00
                                FUSES INSPECTION DOOR Genuine Ferrari Part - New (to order)
                                FUSES INSPECTION DOOR Genuine Ferrari Part - Used In stock
                                FUSES INSPECTION DOOR Genuine Ferrari Part - Used In stock
                                # 005
                                MPN: 68511600
                                CD COMPARTMENT COVER
                                -CD version-
                                from £227.28
                                from £227.28
                                CD COMPARTMENT COVER -CD VE Genuine Ferrari Part - New (to order)
                                # 006
                                MPN: 68647100
                                WATERPROOF MEMBRANE
                                from £135.64
                                from £135.64
                                WATER PROTECTION CLOTH Genuine Ferrari Part - New (to order)
                                # 007
                                MPN: 63965800
                                CAP
                                from £4.00
                                from £4.00
                                PLUG Genuine Ferrari Part - New In stock
                                # 008
                                MPN: 139517
                                LUGGAGE COMPARTMENT LIGHT
                                from £7.52
                                from £7.52
                                GLOVE BOX DOME LAMP Genuine Ferrari Part - New (to order)
                                GLOVE BOX DOME LAMP Genuine Ferrari Part - Used In stock
                                # 009
                                MPN: 68510800
                                LOWER TRAY
                                from £201.20
                                from £201.20
                                LOWER STEP Genuine Ferrari Part - New (to order)
                                LOWER STEP Genuine Ferrari Part - Used In stock
                                # 010
                                MPN: 65933500
                                SCREW
                                -L. 15 mm-
                                from £0.87
                                from £0.87
                                SCREW Genuine Ferrari Part - New In stock
                                # 010
                                MPN: 65970400
                                SCREW
                                -L. 15 mm-
                                from £1.50
                                from £1.50
                                SCREW. Genuine Ferrari Part - New In stock
                                # 010
                                MPN: 66091000
                                SCREW
                                -L. 25 mm-
                                from £2.52
                                from £2.52
                                This part replaces part number 65933600
                                SCREW Genuine Ferrari Part - New In stock
                                # 011
                                MPN: 65841100
                                WASHER
                                from £0.60
                                from £0.60
                                WASHER Genuine Ferrari Part - New In stock
                                # 012
                                MPN: 68510900
                                CENTRAL INSULATION
                                from £14.54
                                from £14.54
                                CENTRAL INSULATION Genuine Ferrari Part - New (to order)
                                # 013
                                MPN: 68511000
                                LATERAL INSULATION
                                from £26.38
                                from £26.38
                                LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                # 014
                                MPN: 10863090
                                12 V-5 W LAMP
                                from £5.86
                                from £5.86
                                12V-5W BULB Genuine Ferrari Part - New (to order)
                                # 015
                                MPN: 80599900
                                FIXING PLATE
                                -Applicable from Ass. No. 74672-
                                from £61.46
                                from £61.46
                                PLATE Genuine Ferrari Part - New In stock
                                # 016
                                MPN: 80599600
                                RH SEAT BELT SLOT SURROUND
                                from £110.42
                                from £110.42
                                RH PLATE Genuine Ferrari Part - New In stock
                                # 017
                                MPN: 80599700
                                LH SEAT BELT SLOT SURROUND
                                from £110.42
                                from £110.42
                                LH PLATE Genuine Ferrari Part - New In stock
                                # 018
                                MPN: 80599400
                                BRACKET
                                from £76.68
                                from £76.68
                                BRACKET Genuine Ferrari Part - New (to order)
                                # 019
                                MPN: 68931700
                                SCREW
                                from £1.72
                                from £1.72
                                SCREW Genuine Ferrari Part - New In stock
