ferrari f430 spider (europe) dashboard parts diagram

0136 - DASHBOARD

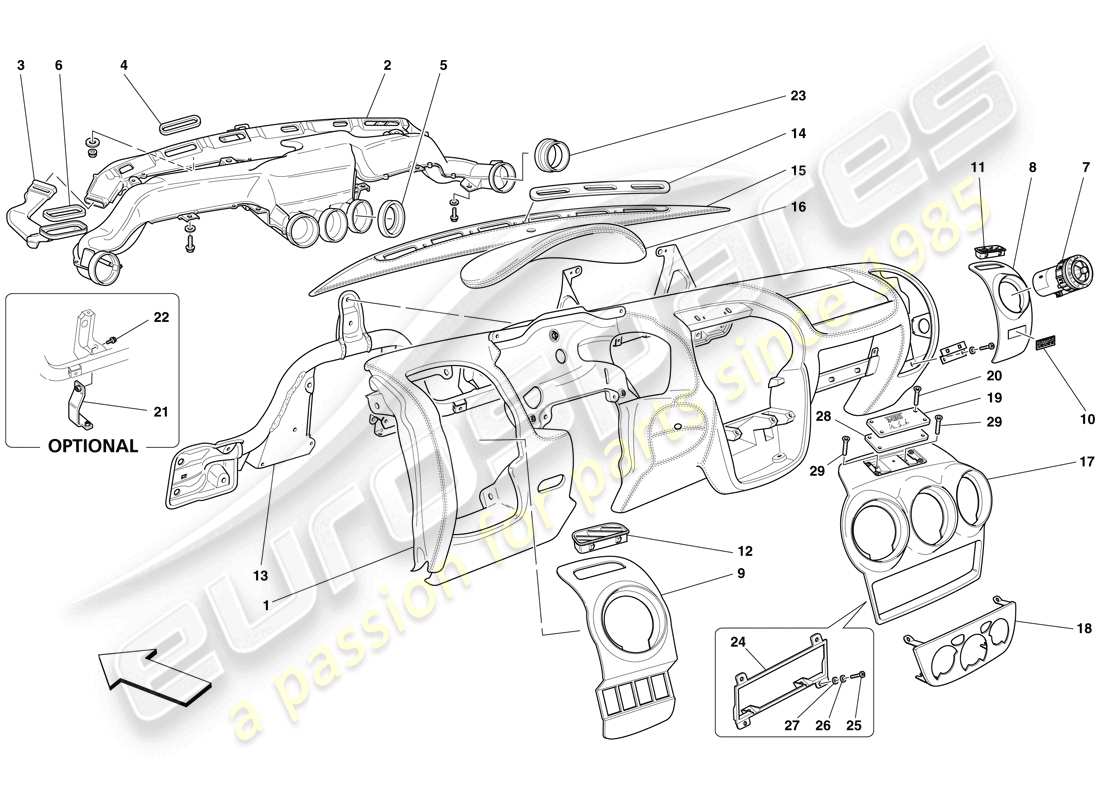

Ferrari F430 Spider (Europe) DASHBOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 000
                                    MPN: 81201800/K
                                    CARBON DASHBOARD KIT
                                    from £1,800.00
                                    from £1,800.00
                                    CARBON DASHBOARD KIT Genuine Ferrari Part - New In stock
                                    # 001
                                    MPN: 676850..
                                    DASHBOARD
                                    -Airbag disable system- -Not for UK- -No longer supplied-
                                    from £2,619.75
                                    from £2,619.75
                                    Genuine Ferrari Part (no longer available to order)
                                    DASHBOARD Genuine Ferrari Part - Used In stock
                                    DASHBOARD Genuine Ferrari Part - New (other) In stock
                                    # 001
                                    MPN: 683583..
                                    DASHBOARD
                                    -Airbag disable system- -Applicable for UK- -No longer supplied-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 684429..
                                    COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
                                    -With airbag disable system- -Not for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 687158..
                                    COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
                                    -With airbag disable system- -Applicable for GD-
                                    COMPLETE TRIMMED DASHBOARD SUBSTRUCTURE, RHD Genuine Ferrari Part - New (to order)
                                    # 001
                                    MPN: 691414..
                                    COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
                                    -Without airbag disable system- -Not for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 691417..
                                    COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
                                    -Without airbag disable system- -Applicable for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 691418..
                                    DASHBOARD
                                    -Standard- -Applicable for J- -No longer supplied-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 691419..
                                    DASHBOARD
                                    -Standard- -Applicable for AUS- -No longer supplied-
                                    DASHBOARD Genuine Ferrari Part - New (to order)
                                    # 001
                                    MPN: 692372..
                                    DASHBOARD
                                    -Standard- -Applicable for USA- -No longer supplied-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 693051..
                                    DASHBOARD
                                    -Standard- -Applicable for CDN- -No longer supplied-
                                    DASHBOARD Genuine Ferrari Part - New (to order)
                                    # 001
                                    MPN: 802694..
                                    DASHBOARD
                                    -Standard- -Not for USA, CDN, J, GD- -No longer supplied-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 001
                                    MPN: 802697..
                                    DASHBOARD
                                    -Standard- -Applicable for UK- -No longer supplied-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 002
                                    MPN: 63352900
                                    AIR DUCT
                                    -Not for GD-
                                    from £90.86
                                    from £90.86
                                    UNDER-DASHBOARD AIR DUCTING Genuine Ferrari Part - New (to order)
                                    UNDER-DASHBOARD AIR DUCTING Genuine Ferrari Part - Used In stock
                                    # 002
                                    MPN: 65536200
                                    AIR DUCT
                                    -Applicable for GD-
                                    from £92.68
                                    from £92.68
                                    AIR DUCTING Genuine Ferrari Part - New (to order)
                                    AIR DUCTING Genuine Ferrari Part - Used In stock
                                    # 003
                                    MPN: 65132300
                                    RH LATERAL DUCT
                                    from £7.43
                                    from £7.43
                                    RH UNDER-DASHBOARD AIRDUCTI Genuine Ferrari Part - New (to order)
                                    # 003
                                    MPN: 65132400
                                    LH LATERAL DUCT
                                    from £11.61
                                    from £11.61
                                    LH AIR DUCT Genuine Ferrari Part - New (to order)
                                    # 004
                                    MPN: 66050600
                                    GASKET
                                    from £3.80
                                    from £3.80
                                    This part replaces part number 63352700
                                    GASKET Genuine Ferrari Part - New (to order)
                                    # 005
                                    MPN: 63353300
                                    CENTRAL AIR VENT GASKET
                                    from £0.51
                                    from £0.51
                                    This part replaces part number 68603400 - and 1 more. Click to view details
                                    GASKET Genuine Ferrari Part - New In stock
                                    GASKET Genuine Ferrari Part - Used In stock
                                    # 006
                                    MPN: 65132500
                                    GASKET
                                    from £0.71
                                    from £0.71
                                    GASKET Genuine Ferrari Part - New (to order)
                                    # 007
                                    MPN: 68811300
                                    AIR VENT
                                    from £125.02
                                    from £125.02
                                    AIR DIFFUSOR OPENING Genuine Ferrari Part - New In stock
                                    # 008
                                    MPN: 67796810
                                    RH LATERAL VENT PANEL
                                    -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                    from £853.74
                                    from £853.74
                                    This part replaces part number 67796800
                                    RH AIR OUTLET PLATE Genuine Ferrari Part - New (to order)
                                    # 008
                                    MPN: 68648100
                                    RH LATERAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 008
                                    MPN: 81200800
                                    RH LATERAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable after depletion of 68648100-
                                    from £285.99
                                    from £285.99
                                    This part replaces part number 68648100 - and 2 more. Click to view details
                                    RH AIR OUTLET PLATE Genuine Ferrari Part - New In stock
                                    RH AIR OUTLET PLATE Genuine Ferrari Part - Used In stock
                                    # 009
                                    MPN: 67916310
                                    LH LATERAL VENT PANEL
                                    -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                    from £853.74
                                    from £853.74
                                    This part replaces part number 67916300
                                    LH AIR OUTLET PLATE Genuine Ferrari Part - New (to order)
                                    # 009
                                    MPN: 68648200
                                    LH LATERAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 009
                                    MPN: 81200900
                                    LH LATERAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable after depletion of 68648200-
                                    from £370.14
                                    from £370.14
                                    This part replaces part number 68648200 - and 1 more. Click to view details
                                    LH AIR OUTLET PLATE Genuine Ferrari Part - New In stock
                                    LH AIR OUTLET PLATE Genuine Ferrari Part - Used In stock
                                    # 010
                                    MPN: 69065010
                                    CAMPIONI DEL MONDO 2004 LABEL
                                    -No longer supplied- -Replaced by 69833810-
                                    from £93.82
                                    from £93.82
                                    CAMPIONI DEL MONDO 2004 PLAT Genuine Ferrari Part - New (to order)
                                    # 010
                                    MPN: 69833810
                                    CAMPIONI DEL MONDO PLAQUE
                                    from £173.03
                                    from £173.03
                                    CAMPIONI DEL MONDO MOTIF Genuine Ferrari Part - New (to order)
                                    # 010
                                    MPN: 80462510
                                    60 YEARS LABEL
                                    from £109.04
                                    from £109.04
                                    This part replaces part number 80462500
                                    60-YEAR PLATE. Genuine Ferrari Part - New (to order)
                                    # 010
                                    MPN: 81190900
                                    CAMPIONI DEL MONDO 2007 LABEL
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 010
                                    MPN: 82262900
                                    CAMPIONI DEL MONDO 2008 LABEL
                                    from £101.09
                                    from £101.09
                                    This part replaces part number 82253500 - and 1 more. Click to view details
                                    CAMPIONI DEL MONDO 2008 LABE Genuine Ferrari Part - New (to order)
                                    # 011
                                    MPN: 67919000
                                    RH SEAT BELT SLOT SURROUND
                                    from £105.20
                                    from £105.20
                                    RH PLATE Genuine Ferrari Part - New (to order)
                                    # 012
                                    MPN: 67919100
                                    LH SEAT BELT SLOT SURROUND
                                    from £105.20
                                    from £105.20
                                    LH PLATE Genuine Ferrari Part - New (to order)
                                    # 013
                                    MPN: 67790600
                                    DASHBOARD SUBFRAME ASSEMBLY
                                    -Not for GD-
                                    from £195.82
                                    from £195.82
                                    DASHBOARD FRAME ASSEMBLY Genuine Ferrari Part - New (to order)
                                    DASHBOARD FRAME ASSEMBLY Genuine Ferrari Part - Used In stock
                                    RHD DASHBOARD BAR
                                    # 013
                                    MPN: 68356100
                                    DASHBOARD SUBFRAME ASSEMBLY
                                    -Applicable for GD-
                                    from £213.22
                                    from £213.22
                                    DASHBOARD FRAME COMPLETE Genuine Ferrari Part - New (to order)
                                    DASHBOARD FRAME COMPLETE Genuine Ferrari Part - Used In stock
                                    # 014
                                    MPN: 65018200
                                    RH AIR VENT SURROUND
                                    -Not for GD-
                                    from £49.66
                                    from £49.66
                                    RH COVER PLATE Genuine Ferrari Part - New In stock
                                    # 014
                                    MPN: 65018300
                                    LH AIR VENT SURROUND
                                    -Not for GD-
                                    from £49.66
                                    from £49.66
                                    LH COVER PLATE Genuine Ferrari Part - New In stock
                                    # 014
                                    MPN: 65891000
                                    LH AIR VENT SURROUND
                                    -Applicable for GD-
                                    from £32.24
                                    from £32.24
                                    RH INNER GUIDES SUPPORT CO Genuine Ferrari Part - New (to order)
                                    # 014
                                    MPN: 65891100
                                    RH AIR VENT SURROUND
                                    -Applicable for GD-
                                    from £32.24
                                    from £32.24
                                    RH AIR VENT SURROUND Genuine Ferrari Part - New (to order)
                                    # 015
                                    MPN: 696595..
                                    WINDSCREEN AIR VENT TRIM PANEL
                                    -Not for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 015
                                    MPN: 696596..
                                    WINDSCREEN AIR VENT TRIM PANEL
                                    -Applicable for GD-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 016
                                    MPN: 684217..
                                    BINNACLE
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 017
                                    MPN: 67796610
                                    UPPER CENTRAL VENT PANEL
                                    -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                    from £359.32
                                    from £359.32
                                    This part replaces part number 67796600 - and 3 more. Click to view details
                                    UPPER CENTRALPLATE Genuine Ferrari Part - New In stock
                                    UPPER CENTRALPLATE Genuine Ferrari Part - Used In stock
                                    # 017
                                    MPN: 68648300
                                    UPPER CENTRAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 017
                                    MPN: 81201800
                                    UPPER CENTRAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable after depletion of 68648300-
                                    from £1,035.80
                                    from £1,035.80
                                    This part replaces part number 68648300 - and 1 more. Click to view details
                                    UPPER CENTRAL PLATE Genuine Ferrari Part - New In stock
                                    UPPER CENTRAL PLATE Genuine Ferrari Part - Used In stock
                                    scratched
                                    # 018
                                    MPN: 67797010
                                    LOWER CENTRAL VENT PANEL
                                    -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                    from £105.75
                                    from £105.75
                                    This part replaces part number 67797000 - and 1 more. Click to view details
                                    LOWER CENTRALPLATE Genuine Ferrari Part - New In stock
                                    # 018
                                    MPN: 68648400
                                    LOWER CENTRAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 018
                                    MPN: 68971600
                                    LOWER CENTRAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable after depletion of 68648400- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    This part replaces part number 68648400
                                    Genuine Ferrari Part (no longer available to order)
                                    # 018
                                    MPN: 81200300
                                    LOWER CENTRAL VENT PANEL
                                    -Carbon version- -Optional- -Applicable after depletion of 68971600-
                                    from £215.58
                                    from £215.58
                                    This part replaces part number 68971600 - and 3 more. Click to view details
                                    LOWER CENTRAL PLATE Genuine Ferrari Part - New In stock
                                    LOWER CENTRAL PLATE Genuine Ferrari Part - Used In stock
                                    # 019
                                    MPN: 68719900
                                    MODEL PLATE
                                    -Standard-
                                    from £72.50
                                    from £72.50
                                    ALLUMINIUM PLATE Genuine Ferrari Part - New (to order)
                                    # 019
                                    MPN: 68872700
                                    MODEL PLATE
                                    -Carbon- -Optional-
                                    from £198.90
                                    from £198.90
                                    CARBON PLATE Genuine Ferrari Part - New (to order)
                                    # 019
                                    MPN: 69119900
                                    DEDICATION PLAQUE
                                    -Optional- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    This part replaces part number 68148500
                                    Genuine Ferrari Part (no longer available to order)
                                    # 019
                                    MPN: 80728900
                                    DEDICATION PLAQUE
                                    -Optional- -Applicable after depletion of 69119900-
                                    from £339.84
                                    from £339.84
                                    This part replaces part number 69119900
                                    CAR MODEL PLATE Genuine Ferrari Part - New (to order)
                                    # 020
                                    MPN: 64214100
                                    SCREW
                                    -Self-locking-
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New In stock
                                    # 020
                                    MPN: 68927600
                                    SCREW
                                    -Black-
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New In stock
                                    # 021
                                    MPN: 68615200
                                    AMPLIFIER BOX FASTENER BRACKET
                                    -Not for GD-
                                    from £28.64
                                    from £28.64
                                    BOX AMPLIFIER FIXING BRACKET Genuine Ferrari Part - New (to order)
                                    # 021
                                    MPN: 69074200
                                    AMPLIFIER BOX FASTENER BRACKET
                                    -Applicable for GD-
                                    from £34.32
                                    from £34.32
                                    AMPLIFIER BOX FIXING BRACKET Genuine Ferrari Part - New (to order)
                                    # 022
                                    MPN: 16285127
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New In stock
                                    # 023
                                    MPN: 68134900
                                    RH LATERAL AIR VENT GASKET
                                    from £4.66
                                    from £4.66
                                    RH SIDE AIR OPENING GASKET Genuine Ferrari Part - New (to order)
                                    RH SIDE AIR OPENING GASKET Genuine Ferrari Part - Used In stock
                                    # 023
                                    MPN: 68135000
                                    LH LATERAL AIR VENT GASKET
                                    from £4.66
                                    from £4.66
                                    LH SIDE AIR OPENING GASKET Genuine Ferrari Part - New (to order)
                                    LH SIDE AIR OPENING GASKET Genuine Ferrari Part - Used In stock
                                    # 024
                                    MPN: 68662200
                                    RADIO FRAME
                                    from £12.78
                                    from £12.78
                                    Frame Genuine Ferrari Part - New (to order)
                                    # 025
                                    MPN: 14304024
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    Genuine Ferrari Part (no longer available to order)
                                    SCREW FOR BRACKET ON REAR (14304024) Genuine Maserati Part - New (to order)
                                    # 026
                                    MPN: 12637801
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    Genuine Ferrari Part (no longer available to order)
                                    SPLIT WASHER D.2 5.15 -11X 1 (12637801) Genuine Maserati Part - New In stock
                                    # 027
                                    MPN: 12620374
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    WASHER Genuine Ferrari Part - New In stock
                                    WASHER FOR EXTERIOR COWL (12620374) Genuine Maserati Part - New (to order)
                                    # 028
                                    MPN: 69140100
                                    DEDICATION PLAQUE MOUNTING
                                    from £32.08
                                    from £32.08
                                    SUPPORT PLATE Genuine Ferrari Part - New (to order)
                                    # 029
                                    MPN: 13270216
                                    SCREW
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
