ferrari f430 spider (rhd) timing system - drive parts diagram

0006 - timing system - drive

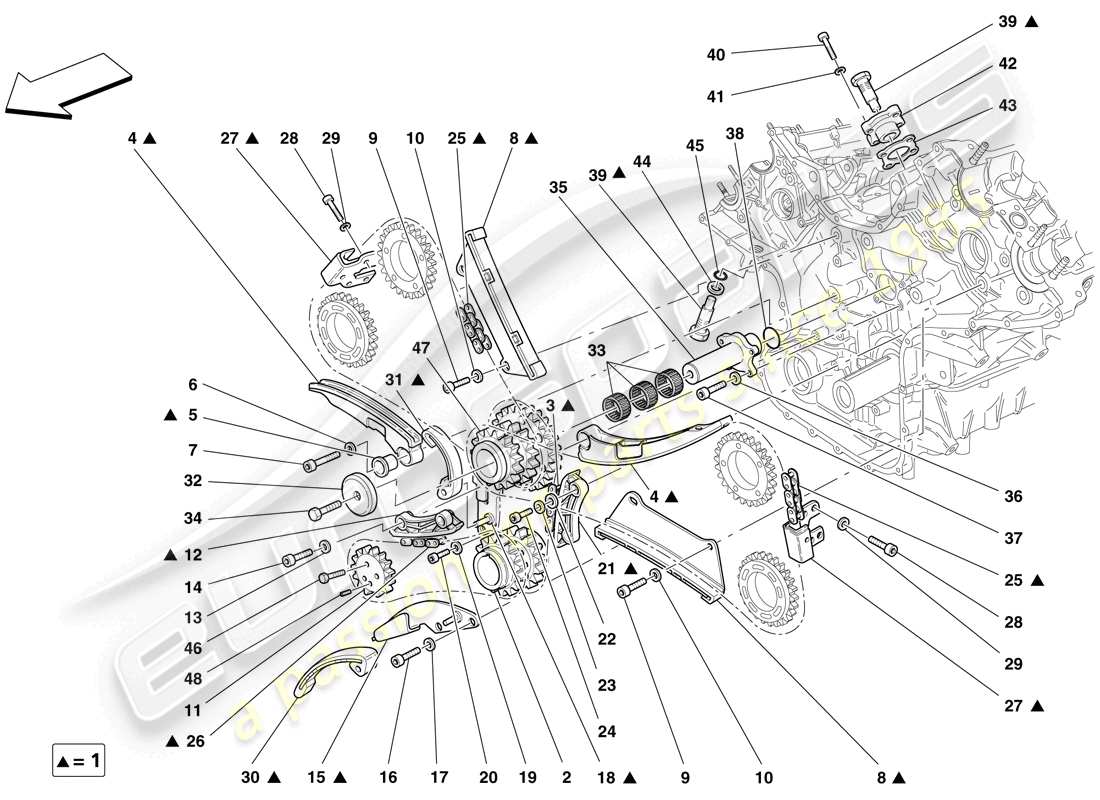

Ferrari F430 Spider (RHD) TIMING SYSTEM - DRIVE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 001
                                                                            MPN: 197879
                                                                            VALVE TIMING SYSTEM
                                                                            from £830.58
                                                                            from £830.58
                                                                            TIMING CONTROL ASSEMBLY Genuine Ferrari Part - New (to order)
                                                                            # 003
                                                                            MPN: 175286
                                                                            DRIVE CHAIN
                                                                            from £24.10
                                                                            from £24.10
                                                                            TRANSMISSION CHAIN. Genuine Ferrari Part - New (to order)
                                                                            TRANSMISSION CHAIN 23X236X48 Genuine Maserati Part - New (to order)
                                                                            # 004
                                                                            MPN: 186184

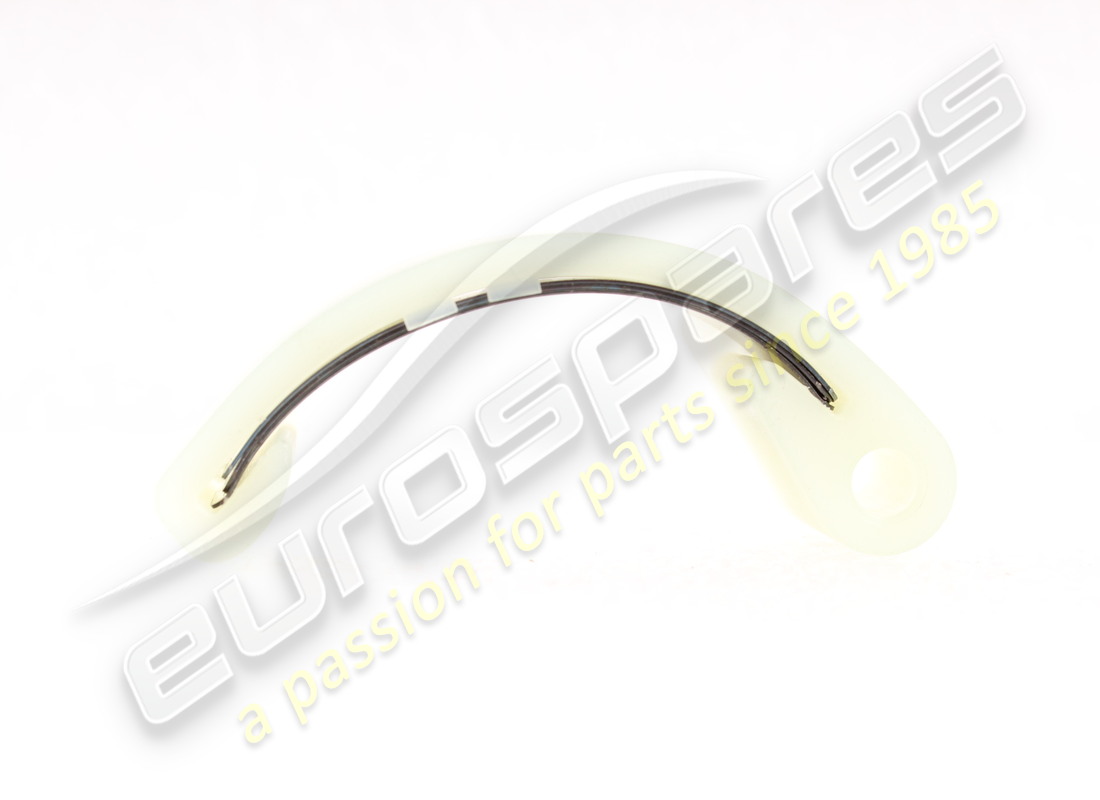

                                                                            MOBILE SHOE
                                                                            from £69.63
                                                                            from £69.63
                                                                            MOBILE GUIDE SHOE Genuine Ferrari Part - New (to order)
                                                                            MOBILE RUNNER Genuine Maserati Part - New (to order)
                                                                            # 005
                                                                            MPN: 175303
                                                                            BUSHING
                                                                            from £13.13
                                                                            from £13.13
                                                                            BUSHING. Genuine Ferrari Part - New (to order)
                                                                            MOVABLE RUNNER FAST. BUSHING Genuine Maserati Part - New (to order)
                                                                            # 006
                                                                            MPN: 10569373

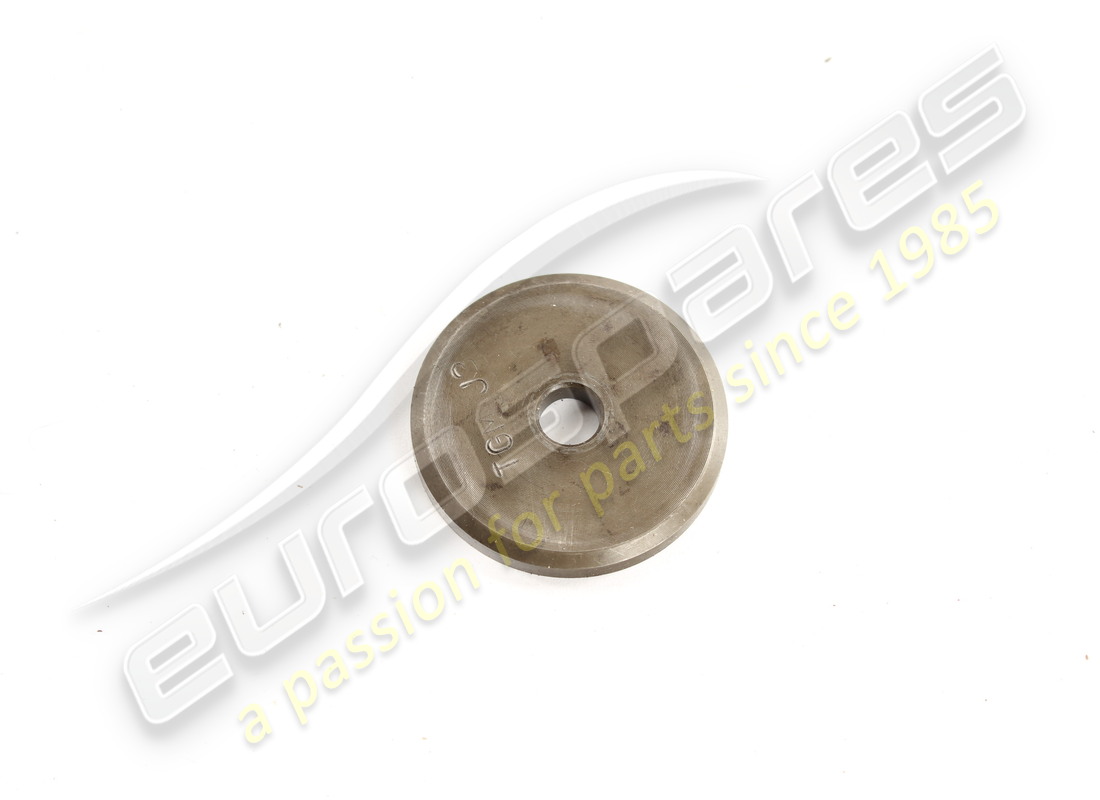

                                                                            WASHER
                                                                            -Applicable until depletion-
                                                                            from £0.47
                                                                            from £0.47
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            WASHER FOR TENSIONER GUIDE Genuine Maserati Part - New In stock
                                                                            # 006
                                                                            MPN: 255527
                                                                            WASHER
                                                                            -Applicable after depletion of 10569373-
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10569373
                                                                            WASHER Genuine Ferrari Part - New In stock

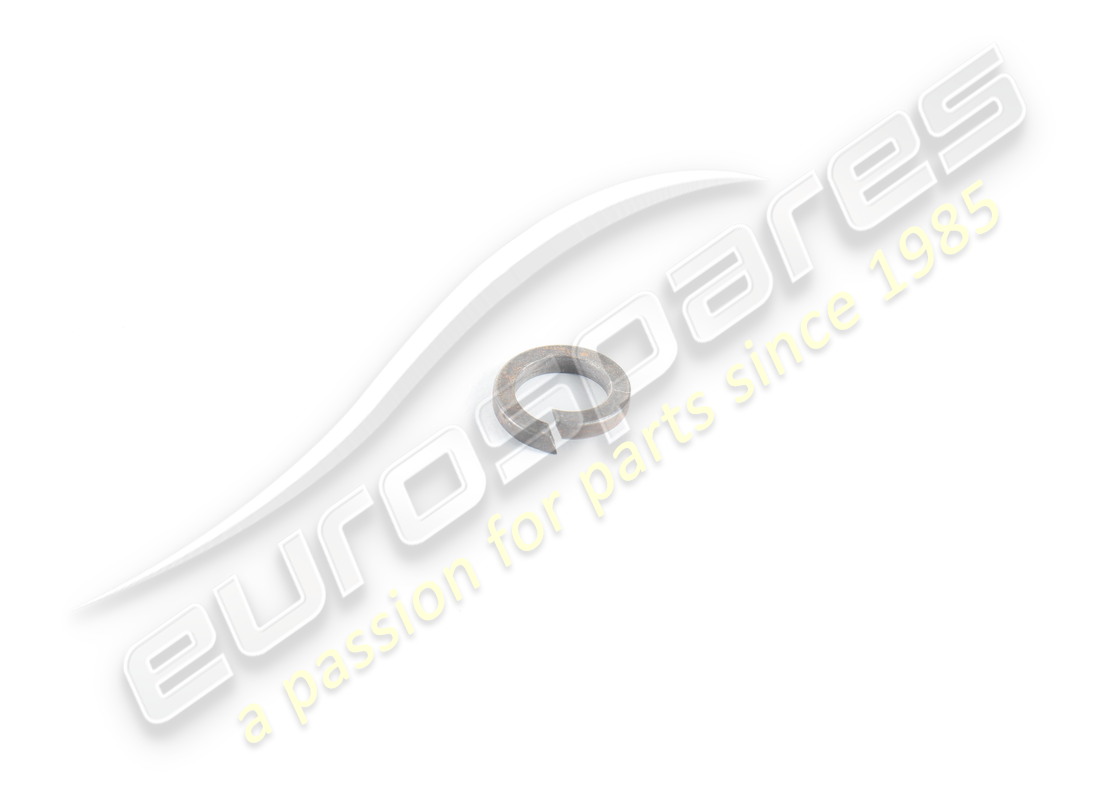

                                                                            SPLIT WASHER D.8.1X12.7X2 Genuine Maserati Part - New In stock
                                                                            # 007
                                                                            MPN: 14306424
                                                                            SCREW
                                                                            -M8 X 25-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 14306324 - and 2 more. Click to view details
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 008
                                                                            MPN: 186185
                                                                            FIXED SHOE
                                                                            from £34.09
                                                                            from £34.09
                                                                            FIXED TENSION. Genuine Ferrari Part - New (to order)
                                                                            COMPLETE TIMING SYSTEM FIXED RUNNER Genuine Maserati Part - New (to order)
                                                                            # 009
                                                                            MPN: 14306224
                                                                            SCREW
                                                                            from £0.51
                                                                            from £0.51
                                                                            This part replaces part number 14306221 - and 1 more. Click to view details
                                                                            SCREW TCEI MM 8X16 Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 010
                                                                            MPN: 11193874
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11193879 which we have in stock
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New In stock
                                                                            # 011
                                                                            MPN: 189564
                                                                            PUMP DRIVE GEAR
                                                                            from £261.54
                                                                            from £261.54
                                                                            PUMP CONTROM TOOTHED WHEEL Genuine Ferrari Part - New (to order)
                                                                            PUMP CONTROL TOOTHED WHEEL Genuine Maserati Part - New In stock
                                                                            PUMP CONTROL TOOTHED WHEEL Genuine Maserati Part - Used In stock
                                                                            Removed from 4200 engine 81090
                                                                            # 012
                                                                            MPN: 186186
                                                                            FIXED SHOE
                                                                            from £16.10
                                                                            from £16.10
                                                                            FIXED TENSION. Genuine Ferrari Part - New (to order)
                                                                            PUMP CONTROL FIXED RUNNER Genuine Maserati Part - New (to order)
                                                                            # 013
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 014
                                                                            MPN: 14305424
                                                                            SCREW
                                                                            -M6 X 25-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 14305421 - and 2 more. Click to view details
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 015
                                                                            MPN: 185724
                                                                            SHOE MOUNTING
                                                                            from £10.50
                                                                            from £10.50
                                                                            GUIDE SHOE SUPPORT Genuine Ferrari Part - New (to order)
                                                                            RUNNER MOUNT Genuine Maserati Part - New (to order)
                                                                            # 016
                                                                            MPN: 14305724
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11567624 - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 017
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 019
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 020
                                                                            MPN: 14305724
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11567624 - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 021
                                                                            MPN: 186181
                                                                            FIXED SHOE
                                                                            -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            # 021
                                                                            MPN: 306094
                                                                            FIXED SHOE
                                                                            -Applicable after depletion of 186181-
                                                                            from £32.34
                                                                            from £32.34
                                                                            This part replaces part number 186181
                                                                            FIXED SHOE Genuine Ferrari Part - New In stock
                                                                            Pattino Fisso Genuine Maserati Part - New (to order)
                                                                            # 022
                                                                            MPN: 12647624
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12647611
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            WASHER FOR FIXED TENSION Genuine Maserati Part - New (to order)
                                                                            # 023
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 024
                                                                            MPN: 14432224
                                                                            SCREW
                                                                            -M6 X 22-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 14432221
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 025
                                                                            MPN: 193616
                                                                            VALVE TIMING CHAIN
                                                                            from £53.12
                                                                            from £53.12
                                                                            TIMING CONTROL CHAIN Genuine Ferrari Part - New In stock
                                                                            TIMING CONTROL CHAIN Genuine Maserati Part - New In stock
                                                                            # 027
                                                                            MPN: 189569
                                                                            UPPER FIXED SLIPPER
                                                                            from £20.46
                                                                            from £20.46
                                                                            UPPER FIXED TENSION. Genuine Ferrari Part - New In stock
                                                                            COMPLETE UPPER FIXED RUNNER Genuine Maserati Part - New (to order)
                                                                            # 028
                                                                            MPN: 14305934
                                                                            SCREW
                                                                            from £0.79
                                                                            from £0.79
                                                                            This part replaces part number 14305931
                                                                            SCREW TCEI MM 6X45 Genuine Ferrari Part - New In stock
                                                                            SOCKET HEAD SCREW M 6X 45 Genuine Maserati Part - New (to order)
                                                                            # 029
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 030
                                                                            MPN: 185725
                                                                            CHAIN TENSIONER SHOE
                                                                            from £30.14
                                                                            from £30.14
                                                                            SPACE Genuine Ferrari Part - New (to order)
                                                                            FIXED CHAIN TENSIONER Genuine Maserati Part - New (to order)
                                                                            # 031
                                                                            MPN: 196683
                                                                            CHAIN TENSIONER SHOE
                                                                            from £24.12
                                                                            from £24.12
                                                                            CHAIN TENSIONER Genuine Ferrari Part - New In stock
                                                                            FIXED CHAIN TENSIONER Genuine Maserati Part - New (to order)
                                                                            # 032
                                                                            MPN: 194262
                                                                            SHOULDER
                                                                            from £10.46
                                                                            from £10.46
                                                                            SHOULDER Genuine Ferrari Part - New (to order)
                                                                            SHOULDER. Genuine Maserati Part - New (to order)
                                                                            SHOULDER Genuine Ferrari Part - Used In stock
                                                                            SHOULDER. Genuine Maserati Part - Used In stock
                                                                            Removed from 4200 engine 81090
                                                                            # 033
                                                                            MPN: 175282
                                                                            ROLLER BEARING CAGE
                                                                            from £3.48
                                                                            from £3.48
                                                                            ROLLER CAGE. Genuine Ferrari Part - New (to order)
                                                                            ROLLER CAGE 28X35X16 Genuine Maserati Part - New (to order)
                                                                            ROLLER CAGE. Genuine Ferrari Part - Used In stock
                                                                            # 034
                                                                            MPN: 16043124
                                                                            SCREW
                                                                            -M8 X 14-
                                                                            from £0.30
                                                                            from £0.30
                                                                            This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            SCREW Genuine Ferrari Part - Used In stock
                                                                            Removed from 458 engine 178999
                                                                            # 035
                                                                            MPN: 194261
                                                                            MOUNTING
                                                                            -Applicable up to engine No. 116245-
                                                                            from £80.45
                                                                            from £80.45
                                                                            SUPPORT Genuine Ferrari Part - New (to order)
                                                                            SUPPORTO RINVIO COMANDO DIST Genuine Maserati Part - New (to order)
                                                                            SUPPORTO RINVIO COMANDO DIST Genuine Maserati Part - Used In stock
                                                                            Removed from 4200 engine 81090
                                                                            # 035
                                                                            MPN: 227197
                                                                            MOUNTING
                                                                            -Applicable from engine No. 116246-
                                                                            from £179.25
                                                                            from £179.25
                                                                            TRANSMISSION Genuine Ferrari Part - New (to order)
                                                                            # 036
                                                                            MPN: 11181574
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            TAPERED RUBBER WASHER D. 5.3-1 Genuine Maserati Part - New (to order)
                                                                            # 037
                                                                            MPN: 14304224
                                                                            SCREW
                                                                            from £0.51
                                                                            from £0.51
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 038
                                                                            MPN: 104212
                                                                            O-RING
                                                                            -Applicable up to engine No. 116245-
                                                                            from £0.54
                                                                            from £0.54
                                                                            O.R.GASKET Genuine Ferrari Part - New In stock
                                                                            O-RING D. D. 29.82X Genuine Maserati Part - New In stock
                                                                            # 039
                                                                            MPN: 197880

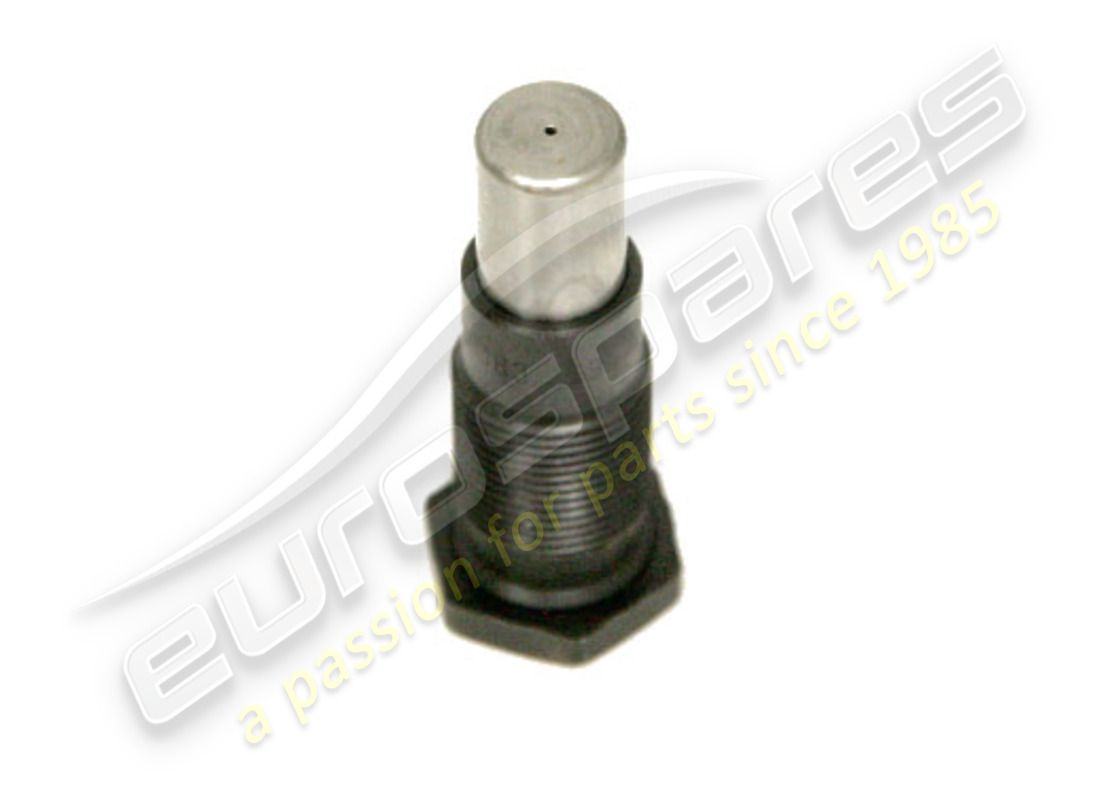

                                                                            HYDRAULIC TENSIONER
                                                                            from £43.38
                                                                            from £43.38
                                                                            HYDRAULIC TIGHTENER Genuine Ferrari Part - New In stock
                                                                            HYDRAULIC TIGHTENER Genuine Ferrari Part - Used In stock
                                                                            # 040
                                                                            MPN: 14432224
                                                                            SCREW
                                                                            -M6 X 22-
                                                                            from £0.51
                                                                            from £0.51
                                                                            This part replaces part number 14432221
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                            # 041
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 043
                                                                            MPN: 185854
                                                                            GASKET
                                                                            -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            # 043
                                                                            MPN: 247147
                                                                            GASKET
                                                                            -Applicable after depletion of 185854- -Applicable until depletion-
                                                                            from £2.55
                                                                            from £2.55
                                                                            This part replaces part number 185854
                                                                            GASKET Genuine Ferrari Part - New In stock
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            # 043
                                                                            MPN: 323282
                                                                            GASKET
                                                                            -Applicable after depletion of 247147-
                                                                            from £1.15
                                                                            from £1.15
                                                                            This part replaces part number 247147 which we have in stock
                                                                            GASKET Genuine Ferrari Part - New In stock
                                                                            GASKET Genuine Maserati Part - New In stock
                                                                            # 044
                                                                            MPN: 190171
                                                                            SHIM
                                                                            from £4.00
                                                                            from £4.00
                                                                            SPACER. Genuine Ferrari Part - New In stock
                                                                            SPACER FOR HYDRAULIC TENSIONER Genuine Maserati Part - New (to order)
                                                                            # 045
                                                                            MPN: 192069
                                                                            O-RING
                                                                            from £0.54
                                                                            from £0.54
                                                                            O.R.GASKET. Genuine Ferrari Part - New In stock
                                                                            O-RING D. 26X1.5 Genuine Maserati Part - New (to order)
                                                                            # 046
                                                                            MPN: 189563
                                                                            SCREW
                                                                            from £29.29
                                                                            from £29.29
                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                            VITE TESTA ESAG.M6X11 TIPO D Genuine Maserati Part - New In stock
                                                                            # 048
                                                                            MPN: 189779
                                                                            DOWEL
                                                                            from £1.34
                                                                            from £1.34
                                                                            DOWEL Genuine Ferrari Part - New In stock
                                                                            DRIVE DOWEL D. 6 X Genuine Maserati Part - New In stock
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
