0016 - Electronic Accelerator Pedal

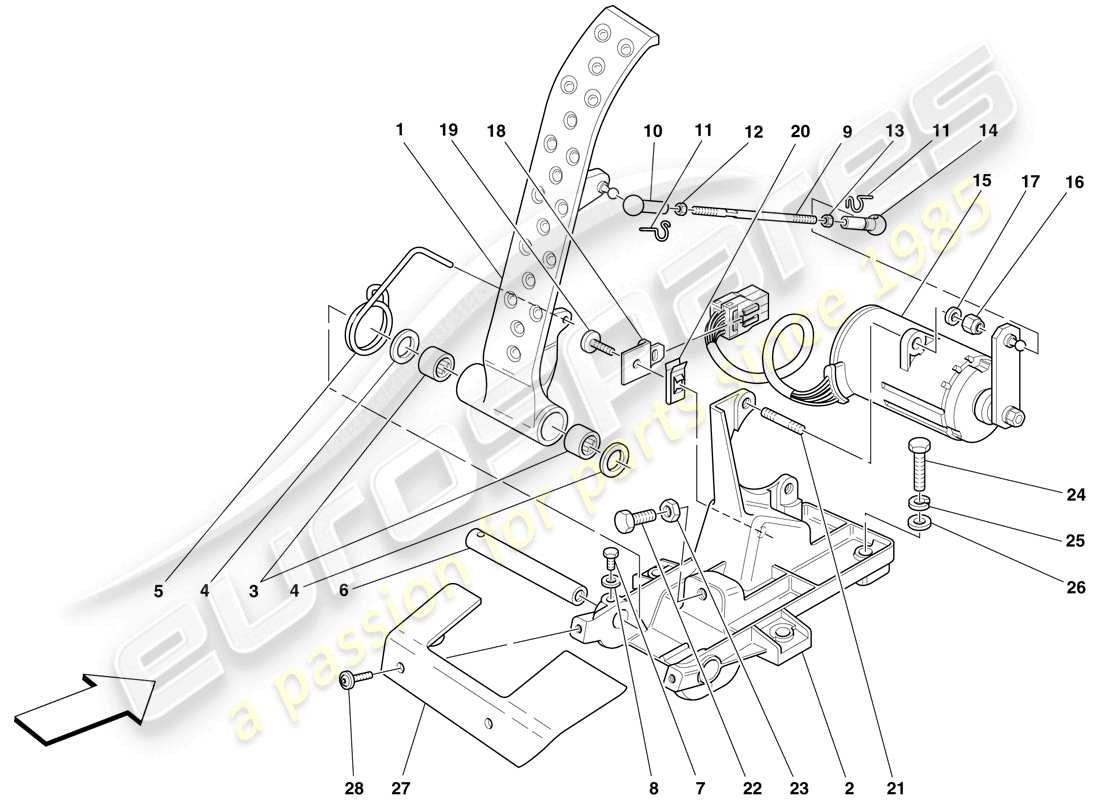

Ferrari F430 Spider (RHD) ELECTRONIC ACCELERATOR PEDAL Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 196180
Accelerator Pedal
from £88.30
from £88.30
This part replaces part number 180220 which we have in stock - and 2 more. Click to view details
# 002
MPN: 185452
ACCELERATOR PEDAL MOUNTING
from £72.24
from £72.24
This part replaces part number 171464 - and 2 more. Click to view details
# 003
MPN: 101677
ROLLER BEARING
from £2.05
from £2.05
# 004
MPN: 157115
WASHER
from £1.43
from £1.43
# 005
MPN: 175351
PEDAL RETURN SPRING
from £2.19
from £2.19
# 006
MPN: 171468
ROLLER BEARING CAGE TRACK
from £2.90
from £2.90
# 007
MPN: 10977524
SCREW
from £0.53
from £0.53
# 008
MPN: 12601174
WASHER
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 009
MPN: 171466
ACCELERATOR COMMAND CONNECTOR
-Not for GD-
from £1.58
from £1.58
# 009
MPN: 181258
ACCELERATOR COMMAND CONNECTOR
-Applicable for GD-
from £2.88
from £2.88
# 010
MPN: 173999
RH THREAD THROTTLE BALL JOINT
from £4.17
from £4.17
This part replaces part number 105617
# 011
MPN: 174001
SPRING CLIP
from £0.47
from £0.47
This part replaces part number 10124776 - and 1 more. Click to view details
# 012
MPN: 15896470
NUT
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 013
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 014
MPN: 174000
BALL-JOINT HEAD
from £3.63
from £3.63
This part replaces part number 10123911
# 015
MPN: 170038
ACCELERATOR PEDAL POTENTIOMETER
from £141.24
from £141.24
# 016
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 017
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 018
MPN: 170925
CONNECTOR FASTENER BRACKET
from £2.23
from £2.23
# 019
MPN: 14071911
SCREW
from £0.47
from £0.47
# 020
MPN: 14371274
BRACKET
from £0.86
from £0.86
# 021
MPN: 11500324
STUD BOLT
from £0.69
from £0.69
This part replaces part number 11500321
# 022
MPN: 16043621
SCREW
from £1.08
from £1.08
# 023
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 024
MPN: 10902624
SCREW
from £0.52
from £0.52
This part replaces part number 10902621
# 025
MPN: 127494
WASHER
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 026
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 027
MPN: 65709100
ACCELERATOR PEDAL COVER
-Not for GD-
from £4.82
from £4.82
# 027
MPN: 69059100
ACCELERATOR PEDAL COVER
-Applicable for GD-
from £10.09
from £10.09
# 028
MPN: 65752800
SCREW
from £1.56
from £1.56
This part replaces part number 294485 - and 1 more. Click to view details
