ferrari f430 spider (rhd) lubrication system - tank - heat exchanger parts diagram

0018 - LUBRICATION SYSTEM - TANK - HEAT EXCHANGER

Ferrari F430 Spider (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER Parts Diagram

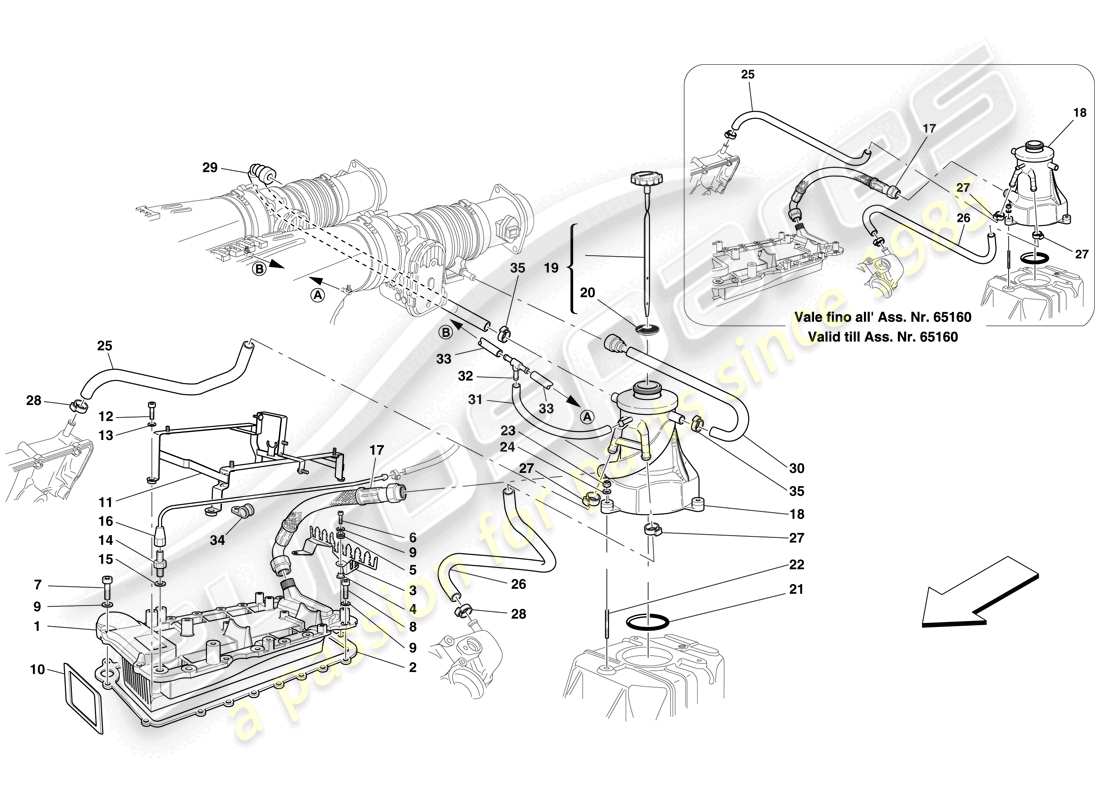

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 197150
                                              HEAT EXCHANGER
                                              from £3,337.60
                                              from £3,337.60
                                              # 002
                                              MPN: 185581
                                              GASKET
                                              -Applicable until depletion-
                                              from £26.18
                                              from £26.18
                                              # 002
                                              MPN: 245462
                                              GASKET
                                              -Applicable after depletion of 185581- -No longer supplied- -Replaced by 322664-
                                              Supersession
                                              Supersession
                                              This part replaces part number 185581
                                              # 002
                                              MPN: 322664
                                              GASKET
                                              from £29.70
                                              from £29.70
                                              This part replaces part number 245462
                                              # 003
                                              MPN: 210388
                                              CONNECTORS MOUNTING BRACKET
                                              from £40.17
                                              from £40.17
                                              # 004
                                              MPN: 149707
                                              SHIM
                                              from £0.78
                                              from £0.78
                                              # 005
                                              MPN: 177576
                                              CABLE GROMMET
                                              from £1.48
                                              from £1.48
                                              # 006
                                              MPN: 14305624
                                              SCREW
                                              -M6 X 35-
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 14305621
                                              # 007
                                              MPN: 14305524
                                              SCREW
                                              -M6 X 30-
                                              from £0.53
                                              from £0.53
                                              # 008
                                              MPN: 14305424
                                              SCREW
                                              -M6 X 25-
                                              from £0.49
                                              from £0.49
                                              This part replaces part number 14305421 - and 2 more. Click to view details
                                              # 009
                                              MPN: 11197774
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                              # 010
                                              MPN: 174600
                                              GASKET
                                              -Applicable until depletion-
                                              from £4.48
                                              from £4.48
                                              # 010
                                              MPN: 247146
                                              GASKET
                                              -Applicable after depletion of 174600-
                                              from £2.37
                                              from £2.37
                                              This part replaces part number 174600
                                              # 011
                                              MPN: 202251
                                              BRACKET
                                              from £57.66
                                              from £57.66
                                              # 012
                                              MPN: 14305224
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              # 013
                                              MPN: 11197774
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                              # 014
                                              MPN: 192327
                                              CONNECTOR
                                              from £2.78
                                              from £2.78
                                              # 015
                                              MPN: 10284460
                                              GASKET
                                              from £0.47
                                              from £0.47
                                              # 016
                                              MPN: 211844
                                              VENT PIPE
                                              from £12.60
                                              from £12.60
                                              # 017
                                              MPN: 195351
                                              OIL PIPE FROM ENGINE TO SEPARATOR
                                              -Applicable up to Ass. No. 65160-
                                              from £132.01
                                              from £132.01
                                              # 017
                                              MPN: 225937
                                              OIL PIPE FROM ENGINE TO SEPARATOR
                                              -Applicable from Ass. No. 65161-
                                              from £84.51
                                              from £84.51
                                              # 018
                                              MPN: 216061
                                              WATER-OIL SEPARATOR
                                              -Not for USA, CDN- -Applicable up to Ass. No. 65160-
                                              from £427.73
                                              from £427.73
                                              This part replaces part number 212353 - and 1 more. Click to view details
                                              # 018
                                              MPN: 216066
                                              WATER-OIL SEPARATOR
                                              -Applicable for USA, CDN- -Applicable up to Ass. No. 65160-
                                              from £782.26
                                              from £782.26
                                              # 018
                                              MPN: 225960
                                              WATER-OIL SEPARATOR
                                              -Not for USA, CDN- -Applicable from Ass. No. 65161-
                                              from £376.54
                                              from £376.54
                                              # 018
                                              MPN: 226035
                                              WATER-OIL SEPARATOR
                                              -Applicable for USA, CDN- -Applicable from Ass. No. 65161-
                                              from £710.86
                                              from £710.86
                                              # 019
                                              MPN: 212362
                                              TANK CAP
                                              -No longer supplied- -Replaced by 254573-
                                              Supersession
                                              Supersession
                                              # 019
                                              MPN: 254573
                                              TANK CAP
                                              from £73.34
                                              from £73.34
                                              This part replaces part number 212362 - and 2 more. Click to view details
                                              # 020
                                              MPN: 211634
                                              GASKET
                                              from £32.25
                                              from £32.25
                                              # 021
                                              MPN: 176388
                                              GASKET
                                              from £3.05
                                              from £3.05
                                              # 022
                                              MPN: 13517124
                                              STUD BOLT
                                              from £2.32
                                              from £2.32
                                              This part replaces part number 13517121 - and 1 more. Click to view details
                                              # 023
                                              MPN: 101139
                                              NUT
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 16104425
                                              # 024
                                              MPN: 12601374
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                              # 025
                                              MPN: 211813
                                              RH BREATHER PIPE
                                              -Applicable up to Ass. No. 65160-
                                              from £153.00
                                              from £153.00
                                              # 025
                                              MPN: 223220
                                              RH BREATHER PIPE
                                              -Applicable from Ass. No. 65161-
                                              from £64.13
                                              from £64.13
                                              # 026
                                              MPN: 211814
                                              LH BREATHER PIPE
                                              -Applicable up to Ass. No. 65160-
                                              from £153.00
                                              from £153.00
                                              # 026
                                              MPN: 223221
                                              LH BREATHER PIPE
                                              -Applicable from Ass. No. 65161-
                                              from £64.13
                                              from £64.13
                                              # 027
                                              MPN: 177996
                                              CLAMP
                                              -Applicable up to Ass. No. 65160-
                                              from £3.48
                                              from £3.48
                                              # 027
                                              MPN: 178051
                                              CLAMP
                                              -Applicable from Ass. No. 65161-
                                              from £1.93
                                              from £1.93
                                              # 028
                                              MPN: 178051
                                              CLAMP
                                              from £1.93
                                              from £1.93
                                              # 029
                                              MPN: 216063
                                              RH VAPOUR INTAKE PIPE
                                              -Not for USA, CDN-
                                              from £15.31
                                              from £15.31
                                              This part replaces part number 205124 - and 1 more. Click to view details
                                              # 029
                                              MPN: 216068
                                              RH VAPOUR INTAKE PIPE
                                              -Applicable for USA, CDN-
                                              from £162.27
                                              from £162.27
                                              # 030
                                              MPN: 216064
                                              LH VAPOUR INTAKE PIPE
                                              -Not for USA, CDN-
                                              from £27.84
                                              from £27.84
                                              This part replaces part number 205125
                                              # 030
                                              MPN: 216069
                                              LH VAPOUR INTAKE PIPE
                                              -Applicable for USA, CDN-
                                              from £162.27
                                              from £162.27
                                              # 031
                                              MPN: 195330
                                              RUBBER PIPE
                                              from £2.40
                                              from £2.40
                                              # 032
                                              MPN: 161816
                                              THREE-WAY UNION
                                              from £1.06
                                              from £1.06
                                              # 033
                                              MPN: 195331
                                              RUBBER PIPE
                                              from £4.72
                                              from £4.72
                                              # 034
                                              MPN: 10440990
                                              BRACKET WITH SHEATH
                                              from £0.85
                                              from £0.85
                                              # 035
                                              MPN: 13434670
                                              COLLAR FOR HOSE UNION
                                              from £0.53
                                              from £0.53
