0025 - Pedal Board

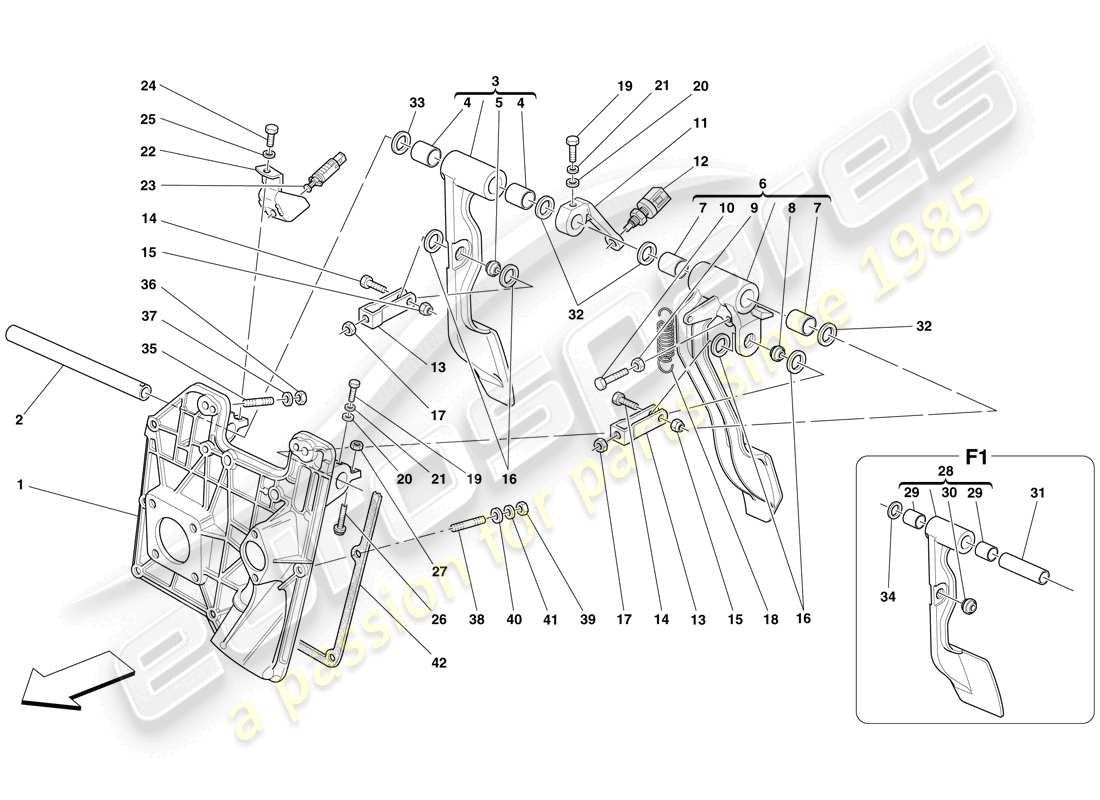

Ferrari F430 Spider (RHD) PEDAL BOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 176464
                              PEDAL BOARD MOUNTING
                              -Applicable for F1 gearbox-
                              from £472.50
                              from £472.50
                              PEDAL SUPPORT Genuine Ferrari Part - New (to order)
                              PEDAL SUPPORT Genuine Ferrari Part - Used In stock
                              PEDAL SUPPORT Genuine Ferrari Part - New (other) In stock
                              INCLUDES REF 2
                              # 001
                              MPN: 241502
                              PEDAL BOARD MOUNTING
                              -Not for F1 gearbox-
                              from £781.63
                              from £781.63
                              PEDALS SUPPORT -NOT FOR F1- Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 176466
                              PEDAL MOUNTING PIN
                              from £88.42
                              from £88.42
                              PIN Genuine Ferrari Part - New (to order)
                              # 003
                              MPN: 180558
                              COMPLETE BRAKE PEDAL
                              -Not for F1 gearbox-
                              from £385.44
                              from £385.44
                              This part replaces part number 176473
                              PEDALE FRENO CPL Genuine Ferrari Part - New (to order)
                              # 004
                              MPN: 103163
                              SELF-LUBRICATING BUSHING
                              -Not for F1 gearbox-
                              from £2.85
                              from £2.85
                              BUSH Genuine Ferrari Part - New (to order)
                              SELF-LUBRICATING BUSHING Genuine Maserati Part - New (to order)
                              # 005
                              MPN: 176475
                              BALL-JOINT
                              -Not for F1 gearbox-
                              from £102.72
                              from £102.72
                              BALL ROD Genuine Ferrari Part - New (to order)
                              # 006
                              MPN: 180559
                              COMPLETE CLUTCH PEDAL
                              -Not for F1 gearbox-
                              from £588.98
                              from £588.98
                              This part replaces part number 176519
                              CLUTCH PEDAL COMPLETE LHD Genuine Ferrari Part - New (to order)
                              # 007
                              MPN: 103163
                              SELF-LUBRICATING BUSHING
                              -Not for F1 gearbox-
                              from £2.85
                              from £2.85
                              BUSH Genuine Ferrari Part - New (to order)
                              SELF-LUBRICATING BUSHING Genuine Maserati Part - New (to order)
                              # 008
                              MPN: 176475
                              BALL-JOINT
                              -Not for F1 gearbox-
                              from £102.72
                              from £102.72
                              BALL ROD Genuine Ferrari Part - New (to order)
                              # 009
                              MPN: 16102314
                              NUT
                              -Not for F1 gearbox-
                              from £0.47
                              from £0.47
                              This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                              NUT Genuine Ferrari Part - New In stock
                              NUT Genuine Maserati Part - New (to order)
                              # 010
                              MPN: 187014
                              PEDAL ADJUSTER SCREW
                              -Not for F1 gearbox-
                              from £23.81
                              from £23.81
                              This part replaces part number 144011 which we have in stock
                              PIN Genuine Ferrari Part - New (to order)
                              PIN Genuine Maserati Part - New (to order)
                              # 011
                              MPN: 180516
                              CENTRAL MOUNTING
                              -Not for F1 gearbox-
                              from £187.44
                              from £187.44
                              CENTRAL BRACKET. Genuine Ferrari Part - New (to order)
                              # 012
                              MPN: 133555
                              PUSHBUTTON SWITCH
                              -Not for F1 gearbox-
                              from £18.60
                              from £18.60
                              SWITCH Genuine Ferrari Part - New In stock
                              BUTTON SWITCH Genuine Maserati Part - New In stock
                              # 013
                              MPN: 176471
                              FORK
                              -Standard- -Not for F1 gearbox-
                              from £60.71
                              from £60.71
                              FORK Genuine Ferrari Part - New (to order)
                              # 013
                              MPN: 176471
                              FORK
                              -Standard- -Applicable for F1 gearbox-
                              from £60.71
                              from £60.71
                              FORK Genuine Ferrari Part - New (to order)
                              # 013
                              MPN: 199754
                              FORK
                              -Optional- -Version with CCM brakes- -Not for F1 gearbox-
                              from £48.08
                              from £48.08
                              FORK. Genuine Ferrari Part - New In stock
                              # 013
                              MPN: 199754
                              FORK
                              -Optional- -Version with CCM brakes- -Applicable for F1 gearbox-
                              from £48.08
                              from £48.08
                              FORK. Genuine Ferrari Part - New In stock
                              # 014
                              MPN: 16043724
                              SCREW
                              -Not for F1 gearbox-
                              from £0.71
                              from £0.71
                              This part replaces part number 16043721
                              SCREW Genuine Ferrari Part - New (to order)
                              SCREW Genuine Maserati Part - New (to order)
                              # 014
                              MPN: 16043724
                              SCREW
                              -Applicable for F1 gearbox-
                              from £0.71
                              from £0.71
                              This part replaces part number 16043721
                              SCREW Genuine Ferrari Part - New (to order)
                              SCREW Genuine Maserati Part - New (to order)
                              # 015
                              MPN: 147985
                              NUT
                              -Not for F1 gearbox-
                              from £0.54
                              from £0.54
                              NUT 8X 6,5 Genuine Ferrari Part - New In stock
                              DADO E AUTOB FILET DEFORMATO Genuine Maserati Part - New In stock
                              # 015
                              MPN: 147985
                              NUT
                              -Applicable for F1 gearbox-
                              from £0.54
                              from £0.54
                              NUT 8X 6,5 Genuine Ferrari Part - New In stock
                              DADO E AUTOB FILET DEFORMATO Genuine Maserati Part - New In stock
                              # 016
                              MPN: 176522
                              PLASTIC WASHER
                              -Not for F1 gearbox-
                              from £14.07
                              from £14.07
                              WASHER Genuine Ferrari Part - New (to order)
                              # 016
                              MPN: 176522
                              PLASTIC WASHER
                              -Applicable for F1 gearbox-
                              from £14.07
                              from £14.07
                              WASHER Genuine Ferrari Part - New (to order)
                              # 017
                              MPN: 16102314
                              NUT
                              -Not for F1 gearbox-
                              from £0.47
                              from £0.47
                              This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                              NUT Genuine Ferrari Part - New In stock
                              NUT Genuine Maserati Part - New (to order)
                              # 017
                              MPN: 16102314
                              NUT
                              -Applicable for F1 gearbox-
                              from £0.47
                              from £0.47
                              This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                              NUT Genuine Ferrari Part - New In stock
                              NUT Genuine Maserati Part - New (to order)
                              # 018
                              MPN: 101305
                              PEDAL RETURN SPRING
                              -Not for F1 gearbox-
                              from £8.15
                              from £8.15
                              This part replaces part number 660343
                              MOLLA RICHIAMO PEDALE Genuine Ferrari Part - New In stock
                              PEDAL RETURN SPRING Genuine Maserati Part - New (to order)
                              # 019
                              MPN: 10902424
                              SCREW
                              from £0.53
                              from £0.53
                              This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                              SCREW Genuine Ferrari Part - New In stock
                              SCREW Genuine Maserati Part - New In stock
                              # 020
                              MPN: 10519424
                              WASHER
                              from £0.54
                              from £0.54
                              This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                              WASHER Genuine Ferrari Part - New In stock
                              SPLIT WASHER.D. 6.40-11.95 X Genuine Maserati Part - New (to order)
                              # 021
                              MPN: 127494
                              WASHER
                              from £0.54
                              from £0.54
                              This part replaces part number 10516470 - and 4 more. Click to view details
                              WASHER Genuine Ferrari Part - New In stock
                              WASHER Genuine Maserati Part - New In stock
                              # 022
                              MPN: 183818
                              SWITCH MOUNTING
                              -No longer supplied- -Replaced by 218606-
                              from £58.89
                              from £58.89
                              SWITCH SUPPORT Genuine Ferrari Part - New (to order)
                              # 022
                              MPN: 218606
                              SWITCH MOUNTING
                              -Applicable for switch 183433 ref. 23-
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              # 022
                              MPN: 219558
                              SWITCH MOUNTING
                              -Applicable for switch 201957 ref. 23-
                              from £109.48
                              from £109.48
                              This part replaces part number 218606
                              SWITCH SUPPORT Genuine Ferrari Part - New (to order)
                              # 023
                              MPN: 183433
                              PUSHBUTTON SWITCH
                              -Applicable for mount 218606 ref. 22-
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              Genuine Maserati Part (no longer available to order)
                              # 023
                              MPN: 201957
                              PUSHBUTTON SWITCH
                              -Applicable for mount 219558 ref. 22-
                              from £13.11
                              from £13.11
                              This part replaces part number 187869 - and 5 more. Click to view details
                              PUSH-BUTTON SWITCH Genuine Ferrari Part - New (to order)
                              PUSH-BUTTON SWITCH Genuine Maserati Part - New (to order)
                              PUSH-BUTTON SWITCH Genuine Ferrari Part - Used In stock
                              # 024
                              MPN: 16043224
                              SCREW
                              from £0.53
                              from £0.53
                              SCREW Genuine Ferrari Part - New In stock
                              SCREW FOR RUBBER EXHAUST Genuine Maserati Part - New (to order)
                              # 025
                              MPN: 106852
                              WASHER
                              Supersession
                              Supersession
                              This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                              Genuine Ferrari Part (no longer available to order)
                              # 026
                              MPN: 187014
                              PEDAL ADJUSTER SCREW
                              -Not for F1 gearbox-
                              from £23.81
                              from £23.81
                              This part replaces part number 144011 which we have in stock
                              PIN Genuine Ferrari Part - New (to order)
                              PIN Genuine Maserati Part - New (to order)
                              # 027
                              MPN: 16102314
                              NUT
                              -Not for F1 gearbox-
                              from £0.47
                              from £0.47
                              This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                              NUT Genuine Ferrari Part - New In stock
                              NUT Genuine Maserati Part - New (to order)
                              # 028
                              MPN: 180560
                              COMPLETE BRAKE PEDAL
                              -Applicable for F1 gearbox-
                              from £211.99
                              from £211.99
                              This part replaces part number 176910 - and 1 more. Click to view details
                              PEDALE FRENO CPL Genuine Ferrari Part - New (to order)
                              PEDALE FRENO CPL Genuine Ferrari Part - Used In stock
                              # 029
                              MPN: 103163
                              SELF-LUBRICATING BUSHING
                              -Applicable for F1 gearbox-
                              from £2.85
                              from £2.85
                              BUSH Genuine Ferrari Part - New (to order)
                              SELF-LUBRICATING BUSHING Genuine Maserati Part - New (to order)
                              # 030
                              MPN: 176475
                              BALL-JOINT
                              -Applicable for F1 gearbox-
                              from £102.72
                              from £102.72
                              BALL ROD Genuine Ferrari Part - New (to order)
                              # 031
                              MPN: 176918
                              SHIM
                              -Applicable for F1 gearbox-
                              from £40.13
                              from £40.13
                              SPACER Genuine Ferrari Part - New (to order)
                              SPACER Genuine Ferrari Part - Used In stock
                              # 032
                              MPN: 113836
                              WASHER
                              -Th. 1.4 mm- -Not for F1 gearbox-
                              from £2.32
                              from £2.32
                              WASHER 1.4MM Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 033
                              MPN: 106083
                              WASHER
                              -Th. 1 mm- -Not for F1 gearbox-
                              from £0.71
                              from £0.71
                              WASHER Genuine Ferrari Part - New In stock
                              WASHER -TH. 1MM- Genuine Maserati Part - New (to order)
                              # 033
                              MPN: 113833
                              WASHER
                              -Th. 1.1 mm- -Installed if necessary- -Not for F1 gearbox-
                              from £1.85
                              from £1.85
                              WASHER Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 033
                              MPN: 113834
                              WASHER
                              -Th. 1.2 mm- -Installed if necessary- -Not for F1 gearbox-
                              from £2.07
                              from £2.07
                              ROSETTA TRANC. D.20-30X1,2 Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 033
                              MPN: 113835
                              WASHER
                              -Th. 1.3 mm- -Installed if necessary- -Not for F1 gearbox-
                              from £1.85
                              from £1.85
                              WASHER Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 033
                              MPN: 113836
                              WASHER
                              -Th. 1.4 mm- -Installed if necessary- -Not for F1 gearbox-
                              from £2.32
                              from £2.32
                              WASHER 1.4MM Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 034
                              MPN: 113834
                              WASHER
                              -Th. 1.2 mm- -Installed if necessary- -Applicable for F1 gearbox-
                              from £2.07
                              from £2.07
                              ROSETTA TRANC. D.20-30X1,2 Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 034
                              MPN: 113835
                              WASHER
                              -Th. 1.3 mm- -Installed if necessary- -Applicable for F1 gearbox-
                              from £1.85
                              from £1.85
                              WASHER Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 034
                              MPN: 113836
                              WASHER
                              -Th. 1.4 mm- -Installed if necessary- -Applicable for F1 gearbox-
                              from £2.32
                              from £2.32
                              WASHER 1.4MM Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 034
                              MPN: 178340
                              WASHER
                              -Applicable for F1 gearbox-
                              from £2.37
                              from £2.37
                              WASHER. Genuine Ferrari Part - New (to order)
                              WASHER Genuine Maserati Part - New (to order)
                              # 035
                              MPN: 13516924
                              STUD BOLT
                              from £1.30
                              from £1.30
                              This part replaces part number 13516921
                              STUD Genuine Ferrari Part - New In stock
                              STUD FOR FUEL COVER Genuine Maserati Part - New In stock
                              # 036
                              MPN: 104030
                              NUT
                              from £0.52
                              from £0.52
                              This part replaces part number 16104125
                              LOCKING NUT Genuine Ferrari Part - New In stock
                              LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
                              # 037
                              MPN: 12638524
                              WASHER
                              from £0.47
                              from £0.47
                              This part replaces part number 12638501 - and 2 more. Click to view details
                              WASHER Genuine Ferrari Part - New (to order)
                              WASHER FOR ABS/ASR HYDRAU Genuine Maserati Part - New (to order)
                              # 038
                              MPN: 13517024
                              STUD BOLT
                              from £0.53
                              from £0.53
                              STUD Genuine Ferrari Part - New In stock
                              # 039
                              MPN: 16102377
                              NUT
                              from £1.15
                              from £1.15
                              NUT Genuine Ferrari Part - New In stock
                              # 040
                              MPN: 13550321
                              WASHER
                              from £0.53
                              from £0.53
                              WASHER Genuine Ferrari Part - New In stock
                              # 041
                              MPN: 12601374
                              WASHER
                              from £0.54
                              from £0.54
                              This part replaces part number 10615474 - and 6 more. Click to view details
                              WASHER Genuine Ferrari Part - New In stock
                              WASHER Genuine Maserati Part - New In stock
                              # 042
                              MPN: 176524
                              PEDAL BOARD MOUNTING GASKET
                              from £15.65
                              from £15.65
                              GASKET Genuine Ferrari Part - New (to order)
                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
