ferrari f430 spider (rhd) power unit and tank parts diagram

0028 - Power Unit and Tank

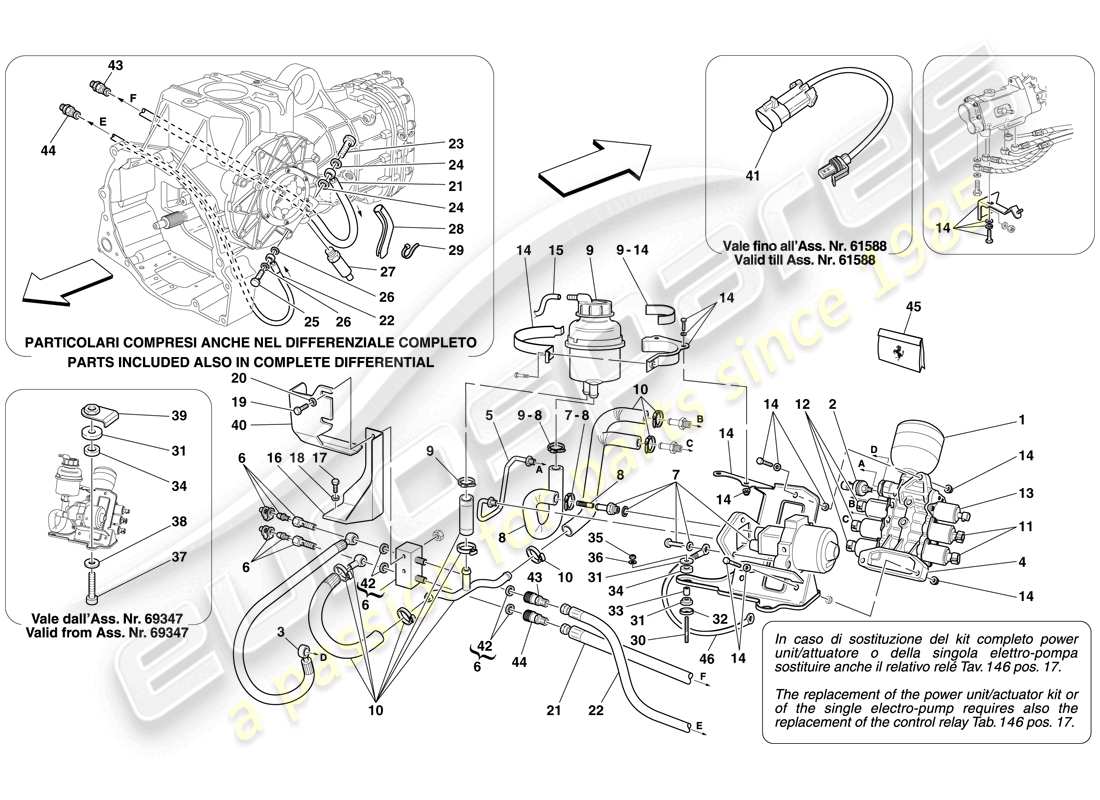

Ferrari F430 Spider (RHD) POWER UNIT AND TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 000
                                                            MPN: 206789
                                                            POWER PACK FOR ELECTRONIC DIFFERENTIAL
                                                            -Not for F1 gearbox- -No longer supplied- -Replaced by 221709-
                                                            Supersession
                                                            Supersession
                                                            # 000
                                                            MPN: 221709
                                                            POWER PACK FOR ELECTRONIC DIFFERENTIAL
                                                            -Not for F1 gearbox-
                                                            from £2,452.59
                                                            from £2,452.59
                                                            This part replaces part number 206789
                                                            # 000
                                                            MPN: 232406
                                                            F1-TYPE GEARBOX SYSTEM COMPONENTS KIT
                                                            from £7,328.32
                                                            from £7,328.32
                                                            This part replaces part number 218562
                                                            # 001
                                                            MPN: 247346
                                                            ACCUMULATOR
                                                            from £425.57
                                                            from £425.57
                                                            # 002
                                                            MPN: 190662
                                                            PRESSURE SENSOR
                                                            from £192.72
                                                            from £192.72
                                                            This part replaces part number 184191 - and 1 more. Click to view details
                                                            # 002
                                                            MPN: 247296
                                                            PRESSURE SENSOR
                                                            -No longer supplied- -Replaced by 190662-
                                                            Supersession
                                                            Supersession
                                                            # 003
                                                            MPN: 204435
                                                            SUPPLY TUBE
                                                            from £280.75
                                                            from £280.75
                                                            # 004
                                                            MPN: 179533
                                                            POWER UNIT
                                                            -Applicable for F1 gearbox-
                                                            from £1,347.78
                                                            from £1,347.78
                                                            # 004
                                                            MPN: 223853
                                                            POWER UNIT
                                                            -Not for F1 gearbox-
                                                            # 005
                                                            MPN: 218564
                                                            ELECTRIC PUMP TO POWER UNIT PIPE
                                                            from £92.46
                                                            from £92.46
                                                            # 006
                                                            MPN: 248094

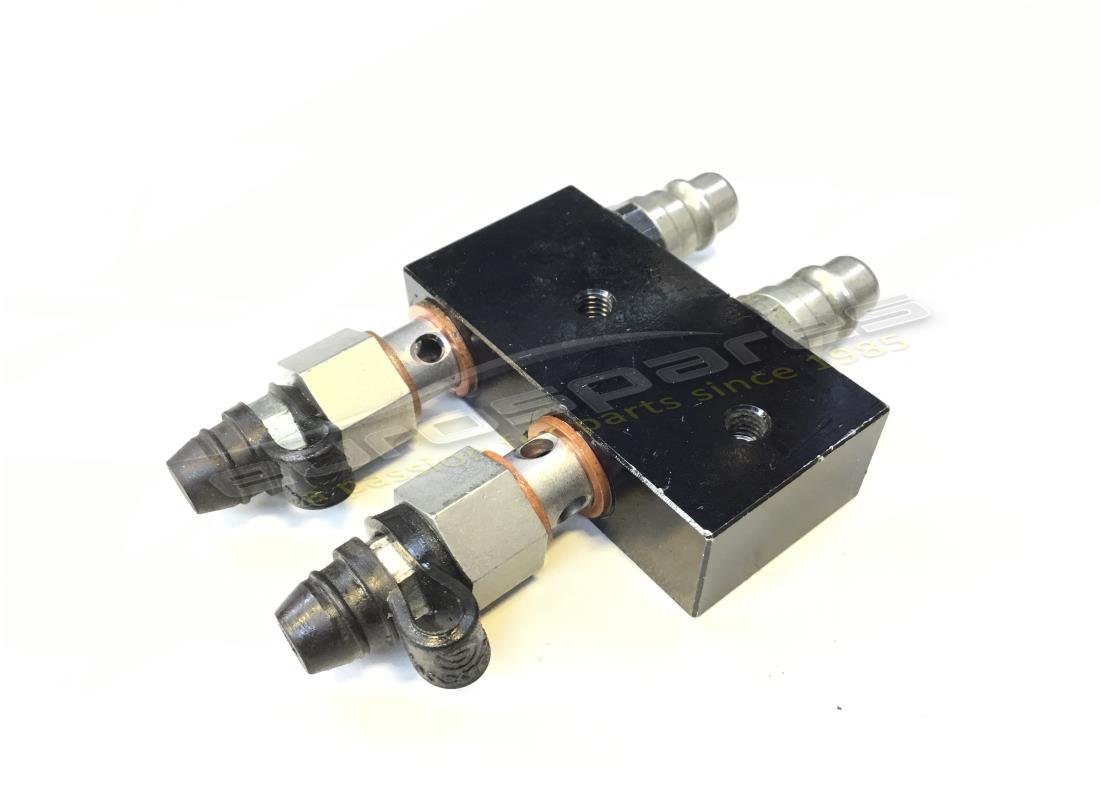

                                                            EDIFF QUICK DISCONNECT KIT
                                                            from £611.62
                                                            from £611.62
                                                            This part replaces part number 208072 - and 1 more. Click to view details
                                                            # 007
                                                            MPN: 248083

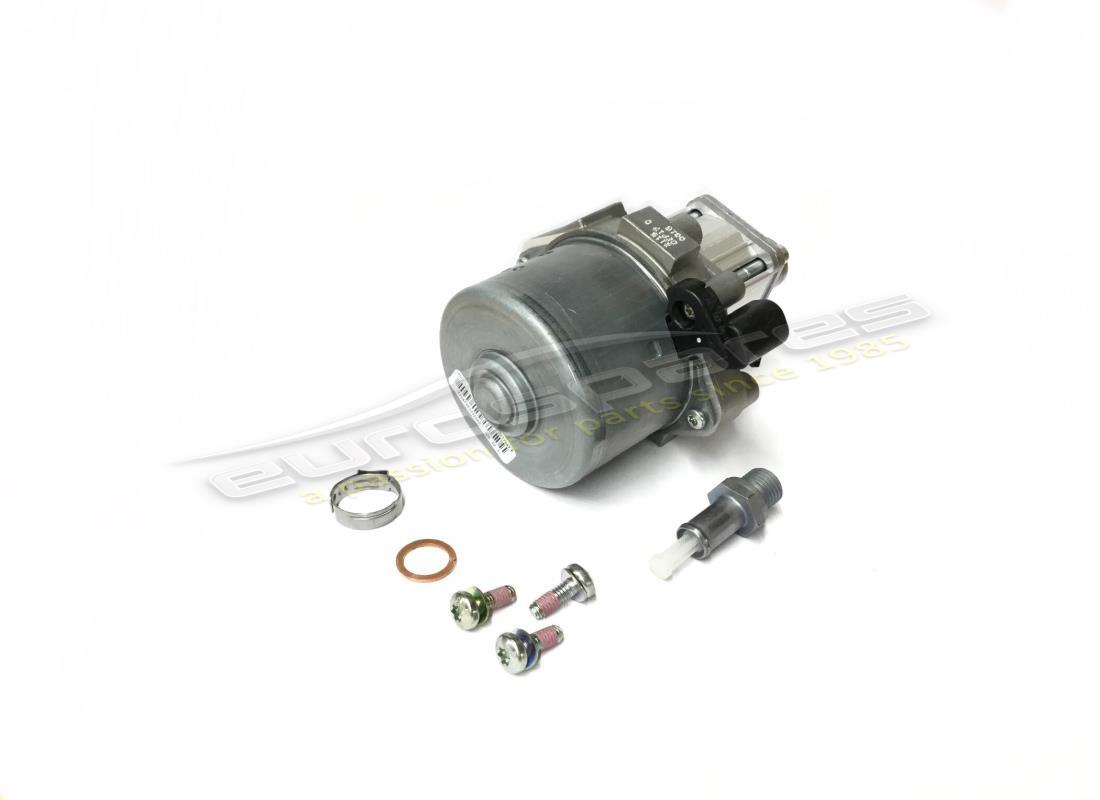

                                                            ELECTRIC PUMP KIT
                                                            -For vehicles up to Ass. No. 61588, also order wiring harness 222009, ref. 41-
                                                            from £1,398.26
                                                            from £1,398.26
                                                            This part replaces part number 214267
                                                            # 008
                                                            MPN: 248085
                                                            INTAKE PIPE KIT
                                                            from £220.84
                                                            from £220.84
                                                            This part replaces part number 218563
                                                            # 009
                                                            MPN: 248086
                                                            OIL TANK KIT
                                                            from £107.69
                                                            from £107.69
                                                            This part replaces part number 202390 which we have in stock - and 1 more. Click to view details
                                                            # 010
                                                            MPN: 221129
                                                            COMPLETE PIPE
                                                            from £143.77
                                                            from £143.77
                                                            This part replaces part number 199564 which we have in stock - and 14 more. Click to view details
                                                            # 011
                                                            MPN: 248089

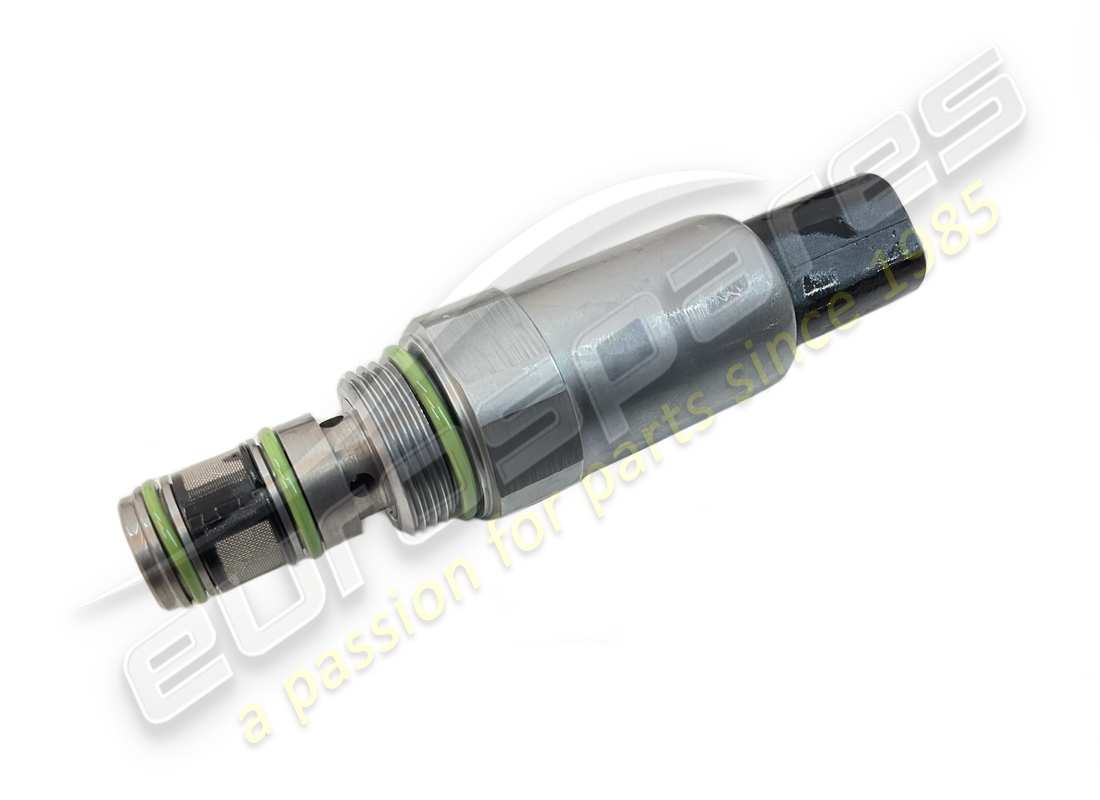

                                                            PROPORTIONAL PRESSURE VALVE
                                                            -Seals + screws- -EV1- -EV2-
                                                            from £257.22
                                                            from £257.22
                                                            This part replaces part number 247231
                                                            # 012
                                                            MPN: 248090
                                                            PROPORTIONAL FLOW VALVE
                                                            -Seals + screws- -EV3- -EV4- -EV5-
                                                            from £256.50
                                                            from £256.50
                                                            This part replaces part number 247233
                                                            # 013
                                                            MPN: 248091
                                                            PROPORTIONAL FLOW VALVE
                                                            -Seals + screws- -EVF-
                                                            from £296.42
                                                            from £296.42
                                                            This part replaces part number 247235
                                                            # 014
                                                            MPN: 248092
                                                            BRACKET KIT
                                                            from £609.60
                                                            from £609.60
                                                            This part replaces part number 218565
                                                            # 015
                                                            MPN: 222829
                                                            COMPLETE BREATHER PIPE
                                                            from £40.77
                                                            from £40.77
                                                            # 016
                                                            MPN: 207999

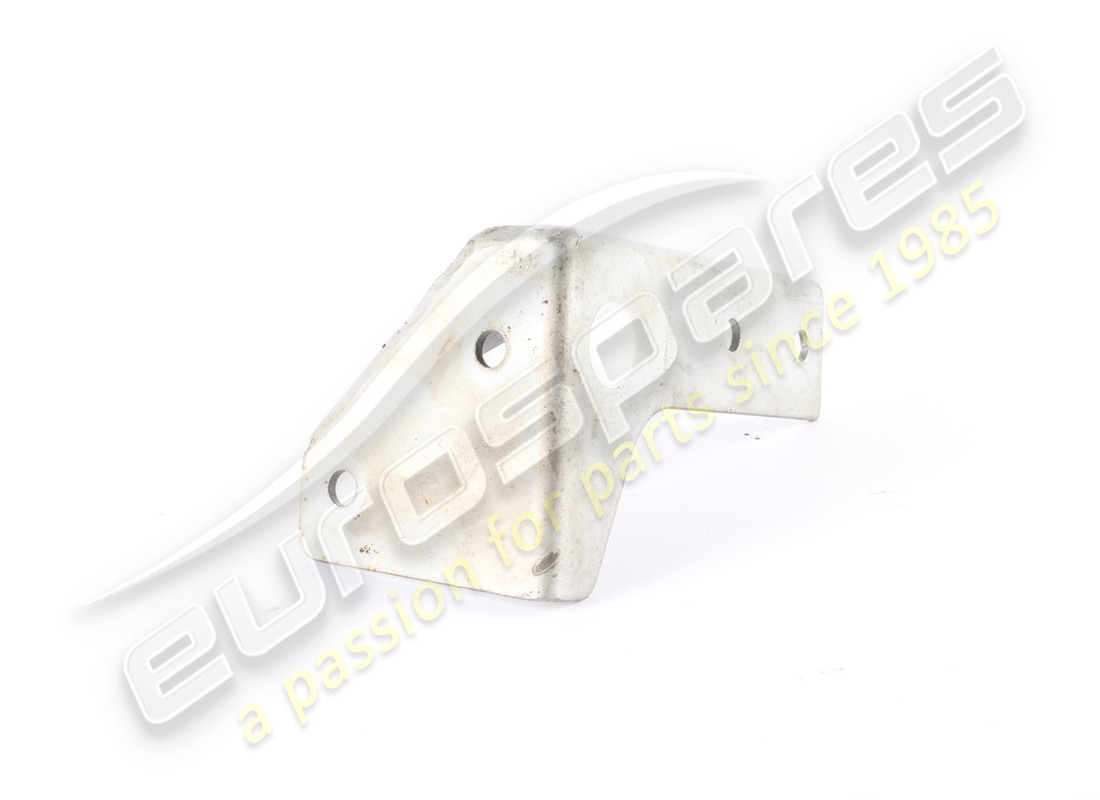

                                                            BRACKET
                                                            -Applicable up to Ass. No. 61588-
                                                            from £10.58
                                                            from £10.58
                                                            # 016
                                                            MPN: 220767
                                                            BRACKET
                                                            -Applicable from Ass. No. 61589-
                                                            from £8.31
                                                            from £8.31
                                                            # 017
                                                            MPN: 10902224
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 018
                                                            MPN: 127494
                                                            WASHER
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                            # 019
                                                            MPN: 10903024
                                                            SCREW
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 10903021 - and 1 more. Click to view details
                                                            # 020
                                                            MPN: 12644424
                                                            WASHER
                                                            from £0.54
                                                            from £0.54
                                                            This part replaces part number 12644401 - and 1 more. Click to view details
                                                            # 021
                                                            MPN: 204432
                                                            RETURN PIPE
                                                            -No longer supplied- -Replaced by 215701-
                                                            Supersession
                                                            Supersession
                                                            # 021
                                                            MPN: 215701
                                                            RETURN PIPE
                                                            from £365.94
                                                            from £365.94
                                                            This part replaces part number 204432 - and 1 more. Click to view details
                                                            # 022
                                                            MPN: 204431
                                                            DELIVERY PIPE
                                                            from £331.42
                                                            from £331.42
                                                            # 023
                                                            MPN: 201867
                                                            PIPE UNION
                                                            from £23.97
                                                            from £23.97
                                                            # 024
                                                            MPN: 10261160
                                                            GASKET
                                                            from £0.47
                                                            from £0.47
                                                            # 025
                                                            MPN: 201866
                                                            PIPE UNION
                                                            from £24.17
                                                            from £24.17
                                                            # 026
                                                            MPN: 10261060
                                                            GASKET
                                                            from £0.53
                                                            from £0.53
                                                            # 027
                                                            MPN: 205742
                                                            REGULATOR VALVE
                                                            from £339.57
                                                            from £339.57
                                                            # 028
                                                            MPN: 217147
                                                            GUARD
                                                            from £9.64
                                                            from £9.64
                                                            # 029
                                                            MPN: 206739
                                                            CABLE TIE
                                                            from £3.63
                                                            from £3.63
                                                            This part replaces part number 243232
                                                            # 030
                                                            MPN: 13541624
                                                            STUD BOLT
                                                            -Applicable up to Ass. No. 69346-
                                                            from £9.20
                                                            from £9.20
                                                            This part replaces part number 13541621
                                                            # 030
                                                            MPN: 13541624
                                                            STUD BOLT
                                                            -Applicable from Ass. No. 69347-
                                                            from £9.20
                                                            from £9.20
                                                            This part replaces part number 13541621
                                                            # 031
                                                            MPN: 179636
                                                            STOP CAP
                                                            from £1.35
                                                            from £1.35
                                                            # 032
                                                            MPN: 179639
                                                            LOWER BUSHING
                                                            from £0.68
                                                            from £0.68
                                                            # 033
                                                            MPN: 179637
                                                            SHIM
                                                            from £1.61
                                                            from £1.61
                                                            # 034
                                                            MPN: 179638
                                                            UPPER BUSHING
                                                            from £0.47
                                                            from £0.47
                                                            # 035
                                                            MPN: 14058411
                                                            NUT
                                                            -M6 X 6-
                                                            from £0.53
                                                            from £0.53
                                                            # 036
                                                            MPN: 12620474
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12620479 - and 1 more. Click to view details
                                                            # 037
                                                            MPN: 14306021
                                                            SCREW
                                                            -Applicable from Ass. No. 69347-
                                                            from £0.54
                                                            from £0.54
                                                            # 038
                                                            MPN: 13579221
                                                            WASHER
                                                            -Applicable from Ass. No. 69347-
                                                            from £0.54
                                                            from £0.54
                                                            # 039
                                                            MPN: 232838
                                                            BRACKET
                                                            -Applicable from Ass. No. 69347-
                                                            from £3.43
                                                            from £3.43
                                                            # 040
                                                            MPN: 241091
                                                            GUARD
                                                            from £25.52
                                                            from £25.52
                                                            # 041
                                                            MPN: 222009
                                                            F1 PUMP WIRING HARNESS
                                                            -Applicable up to Ass. No. 61588-
                                                            from £49.71
                                                            from £49.71
                                                            # 042
                                                            MPN: 10261160
                                                            GASKET
                                                            from £0.47
                                                            from £0.47
                                                            # 043
                                                            MPN: 225148
                                                            FEMALE QUICK COUPLING
                                                            -Also supplied with complete differential-
                                                            from £40.94
                                                            from £40.94
                                                            This part replaces part number 210469 - and 3 more. Click to view details
                                                            # 044
                                                            MPN: 225149
                                                            FEMALE QUICK COUPLING
                                                            -Also supplied with complete differential-
                                                            from £102.33
                                                            from £102.33
                                                            # 045
                                                            MPN: 272161
                                                            KIT FOR POWER UNIT
                                                            -Not for increased output pump- -Consisting of bracket, pipe from tank and collar- -Applicable up to Ass. No. 61588-
                                                            from £855.57
                                                            from £855.57
                                                            # 046
                                                            MPN: 224398
                                                            COMPL. GROUND CABLE
