ferrari f430 spider (rhd) hydraulic power steering box and serpentine coil parts diagram

0041 - HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL

Ferrari F430 Spider (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL Parts Diagram

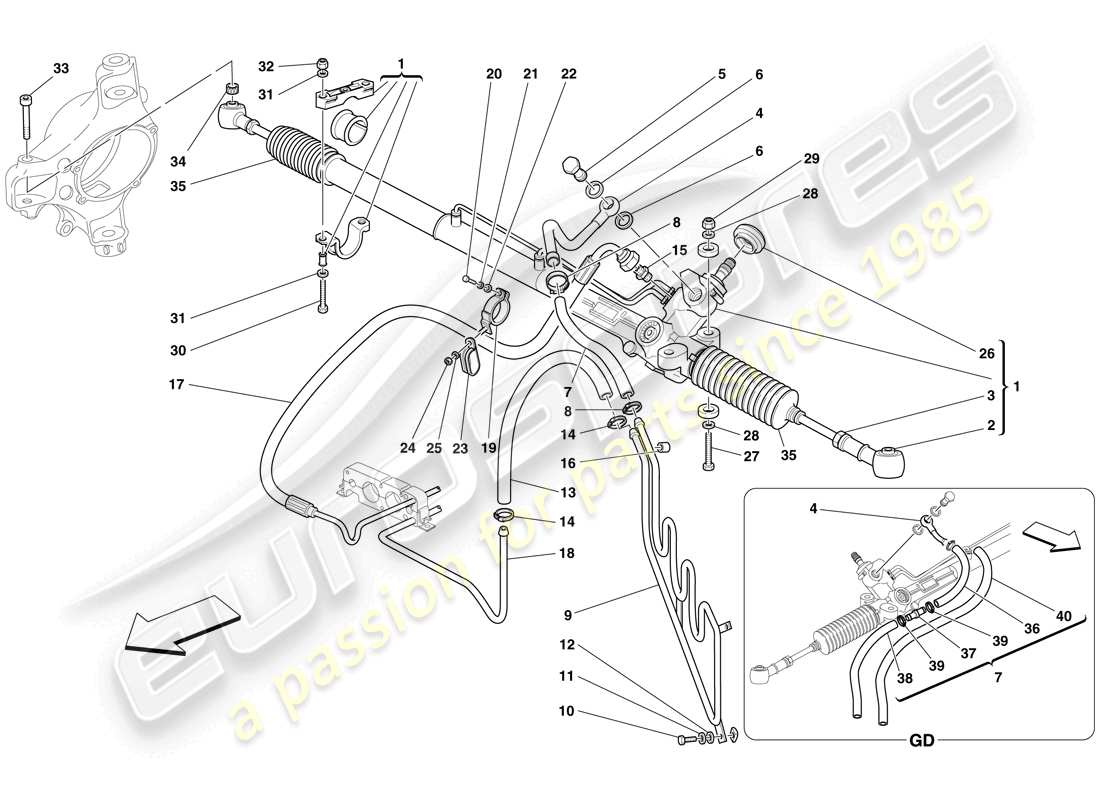

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 196171
                                                                  STEERING BOX TO POWER-ASSISTED RACK
                                                                  -Not for GD-
                                                                  from £13,388.76
                                                                  from £13,388.76
                                                                  This part replaces part number 184449
                                                                  COMPLETE STEERING BOX LHD Genuine Ferrari Part - New (to order)
                                                                  # 001
                                                                  MPN: 196172
                                                                  STEERING BOX TO POWER-ASSISTED RACK
                                                                  -Applicable for GD-
                                                                  from £8,463.45
                                                                  from £8,463.45
                                                                  This part replaces part number 184562 - and 1 more. Click to view details
                                                                  COMPLETE STEERING RACK RHD Genuine Ferrari Part - New In stock
                                                                  COMPLETE STEERING RACK RHD Genuine Ferrari Part - Reconditioned In stock
                                                                  # 002
                                                                  MPN: 181882
                                                                  ROD END FOR STEERING BOX
                                                                  from £211.72
                                                                  from £211.72
                                                                  This part replaces part number 178930 - and 1 more. Click to view details
                                                                  BALL TIE ROD END Genuine Ferrari Part - New (to order)
                                                                  TIE ROD JOINT Eurospares Approved Part - New In stock
                                                                  # 003
                                                                  MPN: 10790424
                                                                  NUT
                                                                  -Applicable from Ass. No. 49788-
                                                                  from £4.65
                                                                  from £4.65
                                                                  NUT Genuine Ferrari Part - New (to order)
                                                                  # 003
                                                                  MPN: 204248
                                                                  NUT
                                                                  -Applicable up to Ass. No. 49787-
                                                                  from £19.88
                                                                  from £19.88
                                                                  NUT Genuine Ferrari Part - New (to order)
                                                                  # 004
                                                                  MPN: 177943
                                                                  SWIVELLING UNION
                                                                  -Applicable for GD-
                                                                  from £13.94
                                                                  from £13.94
                                                                  This part replaces part number 177944 - and 3 more. Click to view details
                                                                  UNION Genuine Ferrari Part - New (to order)
                                                                  UNION Genuine Ferrari Part - Used In stock
                                                                  # 004
                                                                  MPN: 211764
                                                                  SWIVELLING UNION
                                                                  -Not for GD-
                                                                  from £21.86
                                                                  from £21.86
                                                                  SWINGING UNION Genuine Ferrari Part - New (to order)
                                                                  # 005
                                                                  MPN: 10185111
                                                                  CONNECTOR
                                                                  from £2.71
                                                                  from £2.71
                                                                  UNION Genuine Ferrari Part - New (to order)
                                                                  UNION Genuine Maserati Part - New (to order)
                                                                  # 006
                                                                  MPN: 10280060
                                                                  GASKET
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 100501 - and 3 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  GASKET Genuine Maserati Part - New In stock
                                                                  # 007
                                                                  MPN: 209867
                                                                  RUBBER PIPE
                                                                  -Applicable for GD- -No longer supplied- -Replaced by 219300-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 007
                                                                  MPN: 212706
                                                                  RUBBER PIPE
                                                                  -Not for GD-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 007
                                                                  MPN: 219300
                                                                  RUBBER PIPE
                                                                  -Applicable for GD- -No longer supplied-
                                                                  from £61.66
                                                                  from £61.66
                                                                  This part replaces part number 209867 - and 1 more. Click to view details
                                                                  RUBBER HOSE RHD Genuine Ferrari Part - New (to order)
                                                                  RUBBER HOSE RHD Genuine Ferrari Part - Used In stock
                                                                  # 008
                                                                  MPN: 13430770
                                                                  COLLAR FOR HOSE UNION
                                                                  -Applicable for GD-
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW COLLAR. Genuine Ferrari Part - New In stock
                                                                  SCREW COLLAR Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 161490
                                                                  COLLAR FOR HOSE UNION
                                                                  -Not for GD-
                                                                  from £1.36
                                                                  from £1.36
                                                                  SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                  SCREW COLLAR D.12-20X9 Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 205071
                                                                  COOLING COIL
                                                                  -Not for GD-
                                                                  from £281.04
                                                                  from £281.04
                                                                  REFRIGERATING COIL Genuine Ferrari Part - New (to order)
                                                                  # 009
                                                                  MPN: 214738
                                                                  COOLING COIL
                                                                  -Applicable for GD-
                                                                  from £223.07
                                                                  from £223.07
                                                                  SERVO-STEERING OIL COOLING R Genuine Ferrari Part - New (to order)
                                                                  # 010
                                                                  MPN: 10902124
                                                                  SCREW
                                                                  -L. 14 mm-
                                                                  from £0.52
                                                                  from £0.52
                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 010
                                                                  MPN: 16286324
                                                                  SCREW
                                                                  -L. 30 mm-
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 16286321
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  # 011
                                                                  MPN: 12601274
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New In stock
                                                                  # 012
                                                                  MPN: 14496424
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 14496401 - and 3 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 013
                                                                  MPN: 209868
                                                                  RUBBER PIPE
                                                                  -Not for GD-
                                                                  from £36.76
                                                                  from £36.76
                                                                  This part replaces part number 212707 - and 1 more. Click to view details
                                                                  HOSE FOR STEERING RETURN PIPE Genuine Ferrari Part - New In stock
                                                                  # 013
                                                                  MPN: 209868
                                                                  RUBBER PIPE
                                                                  -Applicable for GD- -No longer supplied- -Replaced by 247406-
                                                                  from £36.76
                                                                  from £36.76
                                                                  This part replaces part number 212707 - and 1 more. Click to view details
                                                                  HOSE FOR STEERING RETURN PIPE Genuine Ferrari Part - New In stock
                                                                  # 013
                                                                  MPN: 212707
                                                                  RUBBER PIPE
                                                                  -Not for GD- -No longer supplied- -Replaced by 209868-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 013
                                                                  MPN: 247406
                                                                  RUBBER PIPE
                                                                  -Applicable for GD-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 014
                                                                  MPN: 161490
                                                                  COLLAR FOR HOSE UNION
                                                                  from £1.36
                                                                  from £1.36
                                                                  SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                  SCREW COLLAR D.12-20X9 Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 201706
                                                                  THREADED CONNECTOR
                                                                  from £3.88
                                                                  from £3.88
                                                                  This part replaces part number 177237
                                                                  THREADED UNION. Genuine Ferrari Part - New (to order)
                                                                  THREADED UNION Genuine Maserati Part - New (to order)
                                                                  # 016
                                                                  MPN: 166730
                                                                  SHIM
                                                                  from £3.95
                                                                  from £3.95
                                                                  SPACER Genuine Ferrari Part - New (to order)
                                                                  # 017
                                                                  MPN: 211536
                                                                  JUNCTION TO LH STEERING BOX DELIVERY PIPE
                                                                  from £123.86
                                                                  from £123.86
                                                                  LH DELIVERY PIPE FROM UNIO Genuine Ferrari Part - New In stock
                                                                  LH DELIVERY PIPE FROM UNIO Genuine Ferrari Part - Used In stock
                                                                  # 018
                                                                  MPN: 202552
                                                                  UNDERBODY RETURN PIPE
                                                                  from £108.47
                                                                  from £108.47
                                                                  RETURN PIPE UNDER THE FLOOR Genuine Ferrari Part - New (to order)
                                                                  RETURN PIPE UNDER THE FLOOR Genuine Ferrari Part - Used In stock
                                                                  # 019
                                                                  MPN: 177631
                                                                  TUBE FASTENING BRACKET
                                                                  from £5.31
                                                                  from £5.31
                                                                  BRACKET TO FIXING PIPE Genuine Ferrari Part - New (to order)
                                                                  # 020
                                                                  MPN: 10902424
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SCREW Genuine Maserati Part - New In stock
                                                                  # 021
                                                                  MPN: 127494
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New In stock
                                                                  # 022
                                                                  MPN: 12639724
                                                                  WASHER
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: 10441690
                                                                  BRACKET WITH SHEATH
                                                                  from £1.07
                                                                  from £1.07
                                                                  This part replaces part number 1044690
                                                                  BRACKET Genuine Ferrari Part - New In stock
                                                                  STAFFETTA CON GUAINA PER 1 T Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 102948
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  DADO E NYLON STOP M 6X8 Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: 12639724
                                                                  WASHER
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: 171519
                                                                  COMPLETE RING
                                                                  from £11.43
                                                                  from £11.43
                                                                  RING Genuine Ferrari Part - New (to order)
                                                                  # 027
                                                                  MPN: 16237174
                                                                  SCREW
                                                                  from £2.33
                                                                  from £2.33
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  # 028
                                                                  MPN: 14496624
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14496601 - and 2 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: 102742
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  DADO E NYLON STOP M 10X1.25X Genuine Maserati Part - New In stock
                                                                  # 030
                                                                  MPN: 16237074
                                                                  SCREW
                                                                  from £2.76
                                                                  from £2.76
                                                                  This part replaces part number 16237174 which we have in stock
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  # 031
                                                                  MPN: 14496624
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14496601 - and 2 more. Click to view details
                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 032
                                                                  MPN: 102742
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  DADO E NYLON STOP M 10X1.25X Genuine Maserati Part - New In stock
                                                                  # 033
                                                                  MPN: 179556
                                                                  SCREW
                                                                  from £27.47
                                                                  from £27.47
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  # 034
                                                                  MPN: 179555
                                                                  COMPENSATOR RING
                                                                  from £3.22
                                                                  from £3.22
                                                                  RING Genuine Ferrari Part - New In stock
                                                                  COMPENSATOR RING. Genuine Maserati Part - New (to order)
                                                                  # 035
                                                                  MPN: 70000948
                                                                  BELLOW REPLACEMENT KIT
                                                                  from £42.01
                                                                  from £42.01
                                                                  BELLOWS REPLACEMENT KIT. Genuine Ferrari Part - New In stock
                                                                  # 036
                                                                  MPN: 209920
                                                                  PIPE
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 037
                                                                  MPN: 209830
                                                                  CONNECTOR
                                                                  from £43.79
                                                                  from £43.79
                                                                  UNION Genuine Ferrari Part - New In stock
                                                                  UNION Genuine Ferrari Part - Used In stock
                                                                  # 038
                                                                  MPN: 219299
                                                                  RUBBER PIPE
                                                                  from £72.05
                                                                  from £72.05
                                                                  RETURN HOSE FOR STEERING BOX Genuine Ferrari Part - New (to order)
                                                                  # 039
                                                                  MPN: 13430770
                                                                  COLLAR FOR HOSE UNION
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW COLLAR. Genuine Ferrari Part - New In stock
                                                                  SCREW COLLAR Genuine Maserati Part - New (to order)
                                                                  # 040
                                                                  MPN: 204939
                                                                  SHEATH
                                                                  from £7.78
                                                                  from £7.78
                                                                  PROTECTION SHEATH Genuine Ferrari Part - New (to order)
