0042 - Steering Control

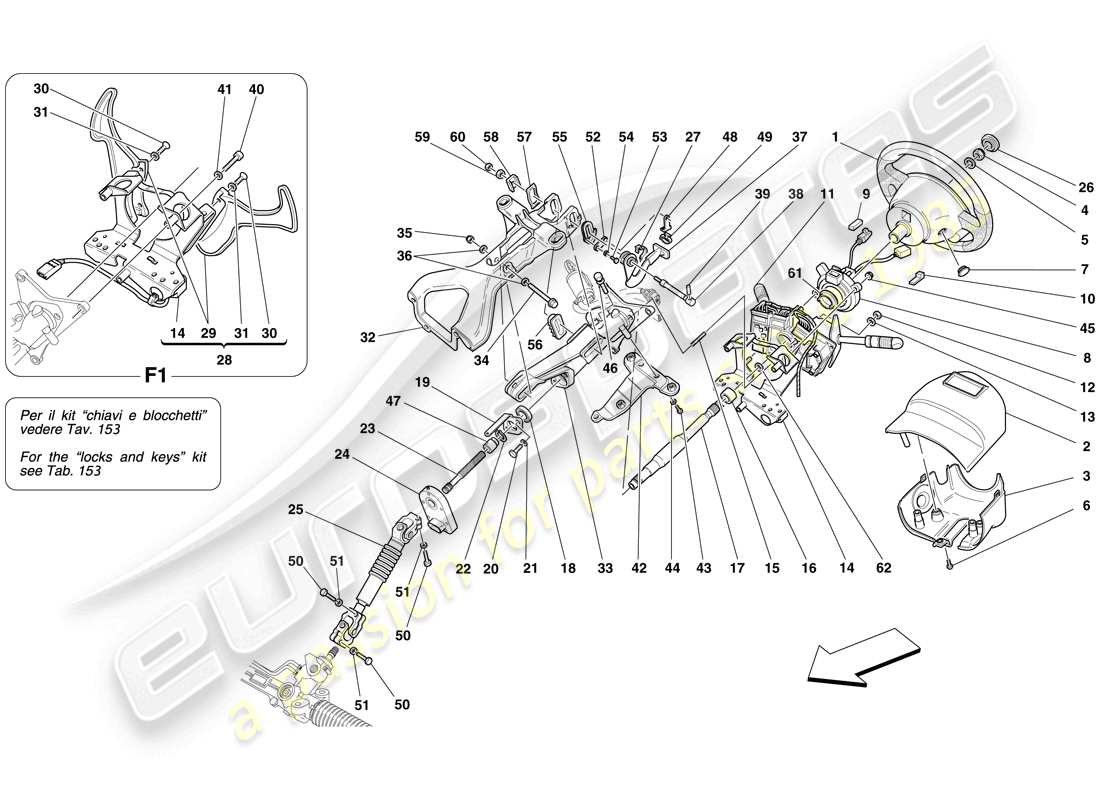

Ferrari F430 Spider (RHD) STEERING CONTROL Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 689389..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Standard- -Applicable up to Ass. No. 60177- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 693949..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Optional- -Carbon trimmed plate-
Supersession
Supersession
# 001
MPN: 693950..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -No longer supplied- -Replaced by 800537..-
Supersession
Supersession
# 001
MPN: 697462..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Standard- -Applicable from Ass. No. 60178- -Applicable after depletion of 689389..- -No longer supplied- -Replaced by 800536..-
Supersession
Supersession
# 001
MPN: 800536..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Standard- -Applicable from Ass. No. 60178- -Applicable after depletion of 689389..- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 800537..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 803265..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Standard- -Applicable after depletion of 800536..- -No longer supplied- -Replaced by 808981..-
Supersession
Supersession
# 001
MPN: 803268..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -Applicable after depletion of 800537..- -No longer supplied- -Replaced by 808982..-
Supersession
Supersession
# 001
MPN: 808981..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Standard-
Supersession
Supersession
# 001
MPN: 808982..
COMPL. STEERING WHEEL WITH AIRBAG
-Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon-
Supersession
Supersession
# 002
MPN: 68097900
UPPER TRIM
-Applicable for F1 gearbox-
from £93.37
from £93.37
# 002
MPN: 68098200
UPPER TRIM
-Not for F1 gearbox-
from £169.77
from £169.77
# 003
MPN: 68097800
LOWER TRIM
-Not for F1 gearbox-
from £206.31
from £206.31
# 003
MPN: 68161600
LOWER TRIM
-Applicable for F1 gearbox-
from £206.31
from £206.31
# 004
MPN: 199222
NUT
from £0.71
from £0.71
# 005
MPN: 152034
WASHER
from £3.36
from £3.36
# 006
MPN: 15960507
SCREW
from £0.71
from £0.71
This part replaces part number 15960501
# 007
MPN: 185486
CAP
from £1.59
from £1.59
# 008
MPN: 213671
CLOCK SPRING CONTACT
from £1,095.84
from £1,095.84
# 009
MPN: 163816
CLOCK SPRING CONNECTOR RESISTOR
from £9.14
from £9.14
# 010
MPN: 135355
CONNECTOR
from £0.47
from £0.47
# 011
MPN: 177585
STEERING COLUMN SWITCH ASSEMBLY
from £426.45
from £426.45
# 012
MPN: 15896470
NUT
from £0.79
from £0.79
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 013
MPN: 12601174
WASHER
from £0.47
from £0.47
This part replaces part number 12601173 - and 5 more. Click to view details
# 014
MPN: 203317
GEAR SHIFT BRACKET
-Applicable for F1 gearbox- -No longer supplied-
from £295.88
from £295.88
# 014
MPN: 204155
CLOCKSPRING CONNECTOR MOUNTING BRACKET
-Not for F1 gearbox-
from £33.87
from £33.87
# 015
MPN: 11001424
STUD BOLT
from £2.97
from £2.97
# 016
MPN: 199094
ROLLER BEARING
from £32.42
from £32.42
# 017
MPN: 197701
UPPER SHAFT STEERING COLUMN
from £1,226.91
from £1,226.91
# 018
MPN: 171540
BALL BEARING
from £9.04
from £9.04
# 019
MPN: 20-10-16
COMPLETE STEERING SENSOR MOUNTING BRACKET
from £59.44
from £59.44
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 11181874
WASHER
from £0.51
from £0.51
# 022
MPN: 11067376
SEEGER RING
from £1.11
from £1.11
This part replaces part number 11067375
# 023
MPN: 183993
LOWER COLUMN AXLE
from £263.60
from £263.60
# 024
MPN: 190405
STEERING ANGLE SENSOR
from £162.35
from £162.35
# 025
MPN: 171528
STEERING CARDAN SHAFT
from £711.58
from £711.58
# 026
MPN: 199406
CAP
from £0.47
from £0.47
# 027
MPN: 171531
PIN RETENTION SPRING
from £27.78
from £27.78
# 028
MPN: 201682
COMPLETE SHIFT F1 PADDLE ASSEMBLY
-Standard- -Applicable for F1 gearbox- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 215752 which we have in stock
# 028
MPN: 218518
COMPLETE SHIFT F1 PADDLE ASSEMBLY
-Carbon- -Optional- -Applicable for F1 gearbox- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 222134
# 028
MPN: 226099
COMPLETE SHIFT F1 PADDLE ASSEMBLY
-Standard- -Applicable for F1 gearbox- -Applicable after depletion of 201682-
from £867.32
from £867.32
This part replaces part number 201682
# 028
MPN: 226101
COMPLETE SHIFT F1 PADDLE ASSEMBLY
-Carbon- -Optional- -Applicable for F1 gearbox- -Applicable after depletion of 218518-
from £1,003.55
from £1,003.55
This part replaces part number 218518 - and 1 more. Click to view details
# 029
MPN: 215752
PAIR OF SHIFT PADDLES
-Applicable for F1 gearbox-
from £114.27
from £114.27
# 029
MPN: 222134
PAIR OF SHIFT PADDLES
-Carbon- -Optional- -Applicable for F1 gearbox-
Supersession
Supersession
# 030
MPN: 13308977
SCREW
-Applicable for arm assemblies 201682 and 218518 ref. 28- -Applicable for F1 gearbox-
from £1.43
from £1.43
# 030
MPN: 226092
SCREW
-Applicable for arm assemblies 226099 and 226101 ref. 28- -Applicable for F1 gearbox-
from £0.99
from £0.99
# 031
MPN: 12606673
WASHER
-Applicable for arm assemblies 201682 and 218518 ref. 28- -Applicable for F1 gearbox-
from £0.71
from £0.71
# 032
MPN: 197702
STEERING COLUMN MOUNTING BRACKET
-Not for GD-
from £282.35
from £282.35
# 032
MPN: 209191
STEERING COLUMN MOUNTING BRACKET
-Applicable for GD-
from £176.29
from £176.29
# 033
MPN: 197700
COLUMN MOUNTING
from £229.42
from £229.42
# 034
MPN: 180632
SCREW
from £6.47
from £6.47
# 035
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 036
MPN: 12625224
WASHER
from £0.47
from £0.47
This part replaces part number 12625201 which we have in stock - and 2 more. Click to view details
# 037
MPN: 171535
TRIMMED LEVER
from £130.66
from £130.66
This part replaces part number 65993300 - and 31 more. Click to view details
# 038
MPN: 171503
ARM PIN
from £23.17
from £23.17
# 039
MPN: 10336630
PIN
from £51.98
from £51.98
# 040
MPN: 13274611
SCREW
-Applicable for F1 gearbox-
from £0.71
from £0.71
# 041
MPN: 12601174
WASHER
-Applicable for F1 gearbox-
from £0.47
from £0.47
This part replaces part number 12601173 - and 5 more. Click to view details
# 042
MPN: 65164200
BRACKET
from £6.28
from £6.28
# 043
MPN: 13274177
SCREW
from £0.52
from £0.52
This part replaces part number 13274172
# 044
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
# 045
MPN: 61002200
NUT
from £1.11
from £1.11
# 046
MPN: 172563
ANTI-THEFT SYSTEM FASTENER SCREW
from £1.29
from £1.29
# 047
MPN: 200970
RING NUT
from £51.34
from £51.34
# 048
MPN: 177977
PLATE
from £12.06
from £12.06
# 049
MPN: 178430
FASTENER CLIP
from £0.47
from £0.47
# 050
MPN: 192229
HEXAGONAL SCREW
from £11.45
from £11.45
# 051
MPN: 192230
WASHER
from £3.94
from £3.94
# 052
MPN: 171523
PLATE
from £25.46
from £25.46
# 053
MPN: 10977724
SCREW
from £0.47
from £0.47
This part replaces part number 10977711
# 054
MPN: 11181574
WASHER
from £0.54
from £0.54
# 055
MPN: 171544
ARM SIDE SLIPPER
from £59.67
from £59.67
# 056
MPN: 171501
SPLINED FIXED SLIPPER
from £91.20
from £91.20
# 057
MPN: 171502
SLIPPER SPRING
from £18.23
from £18.23
# 058
MPN: 171529
MOBILE SPLINED SLIPPER
from £36.45
from £36.45
# 059
MPN: 171542
NUT
from £3.58
from £3.58
# 060
MPN: 147985
NUT
from £0.47
from £0.47
# 061
MPN: 199784
BUSHING
from £4.48
from £4.48
# 062
MPN: 203213
WASHER
from £2.20
from £2.20
-part-diagram-0043.webp "FERRARI F430 SPIDER (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 SPIDER (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 SPIDER (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 SPIDER (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 SPIDER (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 SPIDER (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 SPIDER (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 SPIDER (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 SPIDER (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 SPIDER (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 SPIDER (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 SPIDER (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 SPIDER (RHD) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 SPIDER (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 SPIDER (RHD) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 SPIDER (RHD) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 SPIDER (RHD) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 SPIDER (RHD) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 SPIDER (RHD) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 SPIDER (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 SPIDER (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 SPIDER (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 SPIDER (RHD) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 SPIDER (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 SPIDER (RHD) ROOF CANVAS - SEALS - MOULDINGS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 SPIDER (RHD) ROOF TRIM AND TUB PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 SPIDER (RHD) ROOF LINKAGES AND MECHANISM PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 SPIDER (RHD) FRONT ROOF LATCH PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 SPIDER (RHD) ROOF KINEMATICS - UPPER PART PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 SPIDER (RHD) ROOF KINEMATICS - LOWER PART PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 SPIDER (RHD) ROOF CONTROL AND FLAPS PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 SPIDER (RHD) ROOF MICROSWITCHES AND ECU PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 SPIDER (RHD) HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP UNIT PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 SPIDER (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 SPIDER (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 SPIDER (RHD) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 SPIDER (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 SPIDER (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 SPIDER (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 SPIDER (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 SPIDER (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 SPIDER (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 SPIDER (RHD) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 SPIDER (RHD) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 SPIDER (RHD) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 SPIDER (RHD) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 SPIDER (RHD) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 SPIDER (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 SPIDER (RHD) REAR ODDMENT STORAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 SPIDER (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 SPIDER (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 SPIDER (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 SPIDER (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 SPIDER (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 SPIDER (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 SPIDER (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 SPIDER (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 SPIDER (RHD) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI F430 SPIDER (RHD) ECUS AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI F430 SPIDER (RHD) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI F430 SPIDER (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI F430 SPIDER (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI F430 SPIDER (RHD) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI F430 SPIDER (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI F430 SPIDER (RHD) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI F430 SPIDER (RHD) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI F430 SPIDER (RHD) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI F430 SPIDER (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 SPIDER (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 SPIDER (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 SPIDER (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 SPIDER (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 SPIDER (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 SPIDER (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 SPIDER (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 SPIDER (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 SPIDER (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 SPIDER (RHD) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 SPIDER (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 SPIDER (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 SPIDER (RHD) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 SPIDER (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 SPIDER (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 SPIDER (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 SPIDER (RHD) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 SPIDER (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 SPIDER (RHD) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 SPIDER (RHD) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 SPIDER (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 SPIDER (RHD) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 SPIDER (RHD) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 SPIDER (RHD) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 SPIDER (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 SPIDER (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 SPIDER (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 SPIDER (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 SPIDER (RHD) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 SPIDER (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 SPIDER (RHD) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 SPIDER (RHD) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 SPIDER (RHD) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 SPIDER (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 SPIDER (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 SPIDER (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 SPIDER (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 SPIDER (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 SPIDER (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 SPIDER (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 SPIDER (RHD) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 SPIDER (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 SPIDER (RHD) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
