0051 - ALTERNATOR - STARTER MOTOR

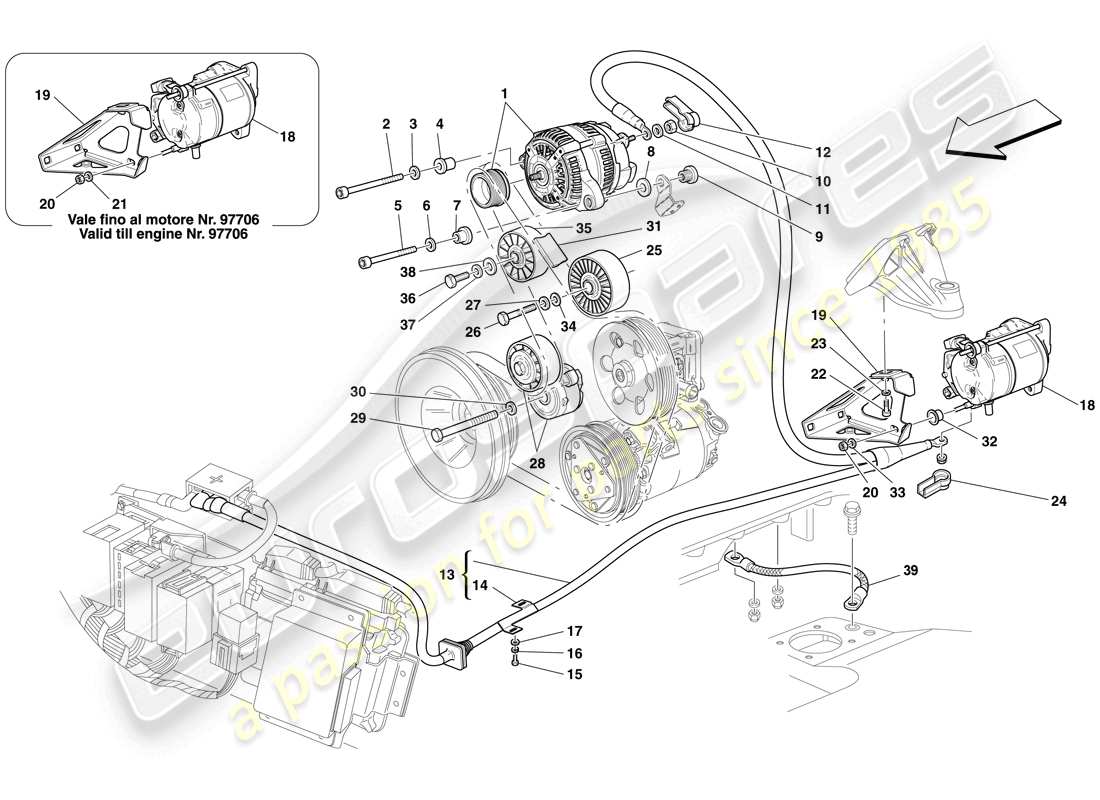

Ferrari F430 Spider (RHD) ALTERNATOR - STARTER MOTOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 20-54-03
                                                150 A ALTERNATOR
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 001
                                                MPN: 250367
                                                150 A ALTERNATOR
                                                -Applicable after depletion of 205403-
                                                from £279.03
                                                from £279.03
                                                This part replaces part number 20-54-03 - and 2 more. Click to view details
                                                Genuine Ferrari Part (no longer available to order)
                                                ALTERNATOR 150A Genuine Ferrari Part - Used In stock
                                                # 002
                                                MPN: 14308724
                                                SCREW
                                                from £2.59
                                                from £2.59
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW M10X1.25X100 Genuine Maserati Part - New (to order)
                                                # 003
                                                MPN: 10569474
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                WASHER Genuine Ferrari Part - New In stock
                                                SPLIT WASHER D. 10 -16 X2.5 Genuine Maserati Part - New In stock
                                                # 004
                                                MPN: 209278
                                                BUSHING
                                                from £7.76
                                                from £7.76
                                                BUSHING Genuine Ferrari Part - New (to order)
                                                BUSHING D.10.2X20X25 Genuine Maserati Part - New (to order)
                                                # 005
                                                MPN: 14308224
                                                SCREW
                                                from £0.79
                                                from £0.79
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW M10X1.25X65 Genuine Maserati Part - New In stock
                                                # 006
                                                MPN: 10569474
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                WASHER Genuine Ferrari Part - New In stock
                                                SPLIT WASHER D. 10 -16 X2.5 Genuine Maserati Part - New In stock
                                                # 007
                                                MPN: 164467
                                                BUSHING
                                                from £15.72
                                                from £15.72
                                                BUSHING Genuine Ferrari Part - New (to order)
                                                BUSHING D.10.2X22X25 Genuine Maserati Part - New (to order)
                                                # 008
                                                MPN: 207423
                                                WASHER
                                                from £3.26
                                                from £3.26
                                                WASHER Genuine Ferrari Part - New (to order)
                                                # 009
                                                MPN: 187143
                                                THREADED BUSHING
                                                from £5.33
                                                from £5.33
                                                BUSHING. Genuine Ferrari Part - New (to order)
                                                THREADED BUSHING Genuine Maserati Part - New (to order)
                                                # 010
                                                MPN: 16102314
                                                NUT
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                NUT Genuine Ferrari Part - New In stock
                                                NUT Genuine Maserati Part - New (to order)
                                                # 011
                                                MPN: 12601374
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 012
                                                MPN: 154803
                                                PROTECTIVE CAP
                                                from £2.64
                                                from £2.64
                                                PROTECTION BOOT Genuine Ferrari Part - New In stock
                                                ALTERNATOR CABLE PROTECTION CAP Genuine Maserati Part - New (to order)
                                                # 013
                                                MPN: 192534
                                                COMPLETE ENGINE SERVICES CONNECTOR CABLES
                                                from £170.72
                                                from £170.72
                                                This part replaces part number 233376
                                                CABLES. Genuine Ferrari Part - New In stock
                                                # 014
                                                MPN: 178356
                                                BRACKET
                                                from £92.61
                                                from £92.61
                                                STAFFA FISS.CAVI SERVIZI MOT Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 10902324
                                                SCREW
                                                -M6 X 18-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                Genuine Ferrari Part (no longer available to order)
                                                SCREW FOR CONV. TOP HINGE Genuine Maserati Part - New (to order)
                                                # 016
                                                MPN: 127494
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 017
                                                MPN: 12644424
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 018
                                                MPN: 180169
                                                STARTER MOTOR
                                                from £160.34
                                                from £160.34
                                                STARTER MOTOR Genuine Ferrari Part - New (to order)
                                                STARTER MOTOR Genuine Maserati Part - New (to order)
                                                STARTER MOTOR Genuine Ferrari Part - Used In stock
                                                # 019
                                                MPN: 203104
                                                STARTER MOTOR MOUNTING BRACKET
                                                -Applicable up to engine No. 97706-
                                                from £28.72
                                                from £28.72
                                                STARTER MOTOR SUPPORTING BRA Genuine Ferrari Part - New (to order)
                                                # 019
                                                MPN: 222003
                                                STARTER MOTOR MOUNTING BRACKET
                                                -Applicable from engine No. 97707-
                                                from £31.48
                                                from £31.48
                                                BRACKET Genuine Ferrari Part - New (to order)
                                                # 020
                                                MPN: 160472
                                                NUT
                                                from £1.25
                                                from £1.25
                                                NUT Genuine Ferrari Part - New In stock
                                                NUT Genuine Maserati Part - New (to order)
                                                # 021
                                                MPN: 61148700
                                                WASHER
                                                -Applicable up to engine No. 97706-
                                                from £0.54
                                                from £0.54
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 022
                                                MPN: 14302824
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 023
                                                MPN: 11193874
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 11193879 which we have in stock
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 024
                                                MPN: 124683
                                                PROTECTIVE CAP
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 139937
                                                CAPPUCCIO PROTEZ.CAVO MOTOR. Genuine Ferrari Part - New (to order)
                                                PROTECTION BOOT Genuine Maserati Part - New In stock
                                                # 025
                                                MPN: 172537
                                                BELT TENSIONER PULLEY
                                                -Applicable up to engine No. 117478-
                                                from £71.70
                                                from £71.70
                                                BELT TIGHTENING PULLEY Genuine Ferrari Part - New In stock
                                                BELT TENSIONER PULLEY WITH BEARING Genuine Maserati Part - New In stock
                                                # 025
                                                MPN: 227894
                                                BELT TENSIONER PULLEY
                                                -Applicable from engine No. 117479-
                                                from £41.10
                                                from £41.10
                                                BELT TIGHTENING PULLEY Genuine Ferrari Part - New In stock
                                                BELT TENSIONER PULLEY WITH BEARIN Genuine Maserati Part - New In stock
                                                # 026
                                                MPN: 11234721
                                                SCREW
                                                -Applicable up to engine No. 117478-
                                                from £0.53
                                                from £0.53
                                                BOLT Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 026
                                                MPN: 11343821
                                                SCREW
                                                -Applicable from engine No. 117479-
                                                from £0.62
                                                from £0.62
                                                SCREW Genuine Ferrari Part - New In stock
                                                HEX HEAD SCREW M 10X1.25X Genuine Maserati Part - New In stock
                                                # 027
                                                MPN: 11190574
                                                WASHER
                                                -Applicable up to engine No. 117478-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14499504
                                                WASHER Genuine Ferrari Part - New In stock
                                                TAPERED RUBBER WASHER 10.5-2 Genuine Maserati Part - New (to order)
                                                # 027
                                                MPN: 13550421
                                                WASHER
                                                -Applicable from engine No. 117479-
                                                from £0.47
                                                from £0.47
                                                Genuine Ferrari Part (no longer available to order)
                                                SPLIT WASHER D.10.2 -20X2 Genuine Maserati Part - New (to order)
                                                # 028
                                                MPN: 175436
                                                belt tensioner
                                                -Applicable up to engine No. 117478-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                Genuine Maserati Part (no longer available to order)
                                                # 028
                                                MPN: 233644
                                                belt tensioner
                                                -Applicable from engine No. 117479-
                                                from £61.12
                                                from £61.12
                                                This part replaces part number 175436
                                                BELT TIGHTENING Genuine Ferrari Part - New (to order)
                                                belt tensioner Genuine Maserati Part - New In stock
                                                # 029
                                                MPN: 16044431
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                BOLT Genuine Ferrari Part - New In stock
                                                HEX HEAD SCREW M8 x 60 ZNT/DEIDR Genuine Maserati Part - New In stock
                                                # 030
                                                MPN: 11193874
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 11193879 which we have in stock
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 031
                                                MPN: 201448
                                                BELT
                                                -No longer supplied- -Replaced by 235315-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 031
                                                MPN: 235315
                                                BELT
                                                from £15.44
                                                from £15.44
                                                This part replaces part number 201448
                                                BELT Genuine Ferrari Part - New (to order)
                                                BELT Eurospares Approved Part - New In stock
                                                # 032
                                                MPN: 215645
                                                SPACER BUSHING
                                                -Applicable from engine No. 97707-
                                                from £2.45
                                                from £2.45
                                                SPACER BUSHING Genuine Ferrari Part - New In stock
                                                # 033
                                                MPN: 127493
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 106849 - and 1 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New (to order)
                                                # 034
                                                MPN: 10569474
                                                WASHER
                                                -Applicable from engine No. 117479-
                                                from £0.54
                                                from £0.54
                                                WASHER Genuine Ferrari Part - New In stock
                                                SPLIT WASHER D. 10 -16 X2.5 Genuine Maserati Part - New In stock
                                                # 035
                                                MPN: 226205
                                                PULLEY
                                                -Applicable from engine No. 117479-
                                                from £22.24
                                                from £22.24
                                                BELT TIGHTENING PULLEY Genuine Ferrari Part - New In stock
                                                BELT TENSIONER PULLEY WITH BEARING Genuine Maserati Part - New In stock
                                                # 036
                                                MPN: 16043324
                                                SCREW
                                                -M8 X 18- -Applicable from engine No. 117479-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 16043321
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 037
                                                MPN: 11193974
                                                WASHER
                                                -Applicable from engine No. 117479-
                                                from £0.26
                                                from £0.26
                                                WASHER Genuine Ferrari Part - New In stock
                                                Conical Washer. D. 8.4-1 8.4-2 Genuine Maserati Part - New In stock
                                                WASHER Genuine Ferrari Part - Used In stock
                                                # 038
                                                MPN: 12647024
                                                WASHER
                                                -Applicable from engine No. 117479-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                Genuine Maserati Part (no longer available to order)
                                                # 039
                                                MPN: 196069
                                                ENGINE GROUND
                                                - CHASSIS GROUND CONNECTOR BRAID
                                                from £21.51
                                                from £21.51
                                                CABLE. Genuine Ferrari Part - New In stock
                                                CABLE. Genuine Ferrari Part - Used In stock
