0053 - TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE
Ferrari F430 Spider (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE Parts Diagram

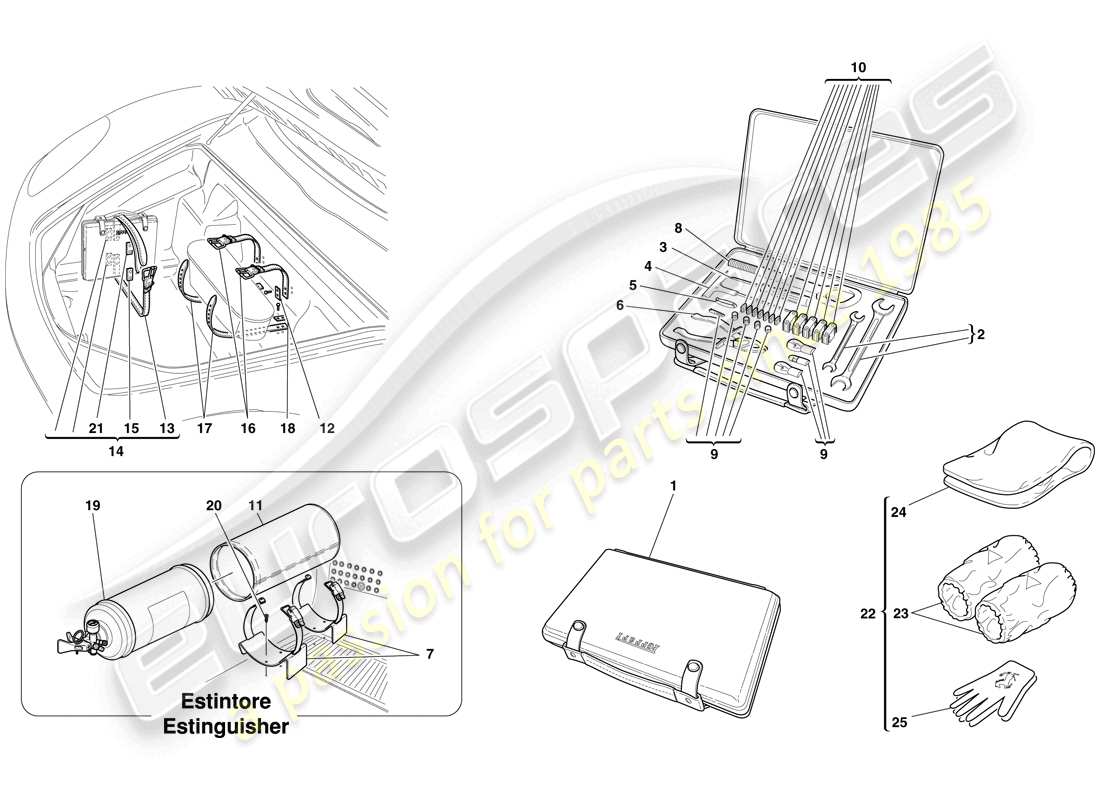

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 220496

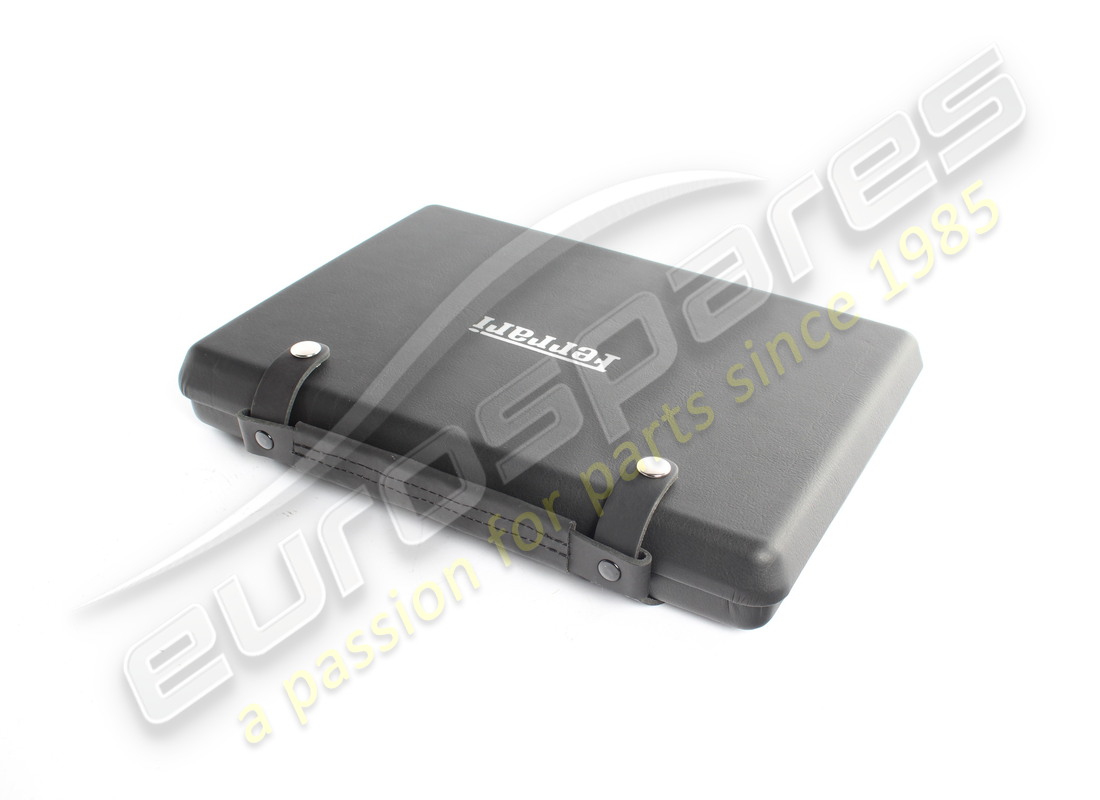

COMPLETE TOOL BAG
from £588.08
from £588.08
# 001
MPN: 215274
EMPTY TOOL BAG
from £445.42
from £445.42
# 002
-
FIXED WRENCH SET
# 003
-
SCREWDRIVER
# 004
MPN: 14534079
HEXAGON SCREWDRIVER
from £44.37
from £44.37
# 005
MPN: 178659
FUSE REMOVAL PINCERS
from £1.71
from £1.71
# 006
-
UNIVERSAL PLIERS
# 007
MPN: 691935..
COMPLETE TRIMMED BRACKET
Supersession
Supersession
# 008
MPN: 155838
TOW HOOK
from £39.69
from £39.69
# 009
MPN: 101525
BULB
from £2.15
from £2.15
This part replaces part number 101528
# 009
MPN: 10556890
12 V-6 W LAMP
-Applicable up to Ass. No. 74548-
from £12.38
from £12.38
# 009
MPN: 10857790
12 V-5 W LAMP
-Applicable up to Ass. No. 74548-
from £1.14
from £1.14
This part replaces part number 101524
# 009
MPN: 14142390
12 V-4 W LAMP
-Applicable up to Ass. No. 74548-
from £1.05
from £1.05
# 009
MPN: 14144190
12 V-5 W LAMP
-Applicable up to Ass. No. 74548-
from £0.50
from £0.50
# 009
MPN: 14144690
12 V-21/5 W LAMP
-Applicable up to Ass. No. 74548-
from £2.41
from £2.41
# 009
MPN: 14148190
12 V-21 W LAMP
-Applicable up to Ass. No. 74548-
from £2.03
from £2.03
# 009
MPN: 187652
12 V-21 W LAMP
-Applicable up to Ass. No. 74548-
from £15.14
from £15.14
# 010
MPN: 166835
40 A MAXI FUSE
-Applicable up to Ass. No. 74548-
from £5.93
from £5.93
# 010
MPN: 169438
20 A MAXI FUSE
from £7.83
from £7.83
# 010
MPN: 170061
50 A MAXI FUSE
from £2.73
from £2.73
# 010
MPN: 170093
30 A MAXI FUSE
from £7.22
from £7.22
# 010
MPN: 172871
60 A MAXI FUSE
from £8.53
from £8.53
# 010
MPN: 172875
5 A MINI FUSE
from £5.70
from £5.70
# 010
MPN: 172876
7.5 A MINI FUSE
from £5.76
from £5.76
# 010
MPN: 172877
10 A MINI FUSE
from £5.74
from £5.74
# 010
MPN: 172878
15 A MINI FUSE
from £4.02
from £4.02
# 010
MPN: 172879
20 A MINI FUSE
from £4.72
from £4.72
# 010
MPN: 172880
25 A MINI FUSE
from £4.74
from £4.74
# 010
MPN: 172881
30 A MINI FUSE
from £5.80
from £5.80
# 011
MPN: 656448..
FIRE EXTINGUISHER SLEEVE
-Applicable up to Ass. No. 60727-
Supersession
Supersession
# 011
MPN: 693276..
FIRE EXTINGUISHER SLEEVE
-Applicable from Ass. No. 60728-
Supersession
Supersession
# 012
MPN: 68996500
PLATE
from £22.08
from £22.08
This part replaces part number 68997000
# 013
MPN: 68996800
STRAP WITH BUCKLE FOR TOOL KIT
from £16.67
from £16.67
# 014
MPN: 68987200
COMPLETE STRAP FOR TOOL KIT
from £59.39
from £59.39
# 015
MPN: 68997000
PLATE
-Applicable up to Ass. No. 78038-
Supersession
Supersession
# 016
MPN: 68996300
BELT WITH BUCKLE FOR RUBBER SHIELD
from £57.95
from £57.95
# 017
MPN: 68996400
BELT FOR RUBBER SHIELD
from £22.28
from £22.28
# 018
MPN: 68996500
PLATE
from £22.08
from £22.08
This part replaces part number 68997000
# 019
MPN: 65644700
fire extinguisher
-Applicable up to Ass. No. 60727-
from £452.90
from £452.90
# 019
MPN: 69327500
fire extinguisher
-Applicable from Ass. No. 60728-
from £229.97
from £229.97
# 020
MPN: 13297477
SCREW
from £0.47
from £0.47
# 021
MPN: 68997100
PLATE
from £8.02
from £8.02
# 022
MPN: 65253000
COMPLETE ACCESSORY HOLDER WALLET
from £62.79
from £62.79
# 023
MPN: 65253200
HOSE UNION
from £4.31
from £4.31
# 024
MPN: 65253100
ACCESSORY HOLDER WALLET
-From Ass. No. 74549, supplied with compl. bag 215273, ref. 1-
from £25.20
from £25.20
# 025
MPN: 65253300
GLOVES
-From Ass. No. 74549, supplied with compl. bag 215273, ref. 1-
from £18.84
from £18.84
