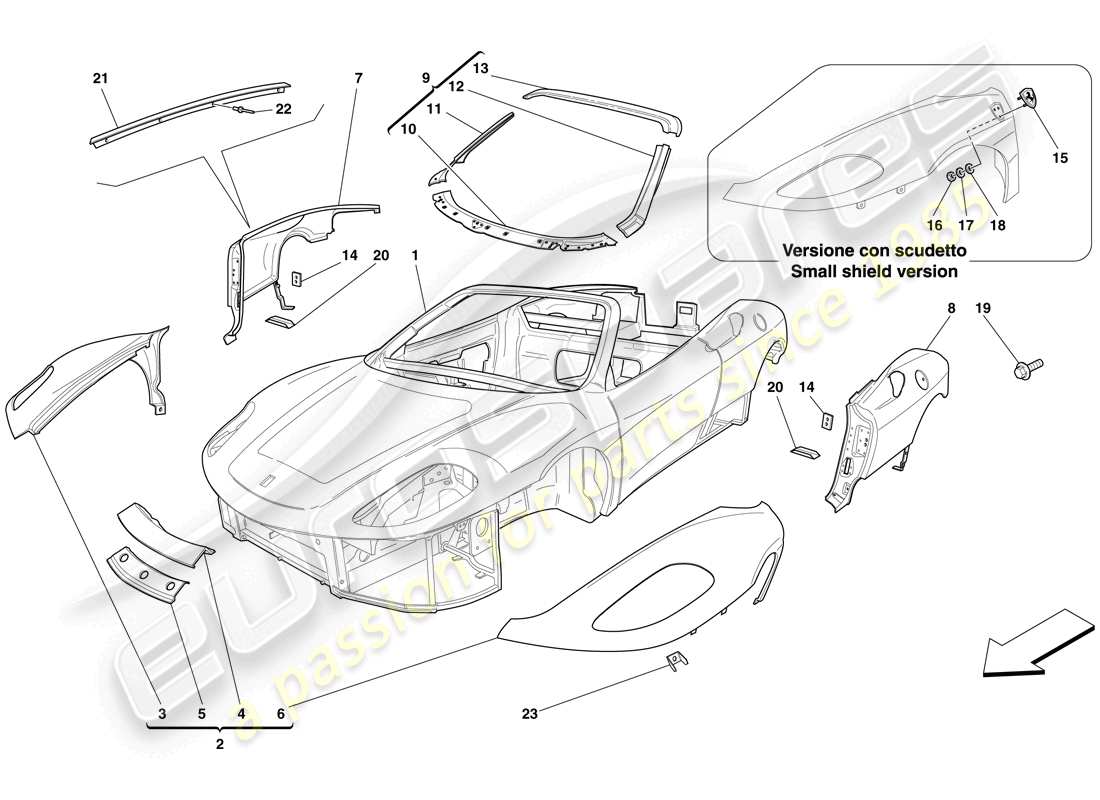

0100 - BODYSHELL - EXTERNAL TRIM
Ferrari F430 Spider (RHD) BODYSHELL - EXTERNAL TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
COMPLETE BODYSHELL
# 002
MPN: 67762111
COMPLETE FRONT FENDER ASSEMBLY
-Optional- -Version with shield-
from £5,359.28
from £5,359.28
This part replaces part number 67762100
# 002
MPN: 67762811
COMPLETE FRONT FENDER ASSEMBLY
-Standard-
from £5,359.28
from £5,359.28
This part replaces part number 67762800
# 003
MPN: 67762211
COMPLETE FRONT RH FENDER
-Version with shield-
from £2,121.01
from £2,121.01
This part replaces part number 67762200
# 003
MPN: 67762911
COMPLETE FRONT RH FENDER
from £2,121.00
from £2,121.00
This part replaces part number 67762900
# 004
MPN: 65314111
FRONT CENTRAL TRIM
from £202.27
from £202.27
This part replaces part number 65314100
# 005
MPN: 66233911
CENTRAL FRONT SUBSTRUCTURE
from £240.71
from £240.71
This part replaces part number 65316311 - and 1 more. Click to view details
# 006
MPN: 67762511
COMPLETE FRONT LH FENDER
-Version with shield-
from £2,121.01
from £2,121.01
This part replaces part number 67762500
# 006
MPN: 67763311
COMPLETE FRONT LH FENDER
from £2,121.00
from £2,121.00
This part replaces part number 67763300
# 007
MPN: 68385211
COMPLETE REAR RH FENDER
-Not for GD-
from £2,670.69
from £2,670.69
This part replaces part number 68385200
# 007
MPN: 69060311
COMPLETE REAR RH FENDER
-Applicable for GD-
from £4,144.52
from £4,144.52
# 008
MPN: 68385311
COMPLETE REAR LH FENDER
-Not for GD-
from £1,468.88
from £1,468.88
This part replaces part number 68385300 - and 1 more. Click to view details
# 008
MPN: 69060411
COMPLETE REAR LH FENDER
-Applicable for GD-
from £2,737.75
from £2,737.75
# 009
MPN: 65783811
COMPLETE WINDSCREEN SURROUND
from £382.82
from £382.82
This part replaces part number 65783800
# 010
MPN: 65703111
UNDERWINDSCREEN TRIM
from £288.35
from £288.35
This part replaces part number 65703100
# 011
MPN: 65315011
RH WINDSCREEN PILLAR TRIM
from £236.31
from £236.31
This part replaces part number 65315000
# 012
MPN: 65315111
LH WINDSCREEN PILLAR TRIM
from £206.48
from £206.48
This part replaces part number 65315100
# 013
MPN: 65780111
COMPLETE WINDSCREEN CROSS MEMBER TRIM
from £87.57
from £87.57
This part replaces part number 65780100
# 014
MPN: 68624611
PLATE
Supersession
Supersession
# 015
MPN: 65921900
SQUADRA CORSE SHIELD BADGE
Supersession
Supersession
# 016
MPN: 16101711
NUT
from £0.52
from £0.52
This part replaces part number 16101715
# 017
MPN: 14498521
WASHER
from £6.60
from £6.60
# 018
MPN: 12624178
WASHER
from £0.50
from £0.50
This part replaces part number 12624177
# 019
MPN: 13836771
SCREW
from £1.48
from £1.48
# 020
MPN: 65155311
REAR FENDER REAR FASTENING BRACKET
Supersession
Supersession
# 021
MPN: 68869800
RH RECESS
from £14.92
from £14.92
# 021
MPN: 68869900
LH RECESS
from £14.92
from £14.92
# 022
MPN: 14641891
RIVET
from £1.08
from £1.08
# 023
MPN: 68741500
RH BRACKET
from £87.64
from £87.64
# 023
MPN: 68741600
LH BRACKET
from £87.64
from £87.64
