ferrari f430 spider (rhd) rear oddment storage compartment parts diagram

0135 - REAR ODDMENT STORAGE COMPARTMENT

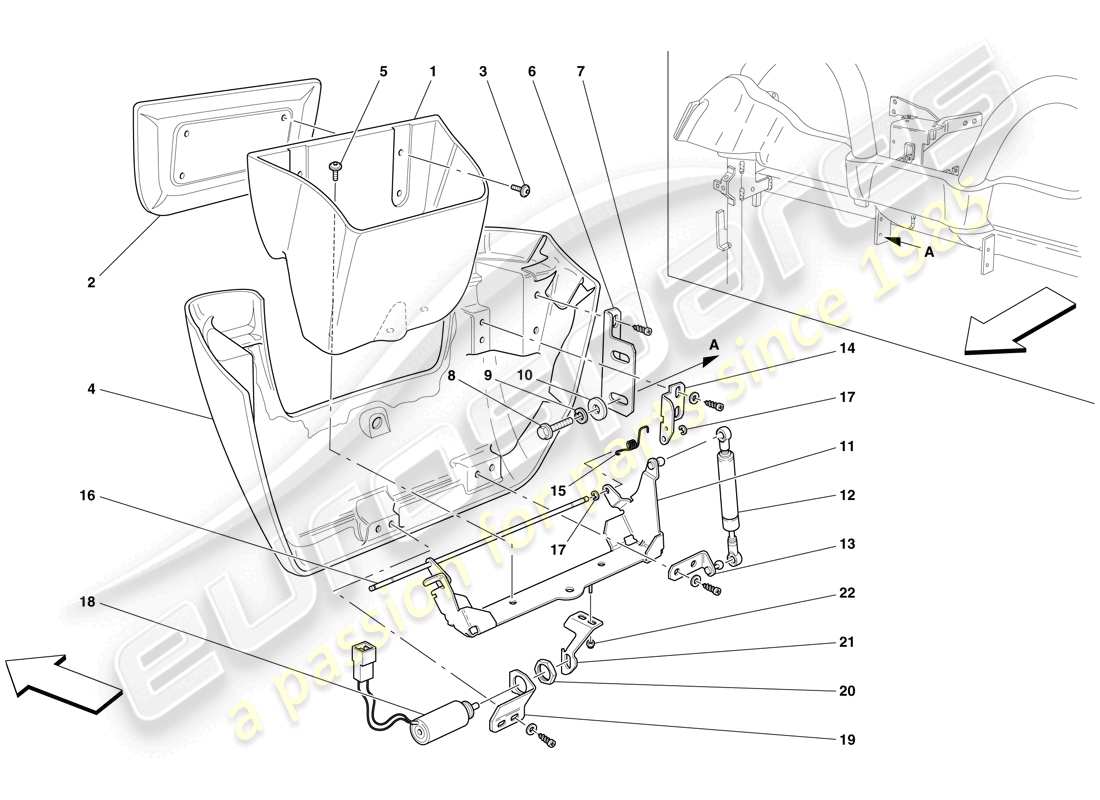

Ferrari F430 Spider (RHD) REAR ODDMENT STORAGE COMPARTMENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 65902900
                                          FELT GLOVE COMPARTMENT
                                          from £63.84
                                          from £63.84
                                          REAR GLOVEBOX INSERT Genuine Ferrari Part - New (to order)
                                          REAR GLOVEBOX INSERT Genuine Ferrari Part - Used In stock
                                          # 002
                                          MPN: 659030..
                                          GLOVE COMPARTMENT FRONT PANEL
                                          from £95.00
                                          from £95.00
                                          Genuine Ferrari Part (no longer available to order)
                                          GLOVE COMPARTMENT FRONT PANEL Genuine Ferrari Part - Used In stock
                                          # 003
                                          MPN: 65212000
                                          SCREW
                                          from £0.76
                                          from £0.76
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 003
                                          MPN: 65408900
                                          SCREW
                                          -No longer supplied- -Replaced by 65212000-
                                          from £0.90
                                          from £0.90
                                          SCREW Genuine Ferrari Part - New In stock
                                          # 004
                                          MPN: 657977..
                                          FIXED PART UNIT
                                          from £180.97
                                          from £180.97
                                          Genuine Ferrari Part (no longer available to order)
                                          FIXED PART UNIT Genuine Ferrari Part - Used In stock
                                          # 004
                                          MPN: 657979..
                                          TRIM
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 005
                                          MPN: 65366700
                                          SCREW
                                          from £0.69
                                          from £0.69
                                          SCREW Genuine Ferrari Part - New In stock
                                          VITE TBEI M 5X 12 Genuine Maserati Part - New (to order)
                                          # 006
                                          MPN: 65796100
                                          RH BRACKET
                                          from £1.82
                                          from £1.82
                                          RH BRACKET Genuine Ferrari Part - New (to order)
                                          RH BRACKET Genuine Ferrari Part - Used In stock
                                          # 006
                                          MPN: 65904700
                                          LH BRACKET
                                          from £80.27
                                          from £80.27
                                          LH BRACKET. Genuine Ferrari Part - New (to order)
                                          LH BRACKET. Genuine Ferrari Part - Used In stock
                                          # 007
                                          MPN: 15538601
                                          SCREW
                                          from £1.41
                                          from £1.41
                                          This part replaces part number 15583601
                                          SCREW Genuine Ferrari Part - New (to order)
                                          # 007
                                          MPN: 15583601
                                          SCREW
                                          -No longer supplied- -Replaced by 15538601-
                                          Supersession
                                          Supersession
                                          Genuine Ferrari Part (no longer available to order)
                                          # 008
                                          MPN: 16285127
                                          SCREW
                                          from £0.51
                                          from £0.51
                                          SCREW Genuine Ferrari Part - New In stock

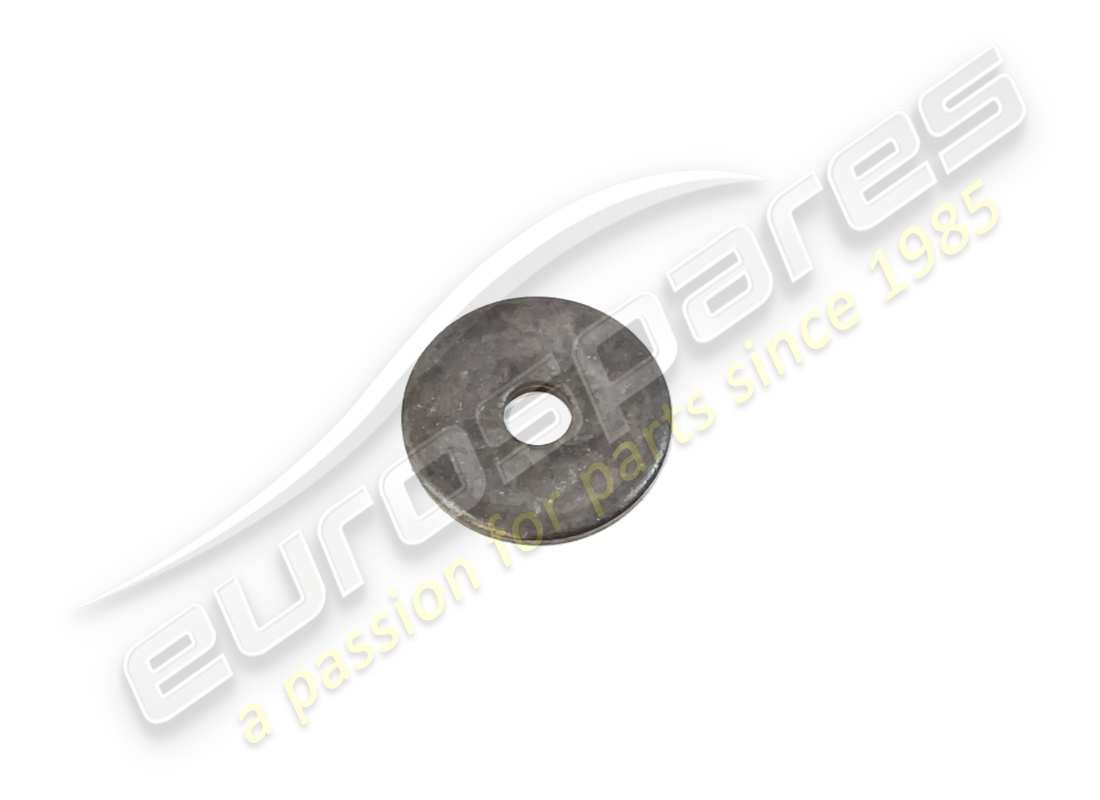

                                          # 009
                                          MPN: 166467
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New (to order)
                                          # 010
                                          MPN: 12624178
                                          WASHER
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 12624177
                                          WASHER Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New (to order)
                                          # 011
                                          MPN: 65900900
                                          BRACKET
                                          from £75.30
                                          from £75.30
                                          COMPLETE BRACKET. Genuine Ferrari Part - New (to order)
                                          COMPLETE BRACKET. Genuine Ferrari Part - Used In stock
                                          # 012
                                          MPN: 68418700
                                          HATCH DAMPER
                                          from £147.42
                                          from £147.42
                                          This part replaces part number 66238900
                                          DRAWER DECELERATOR Genuine Ferrari Part - New (to order)
                                          # 013
                                          MPN: 65908700
                                          BRACKET
                                          from £15.23
                                          from £15.23
                                          BRACKET. Genuine Ferrari Part - New (to order)
                                          # 014
                                          MPN: 65902600
                                          RH HINGE MOUNT
                                          from £47.05
                                          from £47.05
                                          RH SUPPORT. Genuine Ferrari Part - New (to order)
                                          RH SUPPORT. Genuine Ferrari Part - Used In stock
                                          # 014
                                          MPN: 65902700
                                          LH HINGE MOUNT
                                          from £47.05
                                          from £47.05
                                          LH SUPPORT. Genuine Ferrari Part - New (to order)
                                          LH SUPPORT. Genuine Ferrari Part - Used In stock
                                          # 015
                                          MPN: 65902400
                                          RH SPRING
                                          from £48.12
                                          from £48.12
                                          RH SPRING. Genuine Ferrari Part - New (to order)
                                          # 015
                                          MPN: 65905000
                                          LH SPRING
                                          from £48.12
                                          from £48.12
                                          LH SPRING. Genuine Ferrari Part - New (to order)
                                          # 016
                                          MPN: 65902500
                                          ROTATION AXLE
                                          from £146.32
                                          from £146.32
                                          ROTATING HINGE. Genuine Ferrari Part - New (to order)
                                          # 017
                                          MPN: 11087674
                                          SNAP RING
                                          from £0.71
                                          from £0.71
                                          CIRCLIP Genuine Ferrari Part - New In stock
                                          # 018
                                          MPN: 66185300
                                          ELECTRIC ACTUATOR
                                          from £169.21
                                          from £169.21
                                          ELECTRIC ACTUATOR. Genuine Ferrari Part - New (to order)
                                          # 019
                                          MPN: 66185100
                                          BRACKET
                                          from £131.72
                                          from £131.72
                                          BRACKET. Genuine Ferrari Part - New (to order)
                                          # 020
                                          MPN: 60538800
                                          RING NUT
                                          from £4.96
                                          from £4.96
                                          IRON RING Genuine Ferrari Part - New (to order)
                                          # 021
                                          MPN: 66185200
                                          MOBILE BRACKET
                                          from £38.60
                                          from £38.60
                                          BRACKET. Genuine Ferrari Part - New (to order)
                                          # 022
                                          MPN: 10721910
                                          NUT
                                          from £0.77
                                          from £0.77
                                          NUT Genuine Ferrari Part - New (to order)
                                          DADO E M 4X 4 Genuine Maserati Part - New (to order)
