ferrari f430 spider (rhd) high power bose hi fi system parts diagram

0152 - HIGH POWER BOSE HI FI SYSTEM

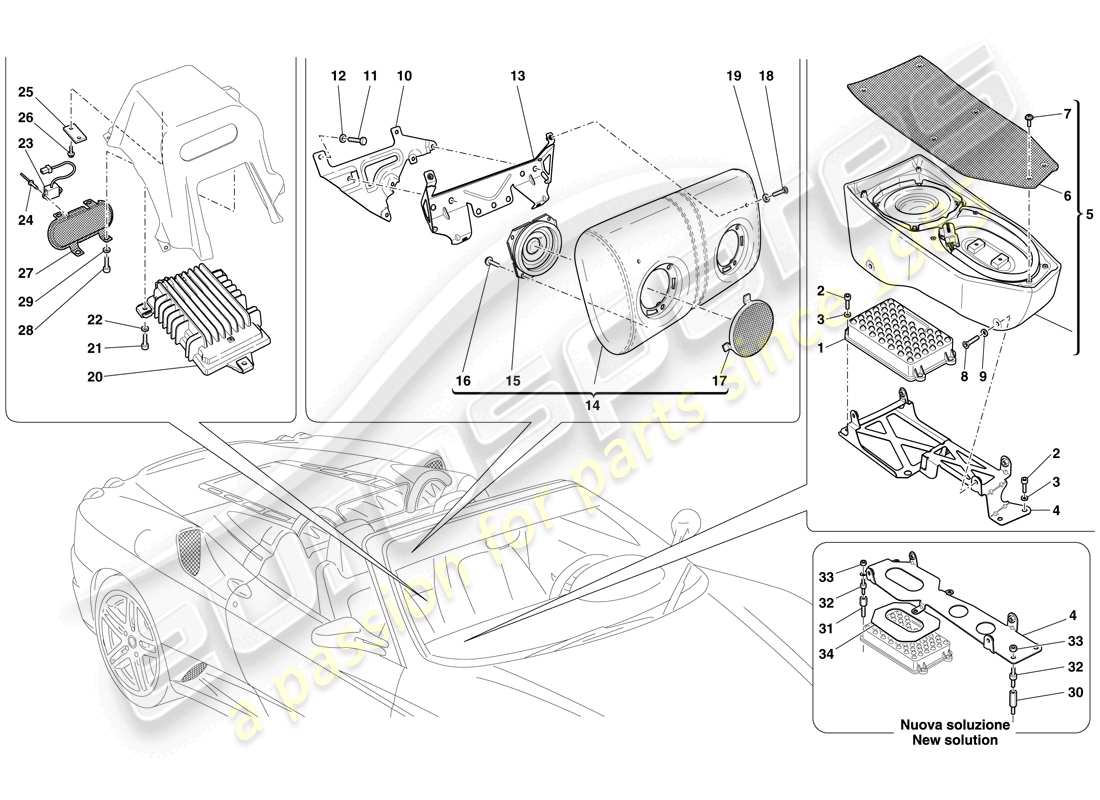

Ferrari F430 Spider (RHD) HIGH POWER BOSE HI FI SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 001
                                                    MPN: 233478
                                                    BOSE BASS-BOX AMPLIFIER
                                                    from £742.04
                                                    from £742.04
                                                    BASS-BOX BOSE AMPLIFIER Genuine Ferrari Part - New (to order)
                                                    AMPLIFIER Genuine Maserati Part - New (to order)
                                                    # 002
                                                    MPN: 14358624
                                                    SCREW
                                                    -Applicable up to Ass. No. 74795-
                                                    from £0.50
                                                    from £0.50
                                                    SCREW Genuine Ferrari Part - New (to order)
                                                    # 003
                                                    MPN: 12638107
                                                    WASHER
                                                    -Applicable up to Ass. No. 74795-
                                                    from £0.58
                                                    from £0.58
                                                    WASHER Genuine Ferrari Part - New In stock
                                                    SPLIT WASHER D.2 5.2 -14X 14 Genuine Maserati Part - New (to order)
                                                    # 004
                                                    MPN: 80409000
                                                    BRACKET
                                                    -Applicable up to Ass. No. 74795-
                                                    from £223.07
                                                    from £223.07
                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                    # 004
                                                    MPN: 80946800
                                                    BRACKET
                                                    -Applicable from Ass. No. 74796-
                                                    from £154.43
                                                    from £154.43
                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                    # 005
                                                    MPN: 801991..
                                                    BOSE BASS-BOX SUBSTRUCTURE
                                                    Supersession
                                                    Supersession
                                                    Genuine Ferrari Part (no longer available to order)
                                                    # 006
                                                    MPN: 80199300
                                                    GRILLE
                                                    from £109.53
                                                    from £109.53
                                                    GRILL Genuine Ferrari Part - New (to order)
                                                    # 007
                                                    MPN: 16085177
                                                    SCREW
                                                    from £1.47
                                                    from £1.47
                                                    SCREW Genuine Ferrari Part - New (to order)
                                                    # 008
                                                    MPN: 68927900
                                                    SCREW
                                                    -M6 X 25-
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13301277
                                                    SCREW -L=25 MM- Genuine Ferrari Part - New In stock
                                                    # 009
                                                    MPN: 12611107
                                                    WASHER
                                                    from £0.51
                                                    from £0.51
                                                    This part replaces part number 12611342
                                                    WASHER Genuine Ferrari Part - New In stock
                                                    # 010
                                                    MPN: 80569100
                                                    RH RECESS
                                                    from £288.25
                                                    from £288.25
                                                    RH INSERT Genuine Ferrari Part - New (to order)
                                                    # 010
                                                    MPN: 80569300
                                                    LH RECESS
                                                    from £288.25
                                                    from £288.25
                                                    LH INSERT Genuine Ferrari Part - New (to order)
                                                    # 011
                                                    MPN: 10902124
                                                    SCREW
                                                    -L. 14 mm-
                                                    from £0.50
                                                    from £0.50
                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                    SCREW Genuine Ferrari Part - New In stock
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 012
                                                    MPN: 13550201
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    Genuine Ferrari Part (no longer available to order)
                                                    WASHER. Genuine Maserati Part - New (to order)
                                                    # 013
                                                    MPN: 80481600
                                                    MOUNTING BRACKET
                                                    from £324.30
                                                    from £324.30
                                                    SUPPORTING BRACKET Genuine Ferrari Part - New (to order)
                                                    # 014
                                                    MPN: 804829..
                                                    COMPLETE RH TWIDDLER CONTAINER
                                                    Supersession
                                                    Supersession
                                                    Genuine Ferrari Part (no longer available to order)
                                                    # 014
                                                    MPN: 804830..
                                                    COMPLETE LH TWIDDLER CONTAINER
                                                    Supersession
                                                    Supersession
                                                    Genuine Ferrari Part (no longer available to order)
                                                    # 015
                                                    MPN: 227270
                                                    TWIDDLER
                                                    from £54.98
                                                    from £54.98
                                                    LOUD SPEAKER TWIDDLER D.90 M Genuine Ferrari Part - New (to order)
                                                    LOUD SPEAKER TWIDDLER -BOSE PREMI Genuine Maserati Part - New (to order)
                                                    # 016
                                                    MPN: 16082777
                                                    SCREW
                                                    from £0.72
                                                    from £0.72
                                                    SCREW. Genuine Ferrari Part - New (to order)
                                                    # 017
                                                    MPN: 80584300
                                                    FIXING PLATE
                                                    from £180.15
                                                    from £180.15
                                                    This part replaces part number 66854100
                                                    PLATE Genuine Ferrari Part - New (to order)
                                                    # 018
                                                    MPN: 68927400
                                                    SCREW
                                                    from £1.08
                                                    from £1.08
                                                    SCREW Genuine Ferrari Part - New (to order)
                                                    # 019
                                                    MPN: 12611107
                                                    WASHER
                                                    from £0.48
                                                    from £0.48
                                                    This part replaces part number 12611342
                                                    WASHER Genuine Ferrari Part - New In stock
                                                    # 020
                                                    MPN: 233479
                                                    BOSE 8800 AMPLIFIER
                                                    from £1,716.48
                                                    from £1,716.48
                                                    BOSE 8800 AMPLIFIER Genuine Ferrari Part - New (to order)
                                                    # 021
                                                    MPN: 14305321
                                                    SCREW
                                                    Supersession
                                                    Supersession
                                                    Genuine Ferrari Part (no longer available to order)
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 022
                                                    MPN: 12643724
                                                    WASHER
                                                    from £0.52
                                                    from £0.52
                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                    WASHER Genuine Ferrari Part - New In stock
                                                    WASHER Genuine Maserati Part - New In stock
                                                    # 023
                                                    MPN: 192522
                                                    BOSE AUDIOPILOT MICROPHONE
                                                    from £25.52
                                                    from £25.52
                                                    AUDIOPILOT BOSE MICROPHONE Genuine Ferrari Part - New (to order)
                                                    AUDIOPILOT MICROPHONE. Genuine Maserati Part - New In stock
                                                    AUDIOPILOT MICROPHONE. Genuine Maserati Part - Used In stock
                                                    # 024
                                                    MPN: 15960250
                                                    RIVET
                                                    Supersession
                                                    Supersession
                                                    Genuine Ferrari Part (no longer available to order)
                                                    # 025
                                                    MPN: 80552200
                                                    CABLE RETAINER BRACKET
                                                    from £3.81
                                                    from £3.81
                                                    CLAMP FOR CABLE Genuine Ferrari Part - New (to order)
                                                    # 026
                                                    MPN: 16082977
                                                    SCREW
                                                    from £4.23
                                                    from £4.23
                                                    SCREW. Genuine Ferrari Part - New (to order)
                                                    # 027
                                                    MPN: 80554000
                                                    GRILLE
                                                    from £86.91
                                                    from £86.91
                                                    GRILL Genuine Ferrari Part - New (to order)
                                                    # 028
                                                    MPN: 14418924
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 82609400
                                                    SCREW. Genuine Ferrari Part - New In stock
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 029
                                                    MPN: 13550077
                                                    WASHER
                                                    from £1.96
                                                    from £1.96
                                                    WASHER Genuine Ferrari Part - New (to order)
                                                    # 030
                                                    MPN: 80858000
                                                    STUD BOLT
                                                    -Applicable from Ass. No. 74796-
                                                    from £5.71
                                                    from £5.71
                                                    STUD Genuine Ferrari Part - New (to order)
                                                    # 031
                                                    MPN: 80858100
                                                    STUD BOLT
                                                    -Applicable from Ass. No. 74796-
                                                    from £4.91
                                                    from £4.91
                                                    STUD Genuine Ferrari Part - New (to order)
                                                    # 032
                                                    MPN: 80858400
                                                    MOUNTING
                                                    -Applicable from Ass. No. 74796-
                                                    from £4.49
                                                    from £4.49
                                                    SUPPORT Genuine Ferrari Part - New (to order)
                                                    # 033
                                                    MPN: 12577821
                                                    NUT
                                                    -Applicable from Ass. No. 74796-
                                                    from £0.52
                                                    from £0.52
                                                    NUT Genuine Ferrari Part - New (to order)
                                                    # 034
                                                    MPN: 81017800
                                                    GASKET
                                                    from £5.72
                                                    from £5.72
                                                    GASKET Genuine Ferrari Part - New (to order)
