ferrari f430 spider (usa) crankcase parts diagram

0001 - crankcase

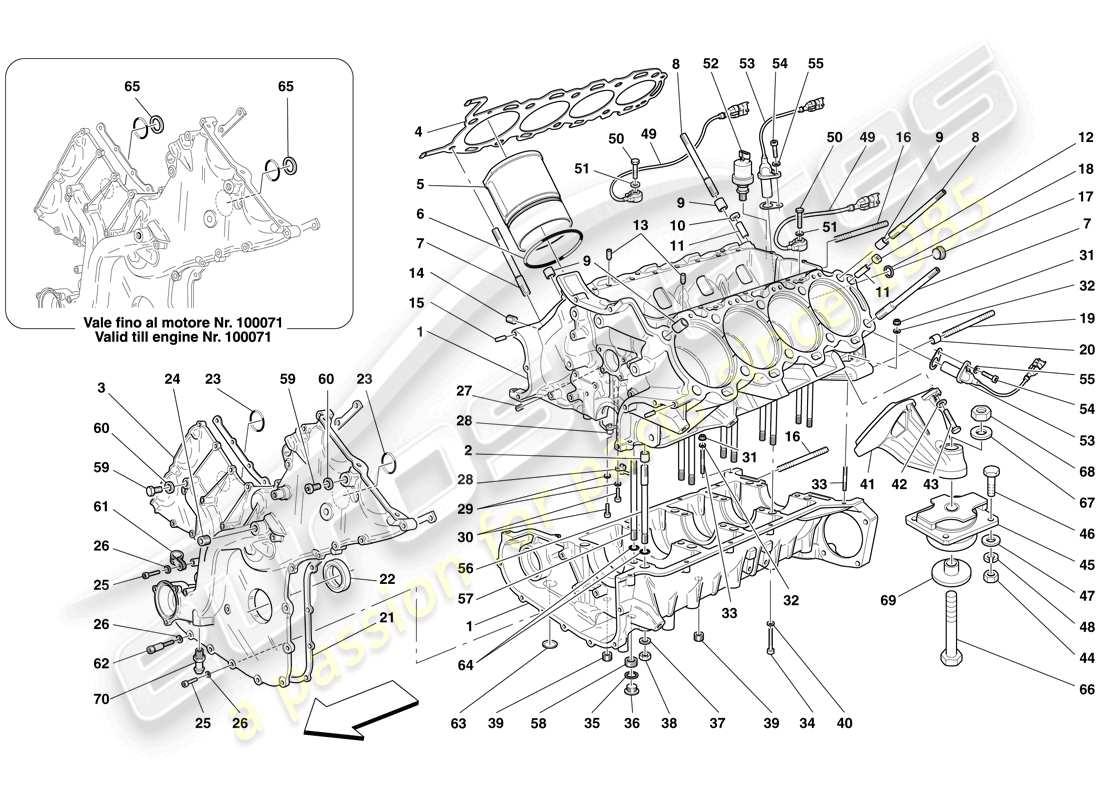

Ferrari F430 Spider (USA) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 202077
                                                                                                      COMPLETE CRANKCASE
                                                                                                      -Applicable up to engine No. 89098-
                                                                                                      from £9,937.14
                                                                                                      from £9,937.14
                                                                                                      # 001
                                                                                                      MPN: 215926
                                                                                                      COMPLETE CRANKCASE
                                                                                                      -Also replace (mount 227197, O-ring 104212, shims 222874)- -Applicable from engine No. 89099 up to engine No. 116245- -No longer supplied- -Replaced by 236095-
                                                                                                      from £9,937.14
                                                                                                      from £9,937.14
                                                                                                      # 001
                                                                                                      MPN: 233052
                                                                                                      COMPLETE CRANKCASE
                                                                                                      -Applicable with shims 222874, Table 2 pos.4 and 5- -Applicable up to Ass. No. 72741- -Applicable from engine No. 116246- -No longer supplied- -Replaced by 236095-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 236095
                                                                                                      COMPLETE CRANKCASE
                                                                                                      -Replaces 233052- -Applicable with shims 222874, Table 2 pos.4 and 5- -Applicable from Ass. No. 72742-
                                                                                                      from £3,270.15
                                                                                                      from £3,270.15
                                                                                                      This part replaces part number 233052
                                                                                                      # 002
                                                                                                      MPN: 176421
                                                                                                      CENTRING DOWEL
                                                                                                      from £2.51
                                                                                                      from £2.51
                                                                                                      # 003
                                                                                                      MPN: 198203
                                                                                                      FRONT COVER
                                                                                                      -See detail in TI 1544- -Applicable up to engine No. 100071- -No longer supplied- -Replaced by 221367-
                                                                                                      from £879.24
                                                                                                      from £879.24
                                                                                                      # 003
                                                                                                      MPN: 221367
                                                                                                      FRONT COVER
                                                                                                      -See detail in TI 1544- -Applicable from engine No. 100072 up to engine No. 117478- -No longer supplied- -Replaced by 229253-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 003
                                                                                                      MPN: 229253
                                                                                                      FRONT COVER
                                                                                                      -See detail in TI 1544- -Applicable from engine No. 117479-
                                                                                                      from £524.48
                                                                                                      from £524.48
                                                                                                      This part replaces part number 198203 which we have in stock - and 1 more. Click to view details
                                                                                                      # 005
                                                                                                      MPN: 190770
                                                                                                      CYLINDER SLEEVE
                                                                                                      from £107.77
                                                                                                      from £107.77
                                                                                                      # 006
                                                                                                      MPN: 186251
                                                                                                      GASKET
                                                                                                      from £1.56
                                                                                                      from £1.56
                                                                                                      # 007
                                                                                                      MPN: 194754
                                                                                                      STUD BOLT
                                                                                                      -No longer supplied- -Replaced by 217967-
                                                                                                      from £11.26
                                                                                                      from £11.26
                                                                                                      # 007
                                                                                                      MPN: 217967
                                                                                                      STUD BOLT
                                                                                                      from £6.35
                                                                                                      from £6.35
                                                                                                      This part replaces part number 194754
                                                                                                      # 008
                                                                                                      MPN: 194755
                                                                                                      STUD BOLT
                                                                                                      -No longer supplied- -Replaced by 217968-
                                                                                                      from £9.89
                                                                                                      from £9.89
                                                                                                      # 008
                                                                                                      MPN: 217968
                                                                                                      STUD BOLT
                                                                                                      from £7.54
                                                                                                      from £7.54
                                                                                                      This part replaces part number 194755
                                                                                                      # 009
                                                                                                      MPN: 185360
                                                                                                      CENTRING DOWEL
                                                                                                      from £1.74
                                                                                                      from £1.74
                                                                                                      # 010
                                                                                                      MPN: 201850
                                                                                                      DOWEL
                                                                                                      from £2.83
                                                                                                      from £2.83
                                                                                                      # 011
                                                                                                      MPN: 200458
                                                                                                      CHECK VALVE
                                                                                                      from £5.50
                                                                                                      from £5.50
                                                                                                      # 012
                                                                                                      MPN: 201849
                                                                                                      DOWEL
                                                                                                      from £3.36
                                                                                                      from £3.36
                                                                                                      # 013
                                                                                                      MPN: 177727
                                                                                                      CENTRING DOWEL
                                                                                                      from £1.65
                                                                                                      from £1.65
                                                                                                      # 014
                                                                                                      MPN: 164400
                                                                                                      THREADED PLUG
                                                                                                      from £2.13
                                                                                                      from £2.13
                                                                                                      This part replaces part number 194490
                                                                                                      # 015
                                                                                                      MPN: 175611
                                                                                                      CENTRING DOWEL
                                                                                                      from £1.13
                                                                                                      from £1.13
                                                                                                      # 016
                                                                                                      MPN: 13546734
                                                                                                      STUD BOLT
                                                                                                      from £0.75
                                                                                                      from £0.75
                                                                                                      # 017
                                                                                                      MPN: 10275011
                                                                                                      THREADED PLUG
                                                                                                      -Applicable after depletion of 193885- -No longer supplied- -Replaced by 10304511-
                                                                                                      from £1.07
                                                                                                      from £1.07
                                                                                                      This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                      # 017
                                                                                                      MPN: 10304511
                                                                                                      THREADED PLUG
                                                                                                      from £1.53
                                                                                                      from £1.53
                                                                                                      # 017
                                                                                                      MPN: 193885
                                                                                                      THREADED PLUG
                                                                                                      -Applicable until depletion-
                                                                                                      from £1.88
                                                                                                      from £1.88
                                                                                                      # 018
                                                                                                      MPN: 10263460
                                                                                                      GASKET
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 95119
                                                                                                      # 019
                                                                                                      MPN: 13546934
                                                                                                      STUD BOLT
                                                                                                      from £1.16
                                                                                                      from £1.16
                                                                                                      # 020
                                                                                                      MPN: 100052
                                                                                                      CENTRING DOWEL
                                                                                                      from £1.49
                                                                                                      from £1.49
                                                                                                      # 021
                                                                                                      MPN: 193656
                                                                                                      FRONT COVER GASKET
                                                                                                      -Applicable until depletion-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 021
                                                                                                      MPN: 245464
                                                                                                      FRONT COVER GASKET
                                                                                                      -Applicable after depletion of 193656- -Applicable until depletion-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 193656
                                                                                                      # 021
                                                                                                      MPN: 323979
                                                                                                      FRONT COVER GASKET
                                                                                                      -Applicable after depletion of 245464-
                                                                                                      from £29.06
                                                                                                      from £29.06
                                                                                                      This part replaces part number 245464
                                                                                                      # 022
                                                                                                      MPN: 188717
                                                                                                      COVER STRIP
                                                                                                      from £15.57
                                                                                                      from £15.57
                                                                                                      # 023
                                                                                                      MPN: 183010
                                                                                                      O-RING
                                                                                                      from £1.03
                                                                                                      from £1.03
                                                                                                      # 024
                                                                                                      MPN: 14324940
                                                                                                      THREADED PLUG
                                                                                                      from £1.07
                                                                                                      from £1.07
                                                                                                      # 025
                                                                                                      MPN: 14303924
                                                                                                      SCREW
                                                                                                      -M6 X 70-
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 025
                                                                                                      MPN: 14305524
                                                                                                      SCREW
                                                                                                      -M6 X 30-
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 025
                                                                                                      MPN: 14305624
                                                                                                      SCREW
                                                                                                      -M6 X 35-
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14305621
                                                                                                      # 025
                                                                                                      MPN: 14305924
                                                                                                      SCREW
                                                                                                      -M6 X 45-
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 025
                                                                                                      MPN: 14306024
                                                                                                      SCREW
                                                                                                      -M6 X 50-
                                                                                                      from £1.30
                                                                                                      from £1.30
                                                                                                      # 025
                                                                                                      MPN: 14432224
                                                                                                      SCREW
                                                                                                      -M6 X 22- -No longer supplied- -Replaced by 231619-
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14432221
                                                                                                      # 025
                                                                                                      MPN: 14433124
                                                                                                      SCREW
                                                                                                      -M6 X 18-
                                                                                                      from £0.49
                                                                                                      from £0.49
                                                                                                      This part replaces part number 14433121
                                                                                                      # 025
                                                                                                      MPN: 231619
                                                                                                      SCREW
                                                                                                      -M6 X 22-
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 026
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 027
                                                                                                      MPN: 13525770
                                                                                                      THREADED INSERT
                                                                                                      from £1.49
                                                                                                      from £1.49
                                                                                                      This part replaces part number 103830
                                                                                                      # 028
                                                                                                      MPN: 175657
                                                                                                      PISTON COOLING NOZZLE
                                                                                                      from £5.23
                                                                                                      from £5.23
                                                                                                      # 029
                                                                                                      MPN: 11181474
                                                                                                      WASHER
                                                                                                      -No longer supplied-
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 030
                                                                                                      MPN: 14302921
                                                                                                      SCREW
                                                                                                      -No longer supplied- -Replaced by 252274-
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 3099423
                                                                                                      # 030
                                                                                                      MPN: 252274
                                                                                                      SCREW WITH WASHER
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 031
                                                                                                      MPN: 132877
                                                                                                      NUT
                                                                                                      from £1.72
                                                                                                      from £1.72
                                                                                                      This part replaces part number 67190100
                                                                                                      # 032
                                                                                                      MPN: 12604274
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                      # 033
                                                                                                      MPN: 13541624
                                                                                                      STUD BOLT
                                                                                                      from £8.22
                                                                                                      from £8.22
                                                                                                      This part replaces part number 13541621
                                                                                                      # 034
                                                                                                      MPN: 14305324
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14305321
                                                                                                      # 034
                                                                                                      MPN: 14305424
                                                                                                      SCREW
                                                                                                      -M6 X 25- -No longer supplied- -Replaced by 231620-
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                                      # 034
                                                                                                      MPN: 231620
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 035
                                                                                                      MPN: 10261860
                                                                                                      GASKET
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
                                                                                                      # 036
                                                                                                      MPN: 104280
                                                                                                      THREADED PLUG
                                                                                                      from £4.95
                                                                                                      from £4.95
                                                                                                      This part replaces part number 523977
                                                                                                      # 037
                                                                                                      MPN: 178348
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 038
                                                                                                      MPN: 133988
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                      # 039
                                                                                                      MPN: 14325140
                                                                                                      THREADED PLUG
                                                                                                      from £1.00
                                                                                                      from £1.00
                                                                                                      # 040
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 041
                                                                                                      MPN: 207220
                                                                                                      RH ENGINE MOUNTING STRUT
                                                                                                      from £828.39
                                                                                                      from £828.39
                                                                                                      # 041
                                                                                                      MPN: 207221
                                                                                                      LH ENGINE MOUNTING STRUT
                                                                                                      from £455.61
                                                                                                      from £455.61
                                                                                                      # 042
                                                                                                      MPN: 11190574
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14499504
                                                                                                      # 043
                                                                                                      MPN: 11306934
                                                                                                      SCREW
                                                                                                      -Applicable from Ass. No. 60389-
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 11306921
                                                                                                      # 043
                                                                                                      MPN: 15970734
                                                                                                      SCREW
                                                                                                      -Applicable up to Ass. No. 60388-
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 044
                                                                                                      MPN: 133988
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                      # 045
                                                                                                      MPN: 209069
                                                                                                      ENGINE MOUNTING BUSH
                                                                                                      -Applicable until depletion-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 045
                                                                                                      MPN: 216357
                                                                                                      ENGINE MOUNTING BUSH
                                                                                                      -Applicable after depletion of 209069-
                                                                                                      from £99.75
                                                                                                      from £99.75
                                                                                                      This part replaces part number 209069 - and 1 more. Click to view details
                                                                                                      # 046
                                                                                                      MPN: 15970634
                                                                                                      SCREW
                                                                                                      from £1.52
                                                                                                      from £1.52
                                                                                                      # 047
                                                                                                      MPN: 12646824
                                                                                                      WASHER
                                                                                                      from £0.48
                                                                                                      from £0.48
                                                                                                      # 048
                                                                                                      MPN: 127497
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                      # 049
                                                                                                      MPN: 187739
                                                                                                      KNOCK SENSOR
                                                                                                      -Flywheel side- -Replaced by 219872 and 219873- -No longer supplied-
                                                                                                      from £54.52
                                                                                                      from £54.52
                                                                                                      # 049
                                                                                                      MPN: 187740
                                                                                                      KNOCK SENSOR
                                                                                                      -Timing side- -Replaced by 219872 and 219873- -No longer supplied-
                                                                                                      from £32.05
                                                                                                      from £32.05
                                                                                                      # 049
                                                                                                      MPN: 219868
                                                                                                      RH KNOCK SENSOR
                                                                                                      -Flywheel side-
                                                                                                      from £67.89
                                                                                                      from £67.89
                                                                                                      # 049
                                                                                                      MPN: 219869
                                                                                                      RH KNOCK SENSOR
                                                                                                      -Timing side-
                                                                                                      from £67.89
                                                                                                      from £67.89
                                                                                                      # 049
                                                                                                      MPN: 219870
                                                                                                      LH KNOCK SENSOR
                                                                                                      -Timing side-
                                                                                                      from £54.31
                                                                                                      from £54.31
                                                                                                      # 049
                                                                                                      MPN: 219871
                                                                                                      LH KNOCK SENSOR
                                                                                                      -Flywheel side-
                                                                                                      from £67.89
                                                                                                      from £67.89
                                                                                                      # 050
                                                                                                      MPN: 16043834
                                                                                                      SCREW
                                                                                                      -No longer supplied- -Replaced by 231629-
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 16043824
                                                                                                      # 050
                                                                                                      MPN: 231629
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 051
                                                                                                      MPN: 11198074
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                      # 052
                                                                                                      MPN: 201207
                                                                                                      PRESSURE TRANSMITTER
                                                                                                      -Applicable until depletion-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 052
                                                                                                      MPN: 304074
                                                                                                      PRESSURE TRANSMITTER
                                                                                                      -Applicable after depletion of 201207-
                                                                                                      from £125.81
                                                                                                      from £125.81
                                                                                                      This part replaces part number 201207
                                                                                                      # 053
                                                                                                      MPN: 182194
                                                                                                      ROTATION SPEED SENSOR
                                                                                                      -Replaced by 219872 and 219873- -No longer supplied-
                                                                                                      from £48.44
                                                                                                      from £48.44
                                                                                                      This part replaces part number 164937
                                                                                                      # 053
                                                                                                      MPN: 219872
                                                                                                      RH CYLINDER BANK RPM SENSOR
                                                                                                      from £72.55
                                                                                                      from £72.55
                                                                                                      # 053
                                                                                                      MPN: 219873
                                                                                                      LH CYLINDER BANK RPM SENSOR
                                                                                                      from £80.40
                                                                                                      from £80.40
                                                                                                      # 054
                                                                                                      MPN: 14305724
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11567624 - and 2 more. Click to view details
                                                                                                      # 055
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 056
                                                                                                      MPN: 194756
                                                                                                      STUD BOLT
                                                                                                      -No longer supplied- -Replaced by 217794-
                                                                                                      from £35.30
                                                                                                      from £35.30
                                                                                                      # 056
                                                                                                      MPN: 217794
                                                                                                      STUD BOLT
                                                                                                      from £5.40
                                                                                                      from £5.40
                                                                                                      This part replaces part number 194756
                                                                                                      # 057
                                                                                                      MPN: 194757
                                                                                                      STUD BOLT
                                                                                                      -No longer supplied- -Replaced by 215652-
                                                                                                      from £3.97
                                                                                                      from £3.97
                                                                                                      This part replaces part number 185084 which we have in stock
                                                                                                      # 057
                                                                                                      MPN: 215652
                                                                                                      STUD BOLT
                                                                                                      -No longer supplied- -Replaced by 217796-
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 057
                                                                                                      MPN: 217796
                                                                                                      STUD BOLT
                                                                                                      from £5.33
                                                                                                      from £5.33
                                                                                                      This part replaces part number 215652
                                                                                                      # 058
                                                                                                      MPN: 112254
                                                                                                      THREADED INSERT
                                                                                                      -No longer supplied- -Replaced by 223577-
                                                                                                      from £2.37
                                                                                                      from £2.37
                                                                                                      # 058
                                                                                                      MPN: 223577
                                                                                                      THREADED INSERT
                                                                                                      from £2.29
                                                                                                      from £2.29
                                                                                                      # 059
                                                                                                      MPN: 187718
                                                                                                      BLEED PLUG
                                                                                                      from £3.65
                                                                                                      from £3.65
                                                                                                      # 060
                                                                                                      MPN: 10284460
                                                                                                      GASKET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 061
                                                                                                      MPN: 10441590
                                                                                                      BRACKET WITH SHEATH
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10113600
                                                                                                      # 062
                                                                                                      MPN: 206672
                                                                                                      STUD BOLT
                                                                                                      from £3.33
                                                                                                      from £3.33
                                                                                                      # 063
                                                                                                      MPN: 10158801
                                                                                                      EXPANDABLE CAP
                                                                                                      from £0.79
                                                                                                      from £0.79
                                                                                                      This part replaces part number 10158800
                                                                                                      # 064
                                                                                                      MPN: 134704
                                                                                                      O-RING
                                                                                                      from £0.94
                                                                                                      from £0.94
                                                                                                      # 065
                                                                                                      MPN: 191620
                                                                                                      WATER OUTLET RESTRICTOR
                                                                                                      -Applicable up to engine No. 100071-
                                                                                                      from £12.03
                                                                                                      from £12.03
                                                                                                      # 066
                                                                                                      MPN: 11369634
                                                                                                      SCREW
                                                                                                      from £5.77
                                                                                                      from £5.77
                                                                                                      This part replaces part number 11369624
                                                                                                      # 067
                                                                                                      MPN: 12601774
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 12601779
                                                                                                      # 068
                                                                                                      MPN: 176573
                                                                                                      NUT
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      This part replaces part number 158307
                                                                                                      # 069
                                                                                                      MPN: 182141
                                                                                                      RETAINER WASHER
                                                                                                      from £12.84
                                                                                                      from £12.84
                                                                                                      # 070
                                                                                                      MPN: 213389
                                                                                                      CONNECTOR
                                                                                                      from £14.10
                                                                                                      from £14.10
                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
