ferrari f430 spider (usa) glove compartment parts diagram

0137 - GLOVE COMPARTMENT

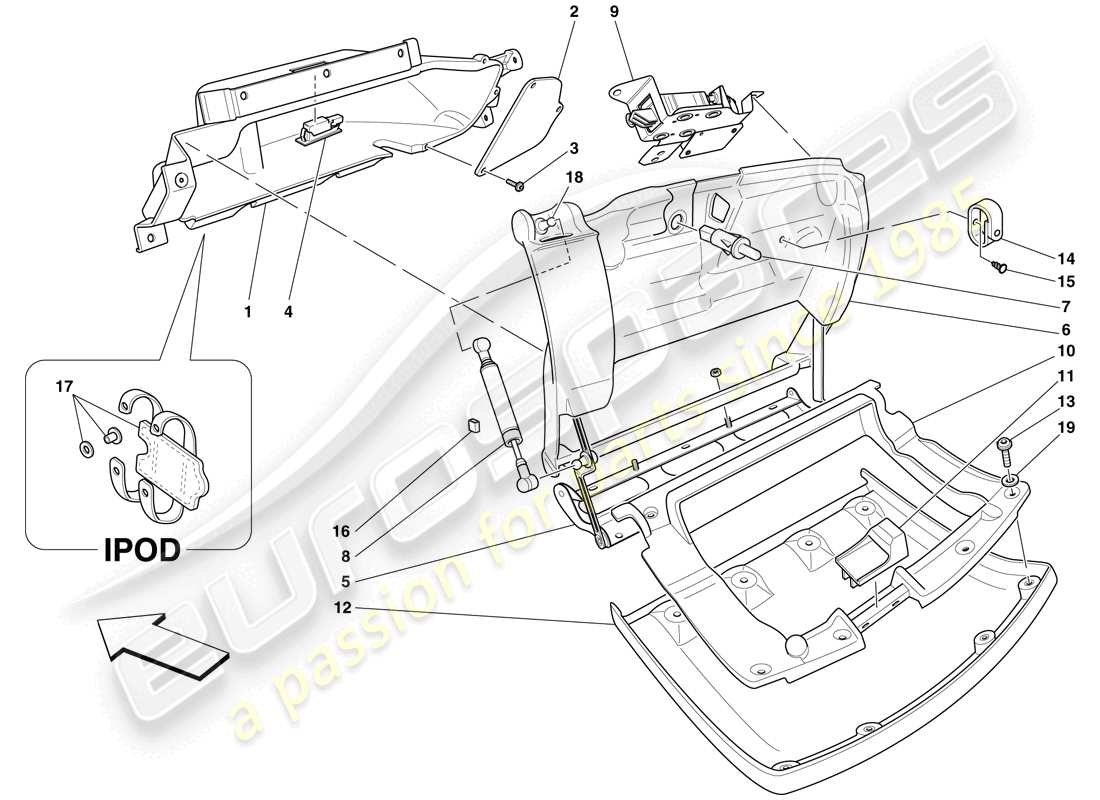

Ferrari F430 Spider (USA) GLOVE COMPARTMENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 68354500
                                    GLOVE COMPARTMENT
                                    -Not applicable for satellite alarm system- -Not for GD- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 001
                                    MPN: 69894800
                                    GLOVE COMPARTMENT
                                    -Applicable for satellite alarm system- -Not for GD- -Applicable after depletion of 68354500-
                                    from £298.19
                                    from £298.19
                                    This part replaces part number 68354500
                                    # 001
                                    MPN: 69988900
                                    GLOVE COMPARTMENT
                                    -Applicable for GD-
                                    from £181.93
                                    from £181.93
                                    # 001
                                    MPN: 80124800
                                    GLOVE COMPARTMENT
                                    -Optional- -Version with provision for iPod- -Not for GD-
                                    from £298.19
                                    from £298.19
                                    # 001
                                    MPN: 80145900
                                    GLOVE COMPARTMENT
                                    -Version with provision for iPod- -Optional- -Applicable for GD-
                                    from £193.76
                                    from £193.76
                                    # 002
                                    MPN: 68354600
                                    BASE
                                    from £32.80
                                    from £32.80
                                    # 003
                                    MPN: 16082801
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    # 005
                                    MPN: 67795900
                                    COMPLETE GLOVE COMPARTMENT HINGE
                                    from £128.85
                                    from £128.85
                                    # 006
                                    MPN: 67793400
                                    GLOVE COMPARTMENT STRUCTURE
                                    from £66.29
                                    from £66.29
                                    # 007
                                    MPN: 188266
                                    GLOVE COMPARTMENT LIGHT BUTTON
                                    from £9.81
                                    from £9.81
                                    # 008
                                    MPN: 68353800
                                    DAMPER FOR LID
                                    from £113.87
                                    from £113.87
                                    # 009
                                    MPN: 68663100
                                    lock
                                    from £143.09
                                    from £143.09
                                    # 010
                                    MPN: 67795800
                                    GLOVE COMPARTMENT LID BACKING
                                    from £102.74
                                    from £102.74
                                    # 011
                                    MPN: 68662600
                                    HOOK
                                    from £12.40
                                    from £12.40
                                    # 012
                                    MPN: 677951..
                                    TRIMMED GLOVE COMPARTMENT LID
                                    Supersession
                                    Supersession
                                    # 013
                                    MPN: 64460500
                                    SCREW
                                    from £0.73
                                    from £0.73
                                    # 014
                                    MPN: 68810900
                                    TORCH STRAP
                                    from £12.93
                                    from £12.93
                                    # 015
                                    MPN: 61568600
                                    button
                                    from £0.60
                                    from £0.60
                                    # 016
                                    MPN: 65079200
                                    RUBBER PAD
                                    from £0.60
                                    from £0.60
                                    # 017
                                    MPN: 80146600
                                    COMPLETE ELASTIC IPOD RETAINER
                                    -Optional- -Version with provision for iPod-
                                    from £79.53
                                    from £79.53
                                    # 018
                                    MPN: 15151911
                                    PIN
                                    from £3.26
                                    from £3.26
                                    # 019
                                    MPN: 10571570
                                    WASHER
                                    from £0.83
                                    from £0.83
