103 - Rear Structures and Components

Ferrari 456 M GT/M GTA Rear Structures and Components Parts Diagram

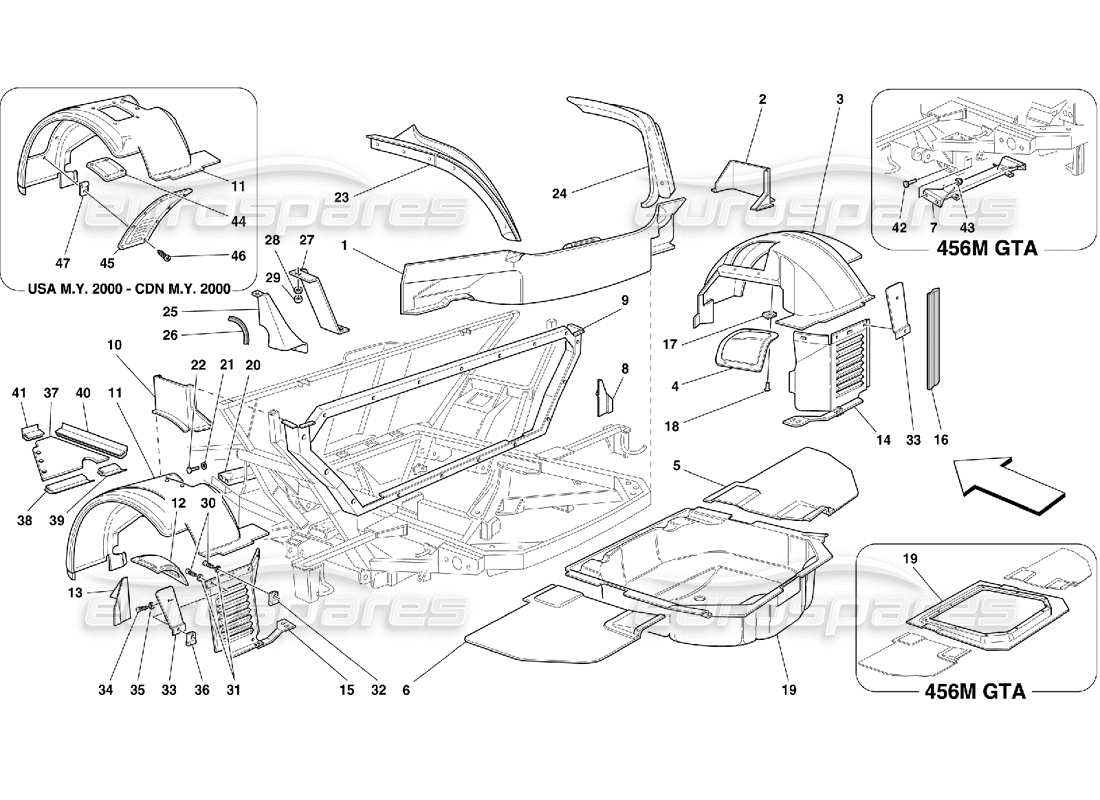

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 65628000
                                                                  CUTOUT TRUNK MOULDING
                                                                  - Not for 456M GTA
                                                                  from £546.29
                                                                  from £546.29
                                                                  # 001
                                                                  MPN: 65628100
                                                                  CUTOUT TRUNK MOULDING
                                                                  - Valid for 456M GTA
                                                                  from £401.87
                                                                  from £401.87
                                                                  # 002
                                                                  MPN: 65518800
                                                                  RH SIDEWALL MOULDING
                                                                  from £41.09
                                                                  from £41.09
                                                                  # 003
                                                                  MPN: 64467300
                                                                  RH REAR WHEELHOUSE
                                                                  from £231.13
                                                                  from £231.13
                                                                  This part replaces part number 62795600
                                                                  # 004
                                                                  MPN: 65500500
                                                                  RH DOOR
                                                                  from £8.79
                                                                  from £8.79
                                                                  This part replaces part number 63797500 which we have in stock - and 1 more. Click to view details
                                                                  # 005
                                                                  MPN: 65655900
                                                                  RH TRUNK BOTTON
                                                                  from £31.85
                                                                  from £31.85
                                                                  This part replaces part number 63769200
                                                                  # 006
                                                                  MPN: 65656000
                                                                  LH TRUNK BOTTON
                                                                  from £31.85
                                                                  from £31.85
                                                                  This part replaces part number 65519500
                                                                  # 007
                                                                  MPN: 164716
                                                                  REAR REMOVABLE CROSS MEMBER
                                                                  - Valid for 456M GTA
                                                                  from £80.98
                                                                  from £80.98
                                                                  # 008
                                                                  MPN: 62785400
                                                                  RH ANGLE PIECE
                                                                  from £14.02
                                                                  from £14.02
                                                                  # 009
                                                                  MPN: 63862400

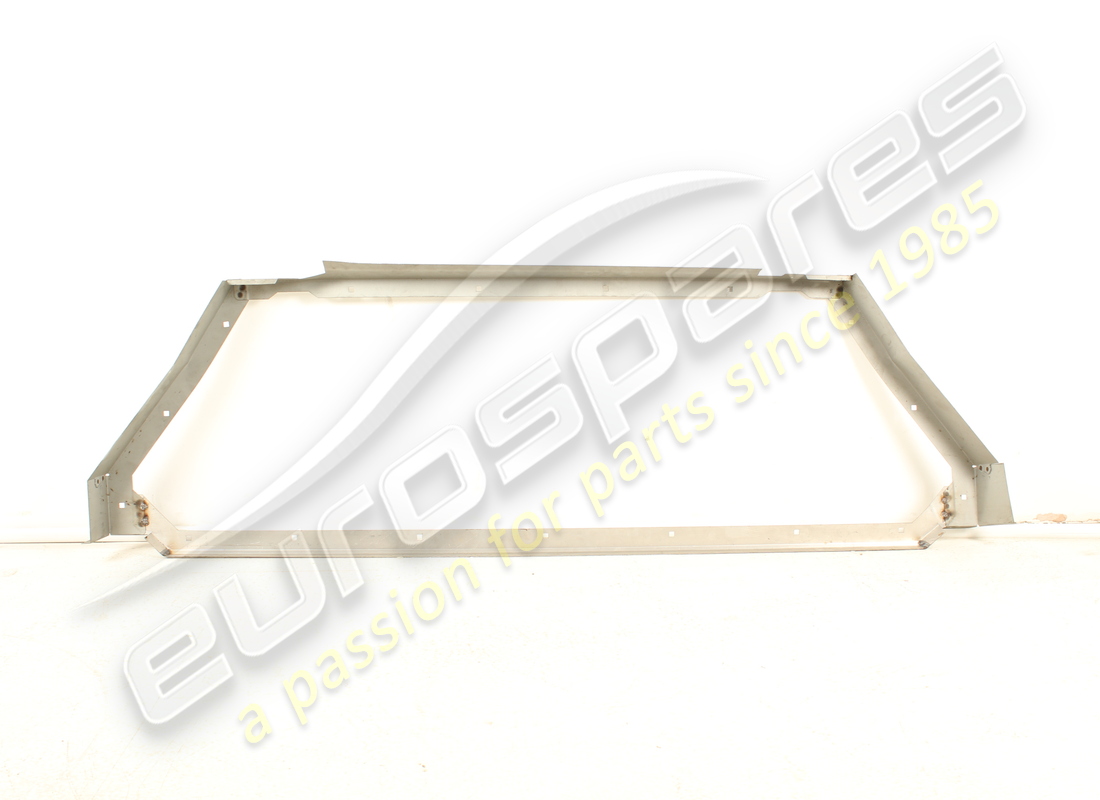

                                                                  FRAMING
                                                                  from £111.59
                                                                  from £111.59
                                                                  # 010
                                                                  MPN: 63741700
                                                                  LH SIDEWALL MOULDING
                                                                  - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £20.14
                                                                  from £20.14
                                                                  # 010
                                                                  MPN: 65971100
                                                                  LH SIDEWALL MOULDING
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £49.50
                                                                  from £49.50
                                                                  # 011
                                                                  MPN: 64467400
                                                                  LH REAR WHEELHOUSE
                                                                  - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £331.65
                                                                  from £331.65
                                                                  This part replaces part number 62795700
                                                                  # 011
                                                                  MPN: 65918600
                                                                  LH REAR WHEELHOUSE
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £454.68
                                                                  from £454.68
                                                                  # 012
                                                                  MPN: 65500600
                                                                  LH DOOR
                                                                  from £7.96
                                                                  from £7.96
                                                                  This part replaces part number 63798900 which we have in stock - and 1 more. Click to view details
                                                                  # 013
                                                                  MPN: 62785500
                                                                  LH ANGLE PIECE
                                                                  from £13.70
                                                                  from £13.70
                                                                  # 014
                                                                  MPN: 65432000
                                                                  RH REAR GRAVEL GUARD
                                                                  from £276.36
                                                                  from £276.36
                                                                  # 015
                                                                  MPN: 65432100
                                                                  LH REAR GRAVEL GUARD
                                                                  from £277.45
                                                                  from £277.45
                                                                  # 016
                                                                  MPN: 62796000
                                                                  REAR GRAVEL GUARD GASKET
                                                                  - Valid till stock exhaustion
                                                                  from £5.41
                                                                  from £5.41
                                                                  # 016
                                                                  MPN: 65456500
                                                                  REAR GRAVEL GUARD GASKET
                                                                  - Valid after stock exhaustion of 62796000
                                                                  from £34.24
                                                                  from £34.24
                                                                  # 017
                                                                  MPN: 61789700
                                                                  FIXING BRACKET
                                                                  from £0.51
                                                                  from £0.51
                                                                  # 018
                                                                  MPN: 15644175
                                                                  SCREW
                                                                  from £0.52
                                                                  from £0.52
                                                                  This part replaces part number 15644178
                                                                  # 019
                                                                  MPN: 64294700
                                                                  TRUNK COVER
                                                                  - Not for 456M GTA
                                                                  from £319.93
                                                                  from £319.93
                                                                  # 019
                                                                  MPN: 64694400
                                                                  TRUNK COVER
                                                                  - Valid for 456M GTA
                                                                  from £155.62
                                                                  from £155.62
                                                                  # 020
                                                                  MPN: 154580
                                                                  REAR CROSSRAIL
                                                                  from £71.98
                                                                  from £71.98
                                                                  # 021
                                                                  MPN: 127496
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                  # 022
                                                                  MPN: 16043124
                                                                  SCREW
                                                                  from £0.30
                                                                  from £0.30
                                                                  This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                  SCREW Genuine Ferrari Part - Used In stock
                                                                  Removed from 458 engine 178999
                                                                  # 023
                                                                  MPN: 64427400
                                                                  LH CONTOUR
                                                                  from £195.33
                                                                  from £195.33
                                                                  # 024
                                                                  MPN: 64427200
                                                                  RH CONTOUR
                                                                  from £77.79
                                                                  from £77.79
                                                                  # 025
                                                                  MPN: 64337500
                                                                  FRONT RH HEAT PROTECTION SHIELD
                                                                  from £34.03
                                                                  from £34.03
                                                                  # 025
                                                                  MPN: 64337600
                                                                  FRONT LH HEAT PROTECTION SHIELD
                                                                  from £34.03
                                                                  from £34.03
                                                                  # 026
                                                                  MPN: 64517200
                                                                  GASKET
                                                                  from £4.62
                                                                  from £4.62
                                                                  # 027
                                                                  MPN: 64337700
                                                                  REAR RH HEAT PROTECTION SHIELD
                                                                  from £18.90
                                                                  from £18.90
                                                                  # 027
                                                                  MPN: 64337800
                                                                  REAR LH HEAT PROTECTION SHIELD
                                                                  from £19.74
                                                                  from £19.74
                                                                  # 028
                                                                  MPN: 12638124
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                  # 029
                                                                  MPN: 169180
                                                                  NUT
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 12574121
                                                                  # 030
                                                                  MPN: 15688375
                                                                  SCREW
                                                                  (minimum order quantity = 30)
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 15688306 which we have in stock
                                                                  # 031
                                                                  MPN: 12638178
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                  # 032
                                                                  MPN: 61789700
                                                                  FIXING BRACKET
                                                                  from £0.50
                                                                  from £0.50
                                                                  # 033
                                                                  MPN: 64467500
                                                                  SIDE-MARKER ACCESS RH DOOR
                                                                  - Valid till car Ass. Nr. 28389
                                                                  from £5.47
                                                                  from £5.47
                                                                  # 033
                                                                  MPN: 64467600
                                                                  SIDE-MARKER ACCESS LH DOOR
                                                                  - Valid till car Ass. Nr. 28389
                                                                  from £5.47
                                                                  from £5.47
                                                                  # 033
                                                                  MPN: 65770200
                                                                  SIDE-MARKER ACCESS RH DOOR
                                                                  - Valid from car Ass. Nr. 28390
                                                                  from £19.50
                                                                  from £19.50
                                                                  # 033
                                                                  MPN: 65770300
                                                                  SIDE-MARKER ACCESS LH DOOR
                                                                  - Valid from car Ass. Nr. 28390
                                                                  from £27.86
                                                                  from £27.86
                                                                  # 034
                                                                  MPN: 15688375
                                                                  SCREW
                                                                  (minimum order quantity = 30)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 15688306 which we have in stock
                                                                  # 035
                                                                  MPN: 12638178
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                  # 036
                                                                  MPN: 61789700
                                                                  FIXING BRACKET
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 037
                                                                  MPN: 64054000

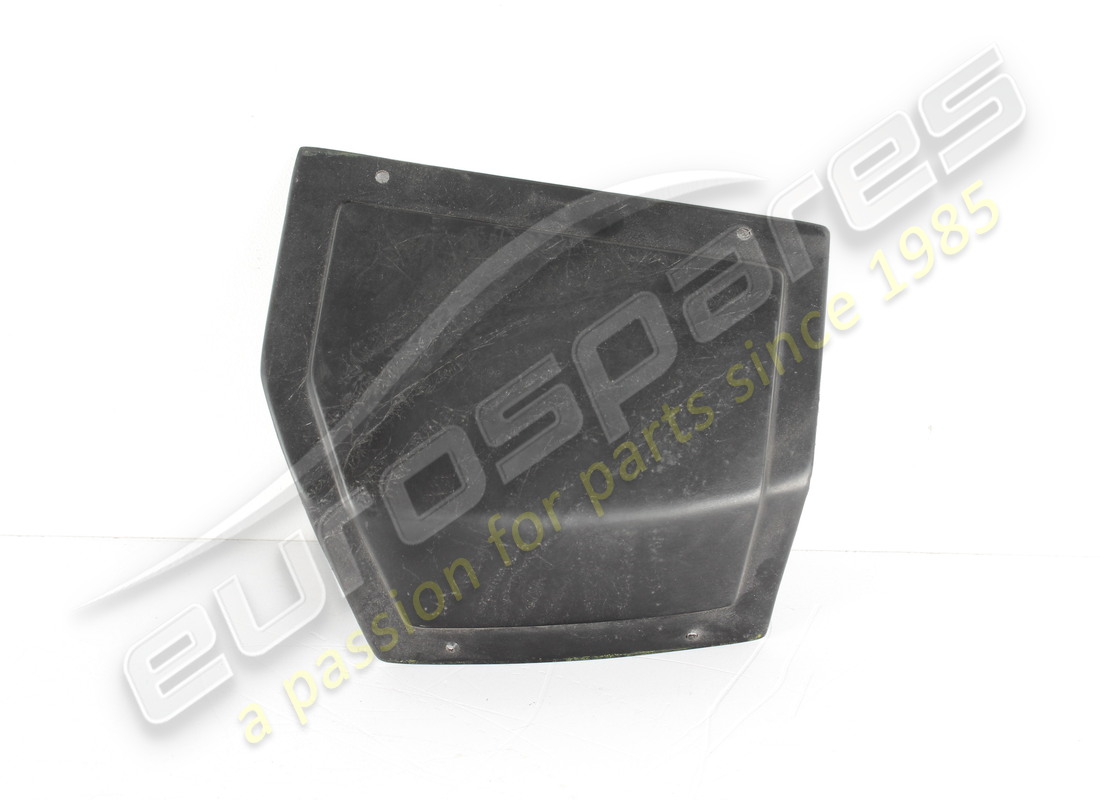

                                                                  REAR WHEELHOUSE SHIELD
                                                                  from £8.54
                                                                  from £8.54
                                                                  This part replaces part number 64054100
                                                                  # 038
                                                                  MPN: 64076500
                                                                  GASKET
                                                                  from £3.37
                                                                  from £3.37
                                                                  # 039
                                                                  MPN: 64076700
                                                                  GASKET
                                                                  from £1.03
                                                                  from £1.03
                                                                  # 040
                                                                  MPN: 64076600
                                                                  GASKET
                                                                  from £5.05
                                                                  from £5.05
                                                                  # 041
                                                                  MPN: 64076400
                                                                  GASKET
                                                                  from £3.37
                                                                  from £3.37
                                                                  # 042
                                                                  MPN: 15540621
                                                                  SCREW
                                                                  - Valid for 456M GTA
                                                                  from £2.16
                                                                  from £2.16
                                                                  This part replaces part number 64224200
                                                                  # 043
                                                                  MPN: 142438
                                                                  NUT
                                                                  - Valid for 456M GTA
                                                                  from £0.59
                                                                  from £0.59
                                                                  # 044
                                                                  MPN: 65920500
                                                                  ROLL-OVER LH DOOR
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £14.65
                                                                  from £14.65
                                                                  # 045
                                                                  MPN: 65920600
                                                                  VAPOR FILTER LH DOOR
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £62.23
                                                                  from £62.23
                                                                  # 046
                                                                  MPN: 15644175
                                                                  SCREW
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £0.50
                                                                  from £0.50
                                                                  This part replaces part number 15644178
                                                                  # 047
                                                                  MPN: 61789700
                                                                  BRACKET
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £0.48
                                                                  from £0.48
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
