105 - FRONT BUMPER

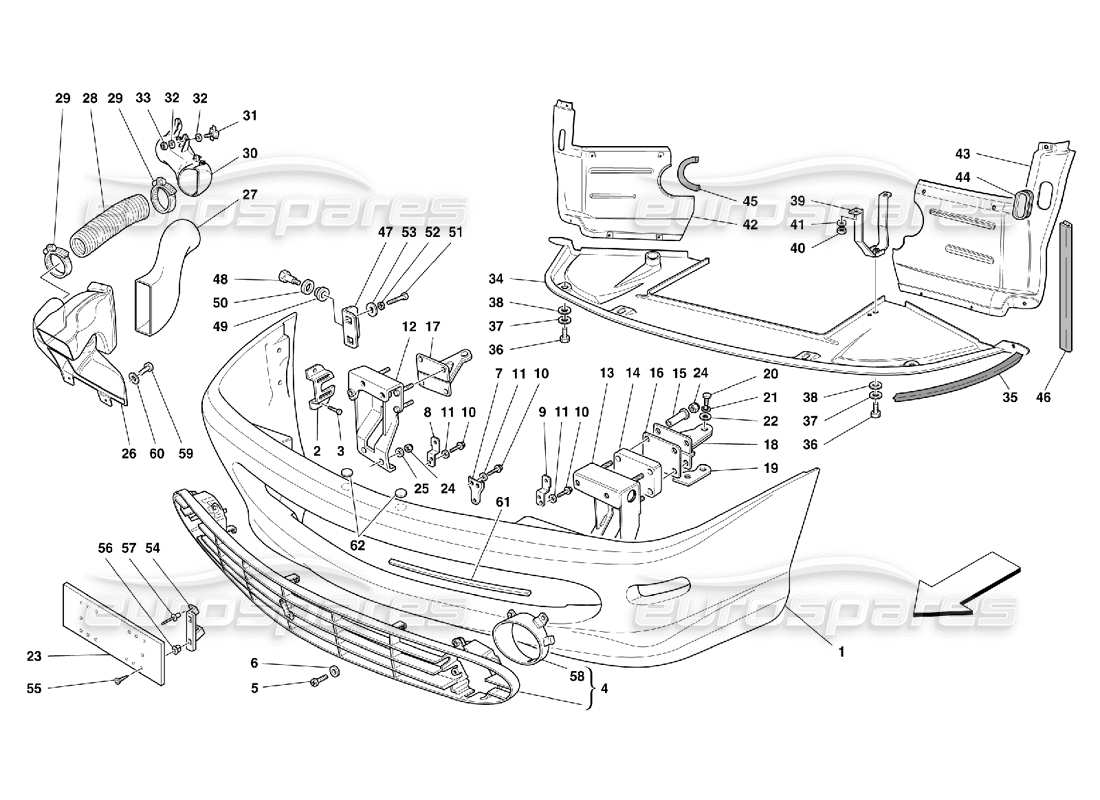

Ferrari 456 M GT/M GTA Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65284110

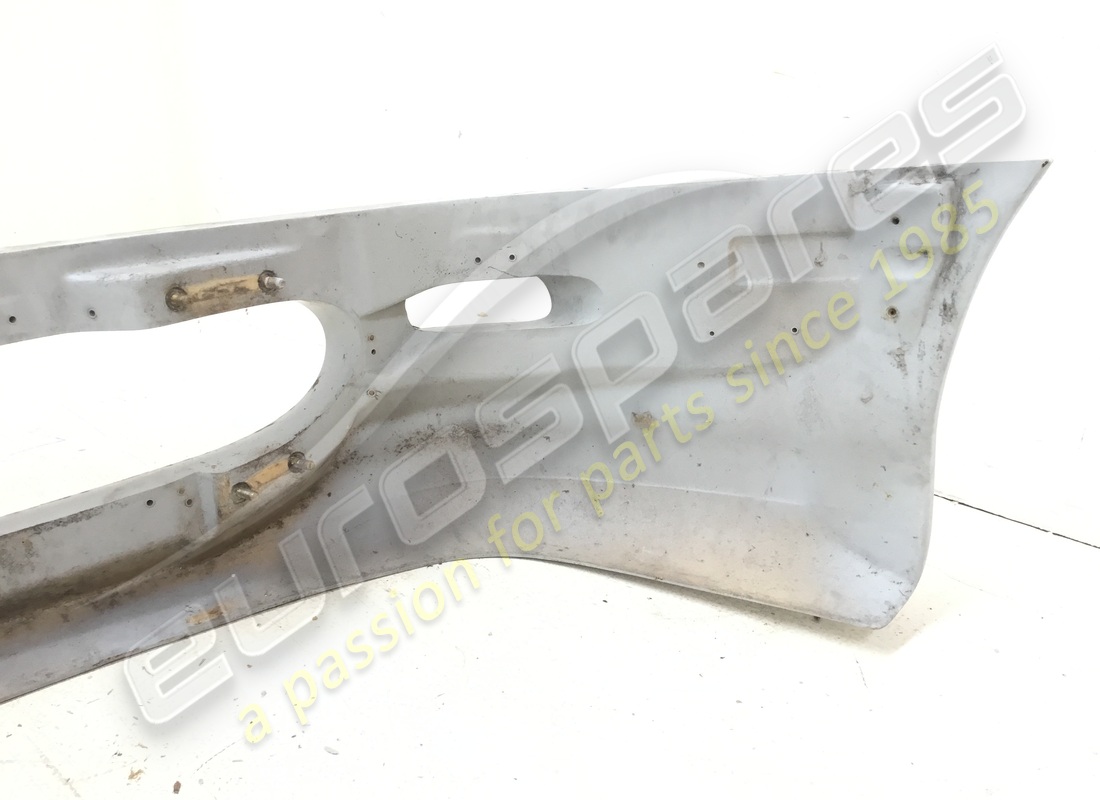

FRONT BUMPER
- Not for USA and CDN
from £2,094.75
from £2,094.75
# 001
MPN: 65616210
FRONT BUMPER
- Valid for CDN
from £1,768.37
from £1,768.37
# 001
MPN: 65679010
FRONT BUMPER
- Valid for USA
from £3,491.25
from £3,491.25
# 002
MPN: 65282300
BRACKET
from £162.15
from £162.15
# 003
MPN: 16285127
SCREW
(minimum order quantity = 10)
from £0.51
from £0.51
# 004
MPN: 65287800
Front Grill
from £1,796.08
from £1,796.08
# 005
MPN: 13276177
SCREW
from £0.48
from £0.48
# 006
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 007
MPN: 65468300
BRACKET FOR GRID FIXING
from £48.88
from £48.88
# 008
MPN: 65468400
RH GRID FIXING PLATE
from £7.97
from £7.97
# 009
MPN: 65468500
LH GRID FIXING PLATE
from £39.26
from £39.26
# 010
MPN: 10977724
SCREW
from £0.48
from £0.48
This part replaces part number 10977711
# 011
MPN: 12638124
WASHER
from £0.52
from £0.52
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 012
MPN: 65282100
RH FIXED BRACKET FOR BUMPER
from £205.89
from £205.89
# 013
MPN: 65282200
LH FIXED BRACKET FOR BUMPER
from £113.24
from £113.24
# 014
MPN: 63214100
PAD
from £14.96
from £14.96
# 015
MPN: 65372900
BUSHING
from £2.38
from £2.38
# 016
MPN: 63738800
PLATE
from £1.33
from £1.33
# 017
MPN: 65550100
RH SUPPORT
- Not for CDN
from £154.43
from £154.43
# 017
MPN: 65810200
RH SUPPORT
- Valid for CDN
from £49.91
from £49.91
# 018
MPN: 65550200
LH SUPPORT
- Not for CDN
from £84.94
from £84.94
# 018
MPN: 65810300
LH SUPPORT
- Valid for CDN
from £49.91
from £49.91
# 019
MPN: 63215400
SPACER
from £1.33
from £1.33
# 020
MPN: 15540624
SCREW
from £12.96
from £12.96
This part replaces part number 15540621 which we have in stock
# 021
MPN: 10571974
WASHER
from £1.62
from £1.62
# 022
MPN: 13578804
WASHER
from £0.71
from £0.71
# 023
MPN: 63736300
FRONT PLATE FRAME CEE
- Valid for D
from £40.19
from £40.19
# 023
MPN: 63736400
FRONT PLATE FRAME ITALIA
- Not for CH, D and J
from £38.35
from £38.35
# 023
MPN: 65272100
FRONT PLATE FRAME
- Valid for J
from £34.50
from £34.50
# 023
MPN: 65272400
FRONT PLATE FRAME
- Valid for CH
from £20.25
from £20.25
# 024
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 025
MPN: 12646821
WASHER
(minimum order quantity = 30)
from £0.52
from £0.52
# 026
MPN: 65570900
LH AIR INTAKE ASSEMBLY
- Valid till stock exhaustion
Supersession
Supersession
# 026
MPN: 65571000
RH AIR INTAKE ASSEMBLY
- Valid till stock exhaustion
Supersession
Supersession
# 026
MPN: 65990800
RH AIR INTAKE ASSEMBLY
- Valid after stock exhaustion of 65571000
from £380.96
from £380.96
This part replaces part number 65571000
# 026
MPN: 65990900
LH AIR INTAKE ASSEMBLY
- Valid after stock exhaustion of 65570900
from £440.97
from £440.97
This part replaces part number 65570900
# 027
MPN: 175621
RH AIR INLET
from £12.46
from £12.46
# 027
MPN: 175622
LH AIR INLET
from £12.46
from £12.46
# 028
MPN: 177780
FRONT BRAKES COOLING PIPE
from £143.31
from £143.31
# 029
MPN: 13001090
SCREW COLLAR
from £0.82
from £0.82
This part replaces part number 12174990 - and 2 more. Click to view details
# 030
MPN: 168355
RH BRAKES AIR INLET
from £38.76
from £38.76
# 030
MPN: 168356
LH BRAKES AIR INLET
from £38.33
from £38.33
# 031
MPN: 14662695
SCREW
from £2.50
from £2.50
# 032
MPN: 12646601
WASHER
from £0.71
from £0.71
# 033
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 034
MPN: 65282000

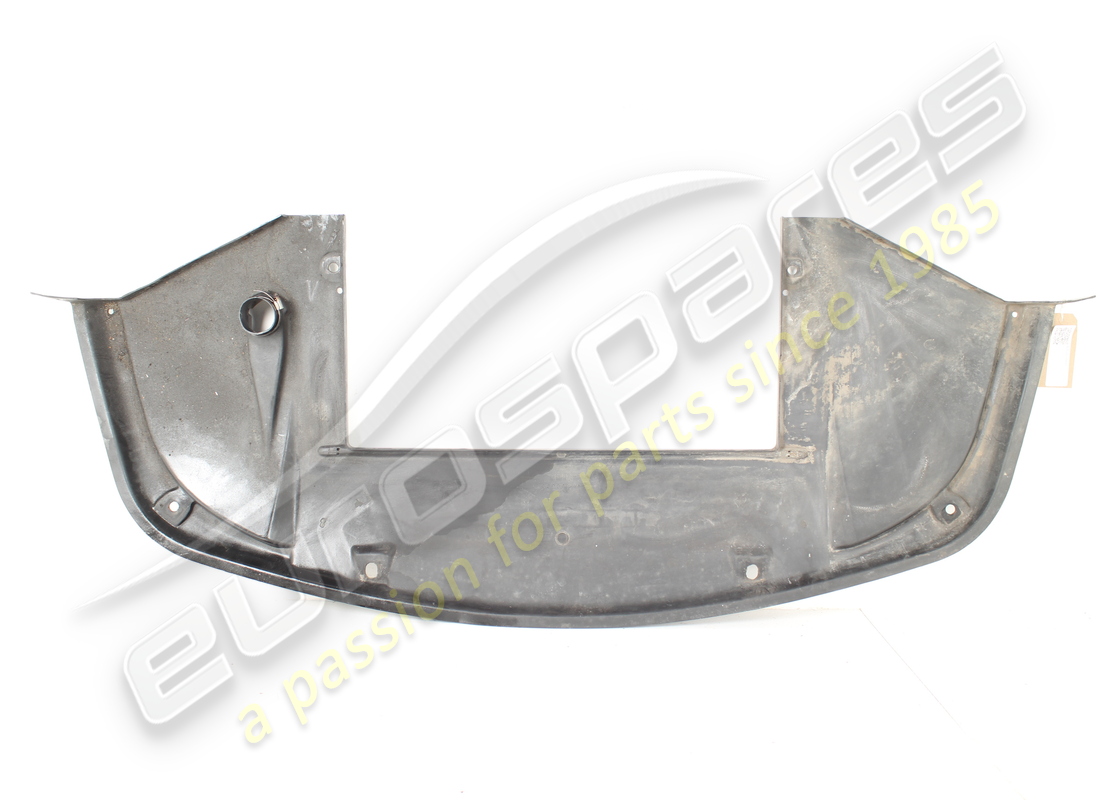

FRONT UNDER THE BODY SHELL
from £196.97
from £196.97
# 035
MPN: 65553900
GASKET
from £136.19
from £136.19
# 036
MPN: 10902624
SCREW
from £0.50
from £0.50
This part replaces part number 10902621
# 037
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.52
from £0.52
This part replaces part number 10516470 - and 4 more. Click to view details
# 038
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 039
MPN: 63874600
RH SUPPORT
from £13.78
from £13.78
This part replaces part number 63874000
# 039
MPN: 65808400
LH SUPPORT
from £13.78
from £13.78
# 040
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 041
MPN: 12643770
WASHER
from £0.71
from £0.71
# 042
MPN: 65287600
RH FRONT GRAVEL GUARD
from £97.05
from £97.05
# 043
MPN: 65287700
LH FRONT GRAVEL GUARD
from £80.50
from £80.50
# 044
MPN: 62797700
PLUG
from £2.04
from £2.04
# 045
MPN: 64517200
GASKET
from £4.62
from £4.62
# 046
MPN: 65288000
GASKET
- Valid till stock exhaustion
Supersession
Supersession
# 046
MPN: 65840000
GASKET
- Valid after stock exhaustion of 65288000
from £4.03
from £4.03
This part replaces part number 65288000
# 047
MPN: 65283200
BUMPER LATERAL FIXING RH BRACKET
from £81.41
from £81.41
# 048
MPN: 65228800
PIN
from £4.97
from £4.97
# 049
MPN: 65228700
BUSHING
from £4.24
from £4.24
# 050
MPN: 12646970
WASHER
from £2.52
from £2.52
This part replaces part number 112873
# 051
MPN: 10902624
SCREW
from £0.51
from £0.51
This part replaces part number 10902621
# 052
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 053
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 054
MPN: 65562100
RH BRACKET
from £43.52
from £43.52
# 054
MPN: 65562200
LH BRACKET
from £26.24
from £26.24
# 055
MPN: 15917777
SCREW
from £0.47
from £0.47
# 056
MPN: 14215480
NUT SCREW
from £0.53
from £0.53
This part replaces part number 14211580
# 057
MPN: 14296196
RIVET
from £0.51
from £0.51
# 058
MPN: 65682100
RH LIGHT FRAME
from £205.04
from £205.04
# 058
MPN: 65682200
LH LIGHT FRAME
from £205.04
from £205.04
# 059
MPN: 10977724
SCREW
- For Air Intakes 65570900 and 65571000 q.ty 6
from £0.51
from £0.51
This part replaces part number 10977711
# 060
MPN: 12638124
WASHER
- For Air Intakes 65570900 and 65571000 q.ty 6
from £0.53
from £0.53
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 061
MPN: 65376500
ANTI-VIBRATIONS
from £1.86
from £1.86
# 062
MPN: 62948300
PROTECTION
from £0.71
from £0.71
