ferrari 512 m right cylinder head parts diagram

003 - right cylinder head

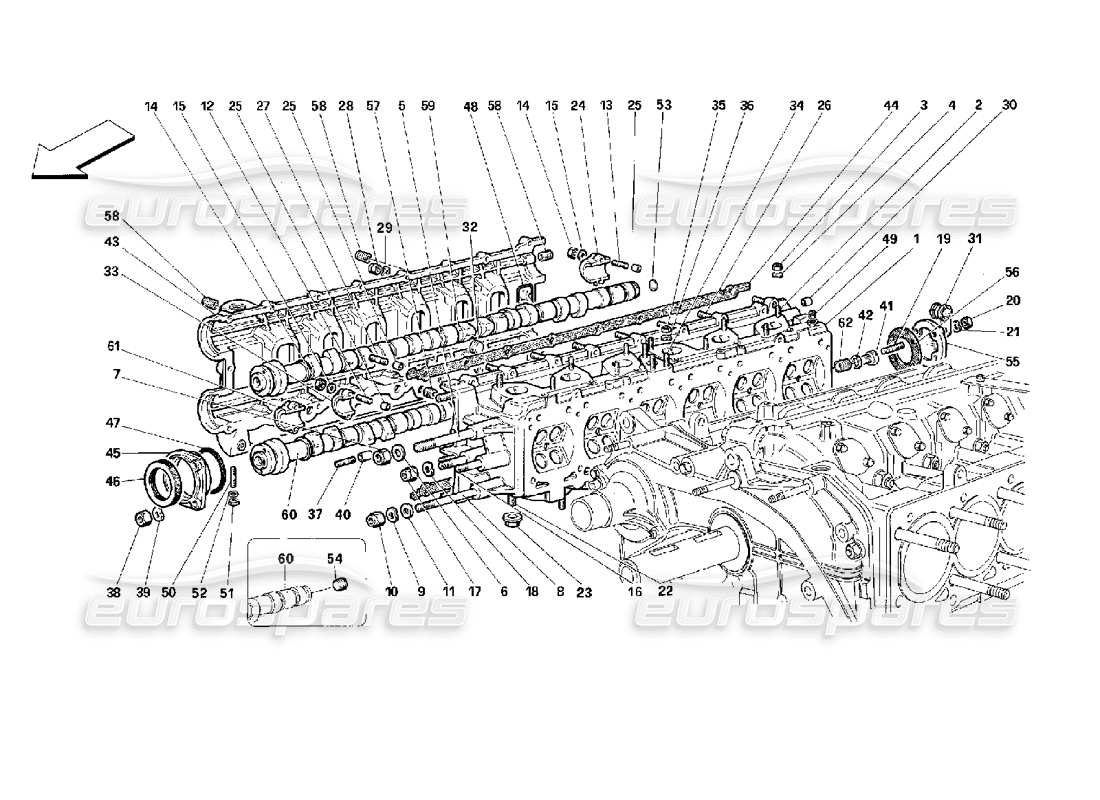

Ferrari 512 M Right Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 000
                                                                                                                    MPN: 137713
                                                                                                                    RIGHT CYLINDER HEAD, COMPLETE
                                                                                                                    from £7,478.56
                                                                                                                    from £7,478.56
                                                                                                                    This part replaces part number 139959 - and 1 more. Click to view details
                                                                                                                    # 001
                                                                                                                    MPN: 139959
                                                                                                                    right cylinder head
                                                                                                                    - Not as spare parts - With complete cylinder head 137713
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 002
                                                                                                                    MPN: 12354524
                                                                                                                    STUD
                                                                                                                    from £16.01
                                                                                                                    from £16.01
                                                                                                                    This part replaces part number 12354521
                                                                                                                    # 003
                                                                                                                    MPN: 16100824
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 11194079
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 005
                                                                                                                    MPN: 13953121
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 006
                                                                                                                    MPN: 12601474
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                                                                    # 007
                                                                                                                    MPN: 12575625
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12575611 - and 1 more. Click to view details
                                                                                                                    # 008
                                                                                                                    MPN: 13970421
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 010
                                                                                                                    MPN: 16104411
                                                                                                                    NUT
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 012
                                                                                                                    MPN: 102735
                                                                                                                    STUD (INNER CAPS)
                                                                                                                    from £11.07
                                                                                                                    from £11.07
                                                                                                                    This part replaces part number 4146561
                                                                                                                    # 013
                                                                                                                    MPN: 102754
                                                                                                                    STUD (OUTER CAPS)
                                                                                                                    from £5.00
                                                                                                                    from £5.00
                                                                                                                    # 014
                                                                                                                    MPN: 15896211
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 15896210 which we have in stock
                                                                                                                    # 015
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                    # 016
                                                                                                                    MPN: 13543424
                                                                                                                    STUD (BELT STRETCHER)
                                                                                                                    from £1.08
                                                                                                                    from £1.08
                                                                                                                    This part replaces part number 13543421
                                                                                                                    # 017
                                                                                                                    MPN: 101139
                                                                                                                    NUT
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 16104425
                                                                                                                    # 018
                                                                                                                    MPN: 12601374
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                    # 019
                                                                                                                    MPN: 13541024
                                                                                                                    STUD
                                                                                                                    from £27.69
                                                                                                                    from £27.69
                                                                                                                    This part replaces part number 13541021
                                                                                                                    # 020
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    # 021
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 022
                                                                                                                    MPN: 13543524
                                                                                                                    STUD
                                                                                                                    from £2.01
                                                                                                                    from £2.01
                                                                                                                    This part replaces part number 13543521
                                                                                                                    # 023
                                                                                                                    MPN: 114748
                                                                                                                    NUT
                                                                                                                    from £8.67
                                                                                                                    from £8.67
                                                                                                                    # 024
                                                                                                                    MPN: 114497
                                                                                                                    REAR CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137713
                                                                                                                    # 025
                                                                                                                    MPN: 102725
                                                                                                                    DOWEL
                                                                                                                    from £0.58
                                                                                                                    from £0.58
                                                                                                                    # 026
                                                                                                                    MPN: 13541324
                                                                                                                    STUD FOR COVERS
                                                                                                                    from £0.96
                                                                                                                    from £0.96
                                                                                                                    This part replaces part number 13541321
                                                                                                                    # 027
                                                                                                                    MPN: 13541421
                                                                                                                    STUD ON DOWEL
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 028
                                                                                                                    MPN: 100044
                                                                                                                    NUT
                                                                                                                    from £0.29
                                                                                                                    from £0.29
                                                                                                                    This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                                    # 029
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.48
                                                                                                                    from £0.48
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 030
                                                                                                                    MPN: 102725
                                                                                                                    DOWEL
                                                                                                                    from £0.64
                                                                                                                    from £0.64
                                                                                                                    # 031
                                                                                                                    MPN: 10441690
                                                                                                                    BRACKET
                                                                                                                    from £1.08
                                                                                                                    from £1.08
                                                                                                                    This part replaces part number 1044690
                                                                                                                    # 032
                                                                                                                    MPN: 127635
                                                                                                                    PLUG
                                                                                                                    from £1.48
                                                                                                                    from £1.48
                                                                                                                    This part replaces part number 183447
                                                                                                                    # 033
                                                                                                                    MPN: 126811
                                                                                                                    INTERMEDIATE CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137713
                                                                                                                    # 034
                                                                                                                    MPN: 13541024
                                                                                                                    STUD
                                                                                                                    from £27.69
                                                                                                                    from £27.69
                                                                                                                    This part replaces part number 13541021
                                                                                                                    # 035
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.52
                                                                                                                    from £0.52
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    # 036
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 037
                                                                                                                    MPN: 13541124
                                                                                                                    STUD
                                                                                                                    from £11.62
                                                                                                                    from £11.62
                                                                                                                    This part replaces part number 13541121
                                                                                                                    # 038
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    # 039
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 102725
                                                                                                                    DOWEL
                                                                                                                    from £0.63
                                                                                                                    from £0.63
                                                                                                                    # 041
                                                                                                                    MPN: 10300740
                                                                                                                    WATER DRAIN PLUG
                                                                                                                    from £12.10
                                                                                                                    from £12.10
                                                                                                                    # 042
                                                                                                                    MPN: 10257060
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                    # 043
                                                                                                                    MPN: 148784
                                                                                                                    RIGHT CYL. HEAD COVER
                                                                                                                    - Not as spare parts - With complete cylinder head 137713
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 044
                                                                                                                    MPN: 150196

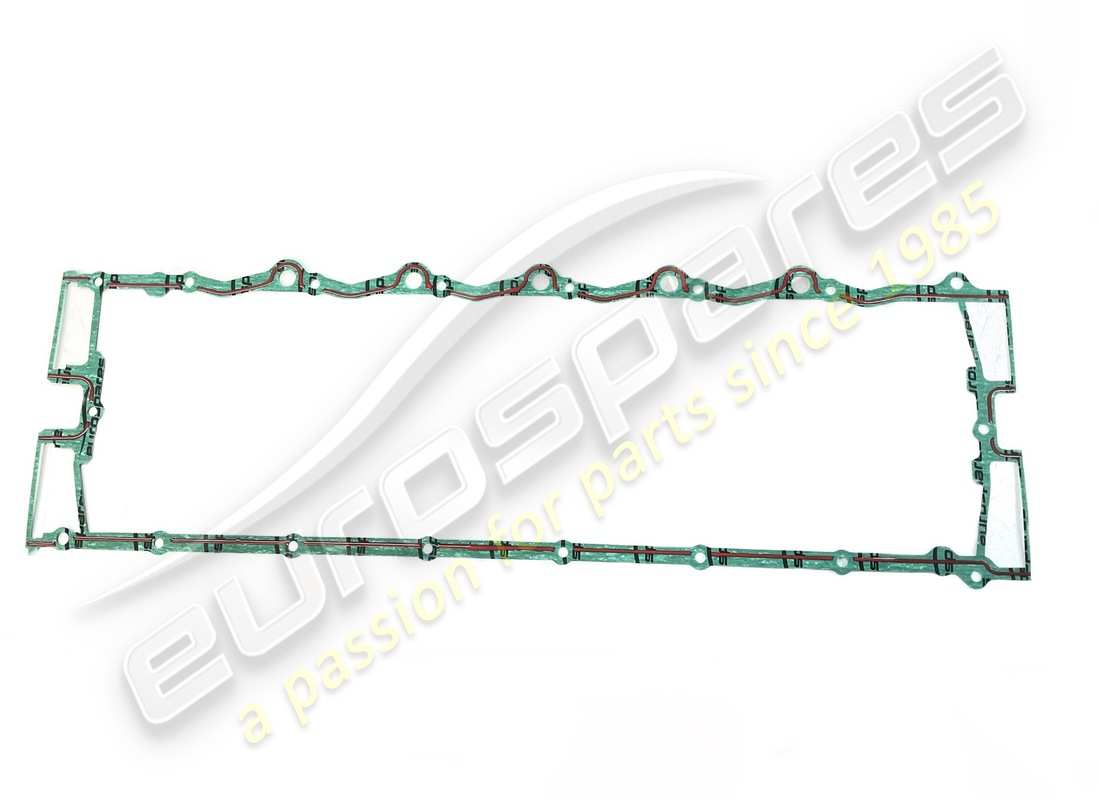

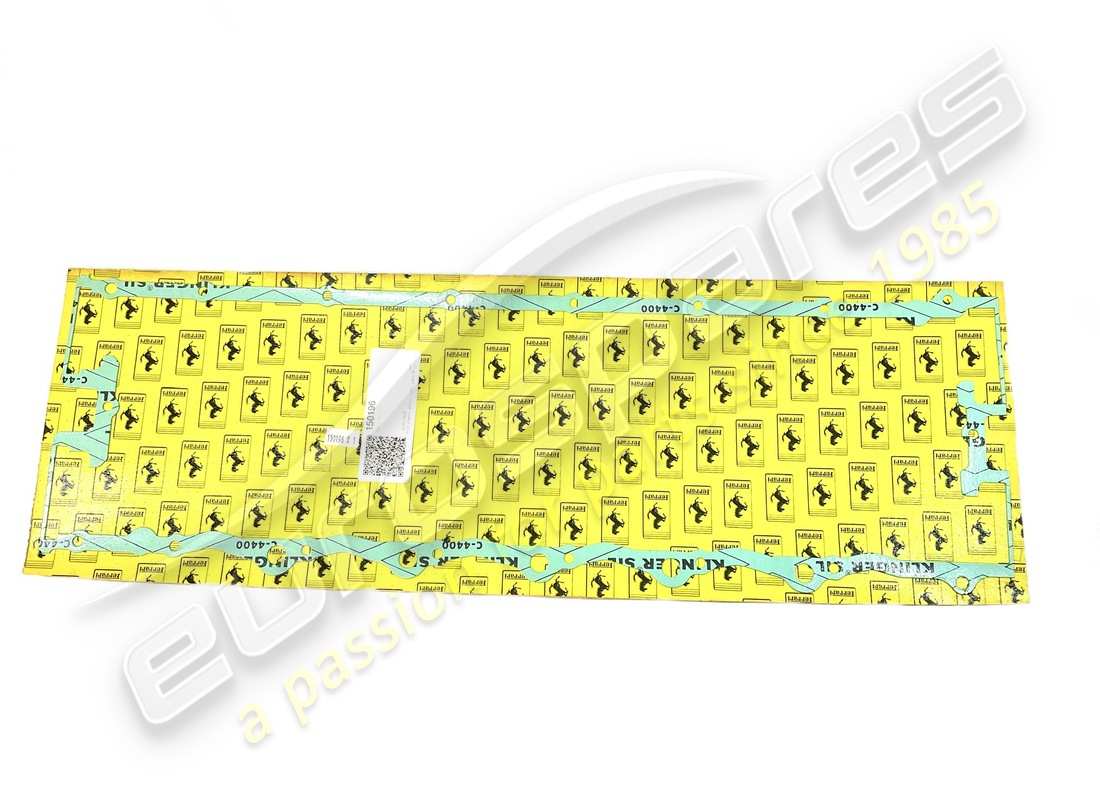

                                                                                                                    GASKET
                                                                                                                    Single Gasket - for set use: FCCG014
                                                                                                                    from £53.52
                                                                                                                    from £53.52
                                                                                                                    This part replaces part number 134948 - and 1 more. Click to view details
                                                                                                                    # 044
                                                                                                                    MPN: FCCG014

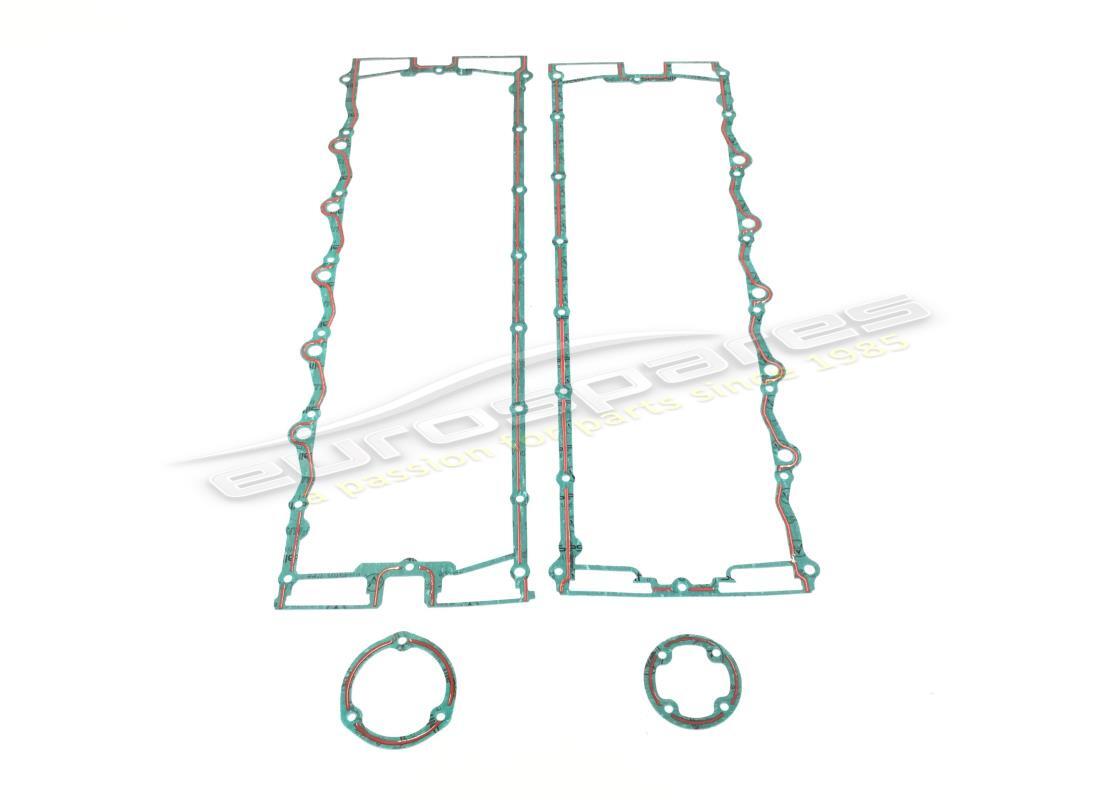

                                                                                                                    CAM COVER GASKET SET
                                                                                                                    includes 1x 150196, 1x 150195, 1x 150075 and 1x 150074
                                                                                                                    from £72.13
                                                                                                                    from £72.13
                                                                                                                    # 045
                                                                                                                    MPN: 121116
                                                                                                                    FRONT COVER
                                                                                                                    from £65.66
                                                                                                                    from £65.66
                                                                                                                    # 046
                                                                                                                    MPN: 133628

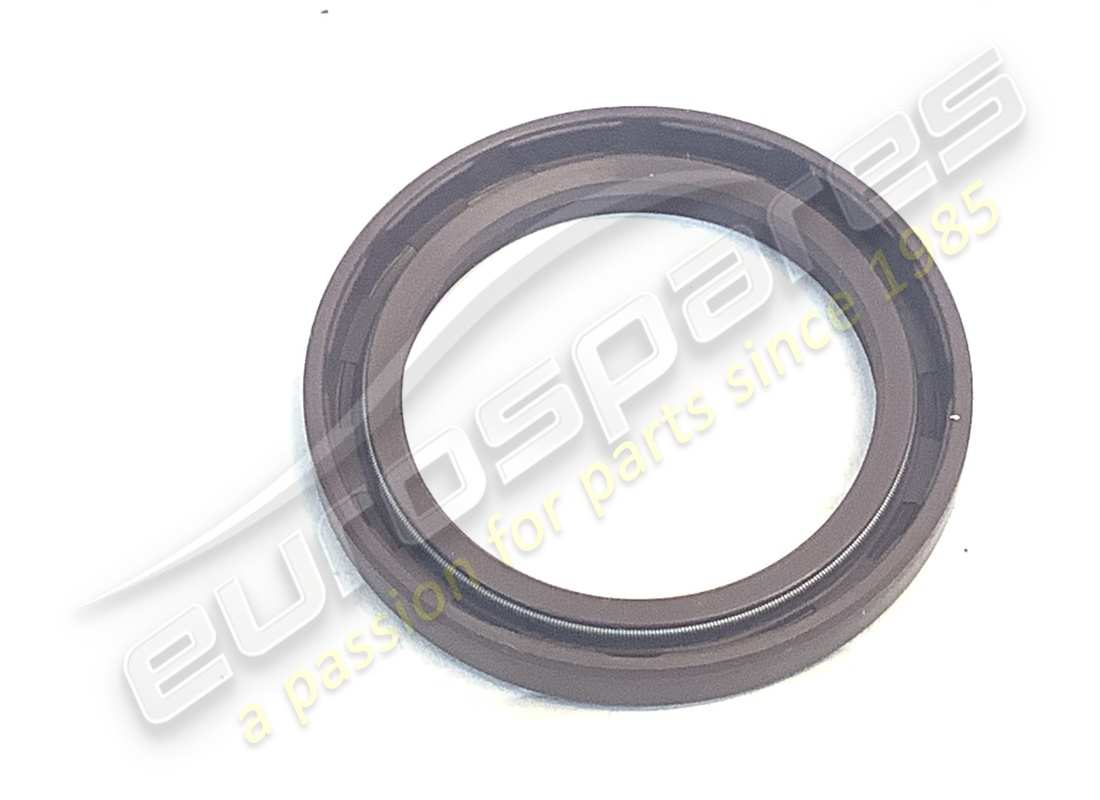

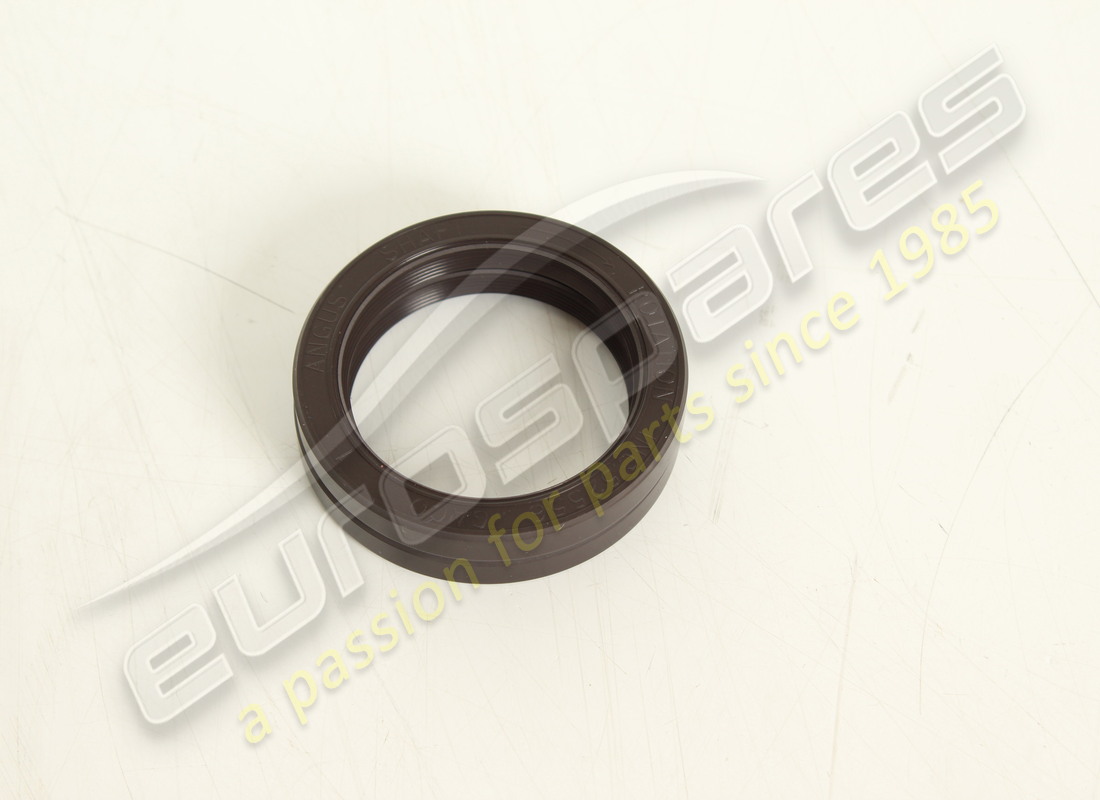

                                                                                                                    OIL SEAL
                                                                                                                    from £29.85
                                                                                                                    from £29.85
                                                                                                                    This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                                    # 047
                                                                                                                    MPN: 117036

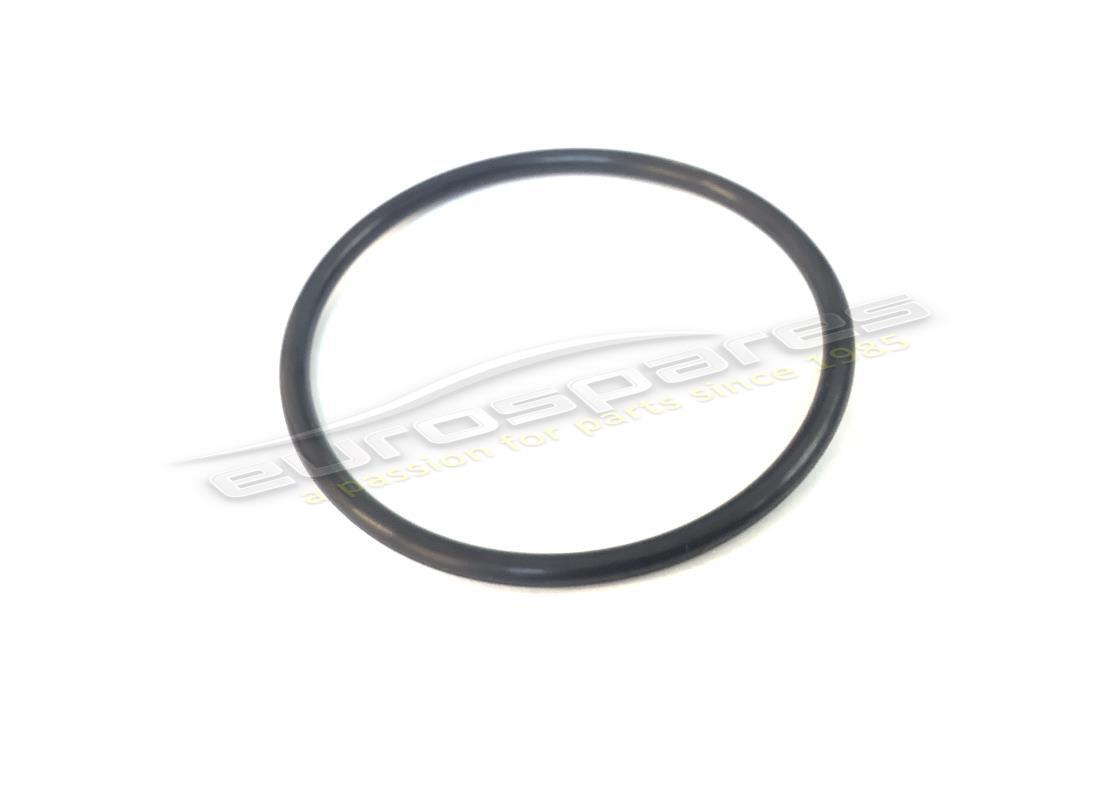

                                                                                                                    SEAL RING
                                                                                                                    from £4.93
                                                                                                                    from £4.93
                                                                                                                    # 048
                                                                                                                    MPN: 127649
                                                                                                                    SEAL RING
                                                                                                                    from £5.33
                                                                                                                    from £5.33
                                                                                                                    # 049
                                                                                                                    MPN: 14326150
                                                                                                                    PLUG
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 12326150
                                                                                                                    # 050
                                                                                                                    MPN: 11500124
                                                                                                                    STUD
                                                                                                                    from £0.69
                                                                                                                    from £0.69
                                                                                                                    This part replaces part number 11500121
                                                                                                                    # 051
                                                                                                                    MPN: 15896211
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 15896210 which we have in stock
                                                                                                                    # 052
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 053
                                                                                                                    MPN: 10158501
                                                                                                                    PLUG
                                                                                                                    from £1.65
                                                                                                                    from £1.65
                                                                                                                    # 054
                                                                                                                    MPN: 10269750
                                                                                                                    PLUG
                                                                                                                    from £0.91
                                                                                                                    from £0.91
                                                                                                                    This part replaces part number 95184
                                                                                                                    # 055
                                                                                                                    MPN: 103796
                                                                                                                    REAR COVER
                                                                                                                    from £167.71
                                                                                                                    from £167.71
                                                                                                                    # 056
                                                                                                                    MPN: 150075

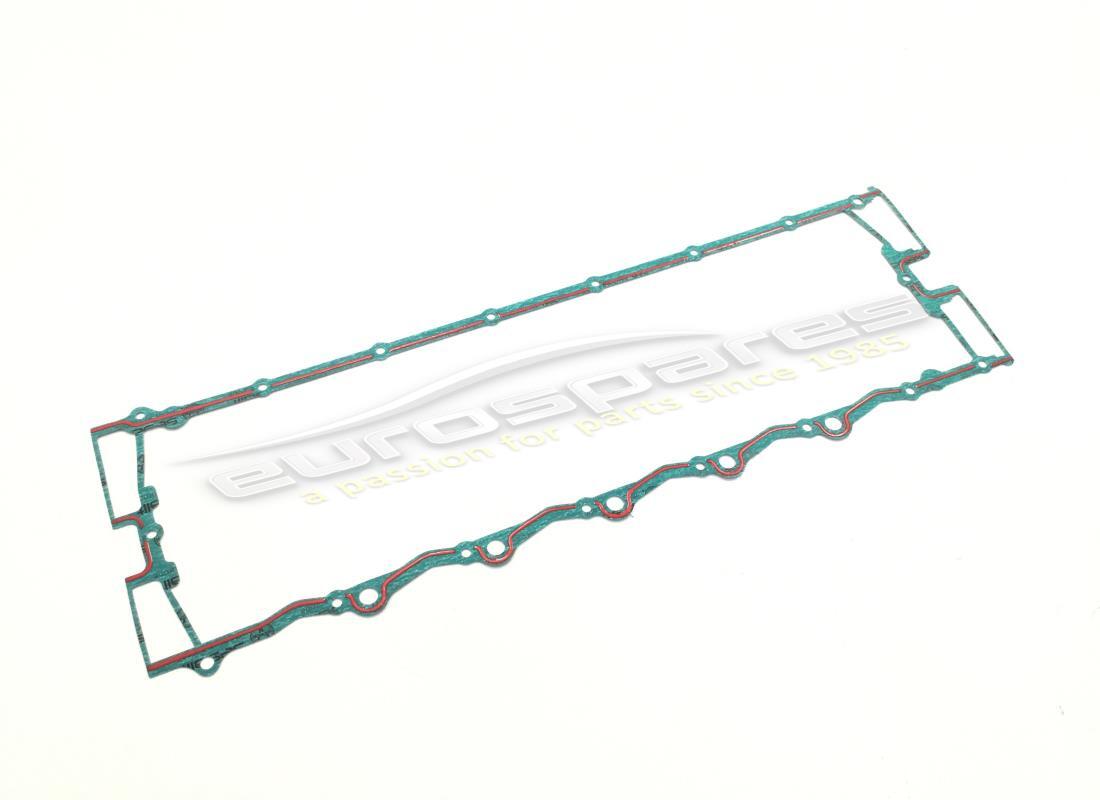

                                                                                                                    GASKET
                                                                                                                    from £16.11
                                                                                                                    from £16.11
                                                                                                                    This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                                    # 057
                                                                                                                    MPN: 10269750
                                                                                                                    PLUG
                                                                                                                    from £0.88
                                                                                                                    from £0.88
                                                                                                                    This part replaces part number 95184
                                                                                                                    # 058
                                                                                                                    MPN: 13525470
                                                                                                                    HELI COIL
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 107333
                                                                                                                    # 059
                                                                                                                    MPN: 148810
                                                                                                                    RIGHT INTAKE CAMSHAFT, COMPLETE
                                                                                                                    from £1,336.63
                                                                                                                    from £1,336.63
                                                                                                                    # 060
                                                                                                                    MPN: 140098
                                                                                                                    RIGHT EXHAUST CAMSHAFT, COMPLETE
                                                                                                                    from £929.56
                                                                                                                    from £929.56
                                                                                                                    # 061
                                                                                                                    MPN: 114499
                                                                                                                    FRONT CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137713
                                                                                                                    # 062
                                                                                                                    MPN: 103388
                                                                                                                    HELI COIL
                                                                                                                    from £8.32
                                                                                                                    from £8.32
