013 - Secondary Air Pump and Lines

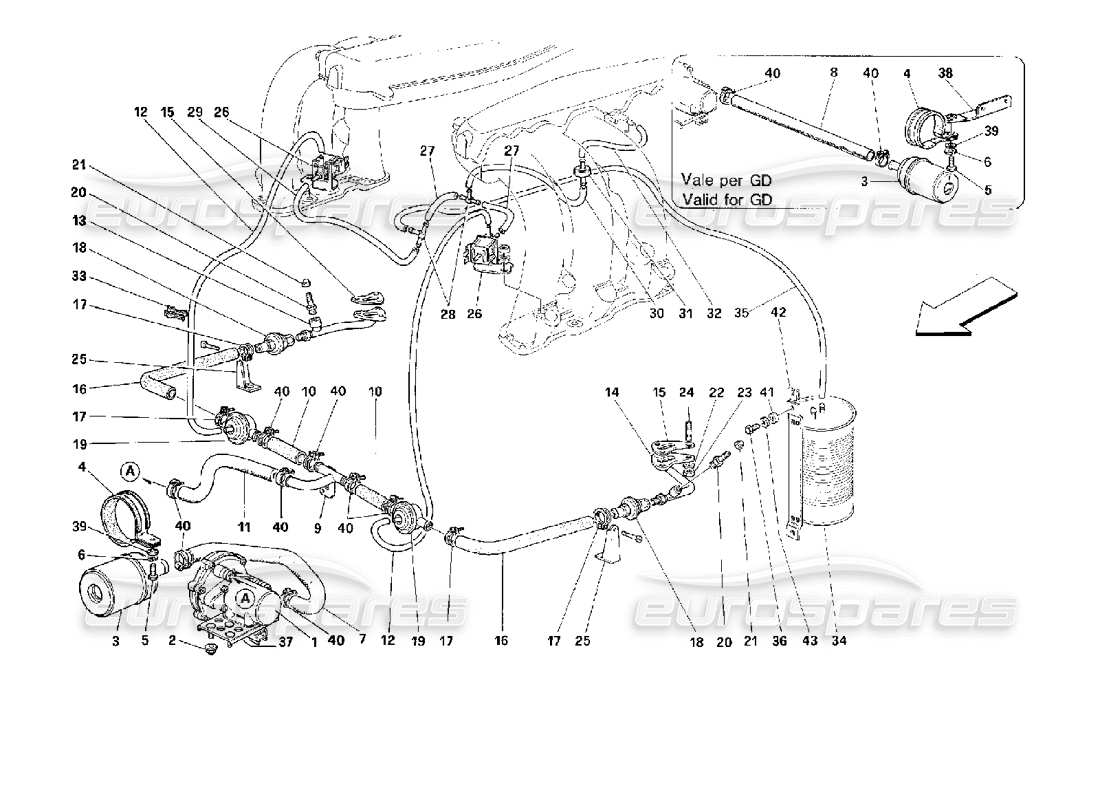

Ferrari 512 M Secondary Air Pump and Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 148049
                                                                                  ELECTRIC AIR PUMP
                                                                                  from £508.61
                                                                                  from £508.61
                                                                                  # 002
                                                                                  MPN: 14058411
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 003
                                                                                  MPN: 70000967
                                                                                  FILTER CANISTER
                                                                                  from £99.27
                                                                                  from £99.27
                                                                                  This part replaces part number 148050
                                                                                  # 004
                                                                                  MPN: 126353
                                                                                  BRACKET
                                                                                  from £17.01
                                                                                  from £17.01
                                                                                  # 005
                                                                                  MPN: 10902124
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                  # 006
                                                                                  MPN: 12601274
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                  # 007
                                                                                  MPN: 149712
                                                                                  PIPE FROM AIR FILTER TO PUMP
                                                                                  - Not for GD
                                                                                  from £331.31
                                                                                  from £331.31
                                                                                  # 008
                                                                                  MPN: 151141
                                                                                  PIPE FROM AIR FILTER TO PUMP
                                                                                  - Valid for GD
                                                                                  from £208.70
                                                                                  from £208.70
                                                                                  # 009
                                                                                  MPN: 148076
                                                                                  3 WAY UNION
                                                                                  from £34.64
                                                                                  from £34.64
                                                                                  # 010
                                                                                  MPN: 126341
                                                                                  PIPE FROM CONNECTION TO CUT OFF VALVE
                                                                                  from £13.87
                                                                                  from £13.87
                                                                                  # 011
                                                                                  MPN: 149701
                                                                                  PIPE FROM 3 WAY TO PUMP
                                                                                  from £138.85
                                                                                  from £138.85
                                                                                  # 012
                                                                                  MPN: 128907
                                                                                  PIPE FROM CUT OFF TO SOLENOID VALVE
                                                                                  from £63.62
                                                                                  from £63.62

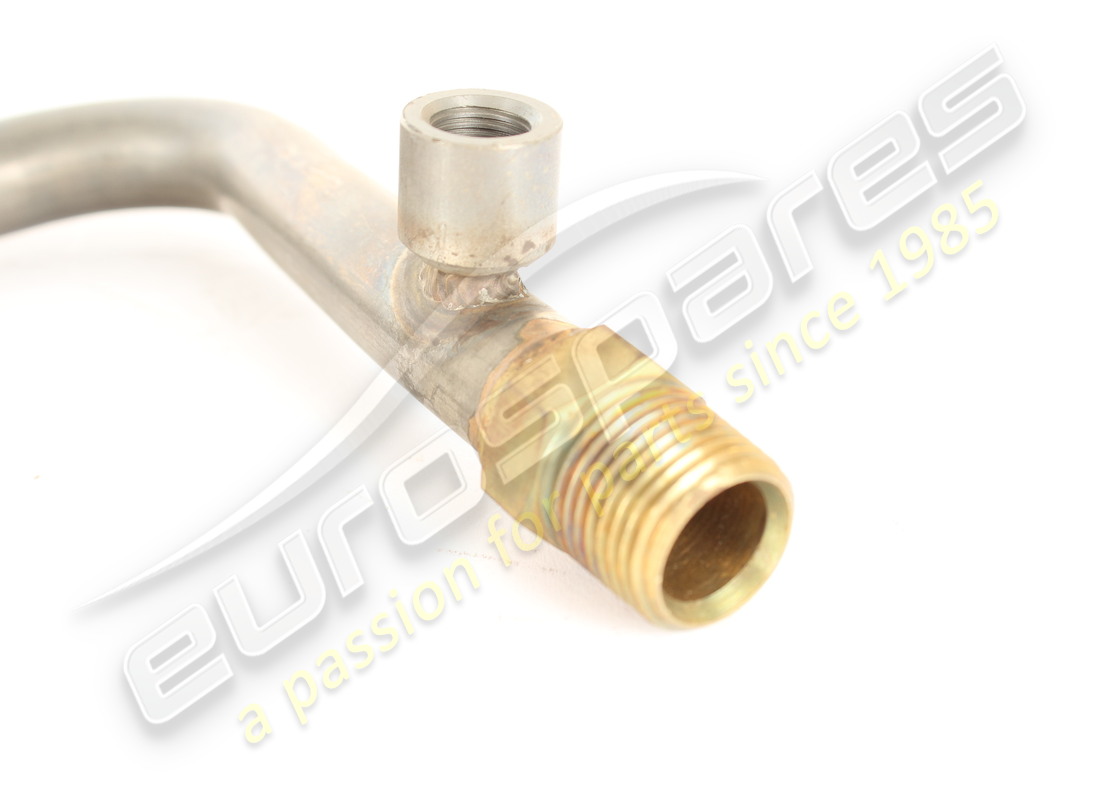

                                                                                  # 013
                                                                                  MPN: 149298
                                                                                  RH AIR INJECTION PIPE
                                                                                  from £166.94
                                                                                  from £166.94
                                                                                  # 014
                                                                                  MPN: 149289
                                                                                  LH AIR INJECTION PIPE
                                                                                  from £87.41
                                                                                  from £87.41
                                                                                  # 015
                                                                                  MPN: 146194
                                                                                  GASKET
                                                                                  from £5.46
                                                                                  from £5.46
                                                                                  This part replaces part number 122407
                                                                                  # 016
                                                                                  MPN: 125776
                                                                                  PIPE
                                                                                  from £22.41
                                                                                  from £22.41
                                                                                  # 017
                                                                                  MPN: 10169290
                                                                                  CLAMP
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 018
                                                                                  MPN: 148494
                                                                                  SECONDARY AIR VALVE
                                                                                  from £402.05
                                                                                  from £402.05
                                                                                  This part replaces part number 121769 - and 11 more. Click to view details
                                                                                  # 019
                                                                                  MPN: 147390
                                                                                  CUT OFF VALVE
                                                                                  from £264.41
                                                                                  from £264.41
                                                                                  This part replaces part number 121751 - and 3 more. Click to view details
                                                                                  # 020
                                                                                  MPN: 144240
                                                                                  CONNECTION
                                                                                  from £17.16
                                                                                  from £17.16
                                                                                  # 021
                                                                                  MPN: 150595
                                                                                  NUT
                                                                                  from £0.58
                                                                                  from £0.58
                                                                                  This part replaces part number 16109642
                                                                                  # 022
                                                                                  MPN: 106850
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                  # 023
                                                                                  MPN: 115201
                                                                                  NUT
                                                                                  from £12.68
                                                                                  from £12.68
                                                                                  # 024
                                                                                  MPN: 13541021
                                                                                  STUD
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 025
                                                                                  MPN: 149301
                                                                                  BRACKET
                                                                                  from £12.19
                                                                                  from £12.19
                                                                                  # 026
                                                                                  MPN: 111704
                                                                                  SOLENOID VALVE
                                                                                  from £160.61
                                                                                  from £160.61
                                                                                  This part replaces part number 129059
                                                                                  # 027
                                                                                  MPN: 115666
                                                                                  PIPE TO CONNECTION
                                                                                  from £0.63
                                                                                  from £0.63
                                                                                  # 028
                                                                                  MPN: 121793
                                                                                  CONNECTION
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 029
                                                                                  MPN: 118901
                                                                                  PIPE FROM SOLENOID VALVE TO CONNECTION
                                                                                  from £3.36
                                                                                  from £3.36
                                                                                  # 030
                                                                                  MPN: 141235
                                                                                  PIPE FROM CONNECTION TO VALVE
                                                                                  from £2.12
                                                                                  from £2.12
                                                                                  This part replaces part number 253376
                                                                                  # 031
                                                                                  MPN: 62507200
                                                                                  VALVE
                                                                                  from £14.63
                                                                                  from £14.63
                                                                                  This part replaces part number 61653800
                                                                                  # 032
                                                                                  MPN: 131042
                                                                                  PIPE FROM VALVE TO PLENUM CHAMBER CONNECTION
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 033
                                                                                  MPN: 124551
                                                                                  SPRING
                                                                                  from £0.99
                                                                                  from £0.99
                                                                                  # 034
                                                                                  MPN: 168038

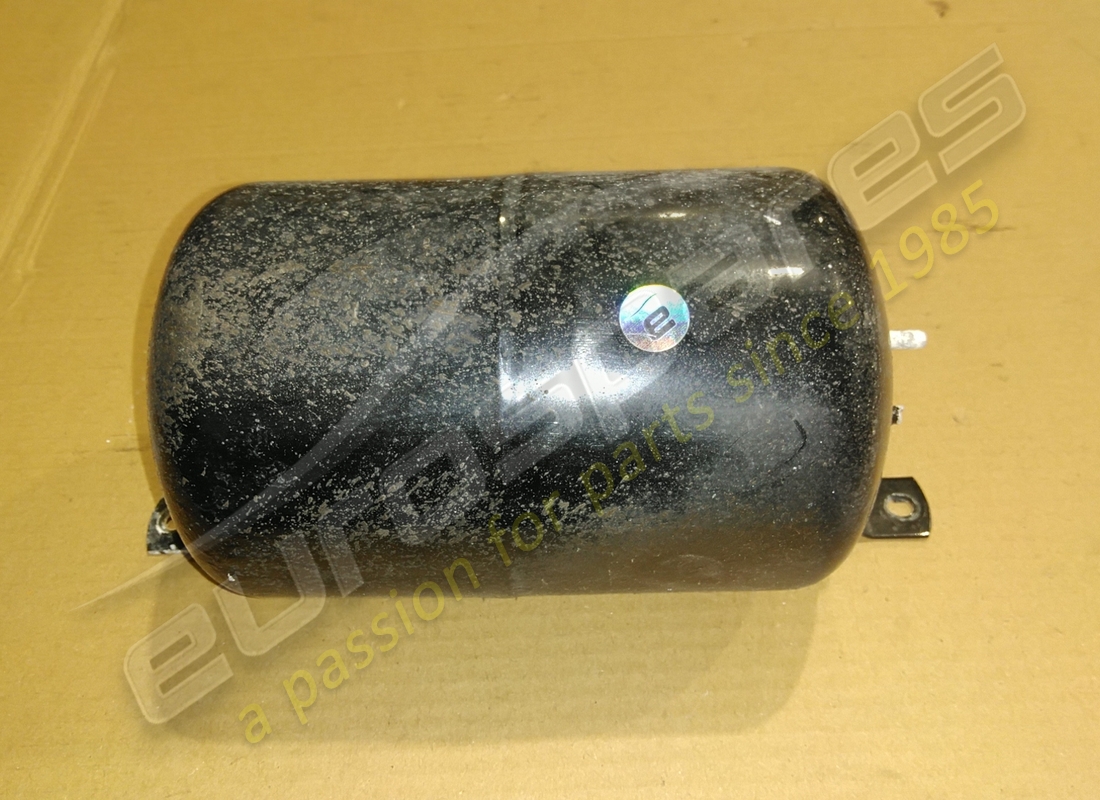

                                                                                  VACUUM TANK
                                                                                  from £117.63
                                                                                  from £117.63
                                                                                  This part replaces part number 175374 which we have in stock - and 3 more. Click to view details
                                                                                  # 035
                                                                                  MPN: 115665
                                                                                  PIPE FROM VACUUM TANK TO CONNECTION
                                                                                  from £19.29
                                                                                  from £19.29
                                                                                  # 036
                                                                                  MPN: 10978221
                                                                                  SCREW
                                                                                  from £1.14
                                                                                  from £1.14
                                                                                  This part replaces part number 10978224
                                                                                  # 037
                                                                                  MPN: 149111
                                                                                  AIR PUMP BRACKET
                                                                                  from £17.50
                                                                                  from £17.50
                                                                                  # 038
                                                                                  MPN: 151138
                                                                                  AIR FILTER BRACKET
                                                                                  - Valid for GD
                                                                                  from £11.86
                                                                                  from £11.86
                                                                                  # 039
                                                                                  MPN: 12639701
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 12639704
                                                                                  # 040
                                                                                  MPN: 13000490
                                                                                  CLAMP
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                  # 041
                                                                                  MPN: 62567400
                                                                                  SPACER
                                                                                  from £0.68
                                                                                  from £0.68
                                                                                  # 042
                                                                                  MPN: 62764200
                                                                                  SPRING
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 14369871
                                                                                  # 043
                                                                                  MPN: 12638178
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
