017 - Throttle Control -Valid for GD-

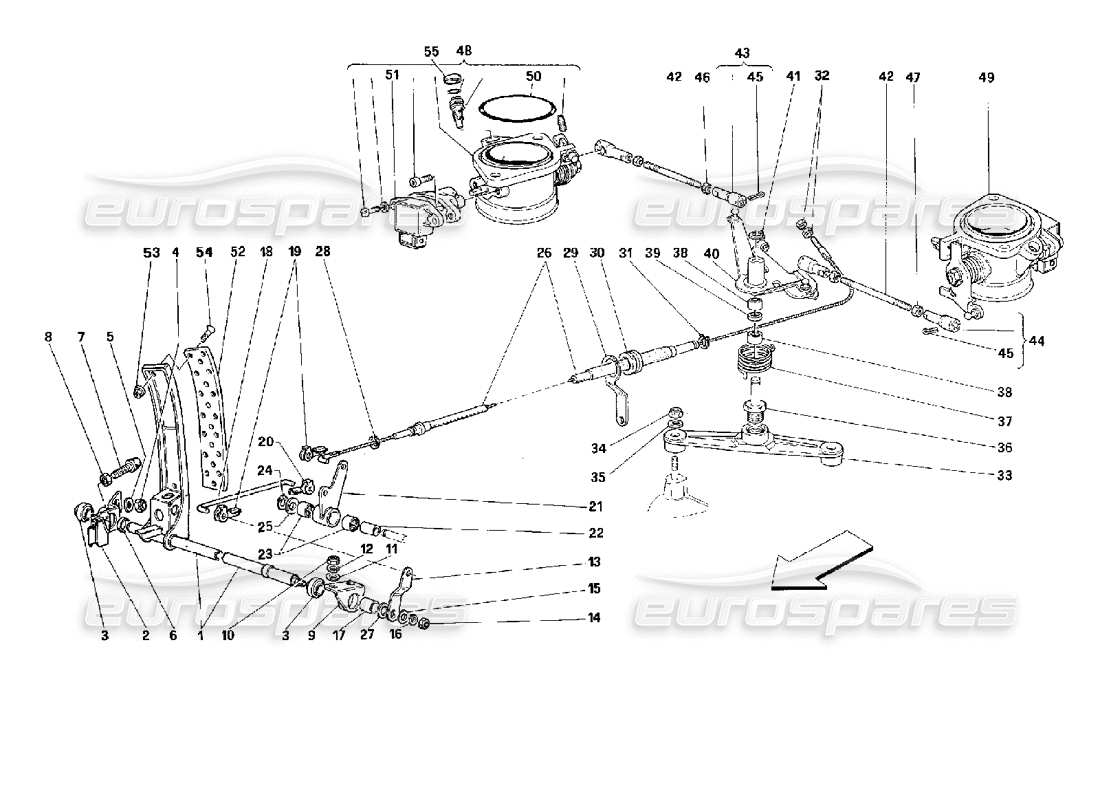

Ferrari 512 M Throttle Control -Valid for GD- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 151478
throttle pedal
from £524.91
from £524.91
# 002
MPN: 116526
PEDAL SUPPORT
from £44.82
from £44.82
# 003
MPN: 122430
BALL JOINT
from £80.49
from £80.49
# 004
MPN: 16104411
NUT
from £0.53
from £0.53
# 005
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 006
MPN: 121477
SPACER
from £2.28
from £2.28
# 007
MPN: 100640
PEDAL ADJUSTMENT PUSH ROD
from £3.15
from £3.15
This part replaces part number 9181141 - and 1 more. Click to view details
# 008
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 009
MPN: 116528
SUPPORT FOR RELAY LEVER
from £43.20
from £43.20
# 010
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 011
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 012
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 013
MPN: 124997
Throttle control lever
from £3.67
from £3.67
# 014
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 015
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 016
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 017
MPN: 117991
SPACER
from £2.36
from £2.36
# 018
MPN: 124998
TIE ROD
from £4.49
from £4.49
# 019
MPN: 119550
RH FASTENED
from £0.80
from £0.80
# 020
MPN: 119551
LH FASTENED
from £0.77
from £0.77
# 021
MPN: 150408
RELAY LEVER
from £66.69
from £66.69
# 022
MPN: 125001
INNER RING
from £7.05
from £7.05
# 023
MPN: 101677
ROLLER BEARING
from £2.05
from £2.05
# 024
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 025
MPN: 117311
WASHER
from £0.47
from £0.47
# 026
MPN: 159532
THROTTLES CONTROL CABLE
- Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 150410
# 026
MPN: 165417
THROTTLES CONTROL CABLE
- Valid after stock exhaustion of 159532
from £88.57
from £88.57
This part replaces part number 159532
# 027
MPN: 105929
THRUST WASHER
from £0.73
from £0.73
# 027
MPN: 105930
THRUST WASHER
from £1.69
from £1.69
# 027
MPN: 105931
THRUST WASHER
from £0.57
from £0.57
# 028
MPN: 11087974
CIRCLIP
from £0.53
from £0.53
This part replaces part number 11087976
# 029
MPN: 154742
BRACKET
from £18.15
from £18.15
This part replaces part number 150814
# 030
MPN: 10396680
CABLE GROMMET
from £1.08
from £1.08
# 031
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 032
MPN: 10725011
NUT
from £0.93
from £0.93
# 033
MPN: 145696
THROTTLE SUPPORT
from £99.19
from £99.19
# 034
MPN: 12574211
NUT
from £0.71
from £0.71
# 035
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 036
MPN: 136705
PIN
from £35.07
from £35.07
# 037
MPN: 153354
SPRING
from £3.60
from £3.60
This part replaces part number 150085
# 038
MPN: 132873
ROLLER CAGE
from £2.42
from £2.42
# 039
MPN: 136880
SPACER
from £15.60
from £15.60
# 040
MPN: 153356
LEVER
from £166.70
from £166.70
This part replaces part number 148157
# 041
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 042
MPN: 145762
TIE ROD
from £1.30
from £1.30
# 043
MPN: 105619
LH THREAD BALL JOINT
from £79.56
from £79.56
# 044
MPN: 173999
RH THREAD THROTTLE BALL JOINT
from £4.17
from £4.17
This part replaces part number 105617
# 045
MPN: 10795101
COTTER PIN
from £0.47
from £0.47
# 046
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 047
MPN: 15896470
NUT (RH THREAD)
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 048
MPN: 146632
RH THROTTLE BODY COMPLETE
from £552.58
from £552.58
# 049
MPN: 148708
LH THROTTLE BODY COMPLETE
from £543.93
from £543.93
# 050
MPN: 142934
GASKET
from £6.05
from £6.05
This part replaces part number 147901
# 051
MPN: 158170
POTENTIOMETER FOR THROTTLE VALVE
from £119.32
from £119.32
This part replaces part number 142434 - and 1 more. Click to view details
# 052
MPN: 163920
PEDAL PLATE
from £66.08
from £66.08
# 053
MPN: 14058311
NUT
from £0.53
from £0.53
# 054
MPN: 14440734
SCREW
from £1.55
from £1.55
This part replaces part number 14440721 - and 1 more. Click to view details
# 055

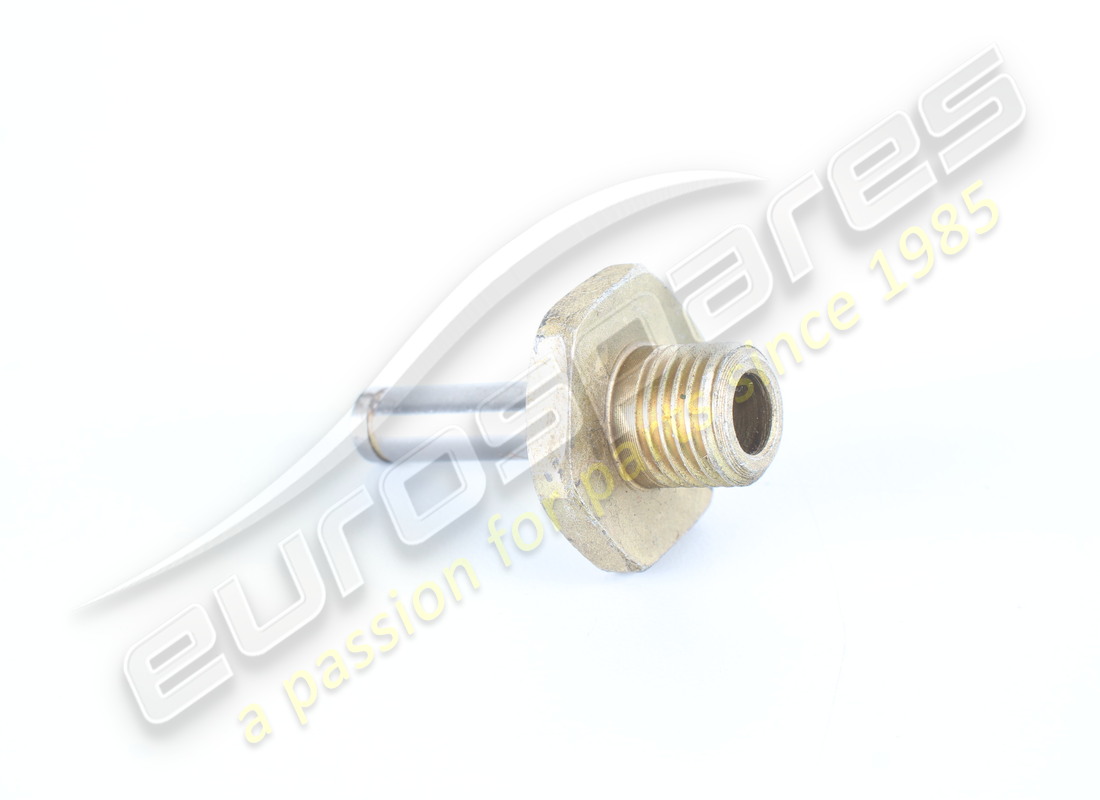

MPN: 166419
SAFETY PLUG
from £5.94
from £5.94
