021 - Lubrication

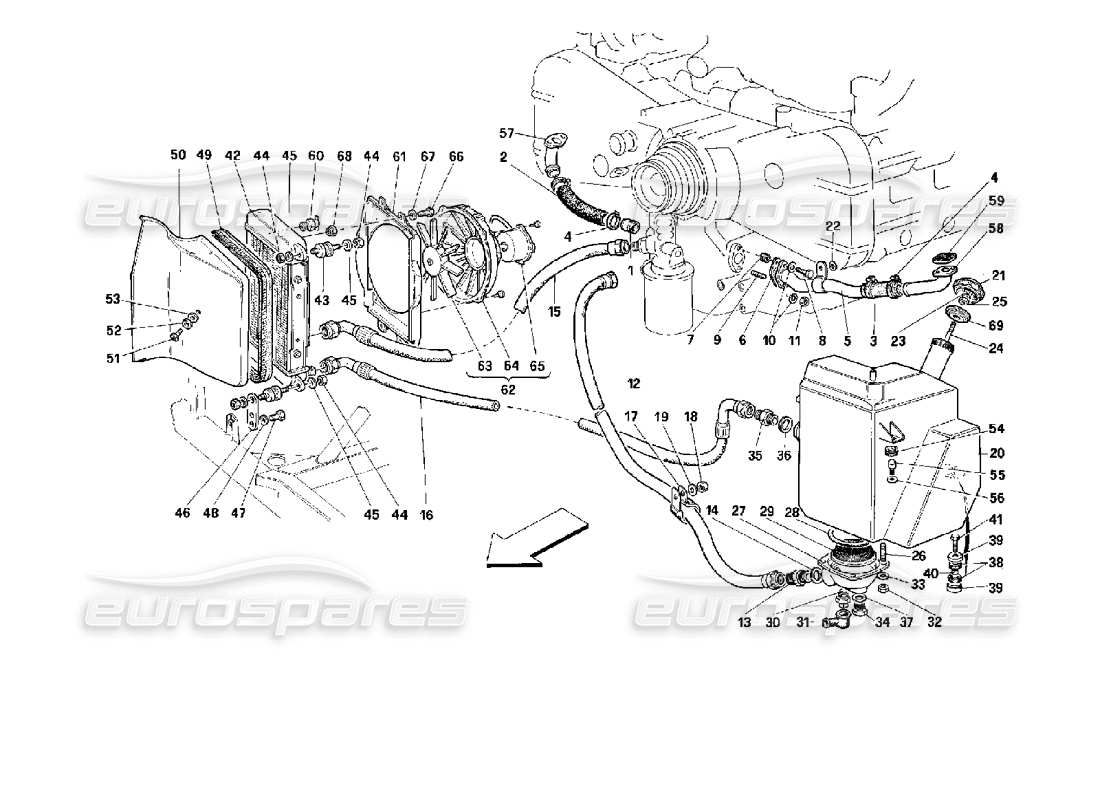

Ferrari 512 M Lubrication Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 104561
UNION
from £7.92
from £7.92
# 002
MPN: 122828
SLEEVE
from £25.14
from £25.14
This part replaces part number 104562
# 003
MPN: 122829
SLEEVE
from £15.65
from £15.65
This part replaces part number 100077 - and 1 more. Click to view details
# 004
MPN: 12173090
CLAMP
Supersession
Supersession
This part replaces part number 105672
# 005
MPN: 149786
LH CYL. HEAD OIL EXHAUST PIPE
from £44.65
from £44.65
# 006
MPN: 150193
GASKET
from £2.55
from £2.55
This part replaces part number 104558 - and 1 more. Click to view details
# 007
MPN: 13525570
HELI COIL
from £3.26
from £3.26
This part replaces part number 109668
# 008
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 009
MPN: 11500224
STUD
from £0.53
from £0.53
This part replaces part number 11500221 - and 1 more. Click to view details
# 010
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 011
MPN: 134041
NUT
from £0.56
from £0.56
This part replaces part number 15896221
# 012
MPN: 146906
HOSE FROM RESERVOIR TO PUMP
from £1,392.74
from £1,392.74
# 013
MPN: 138149
UNION
from £17.64
from £17.64
# 014
MPN: 144485
GASKET
from £12.40
from £12.40
# 015
MPN: 146905
HOSE FROM PUMP TO RADIATOR
from £1,644.62
from £1,644.62
# 016
MPN: 146904
HOSE FROM RADIATOR TO RESERVOIR
from £253.66
from £253.66
# 017
MPN: 106195
CLIP BRACKET
from £16.67
from £16.67
# 018
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 019
MPN: 14496401
WASHER
Supersession
Supersession
# 020
MPN: 125517
OIL RESERVOIR
from £13.75
from £13.75
# 021
MPN: 145623
PLUG
from £84.76
from £84.76
This part replaces part number 139648 - and 3 more. Click to view details
# 022
MPN: 14496524
WASHER
from £0.54
from £0.54
This part replaces part number 14496525 - and 1 more. Click to view details
# 023
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 024
MPN: 139646
OIL DIP STICK
from £11.50
from £11.50
This part replaces part number 124691 which we have in stock - and 2 more. Click to view details
# 025
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 026
MPN: 11500424
STUD
from £0.48
from £0.48
This part replaces part number 11500421
# 027
MPN: 125473
OIL SUCTION FAN
from £957.63
from £957.63
# 028
MPN: 125521
OR RING
(minimum order quantity = 2)
from £7.42
from £7.42
# 029
MPN: 100332
SUMP FILTER
from £9.15
from £9.15
This part replaces part number 240387 - and 9 more. Click to view details
# 030
MPN: 148676
OIL THERMISTOR
from £99.20
from £99.20
# 031
MPN: 107003
PROTECTION CAP
from £5.79
from £5.79
# 032
MPN: 12574211
NUT
from £0.71
from £0.71
# 033
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 034
MPN: 10300771
FUEL DRAIN PLUG
from £0.69
from £0.69
# 035
MPN: 138150
UNION
from £17.34
from £17.34
# 036
MPN: 144487
GASKET
from £18.15
from £18.15
# 037
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 038
MPN: 107978
PAD
from £1.07
from £1.07
# 039
MPN: 107979
CAP
from £1.08
from £1.08
# 040
MPN: 107980
BUSH
from £1.55
from £1.55
# 041
MPN: 123029
SCREW
from £0.47
from £0.47
# 042
MPN: 154568

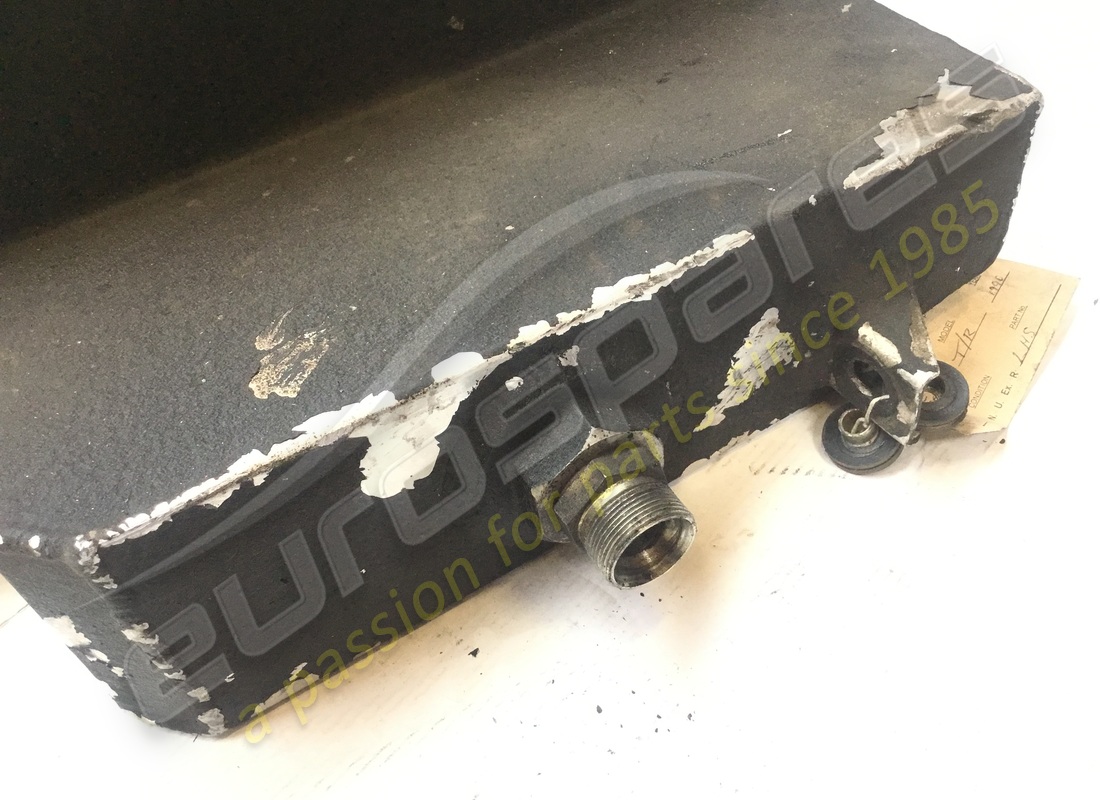

OIL RADIATOR
from £695.18
from £695.18
This part replaces part number 148519 - and 3 more. Click to view details
# 043
MPN: 102947
BUFFER
from £6.92
from £6.92
This part replaces part number 102007 - and 14 more. Click to view details
# 044
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 045
MPN: 12643724
WASHER
from £0.50
from £0.50
This part replaces part number 109684 - and 3 more. Click to view details
# 046
MPN: 149548
BRACKET
from £1.76
from £1.76
# 047
MPN: 16296924
SCREW
from £0.53
from £0.53
This part replaces part number 289834
# 048
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 049
MPN: 149533
GASKET
from £63.38
from £63.38
This part replaces part number 118059
# 050
MPN: 149339
CONVEYOR
from £18.08
from £18.08
# 051
MPN: 10902521
SCREW
from £0.71
from £0.71
# 052
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 053
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 054
MPN: 10397480
CABLE GROMMET
from £1.86
from £1.86
# 055
MPN: 125708
PIN
from £17.46
from £17.46
# 056
MPN: 108242
WASHER
from £1.64
from £1.64
# 057
MPN: 122826
RH CYLINDER HEAD OIL EXHAUST PORT
from £13.73
from £13.73
# 058
MPN: 149808
LH CYLINDER HEAD OIL EXHAUST PORT
from £35.02
from £35.02
# 059
MPN: 150192
GASKET
from £2.72
from £2.72
This part replaces part number 122823 - and 1 more. Click to view details
# 060
MPN: 123277

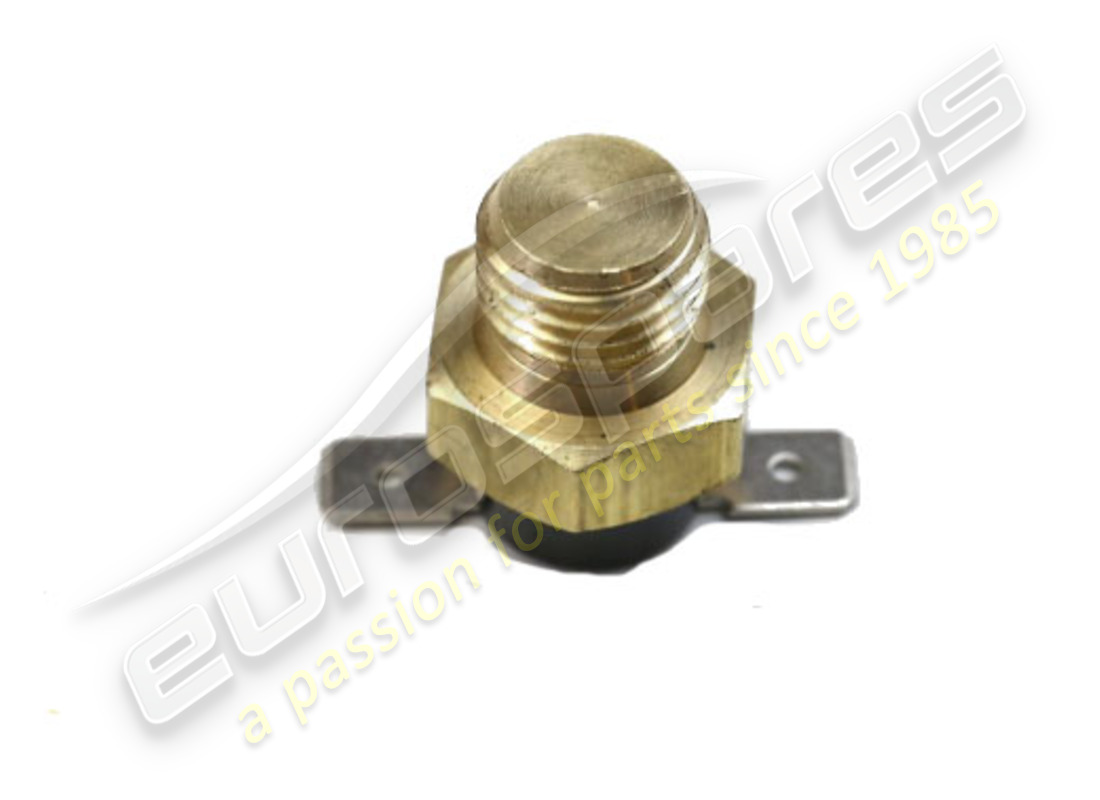

TEMPERATURE SWITCH
- Valid for CH
from £123.19
from £123.19
# 061
MPN: 140809
COPE
- Valid for CH
from £157.50
from £157.50
# 062
MPN: 153431
COMPLETE ELECTROFAN
- Valid for CH
from £56.99
from £56.99
# 063
MPN: 154223
FAN
- Valid for CH
from £143.59
from £143.59
# 064
MPN: 154224
CONVEYOR
- Valid for CH
from £106.11
from £106.11
# 065
MPN: 154225
MOTOR
- Valid for CH
from £125.40
from £125.40
# 066
MPN: 10902324
SCREW
- Valid for CH
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 067
MPN: 14496401
WASHER
- Valid for CH
Supersession
Supersession
# 068
MPN: 102948
NUT
- Valid for CH
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 069
MPN: 145625
GASKET
Supersession
Supersession
