026 - ClutCH Controls

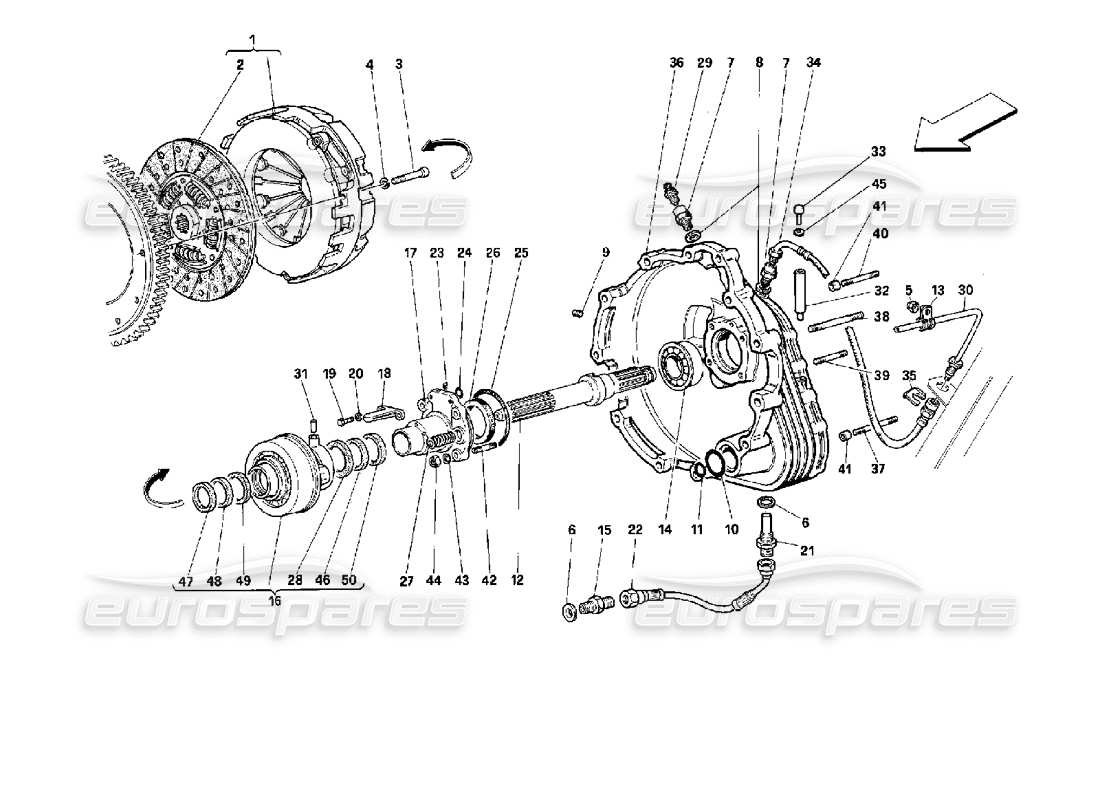

Ferrari 512 M Clutch Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 153232
CLUTCH HOUSING COMPLETE
from £826.49
from £826.49
This part replaces part number 153701 - and 3 more. Click to view details
# 001
MPN: 157030
PRESSURE PLATE
- Not as spare part - With complete clutch 194775
Supersession
Supersession
# 001
MPN: 194775
COMPLETE CLUTCH
from £1,567.58
from £1,567.58
This part replaces part number 153724 - and 1 more. Click to view details
# 002
MPN: 138961
CLUTCH DISC
Supersession
Supersession
# 002
MPN: 194776
CLUTCH DISC
from £659.56
from £659.56
This part replaces part number 153721
# 003
MPN: 14305934
SCREW
from £0.78
from £0.78
This part replaces part number 14305931
# 004
MPN: 10569279
WASHER
from £0.71
from £0.71
# 005
MPN: 12575411
NUT
Supersession
Supersession
# 006
MPN: 153722
GASKET
from £6.80
from £6.80
# 007
MPN: 148604
UNION
from £60.04
from £60.04
This part replaces part number 126496
# 008
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 009
MPN: 14326150
PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 010
MPN: 104756
SEALING RING
from £5.98
from £5.98
# 011
MPN: 104747
SEALING RING
from £1.15
from £1.15
# 012
MPN: 151945
CLUTCH SHAFT
from £439.60
from £439.60
# 013
MPN: 10440990
BRACKET
from £0.79
from £0.79
# 014
MPN: 155694
BEARING
from £83.86
from £83.86
This part replaces part number 149774
# 015
MPN: 153905
UNION
from £42.81
from £42.81
# 016
-
THRUST BEARING
# 016
MPN: 160852
THRUST BEARING COMPLETE
- Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 70000836
# 016
MPN: 177201
THRUST BEARING
(without seals)
from £495.00
from £495.00
This part replaces part number 177202
# 017
MPN: 154511
BUSH SUPPORTING FLANGE
from £1,041.98
from £1,041.98
# 018
MPN: 151693
PLATE
from £65.93
from £65.93
# 019
MPN: 10977521
SCREW
from £0.53
from £0.53
This part replaces part number 10977501 which we have in stock - and 1 more. Click to view details
# 020
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
# 021
MPN: 153708
UNION
from £56.57
from £56.57
# 022
MPN: 153759
OIL CONNECTION PIPE
from £147.53
from £147.53
# 023
MPN: 65928500
PLUG
from £23.78
from £23.78
This part replaces part number 10267550
# 024
MPN: 166432
O.R. GASKET
from £0.53
from £0.53
# 025
MPN: 121814
SEALING RING
from £7.83
from £7.83
# 026
MPN: 138680
SEALING RING
from £35.49
from £35.49
This part replaces part number 125461 - and 1 more. Click to view details
# 027
MPN: 155207
SPRING
from £2.25
from £2.25
# 028
MPN: 154508
SEALING RING
from £22.87
from £22.87
# 029
MPN: 121699
BLEEDER SCREW
from £11.66
from £11.66
# 030
MPN: 147973
PIPE FROM 2 WAY UNION TO FLEXIBLE
from £57.54
from £57.54
# 031
MPN: 13904970
PIN
from £0.80
from £0.80
# 032
MPN: 109789
EXTENSION FOR BREATHER
from £31.07
from £31.07
# 033
MPN: 13414691
BREATHER
from £5.57
from £5.57
# 034
MPN: 124840
FLEXIBLE HOSE FOR CLUTCH HYDRAULIC CONTROL
from £1,168.53
from £1,168.53
# 035
MPN: 110810
PIPE SECURING PLATE
from £1.40
from £1.40
This part replaces part number 994922
# 036
MPN: 153701
CLUTCH HOUSING
- Not as spare parts - With assembly 153232
Supersession
Supersession
# 037
MPN: 13544324
STUD
from £8.56
from £8.56
This part replaces part number 13544321
# 038
MPN: 13544524
STUD
from £32.73
from £32.73
This part replaces part number 13544521
# 039
MPN: 13544024
STUD
from £0.48
from £0.48
This part replaces part number 13544021
# 040
MPN: 13544224
STUD
from £4.98
from £4.98
This part replaces part number 13517821 which we have in stock - and 1 more. Click to view details
# 041
MPN: 102704
DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 042
MPN: 13516624
STUD
from £0.69
from £0.69
This part replaces part number 13516621 which we have in stock
# 043
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 044
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 045
MPN: 13415400
OIL DEFLECTOR DISC
from £0.47
from £0.47
# 046
MPN: 154507
SEALING RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 047
MPN: 154550
SEALING RING
from £12.51
from £12.51
This part replaces part number 144550
# 048
MPN: 154504
SEALING RING
from £3.63
from £3.63
# 049
MPN: 154505
SEALING RING
from £6.89
from £6.89
# 050
MPN: 154551
SEALING RING
from £16.63
from £16.63
