033 - Lay Shaft Gears

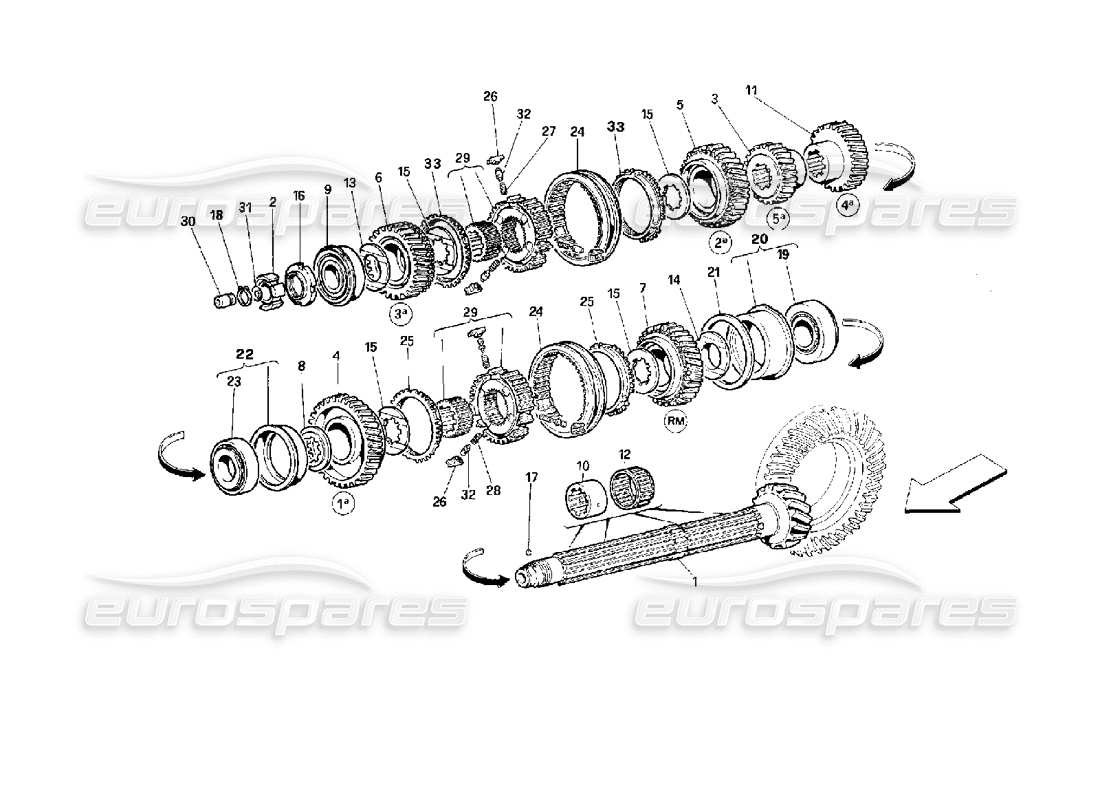

Ferrari 512 M Lay Shaft Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 110013
PINION SHAFT (RATIO 14/45)
use : 110016
Supersession
Supersession
# 001
MPN: 163745
Driven Shaft
- Not as spare parts - With crown gear and pinion 168969
# 002
MPN: 116352
TOOTHED WHEEL
- Valid till gearbox Nr. 396
from £12.82
from £12.82
# 002
MPN: 163659
TOOTHED WHEEL
- Valid from gearbox Nr. 397
from £246.17
from £246.17
# 003
MPN: 156714
5TH SPEED GEAR
from £1,885.48
from £1,885.48
# 004
MPN: 156430
1ST SPEED GEAR
from £956.65
from £956.65
# 005
MPN: 156432
2ND SPEED GEAR
from £1,258.27
from £1,258.27
# 006
MPN: 136343
3RD SPEED GEAR
from £1,104.18
from £1,104.18
# 007
MPN: 136346
REVERSE GEAR
from £498.58
from £498.58
# 008
MPN: 110177
SPACER BETWEEN 1ST SPEED AND BEARING, 6,00 MM. THICKNESS
from £17.78
from £17.78
This part replaces part number 102977
# 008
MPN: 110178
DITTO, THICKNESS 6,10 MM.
from £17.28
from £17.28
This part replaces part number 102978
# 008
MPN: 110179
DITTO, THICKNESS 6,20 MM.
from £17.93
from £17.93
This part replaces part number 102979
# 008
MPN: 110180
DITTO, THICKNESS 6,30 MM.
from £38.04
from £38.04
This part replaces part number 102980
# 008
MPN: 110181
DITTO, THICKNESS 6,40 MM.
from £32.72
from £32.72
This part replaces part number 102981
# 008
MPN: 130985
DITTO, THICKNESS 6,50 MM.
from £82.22
from £82.22
# 008
MPN: 130986
DITTO, THICKNESS 6,60 MM.
from £82.22
from £82.22
# 008
MPN: 130987
DITTO, THICKNESS 6,70 MM.
from £76.94
from £76.94
# 009
MPN: 103030
FRONT BEARING
from £128.26
from £128.26
This part replaces part number 101605 - and 2 more. Click to view details
# 010
MPN: 104704
ROLLER RACE FOR 1ST, 2ND, 3RD, SPEED AND REVERSE GEARS
from £359.61
from £359.61
# 011
MPN: 156717
4TH SPEED GEAR
from £808.39
from £808.39
# 012
MPN: 101604
ROLLER CAGE FOR 1ST 2ND 3RD SPEEDS AND REVERSE GEARS
from £72.10
from £72.10
# 013
MPN: 110176
SPACER
from £253.32
from £253.32
# 014
MPN: 110174
SPACER
from £59.65
from £59.65
# 015
MPN: 110175
SPACER
size : 36-40-3.2
from £177.36
from £177.36
# 016
MPN: 153068
RING NUT
- Valid till gearbox Nr. 396
from £70.35
from £70.35
This part replaces part number 100729 - and 1 more. Click to view details
# 016
MPN: 163670
RING NUT
- Valid from gearbox Nr. 397
from £19.86
from £19.86
# 016
MPN: 163684
RING NUT
- Valid from gearbox Nr. 397
from £10.26
from £10.26
# 017
MPN: 10-16-11
BALL
from £0.56
from £0.56
# 018
MPN: 11067376
STOP RING
from £1.08
from £1.08
This part replaces part number 11067375
# 019
MPN: 101636
BEARING, AXLE SIDE
from £92.12
from £92.12
# 020
MPN: 148669
COMPLETE BUSHING FOR BEARING
from £473.78
from £473.78
This part replaces part number 109609
# 021
MPN: 104725
CROWN GEAR AND PINION ADJUSTING SHIM 2,00 MM. THICKNESS
from £35.82
from £35.82
# 021
MPN: 104726
DITTO, THICKNESS 2,10 MM.
from £11.05
from £11.05
# 021
MPN: 104727
DITTO, THICKNESS 2,20 MM.
from £10.72
from £10.72
# 021
MPN: 104728
DITTO, THICKNESS 2,30 MM.
from £19.34
from £19.34
# 021
MPN: 104729
DITTO, THICKNESS 2,40 MM.
from £21.59
from £21.59
# 021
MPN: 130979
DITTO, THICKNESS 2,50 MM.
from £15.45
from £15.45
# 021
MPN: 130980
DITTO, THICKNESS 2,60 MM.
from £40.72
from £40.72
# 021
MPN: 130981
DITTO, THICKNESS 2,70 MM.
from £13.23
from £13.23
# 021
MPN: 130982
DITTO, THICKNESS 2,80 MM.
from £15.58
from £15.58
# 021
MPN: 130983
DITTO, THICKNESS 2,90 MM.
from £14.47
from £14.47
# 021
MPN: 130984
DITTO, THICKNESS 3,00 MM.
from £12.19
from £12.19
# 022
MPN: 148670
COMPLETE BEARING CASE
from £222.34
from £222.34
This part replaces part number 104730
# 023
MPN: 103031
CENTER BEARING
from £168.43
from £168.43
# 024
MPN: 131804
SLEEVE FOR SYNCHRONIZER
from £1,067.17
from £1,067.17
# 025
MPN: 156842
SYNCHROMESH RING FOR 1ST AND REVERSE GEARS
Supersession
Supersession
# 026
MPN: 106042
INSERT FOR SYNCHRONIZER
from £77.52
from £77.52
# 027
MPN: 154424
SPRING FOR PINS
from £1.44
from £1.44
This part replaces part number 148248
# 028
MPN: 144670
SPRING FOR PINS
from £0.74
from £0.74
# 029
MPN: 146230
SYNCHRONIZER WITH BUSHING
from £338.83
from £338.83
This part replaces part number 104711 which we have in stock
# 030
MPN: 104745
BUSHING
from £38.29
from £38.29
# 031
MPN: 105329
SEAL RING
from £1.45
from £1.45
# 032
MPN: 144669
PIN FOR INSERT
from £27.83
from £27.83
# 033
MPN: 106040
SYNCHROMESH RING
from £695.00
from £695.00
