035 - Differential & Axle Shafts

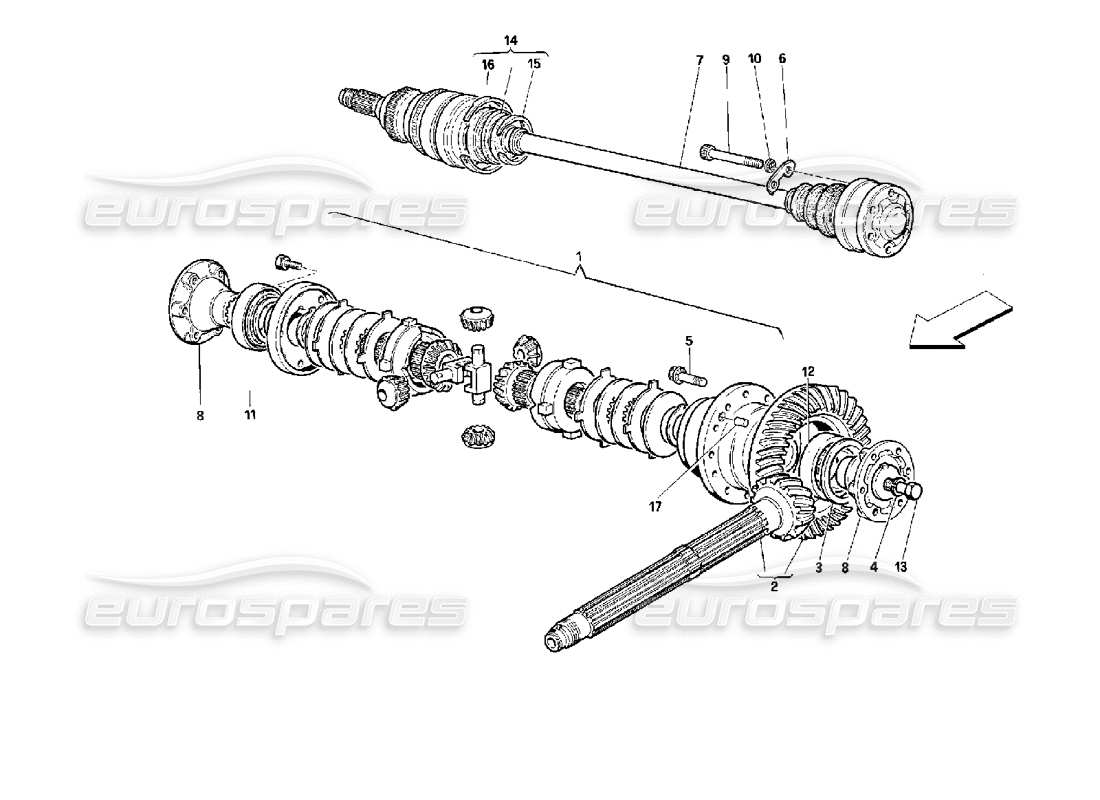

Ferrari 512 M Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 580586_523636
512M (1971) Crown Wheel & Pinion (8X34)
# 001
MPN: 155099
DIFFERENTIAL, COMPLETE
from £3,765.69
from £3,765.69
This part replaces part number 103262 - and 2 more. Click to view details
# 002
MPN: 110013
PINION SHAFT (RATIO 14/45)
use : 110016
Supersession
Supersession
# 002
MPN: 110016
CROWN WHEEL & PINION (RATIO 14/45)
from £10,198.77
from £10,198.77
This part replaces part number 110013 - and 2 more. Click to view details
# 003
MPN: 103422
DITTO THICKNESS MM. 2,40
from £52.02
from £52.02
# 003
MPN: 103423
DITTO THICKNESS MM. 2,60
from £90.41
from £90.41
# 003
MPN: 103424
SPACER FOR LH DIFFERENTIAL SUPPORT BEARING, 2,862 MM. THICKNESS
from £103.92
from £103.92
This part replaces part number 103231
# 003
MPN: 103424
DITTO THICKNESS MM. 2,80
from £103.92
from £103.92
This part replaces part number 103231
# 003
MPN: 103425
DITTO THICKNESS MM. 3,00
from £52.02
from £52.02
# 003
MPN: 103426
DITTO THICKNESS MM. 3,20
from £110.82
from £110.82
# 003
MPN: 132923
DITTO THICKNESS MM. 2,45
from £52.02
from £52.02
# 003
MPN: 132924
DITTO THICKNESS MM. 2,50
from £50.40
from £50.40
# 003
MPN: 132925
DITTO THICKNESS MM. 2,55
from £52.02
from £52.02
# 003
MPN: 132926
DITTO THICKNESS MM. 2,65
from £52.92
from £52.92
# 003
MPN: 132927
DITTO THICKNESS MM. 2,70
from £54.69
from £54.69
# 003
MPN: 132928
DITTO THICKNESS MM. 2,75
from £74.31
from £74.31
# 003
MPN: 132929
DITTO THICKNESS MM. 2,85
from £89.21
from £89.21
# 003
MPN: 132930
DITTO THICKNESS MM. 2,90
from £134.34
from £134.34
# 003
MPN: 132931
DITTO THICKNESS MM. 2,95
from £48.00
from £48.00
# 004
MPN: 153594
WASHER
from £2.00
from £2.00
# 005
MPN: 153710
SCREW
- Valid till stock exhaustion
Supersession
Supersession
# 005
MPN: 171275
SCREW
- Valid after stock exhaustion of 153710
from £27.02
from £27.02
This part replaces part number 153710
# 006
MPN: 149415
PLATE
from £1.07
from £1.07
# 007
MPN: 165070
AXLE SHAFT ASSY
- Valid after stock exhaustion of 143082
from £1,023.55
from £1,023.55
This part replaces part number 143082
# 008
MPN: 139898
AXLE SHAFT SECURING FLANGE
from £84.79
from £84.79
# 009
MPN: 223916
SCREW
from £1.34
from £1.34
This part replaces part number 181910
# 010
MPN: 160092
WASHER
from £0.50
from £0.50
# 011
MPN: 125390
BEARING FOR DIFFERENTIAL SUPPORT FOR RH COVER
from £92.56
from £92.56
# 012
MPN: 101634
BEARING FOR DIFFERENTIAL SUPPORT FOR LH COVER
from £88.10
from £88.10
This part replaces part number 580881
# 013
MPN: 153593
SCREW
from £3.77
from £3.77
# 014
MPN: 70000868
PROTECTION REPLACEMENT SET
- Wheel side
from £66.94
from £66.94
This part replaces part number 70000782
# 014
MPN: 70006022
PROTECTION REPLACEMENT SET
from £54.95
from £54.95
This part replaces part number 70000867
# 015
MPN: 154213
LITTLE CLAMP
from £2.35
from £2.35
This part replaces part number 167570
# 016
MPN: 172347
BIG CLAMP
from £3.94
from £3.94
This part replaces part number 154214 - and 1 more. Click to view details
# 017
MPN: 13916370
PARALLELL PIN
from £0.47
from £0.47
