036 - Brake Hydraulic System -Not for GD-
Ferrari 512 M Brake Hydraulic System -Not for GD- Parts Diagram

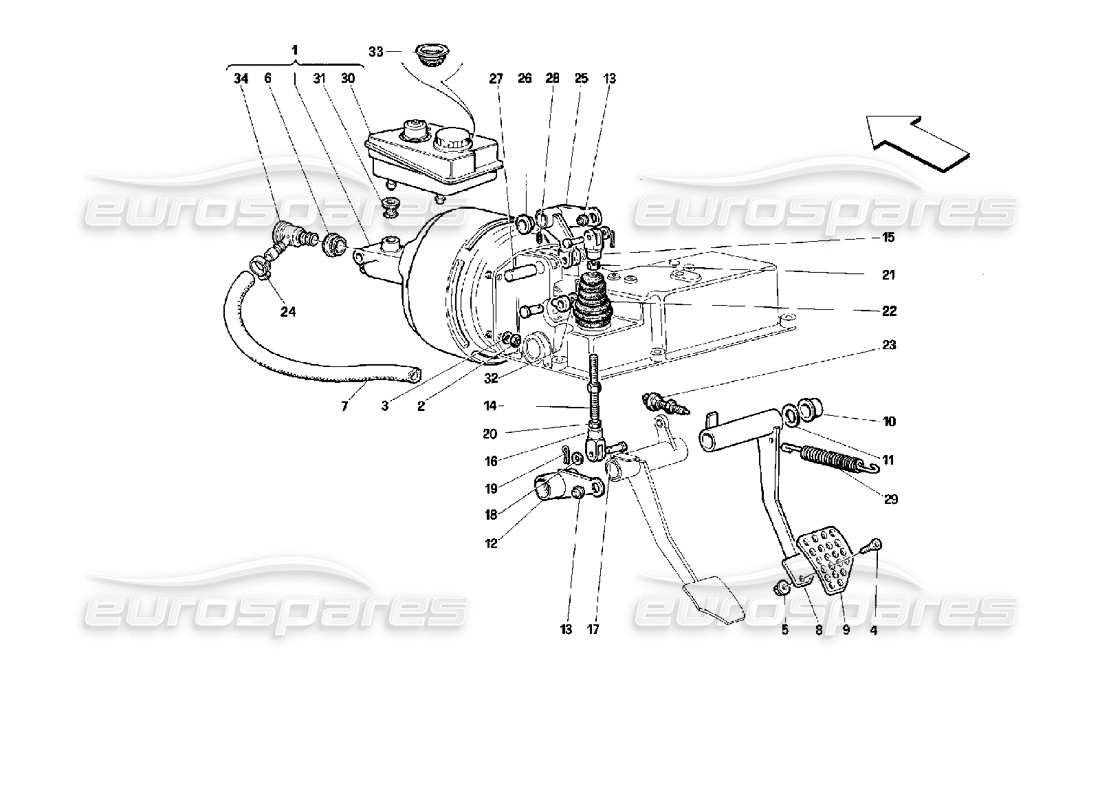

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 151471
LHD BRAKE SERVO & PUMP
from £1,200.00
from £1,200.00
This part replaces part number 133568 - and 7 more. Click to view details
# 002
MPN: 101139
NUT
from £0.53
from £0.53
This part replaces part number 16104425
# 003
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 004
MPN: 14441324
SCREW
from £0.53
from £0.53
# 005
MPN: 14058411
NUT
from £0.53
from £0.53
# 006
MPN: 151475
CABLE GROMMET
from £5.99
from £5.99
# 007
MPN: 151477
RUBBER HOSE
from £37.08
from £37.08
# 008
MPN: 163882
BRAKE PEDAL
from £155.49
from £155.49
# 009
MPN: 163865
PLATE
from £78.77
from £78.77
# 010
MPN: 124686
BUSH
from £4.76
from £4.76
# 011
MPN: 112127
SHIM 0,9 MM.
from £0.54
from £0.54
# 011
MPN: 112128
SHIM 1,0 MM.
from £24.35
from £24.35
# 011
MPN: 112129
SHIM 1,1 MM.
from £0.54
from £0.54
# 011
MPN: 112130
SHIM 1,2 MM.
from £0.57
from £0.57
# 011
MPN: 112131
SHIM 1,3 MM.
from £0.54
from £0.54
# 012
MPN: 121217
BRAKE RELAY LEVER
from £25.21
from £25.21
# 013
MPN: 100424
BALL JOINT
from £62.27
from £62.27
# 014
MPN: 148822
TIE ROD
from £13.83
from £13.83
# 015
MPN: 104910
FORK, RH THREAD
from £4.22
from £4.22
# 016
MPN: 104911
FORK, LH THREAD
from £10.33
from £10.33
# 017
MPN: 10033414
PIN
from £8.63
from £8.63
This part replaces part number 10033411 which we have in stock
# 018
MPN: 103167
WASHER
from £1.97
from £1.97
# 019
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 020
MPN: 11690911
NUT, LH THREAD
from £1.32
from £1.32
# 021
MPN: 10788711
NUT, RH THREAD
from £0.39
from £0.39
This part replaces part number 100965 which we have in stock - and 1 more. Click to view details
# 022
MPN: 112157
BELLOWS
from £0.49
from £0.49
# 023
MPN: 133555
STOP LIGHT SWITCH
from £18.60
from £18.60
# 024
MPN: 13000390
CLAMP
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
# 025
MPN: 148788
BRAKE BOOSTER CONTROL LEVER
from £118.93
from £118.93
# 026
MPN: 124586
BUSH
from £5.58
from £5.58
# 027
MPN: 124714
RELAY LEVER SUPPORTING PIN
from £52.24
from £52.24
# 028
MPN: 13736911
SCREW
from £0.47
from £0.47
# 029
MPN: 104895
PEDAL RETURN SPRING
from £2.97
from £2.97
# 030
MPN: 108802/A
BRAKE RESERVOIR
from £74.58
from £74.58
This part replaces part number 119566 which we have in stock - and 1 more. Click to view details
# 031
MPN: 175189
SEAL RING
from £13.70
from £13.70
This part replaces part number 106625
# 032
MPN: 10730514
WASHER
from £0.54
from £0.54
This part replaces part number 10730521 which we have in stock
# 033
MPN: 120735
FILTER
from £0.66
from £0.66
# 034
MPN: 144552
UNION
from £1.76
from £1.76
