044 - Steering Column

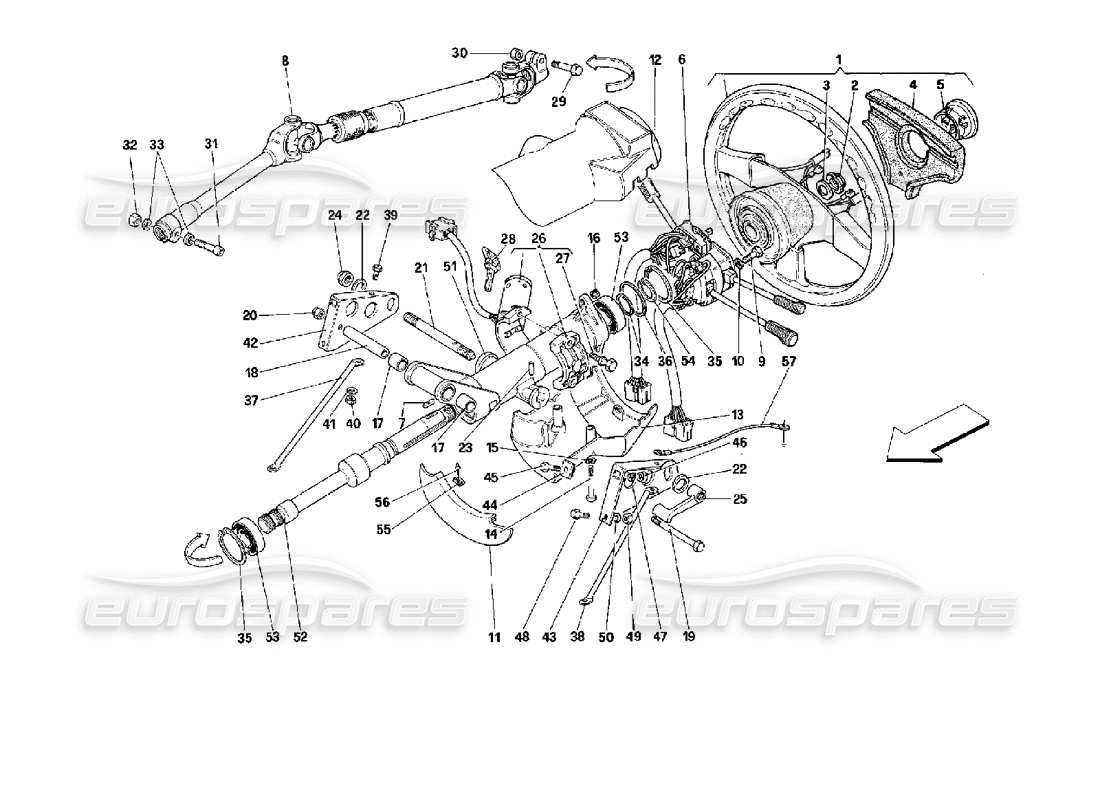

Ferrari 512 M Steering Column Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165946
STEERING WHEEL COMPLETE
from £2,995.00
from £2,995.00
This part replaces part number 148457 - and 1 more. Click to view details
# 002
MPN: 101648
RING NUT
from £2.33
from £2.33
This part replaces part number 106082
# 003
MPN: 12601779
WASHER
Supersession
Supersession
# 004
MPN: 164255
STEERING WHEEL COVER
from £104.23
from £104.23
# 005
MPN: 137819
ELECTRIC HORN PUSH BUTTON
- Valid for steering wheel 167566
from £124.26
from £124.26
# 005
MPN: 164256
ELECTRIC HORN PUSH BUTTON
- Valid for steering wheel 165946
from £11.41
from £11.41
# 006
MPN: 148656
UNHOOK DEVIATION ASSEMBLY
- Valid for USA and J
from £206.15
from £206.15
# 006
MPN: 150540
UNHOOK DEVIATION ASSEMBLY
- Not for USA and J
from £2,542.38
from £2,542.38
# 007
MPN: 101106
TONGUE
from £4.55
from £4.55
This part replaces part number 94628
# 008
MPN: 146374
CARDANIC TRANSMISSION
from £675.64
from £675.64
# 009
MPN: 13274972
SCREW
from £1.27
from £1.27
This part replaces part number 13274911 - and 1 more. Click to view details
# 010
MPN: 12601179
WASHER
Supersession
Supersession
This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
# 011
MPN: 63093800
STEERING COLUMN RUBBER PROTECTION
from £8.06
from £8.06
# 012
MPN: 121580
UPPER STEERING COLUMN COVER
from £68.61
from £68.61
# 013
MPN: 121581
LOWER STEERING COLUMN COVER
from £192.56
from £192.56
# 014
MPN: 13275217
SCREW
from £1.18
from £1.18
This part replaces part number 14063014
# 015
MPN: 12601179
WASHER
Supersession
Supersession
This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
# 016
MPN: 13525170
HELI COIL
from £0.51
from £0.51
# 017
MPN: 121588
BUSH
from £2.11
from £2.11
# 018
MPN: 121589
PIPE
from £13.83
from £13.83
# 019
MPN: 16045021
SCREW
Supersession
Supersession
# 020
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 021
MPN: 120988
SHAFT
from £6.23
from £6.23
# 022
MPN: 114865
WASHER
from £1.14
from £1.14
This part replaces part number 112109
# 023
MPN: 14163870
PIN
from £1.18
from £1.18
# 024
MPN: 102825
NUT
from £0.53
from £0.53
This part replaces part number 95900617
# 025
MPN: 131487
LEVER
from £24.48
from £24.48
# 026
MPN: 164282
COMPLETE ANTI THEFT SYSTEM
- Not for USA and CDN - Doors locks set included
Supersession
Supersession
This part replaces part number 61507000 which we have in stock - and 1 more. Click to view details
# 026
MPN: 164283
LOCKS SET WITH KEY
- Valid for USA and CDN - Doors locks set included
from £640.34
from £640.34
This part replaces part number 164282 - and 3 more. Click to view details
# 027
MPN: 121611
SCREW
from £0.76
from £0.76
# 028
MPN: 95401152
BLANK KEY
from £15.43
from £15.43
This part replaces part number 61507100
# 029
MPN: 150427
SCREW
from £3.87
from £3.87
This part replaces part number 150428 which we have in stock
# 030
MPN: 150428
NUT
from £0.58
from £0.58
# 031
MPN: 125518
SCREW
from £1.23
from £1.23
This part replaces part number 103371
# 032
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 033
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 034
MPN: 134070
WASHER THICK. 1 MM
from £2.48
from £2.48
# 034
MPN: 134071
WASHER THICK. 1,1 MM
- Possible mounting
from £1.14
from £1.14
# 034
MPN: 134072
WASHER THICK. 1,2 MM
- Possible mounting
from £1.13
from £1.13
# 034
MPN: 134073
WASHER THICK. 1,3 MM
- Possible mounting
from £1.27
from £1.27
# 034
MPN: 134074
WASHER THICK. 1,4 MM
- Possible mounting
from £4.02
from £4.02
# 035
MPN: 11060076
SEEGER RING
from £0.51
from £0.51
# 036
MPN: 134065
WASHER THICK. 1 MM
from £1.35
from £1.35
# 036
MPN: 134066
WASHER THICK. 1,1 MM
- Possible mounting
from £0.74
from £0.74
# 036
MPN: 134067
WASHER THICK. 1,2 MM
- Possible mounting
from £1.16
from £1.16
# 036
MPN: 134068
WASHER THICK. 1,3 MM
- Possible mounting
from £1.06
from £1.06
# 036
MPN: 134069
WASHER THICK. 1,4 MM
- Possible mounting
from £1.20
from £1.20
# 037
MPN: 123382
RH TIE ROD
from £16.79
from £16.79
# 038
MPN: 123383
LH TIE ROD
from £137.54
from £137.54
# 039
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 040
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 041
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 042
MPN: 120990
RH BRACKET
from £8.09
from £8.09
# 043
MPN: 120991
LH BRACKET
from £8.09
from £8.09
# 044
MPN: 124826
PLATE
from £14.47
from £14.47
# 045
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 046
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 047
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 048
MPN: 16043221
SCREW
from £0.54
from £0.54
This part replaces part number 13842414 - and 1 more. Click to view details
# 049
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 050
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details

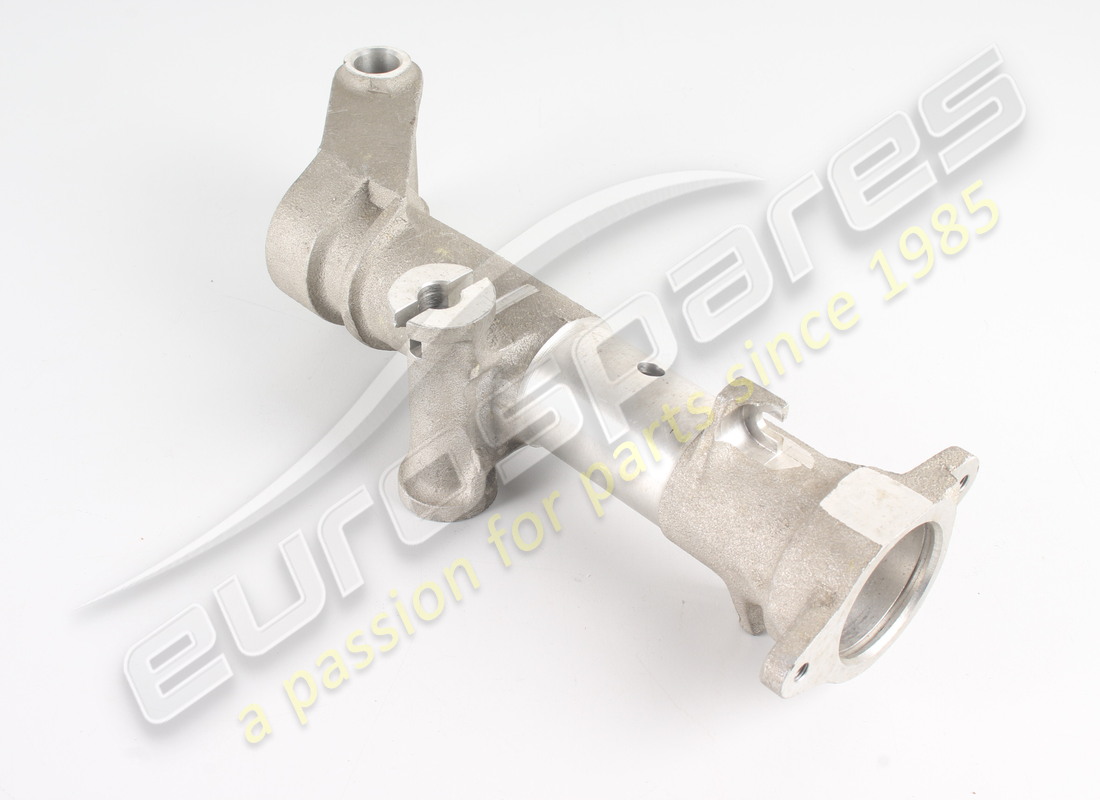

# 051
MPN: 136024
STEERING COLUMN SUPPORT
from £682.82
from £682.82

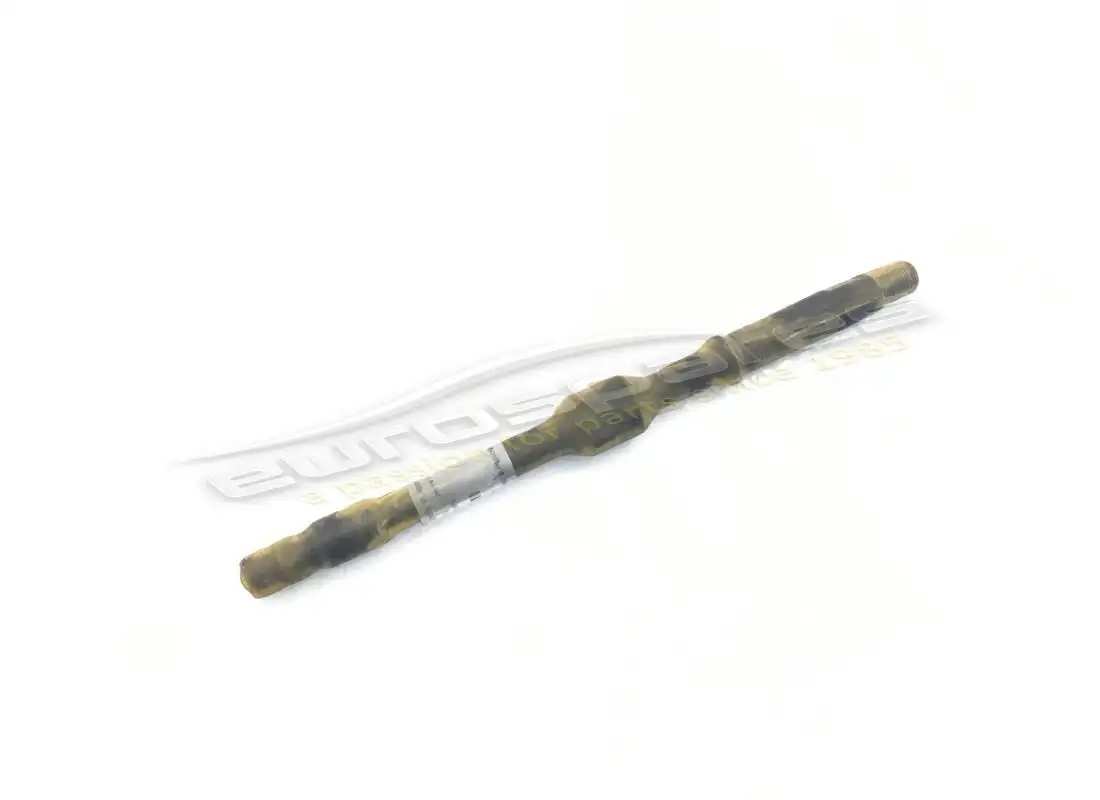

# 052
MPN: 138710
UPPER SHAFT
from £389.58
from £389.58
# 053
MPN: 134061
BEARING
from £8.82
from £8.82
This part replaces part number 119213
# 054
MPN: 11066876
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066875
# 055
MPN: 62770100
SPRING
from £1.14
from £1.14
# 056
MPN: 62772500
RIVET
from £0.47
from £0.47
# 057
MPN: 125694
GROUND CABLE
from £0.90
from £0.90
