050 - Battery

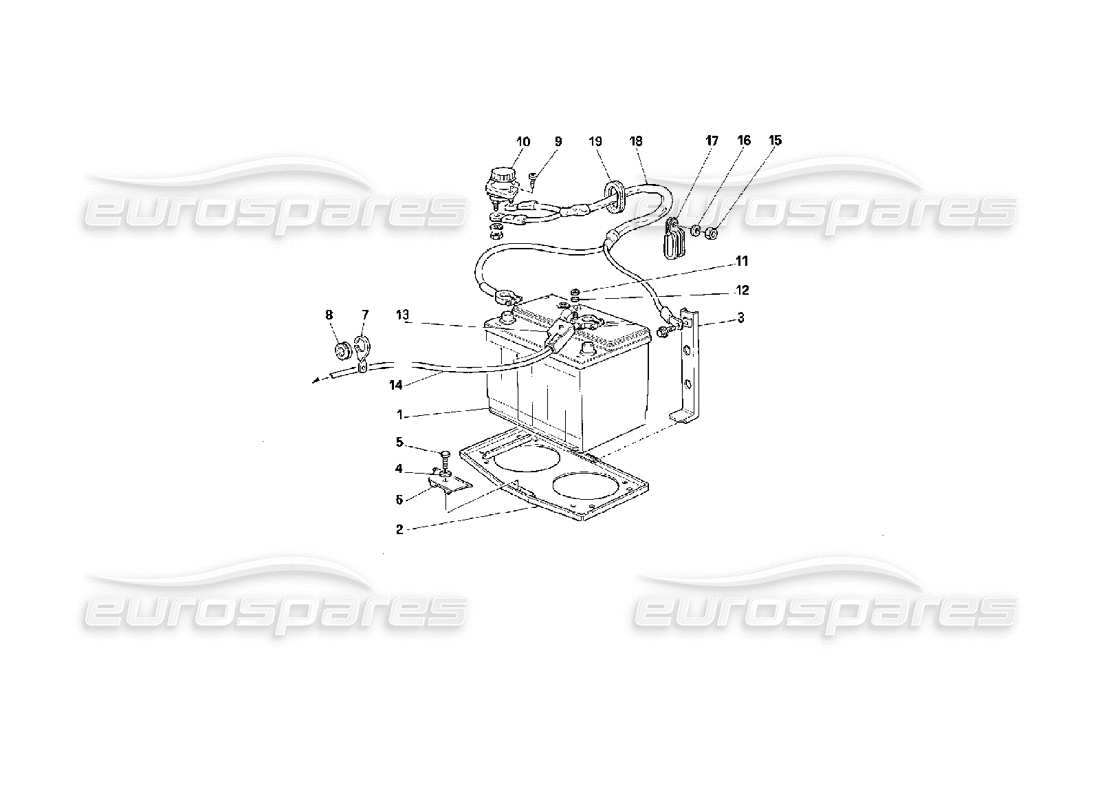

Ferrari 512 M Battery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 157496
Battery
Supersession
Supersession
# 002
MPN: 64675600
PLATE SUPPORT
Supersession
Supersession
# 003
MPN: 64675700
BATTERY PLATE SUPPORT
from £180.91
from £180.91
# 004
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 16043534
SCREW
from £0.53
from £0.53
This part replaces part number 16043521 which we have in stock - and 1 more. Click to view details
# 006
MPN: 62573400
BRACKET
from £22.50
from £22.50
# 007
MPN: 105900
CABLE SUPPORT BRACKET
from £8.86
from £8.86
# 008
MPN: 10396580
CABLE GROMMET
from £1.08
from £1.08
This part replaces part number 100286
# 009
MPN: 15688178
SCREW
from £1.29
from £1.29
# 010
MPN: 139607
BATTERY DISCONNECTING SWITCH
Supersession
Supersession
# 011
MPN: 147985
NUT
from £0.54
from £0.54
# 012
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 013
MPN: 144727
PROTECTION CAP FOR POSITIVE TERMINAL
Supersession
Supersession
This part replaces part number 123674/T - and 1 more. Click to view details
# 014
MPN: 164416
CABLE FROM BATTERY TO CONNECTION BOX
from £220.44
from £220.44
# 015
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 016
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 017
MPN: 61712500
BRACKET
from £1.04
from £1.04
# 018
MPN: 162911
CABLES FOR DISCONNECTING SWITCH
from £89.29
from £89.29
# 019
MPN: 163164
CABLE GROMMET
from £8.78
from £8.78
