053 - AIR CONDITIONING COMPRESSOR

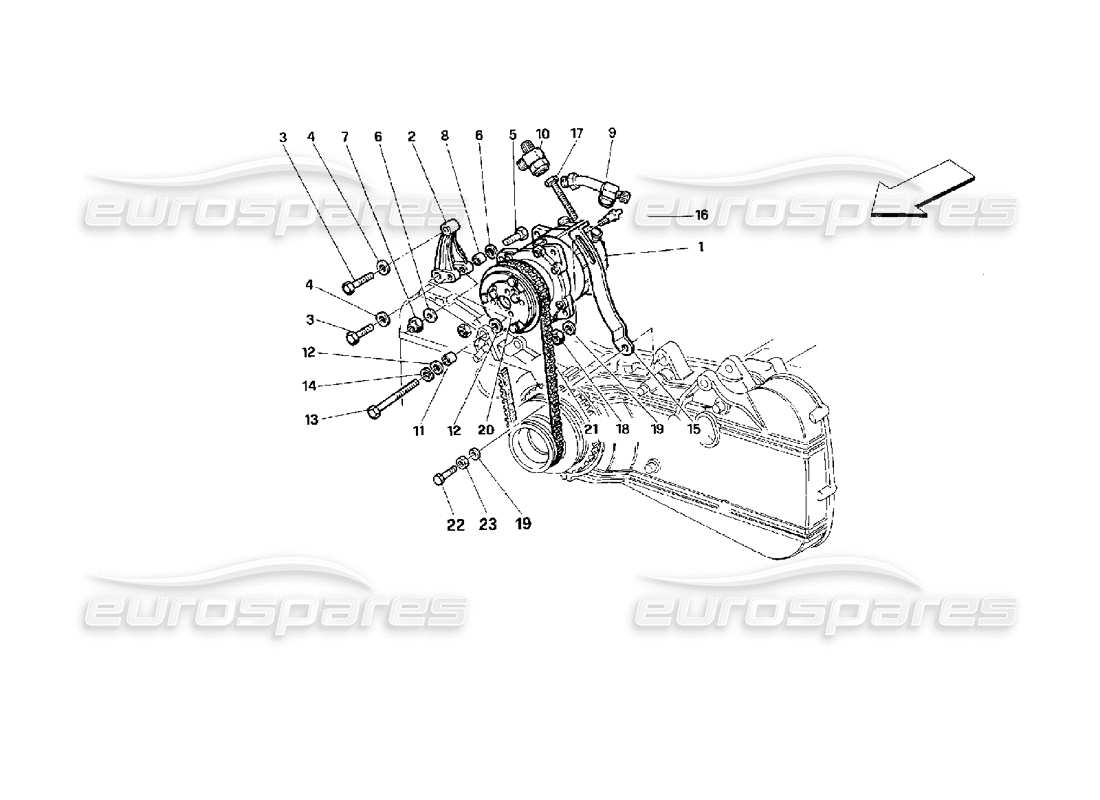

Ferrari 512 M Air Conditioning Compressor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 161891

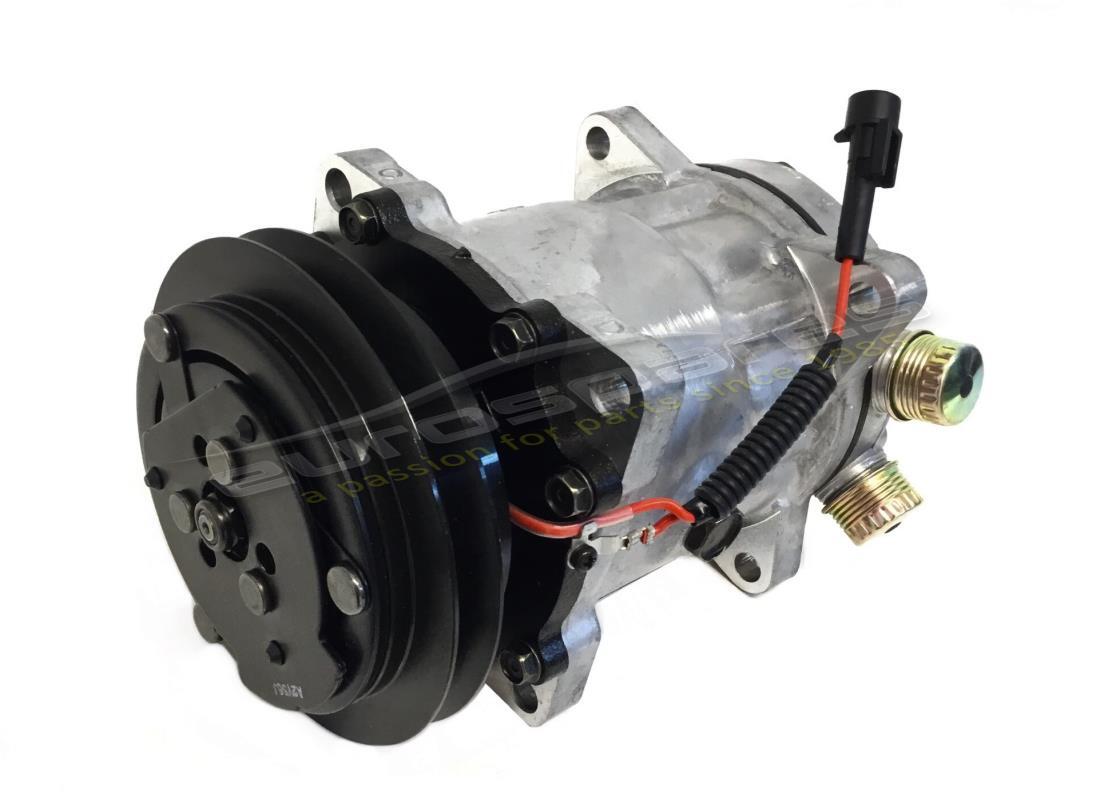

COMPRESSOR
from £1,039.50
from £1,039.50
# 002
MPN: 122963
SUPPORT
from £40.30
from £40.30
# 003
MPN: 121537
SCREW
from £2.81
from £2.81
This part replaces part number 121573
# 004
MPN: 12601474
WASHER
from £0.54
from £0.54
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 005
MPN: 11288021
SCREW
Supersession
Supersession
# 006
MPN: 14496601
WASHER
Supersession
Supersession
# 007
MPN: 12574511
NUT
from £0.47
from £0.47
# 008
MPN: 123180
DOWEL
from £1.27
from £1.27
# 009
MPN: 162636
INTAKE UNION
from £67.84
from £67.84
# 010
MPN: 162637
OUTLET UNION
from £71.33
from £71.33
# 011
MPN: 121100
BUSHING
from £2.11
from £2.11
# 012
MPN: 103025
WASHER
from £23.18
from £23.18
# 013
MPN: 15541721
SCREW
from £0.91
from £0.91
# 014
MPN: 106854
WASHER
Supersession
Supersession
# 015
MPN: 123181
TENSION ADJUSTING BRACKET
from £45.86
from £45.86
# 016
MPN: 123188
PIN FOR ADJUSTING BRACKET
from £214.77
from £214.77
# 017
MPN: 125668
TENSION ADJUSTING SCREW
from £0.86
from £0.86
# 018
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 019
MPN: 14496501
WASHER
from £0.86
from £0.86
# 020
MPN: 123813
ELECTROMAGNETIC JOINT
from £677.89
from £677.89
# 021
MPN: 122973
COMPRESSOR BELT
from £67.68
from £67.68
This part replaces part number 122417
# 022
MPN: 15970921
SCREW
from £0.47
from £0.47
# 023
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
