101 - Body - External Components

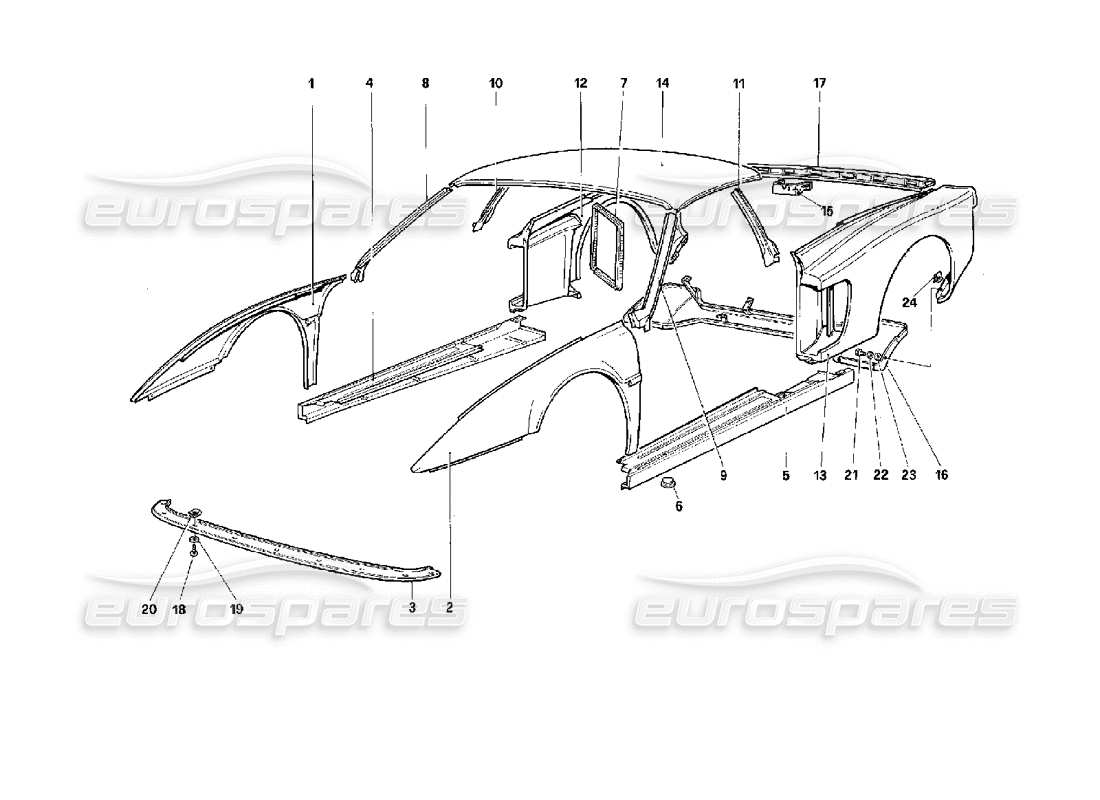

Ferrari 512 M Body - External Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 64675900
RH FRONT FENDER
- Not for USA
from £1,630.47
from £1,630.47
# 001
MPN: 64676100
RH FRONT FENDER
- Valid for USA
from £1,413.49
from £1,413.49
# 002
MPN: 64676000
LH FRONT FENDER
- Not for USA
from £1,630.47
from £1,630.47
# 002
MPN: 64676200
LH FRONT FENDER
- Valid for USA
from £1,413.49
from £1,413.49
# 003
MPN: 63024600
SIDE COVERING PLATE
from £1,059.33
from £1,059.33
# 004
MPN: 61477300
RIGHT UNDERDOOR RAIL, COMPLETE TESTA ROSSA
Supersession
Supersession
# 004
MPN: 61557600
RH UNDERDOOR RAIL, COMPLETE
from £647.24
from £647.24
This part replaces part number 61477300
# 005
MPN: 61557700
LH UNDERDOOR RAIL, COMPLETE
from £1,949.97
from £1,949.97
This part replaces part number 61477400
# 006
MPN: 14507087
PLUG
from £0.99
from £0.99
# 007
MPN: 149517
GASKET
from £10.55
from £10.55
# 008
MPN: 61477500
RH PILLAR FOR WINDSHIELD
from £110.09
from £110.09
# 009
MPN: 61477600
LH PILLAR FOR WINDSHIELD
from £77.06
from £77.06
# 010
MPN: 61477700
PILLAR FOR RH SIDE WINDOW
from £80.92
from £80.92
# 011
MPN: 61477800
PILLAR FOR LH SIDE WINDOW
from £80.92
from £80.92
# 012
MPN: 62925600
RH REAR FENDER
- Valid for USA and CDN
from £13,492.50
from £13,492.50
# 012
MPN: 62925800
RH REAR FENDER
- Not for USA and CDN
from £3,778.95
from £3,778.95
# 013
MPN: 62925700
LH REAR FENDER
- Valid for USA and CDN
from £8,846.25
from £8,846.25
# 013
MPN: 62925900
LH REAR FENDER
- Not for USA and CDN
from £7,627.12
from £7,627.12
# 014
MPN: 61478100
ROOF
from £402.20
from £402.20
# 015
MPN: 63068300
LOCK SUPPORT
- Not for GD
from £22.83
from £22.83
# 015
MPN: 63096000
LOCK SUPPORT
- Valid for GD
from £48.18
from £48.18
# 016
MPN: 63021700
RER UNDERFRAME SHIELD COMPLETE
from £2,161.02
from £2,161.02
# 017
MPN: 63077600
REAR CROSS MEMBRE COMPLETE
from £261.16
from £261.16
# 018
MPN: 15903978
SCREW
Supersession
Supersession
# 019
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 020
MPN: 62768700
SPRING
from £1.18
from £1.18
# 021
MPN: 10902324
SPRING
from £0.50
from £0.50
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 022
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.50
from £0.50
This part replaces part number 10516470 - and 4 more. Click to view details
# 023
MPN: 12643770
WASHER
from £0.71
from £0.71
# 024
MPN: 62766300
SPRING
from £0.53
from £0.53
