102 - Body - Internal Components

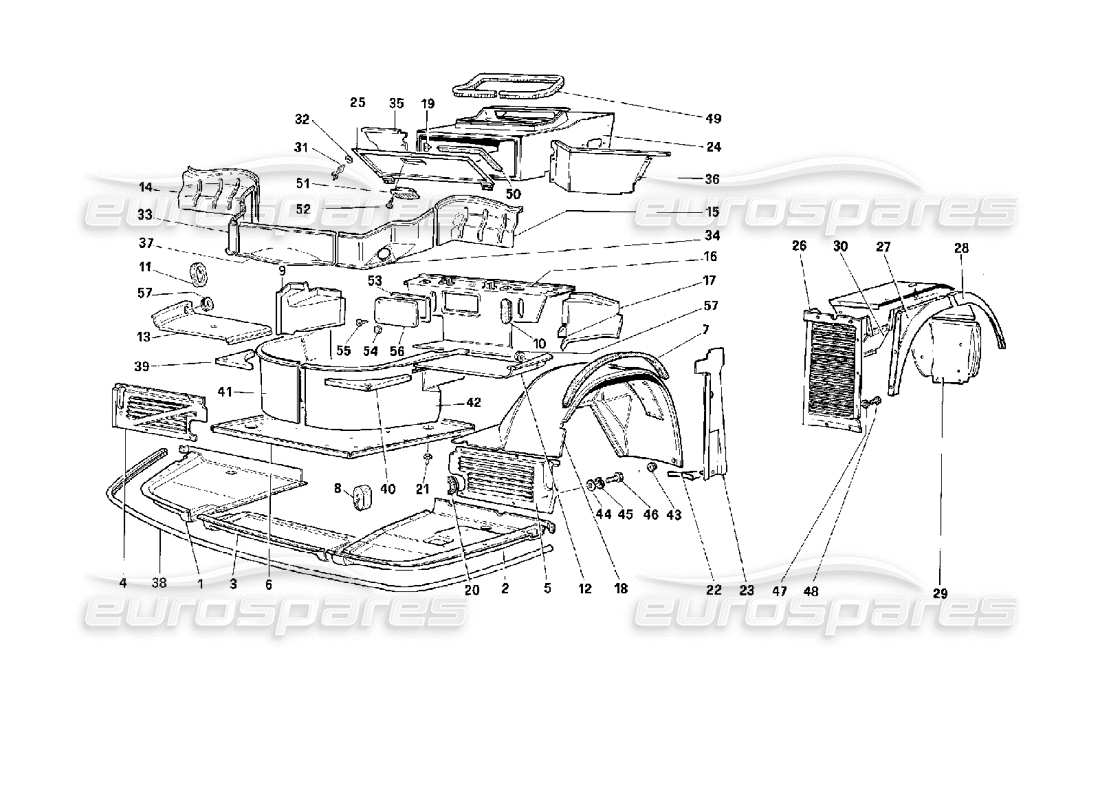

Ferrari 512 M Body - Internal Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63084600
RH SIDE GUARD FOR UNDERBODY
from £551.42
from £551.42
# 002
MPN: 63084500
LH SIDE GUARD FOR UNDERBODY
from £578.99
from £578.99
# 003
MPN: 63084200
RH FRONT CENTRAL GUARD FOR UNDERBODY
from £538.52
from £538.52
# 004
MPN: 63071000
RH BATTERY INSPECTION DOOR
Supersession
Supersession
# 005
MPN: 63926800
LH INSPECTION DOOR
from £59.98
from £59.98
This part replaces part number 63071100
# 006
MPN: 63085100
TRUNK BOTTOM PLATE
from £200.74
from £200.74
# 007
MPN: 62926100
WHEELHOUSE GASKET
from £86.48
from £86.48
# 008
MPN: 63393900
SEALANT
from £2.65
from £2.65
# 009
MPN: 61479400
RH ANGLE PIECE FOR WHEEL HOUSE
from £288.94
from £288.94
# 009
MPN: 61479500
LH ANGLE PIECE FOR WHEEL HOUSE
from £288.94
from £288.94
# 010
MPN: 62845000
PLUG
from £3.46
from £3.46
# 011
MPN: 163164
CABLE GROMMET
from £8.78
from £8.78
# 012
MPN: 64677200
LH UPPER COVER
from £260.56
from £260.56
# 013
MPN: 64677300
RH UPPER COVER
from £260.56
from £260.56
# 014
MPN: 64677400
RH REAR PANEL
from £195.83
from £195.83
# 015
MPN: 64677500
LH REAR PANEL
from £195.83
from £195.83
# 016
MPN: 63117900
REAR LUGGAGE COMPARTMENT PANEL
- Not for GD
from £221.66
from £221.66
# 016
MPN: 63419800
REAR LUGGAGE COMPARTMENT PANEL
- Valid for GD
from £217.95
from £217.95
# 017
MPN: 61480400
LH FRONT PANEL
from £77.18
from £77.18
# 017
MPN: 63461700
RH FRONT PANEL
- Not for GD
from £152.38
from £152.38
# 017
MPN: 63462000
RH FRONT PANEL
- Valid for GD
from £154.73
from £154.73
# 018
MPN: 63056100
RH FRONT WHEELHOUSE ASSEMBLY
from £320.82
from £320.82
# 018
MPN: 63056200
LH FRONT WHEELHOUSE ASSEMBLY
from £336.87
from £336.87
# 018
MPN: 63090000
RH FRONT WHEELHOUSE ASSEMBLY
from £165.46
from £165.46
# 018
MPN: 63090100
LH FRONT WHEELHOUSE ASSEMBLY
from £572.82
from £572.82
# 019
MPN: 61529200
CLIP
from £3.37
from £3.37
# 020
MPN: 62987700
GASKET
from £3.16
from £3.16
# 021
MPN: 60731300
PLUG
from £6.30
from £6.30
# 022
MPN: 61481200
RH COVER
from £8.13
from £8.13
# 022
MPN: 61481300
LH COVER
from £9.14
from £9.14
# 023
MPN: 61481400
RH DOOR INNER PILLAR
from £31.76
from £31.76
# 023
MPN: 61481500
LH DOOR INNER PILLAR
from £31.76
from £31.76
# 024
-
AIR CONDITION CASE
# 025
MPN: 61481700
ELECTRIC BOARD COVER
- Valid for GD
from £18.06
from £18.06
ELECTRIC BOARD COVER RHD Genuine Ferrari Part - Used In stock
SOME DAMAGE AROUND A COUPLE OF FIXING HOLES
SOME DAMAGE AROUND A COUPLE OF FIXING HOLES
# 025
MPN: 63952700
ELECTRIC BOARD COVER
- Not for GD
from £41.40
from £41.40
# 026
MPN: 63090400
FRONT SECTION OF RH REAR WHEELHOUSE
from £172.85
from £172.85
# 026
MPN: 63090500
FRONT SECTION OF LH REAR WHEELHOUSE
from £553.54
from £553.54
# 027
MPN: 63090600
FRONT SIDE SECTION OF RH REAR WHEELHOUSE
from £34.86
from £34.86
# 027
MPN: 63090700
FRONT SIDE SECTION OF LH REAR WHEELHOUSE
from £34.86
from £34.86
# 028
MPN: 61482200
RH REAR WHEEL ARCH REAR SIDE
from £38.03
from £38.03
# 028
MPN: 61482300
LH REAR WHEEL ARCH REAR SIDE
from £44.60
from £44.60
# 029
MPN: 63093600
REAR SECTION OF RH REAR WHEELHOUSE
from £48.22
from £48.22
# 029
MPN: 63093700
REAR SECTION OF LH REAR WHEELHOUSE
from £59.86
from £59.86
# 030
MPN: 63090200
UPPER SECTION OF RH REAR WHEELHOUSE
from £63.30
from £63.30
# 030
MPN: 63090300
UPPER SECTION OF LH REAR WHEELHOUSE
from £63.30
from £63.30
# 031
MPN: 61530300
PIN
from £31.53
from £31.53
# 032
MPN: 69969500
GASKET
- Not for GD
from £0.95
from £0.95
This part replaces part number 61529400
# 033
MPN: 64677600
RH FRONT PANEL
- Valid for GD
from £233.38
from £233.38
# 034
MPN: 64677700
LH FRONT PANEL
- Not for GD
from £233.38
from £233.38
# 035
MPN: 61546100
RH PROTECTION
- Valid for GD
from £48.00
from £48.00
# 035
MPN: 63469190
RH PROTECTION
from £49.05
from £49.05
# 036
MPN: 61546400
LH PROTECTION
from £46.95
from £46.95
# 036
MPN: 63414400
LH PROTECTION
from £133.35
from £133.35
# 037
MPN: 64677800
CENTRAL FIXED PANEL
from £135.09
from £135.09
# 038
MPN: 63087100
GASKET
from £602.28
from £602.28
# 039
MPN: 63084300
RH UPPER SEAL
from £21.64
from £21.64
# 040
MPN: 63084400
LH UPPER SEAL
from £31.26
from £31.26
# 041
MPN: 63084900
RH VERTICAL SHIELD
from £363.66
from £363.66
# 042
MPN: 63085000
LH VERTICAL SHIELD
from £937.73
from £937.73
# 043
MPN: 14506787
PLUG
from £0.69
from £0.69
This part replaces part number 62773100
# 044
MPN: 12643777
WASHER
Supersession
Supersession
This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
# 045
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 046
MPN: 10902387
SCREW
from £0.47
from £0.47
This part replaces part number 10902327 which we have in stock
# 047
MPN: 12643770
WASHER
from £0.71
from £0.71
# 048
MPN: 10977524
SCREW
from £0.48
from £0.48
# 049
MPN: 63449700
GASKET
from £5.78
from £5.78
# 050
MPN: 62765800
SILENT BLOCK
from £0.86
from £0.86
# 051
MPN: 61647200
LAMP
from £31.94
from £31.94
This part replaces part number 61496800 - and 1 more. Click to view details
# 052
MPN: 15908678
SCREW
from £0.54
from £0.54
This part replaces part number 15908602
# 053
MPN: 62781900
SILENT BLOCK
from £1.61
from £1.61
# 054
MPN: 60597000
CLIP
from £0.59
from £0.59
# 055
MPN: 15915977
SCREW
from £0.71
from £0.71
This part replaces part number 64428200
# 056
MPN: 63113800
FRONT INSPECTION COVER
from £10.87
from £10.87
# 057
MPN: 10396780
CABLE GROMMET
from £1.08
from £1.08
