ferrari 512 m rear hood parts diagram

109 - Rear Hood

Ferrari 512 M Rear Hood Parts Diagram

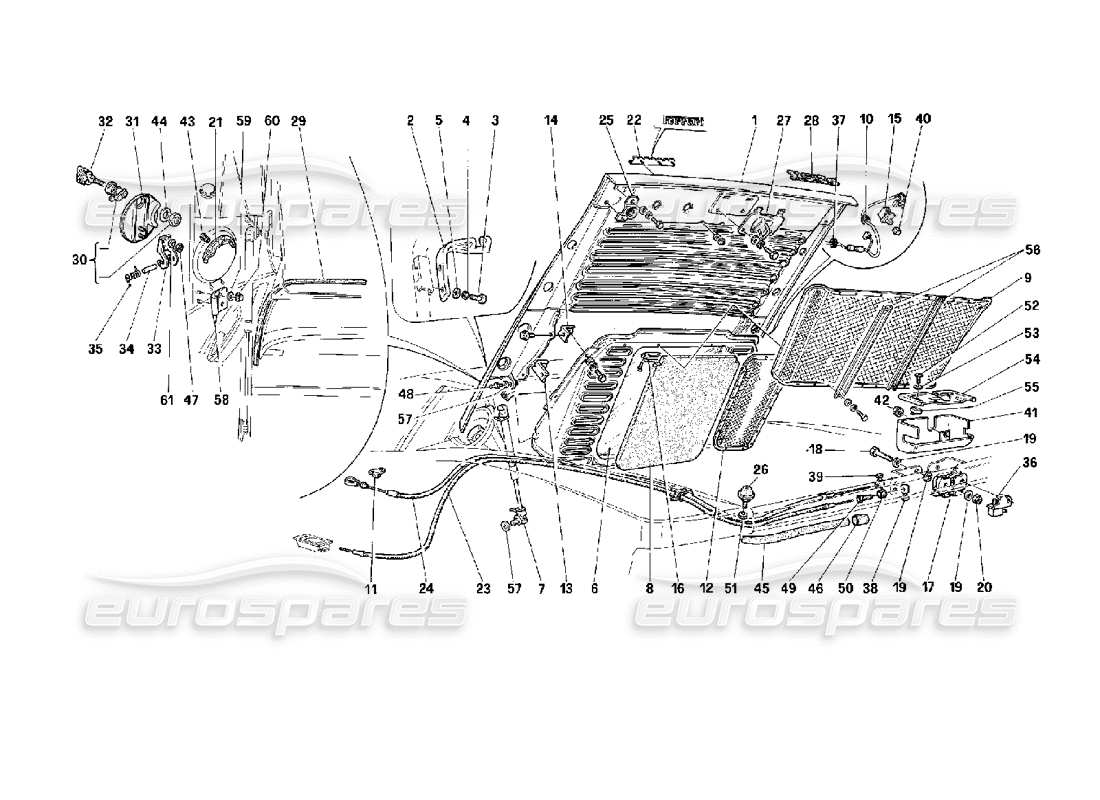

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price
                                                                                                                # 000
                                                                                                                MPN: 164282
                                                                                                                LOCK SET WITH KEYS
                                                                                                                - Not for USA, CDN
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                This part replaces part number 61507000 which we have in stock - and 1 more. Click to view details
                                                                                                                # 000
                                                                                                                MPN: 164283
                                                                                                                LOCKS SET WITH KEY
                                                                                                                - Valid for USA, CDN
                                                                                                                from £640.34
                                                                                                                from £640.34
                                                                                                                This part replaces part number 164282 - and 3 more. Click to view details
                                                                                                                # 001
                                                                                                                MPN: 63077800

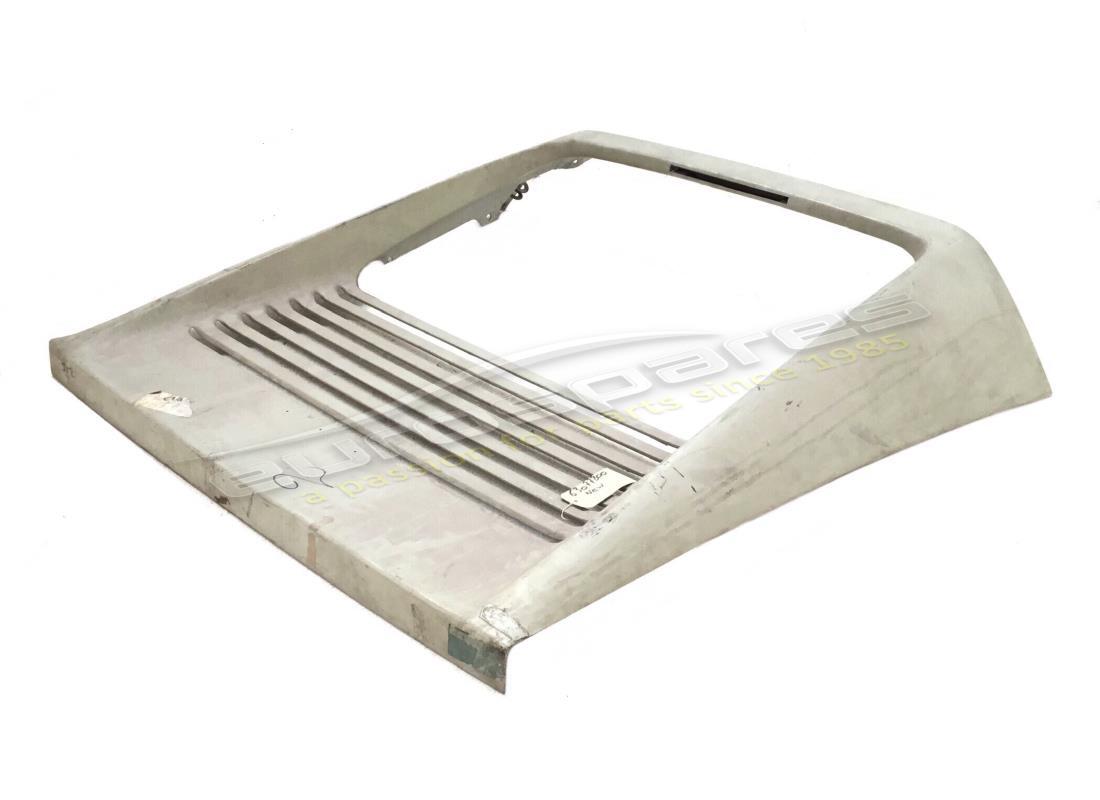

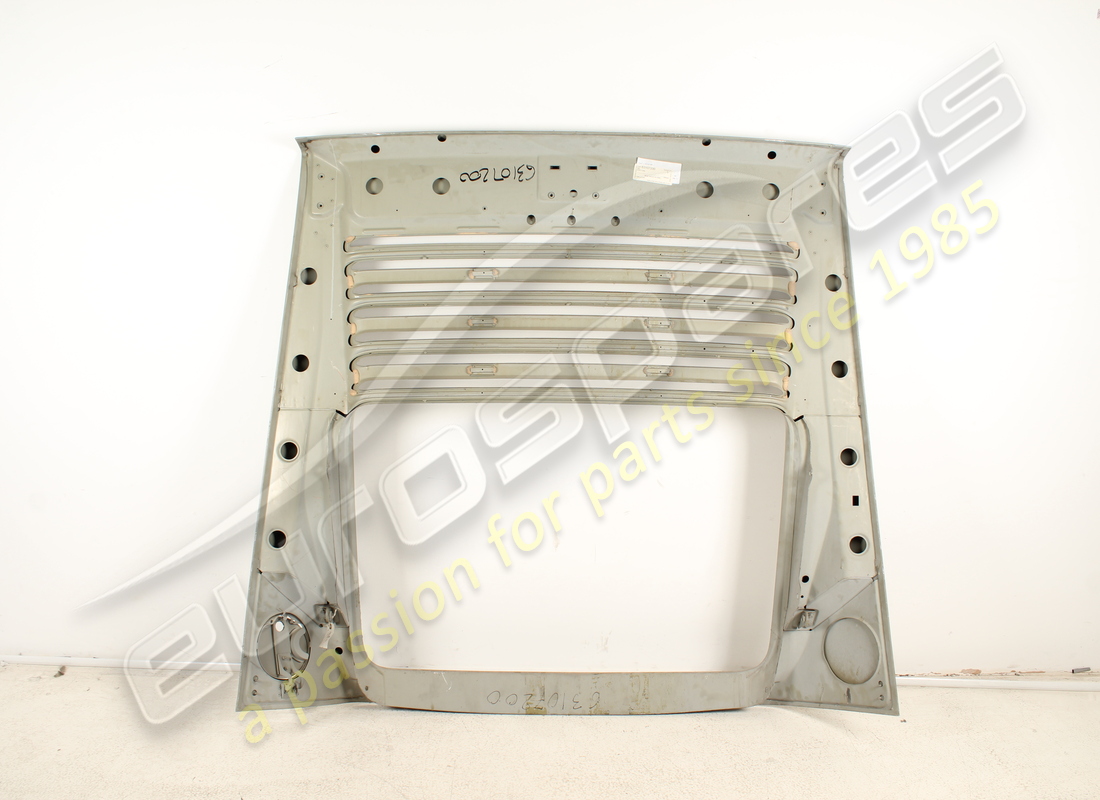

                                                                                                                Engine Bonnet
                                                                                                                - Valid for USA, CDN, AUS
                                                                                                                from £1,244.25
                                                                                                                from £1,244.25
                                                                                                                # 001
                                                                                                                MPN: 63107200

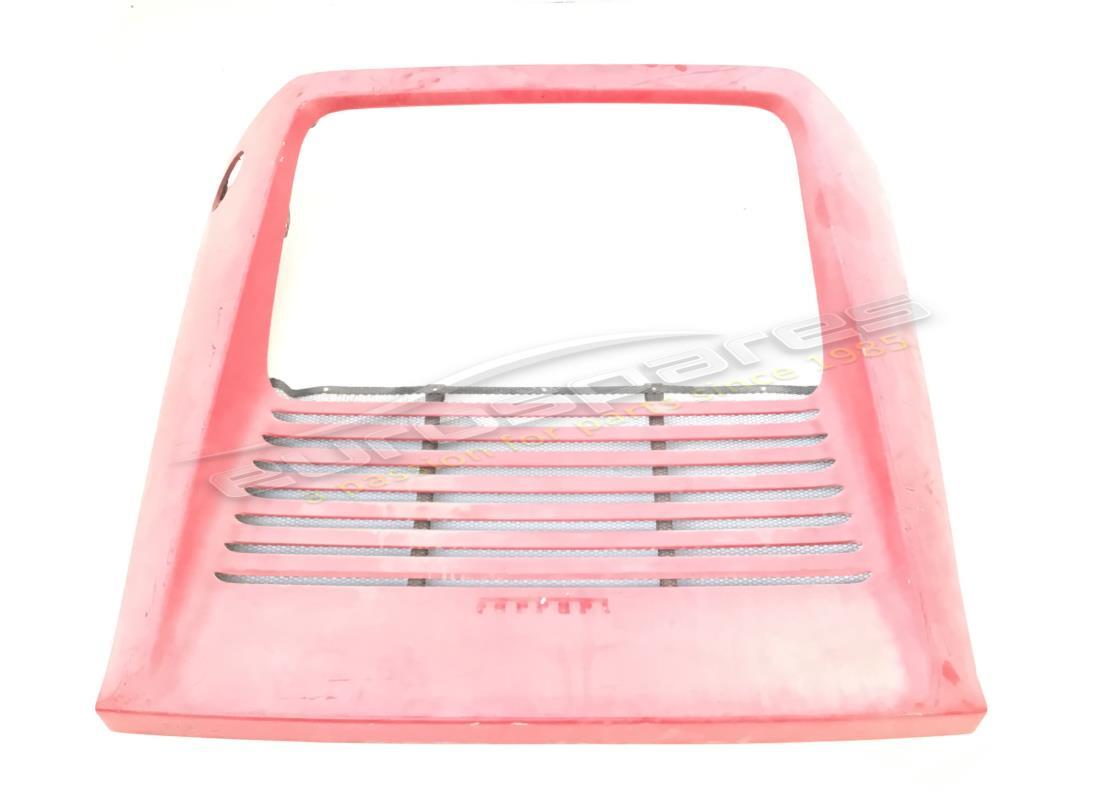

                                                                                                                Engine Bonnet
                                                                                                                - Not for USA, CDN, AUS
                                                                                                                from £3,675.00
                                                                                                                from £3,675.00
                                                                                                                # 002
                                                                                                                MPN: 63060000
                                                                                                                RH HINGE
                                                                                                                from £167.94
                                                                                                                from £167.94
                                                                                                                # 002
                                                                                                                MPN: 63060100
                                                                                                                LH HINGE
                                                                                                                from £167.94
                                                                                                                from £167.94
                                                                                                                # 003
                                                                                                                MPN: 14306587
                                                                                                                SCREW
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                # 004
                                                                                                                MPN: 127496
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                # 005
                                                                                                                MPN: 12642024
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12642020 - and 1 more. Click to view details
                                                                                                                # 006
                                                                                                                MPN: 63062100
                                                                                                                ENGINE COVER ASSEMBLY
                                                                                                                from £1,348.45
                                                                                                                from £1,348.45

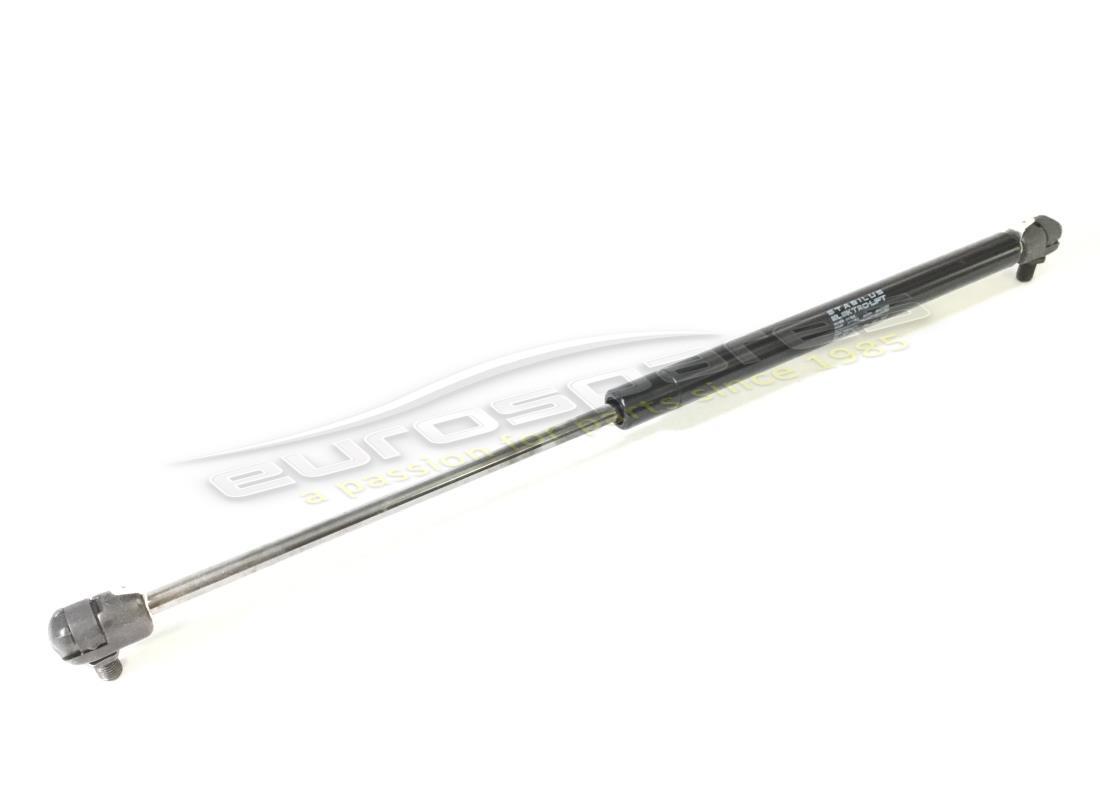

                                                                                                                # 008
                                                                                                                MPN: 63094300
                                                                                                                ENGINE COVER, SOUND INSULATION
                                                                                                                from £617.70
                                                                                                                from £617.70
                                                                                                                # 009
                                                                                                                MPN: 63063900
                                                                                                                REAR GRILL FOR AIR EXHAUST
                                                                                                                from £906.35
                                                                                                                from £906.35
                                                                                                                # 010
                                                                                                                MPN: 10396380
                                                                                                                CABLE GROMMET
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 011
                                                                                                                MPN: 63435000
                                                                                                                HOOK
                                                                                                                from £1.64
                                                                                                                from £1.64
                                                                                                                # 012
                                                                                                                MPN: 63060200
                                                                                                                RH SIDE GRILL
                                                                                                                from £851.83
                                                                                                                from £851.83
                                                                                                                # 012
                                                                                                                MPN: 63060300
                                                                                                                LH SIDE GRILL
                                                                                                                from £544.56
                                                                                                                from £544.56

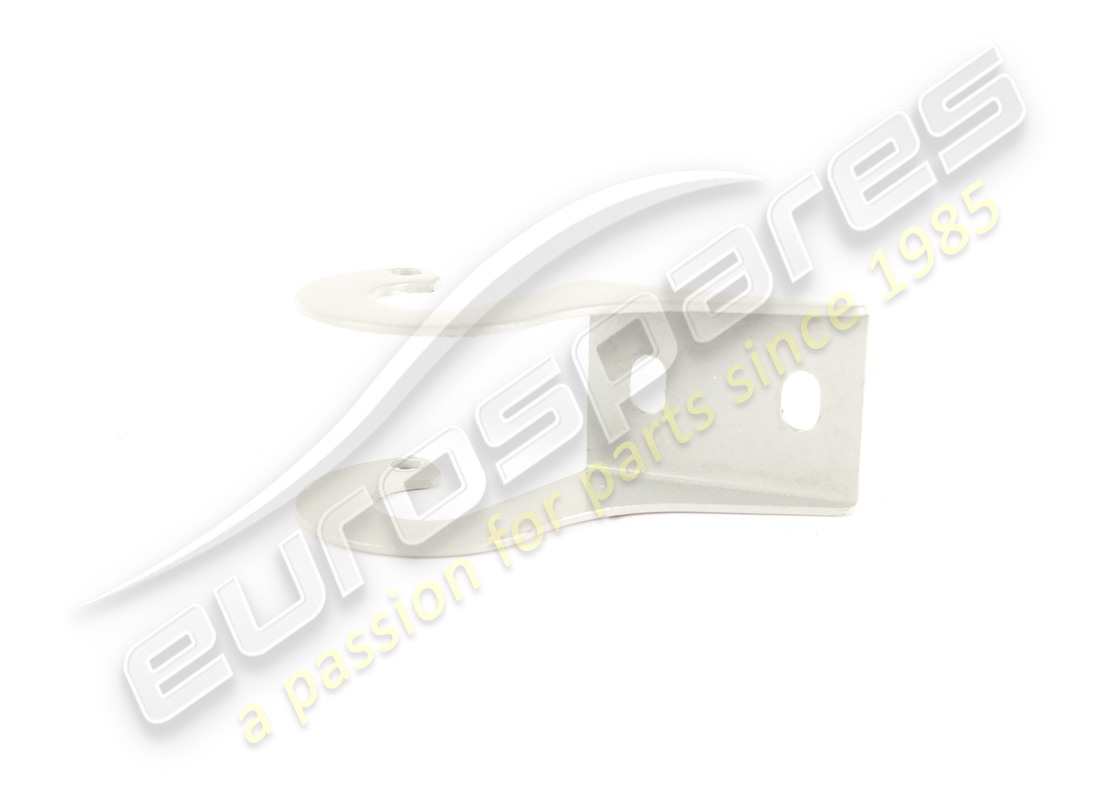

                                                                                                                # 013
                                                                                                                MPN: 63076700
                                                                                                                RH FRONT SUPPORT
                                                                                                                from £16.36
                                                                                                                from £16.36
                                                                                                                # 013
                                                                                                                MPN: 63076800
                                                                                                                LH FRONT SUPPORT
                                                                                                                from £17.18
                                                                                                                from £17.18

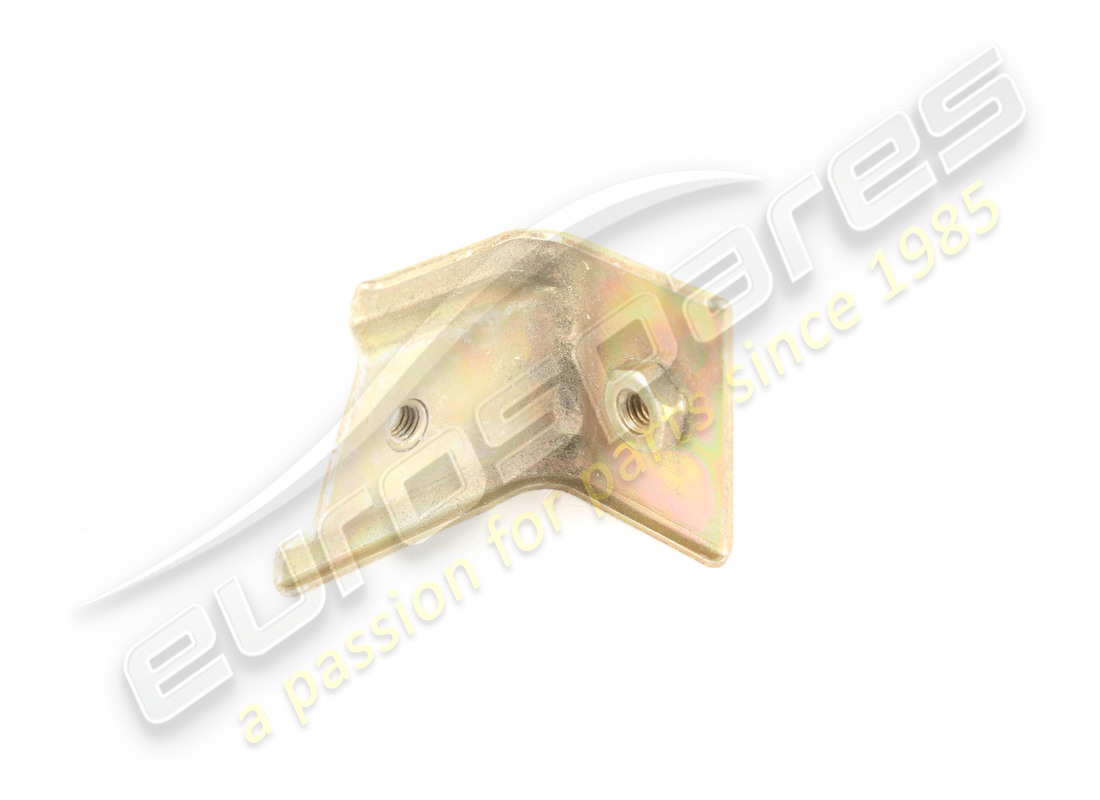

                                                                                                                # 014
                                                                                                                MPN: 63076500
                                                                                                                RH REAR SUPPORT
                                                                                                                from £19.03
                                                                                                                from £19.03
                                                                                                                # 014
                                                                                                                MPN: 63076600
                                                                                                                LH REAR SUPPORT
                                                                                                                from £18.68
                                                                                                                from £18.68
                                                                                                                # 015
                                                                                                                MPN: 61539800
                                                                                                                MAGNETIC SWITCH
                                                                                                                from £9.32
                                                                                                                from £9.32
                                                                                                                This part replaces part number 61538200 - and 1 more. Click to view details
                                                                                                                # 016
                                                                                                                MPN: 61647300

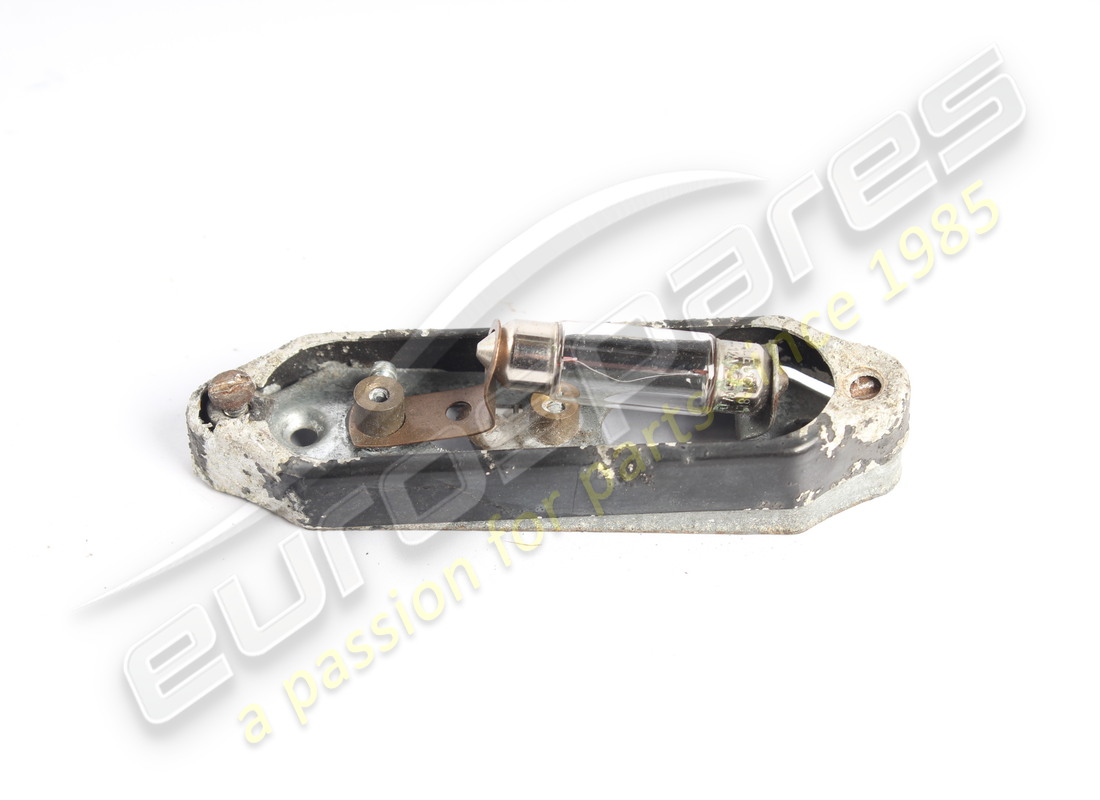

                                                                                                                LAMP
                                                                                                                from £15.18
                                                                                                                from £15.18
                                                                                                                # 017
                                                                                                                MPN: 60277407
                                                                                                                lock
                                                                                                                from £287.51
                                                                                                                from £287.51
                                                                                                                This part replaces part number 60023405 - and 15 more. Click to view details
                                                                                                                # 018
                                                                                                                MPN: 15212580
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 019
                                                                                                                MPN: 12640624
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                                # 020
                                                                                                                MPN: 102948
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                # 021
                                                                                                                MPN: 61529900
                                                                                                                FUEL FILLER LID GASKET
                                                                                                                from £2.01
                                                                                                                from £2.01
                                                                                                                # 022
                                                                                                                MPN: 63482200
                                                                                                                Ferrari SCRIPT
                                                                                                                Light Alloy type - 3 Pin
                                                                                                                from £26.09
                                                                                                                from £26.09
                                                                                                                # 023
                                                                                                                MPN: 63080000
                                                                                                                CABLE FOR OPENING BONNET
                                                                                                                from £56.83
                                                                                                                from £56.83
                                                                                                                # 024
                                                                                                                MPN: 63080100
                                                                                                                EMERGENCY CABLE
                                                                                                                from £8.78
                                                                                                                from £8.78
                                                                                                                # 026
                                                                                                                MPN: 61499500
                                                                                                                PAD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 027
                                                                                                                MPN: 63067500
                                                                                                                CATCH
                                                                                                                from £7.42
                                                                                                                from £7.42
                                                                                                                # 028
                                                                                                                MPN: 64441800
                                                                                                                F512 M NAMEPLATE
                                                                                                                from £212.12
                                                                                                                from £212.12
                                                                                                                # 029
                                                                                                                MPN: 61500900
                                                                                                                GASKET
                                                                                                                from £44.36
                                                                                                                from £44.36
                                                                                                                # 030
                                                                                                                -
                                                                                                                FUEL FILLER LID LOCK
                                                                                                                # 031
                                                                                                                MPN: 61500200
                                                                                                                FUEL FILLER LID
                                                                                                                from £22.55
                                                                                                                from £22.55
                                                                                                                # 032
                                                                                                                MPN: 95401152
                                                                                                                BLANK KEY
                                                                                                                from £15.43
                                                                                                                from £15.43
                                                                                                                This part replaces part number 61507100
                                                                                                                # 033
                                                                                                                MPN: 61500300
                                                                                                                FUEL FILLER LID HINGE
                                                                                                                from £5.28
                                                                                                                from £5.28
                                                                                                                # 034
                                                                                                                MPN: 61500700
                                                                                                                PIN
                                                                                                                from £2.00
                                                                                                                from £2.00
                                                                                                                # 035
                                                                                                                MPN: 61500600
                                                                                                                SPRING
                                                                                                                from £5.68
                                                                                                                from £5.68
                                                                                                                # 036
                                                                                                                MPN: 61501200
                                                                                                                SWITCH FOR REAR DOOR
                                                                                                                from £28.68
                                                                                                                from £28.68
                                                                                                                This part replaces part number 61496900 - and 1 more. Click to view details
                                                                                                                # 037
                                                                                                                MPN: 10396180
                                                                                                                CABLE GROMMET
                                                                                                                from £1.08
                                                                                                                from £1.08
                                                                                                                This part replaces part number 10459687
                                                                                                                # 038
                                                                                                                MPN: 62781500
                                                                                                                CLAMP
                                                                                                                from £6.42
                                                                                                                from £6.42
                                                                                                                # 039
                                                                                                                MPN: 62780800
                                                                                                                CLAMP
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                # 040
                                                                                                                MPN: 63449000
                                                                                                                SWITCH CAP
                                                                                                                from £0.75
                                                                                                                from £0.75
                                                                                                                # 041
                                                                                                                MPN: 63548700
                                                                                                                BONNET LOCK COVER
                                                                                                                - Not for GD
                                                                                                                from £110.17
                                                                                                                from £110.17
                                                                                                                This part replaces part number 63102400
                                                                                                                # 041
                                                                                                                MPN: 63604300
                                                                                                                BONNET LOCK COVER
                                                                                                                - Valid for GD
                                                                                                                from £110.17
                                                                                                                from £110.17
                                                                                                                # 042
                                                                                                                MPN: 13832101
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 043
                                                                                                                MPN: 62764000
                                                                                                                ROUND HEAD RIVET
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 044
                                                                                                                MPN: 63456500
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 045
                                                                                                                MPN: 63094200
                                                                                                                CABLE PROTECTION SHEATH
                                                                                                                from £2.10
                                                                                                                from £2.10
                                                                                                                # 046
                                                                                                                MPN: 63094100
                                                                                                                CABLE PROTECTION PIPE
                                                                                                                from £8.17
                                                                                                                from £8.17
                                                                                                                # 047
                                                                                                                MPN: 14084100
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 048
                                                                                                                MPN: 63402800
                                                                                                                PIN
                                                                                                                from £0.83
                                                                                                                from £0.83
                                                                                                                This part replaces part number 64577200 - and 3 more. Click to view details
                                                                                                                # 049
                                                                                                                MPN: 62764800
                                                                                                                DRILLED SCREW
                                                                                                                from £1.20
                                                                                                                from £1.20
                                                                                                                # 050
                                                                                                                MPN: 14084211
                                                                                                                NUT
                                                                                                                from £0.71
                                                                                                                from £0.71
                                                                                                                # 051
                                                                                                                MPN: 16102311
                                                                                                                NUT
                                                                                                                from £0.42
                                                                                                                from £0.42
                                                                                                                This part replaces part number 16102315
                                                                                                                # 052
                                                                                                                MPN: 14778818
                                                                                                                SCREW
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 053
                                                                                                                MPN: 12541874
                                                                                                                SPRING WASHER
                                                                                                                from £1.14
                                                                                                                from £1.14
                                                                                                                # 054
                                                                                                                MPN: 63660600
                                                                                                                COVERING
                                                                                                                - Not for GD
                                                                                                                from £161.35
                                                                                                                from £161.35
                                                                                                                # 054
                                                                                                                MPN: 63664100
                                                                                                                COVERING
                                                                                                                - Valid for GD
                                                                                                                from £16.36
                                                                                                                from £16.36
                                                                                                                # 055
                                                                                                                MPN: 60758600
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 056
                                                                                                                MPN: 63069300
                                                                                                                CROSS MEMBER
                                                                                                                from £17.28
                                                                                                                from £17.28
                                                                                                                # 057
                                                                                                                MPN: 11194077
                                                                                                                CONIC WASHER
                                                                                                                Supersession
                                                                                                                Supersession

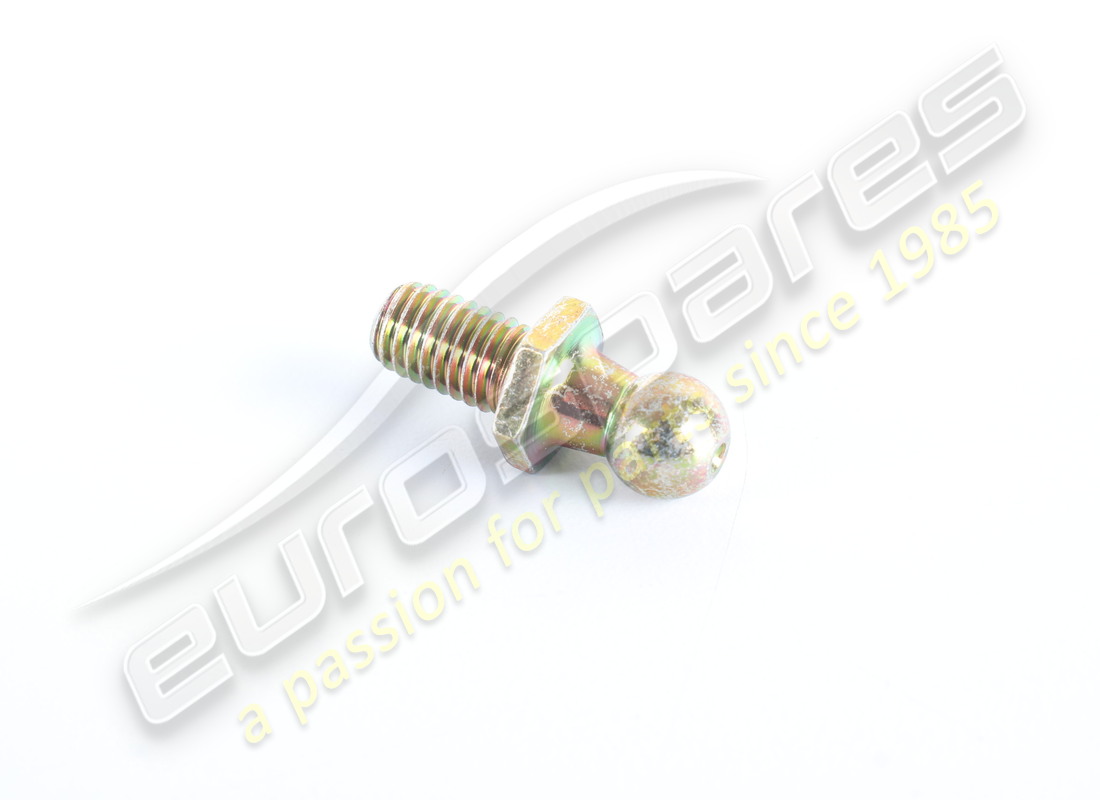

                                                                                                                # 058
                                                                                                                MPN: 61576700
                                                                                                                RH PIN
                                                                                                                from £30.52
                                                                                                                from £30.52
                                                                                                                # 058
                                                                                                                MPN: 61576800
                                                                                                                LH PIN
                                                                                                                from £30.52
                                                                                                                from £30.52
                                                                                                                # 059
                                                                                                                MPN: 12638178
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                                                                # 060
                                                                                                                MPN: 14084111
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 14084100
                                                                                                                # 061
                                                                                                                MPN: 13577701
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
