111 - Door - Locking Device

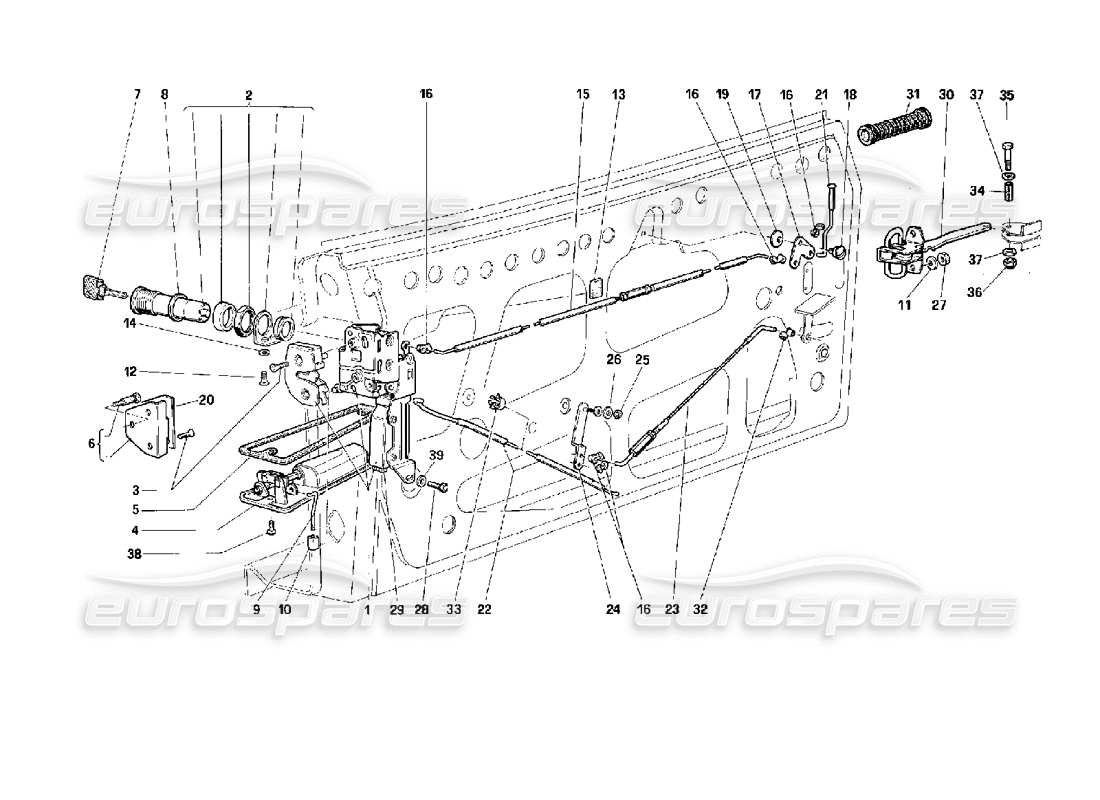

Ferrari 512 M Door - Locking Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 164282
LOCK SET WITH KEYS
- Not for USA, CDN
Supersession
Supersession
This part replaces part number 61507000 which we have in stock - and 1 more. Click to view details
# 000
MPN: 164283
LOCKS SET WITH KEY
- Valid for USA, CDN
from £640.34
from £640.34
This part replaces part number 164282 - and 3 more. Click to view details
# 001
MPN: 63094800
LOCK FOR RH DOOR COMPLETE
from £521.20
from £521.20
This part replaces part number 61506100 which we have in stock
# 001
MPN: 63094900
LOCK FOR LH DOOR COMPLETE
from £361.20
from £361.20
This part replaces part number 61506200 which we have in stock
# 002
-
lock
# 003
MPN: 62764600
SCREW
from £0.72
from £0.72
# 004
MPN: 61506600
OUTER HANDLE FOR RH DOOR
from £229.85
from £229.85
# 004
MPN: 61506700
OUTER HANDLE FOR LH DOOR
from £343.98
from £343.98
# 005
MPN: 61506800
GASKET FOR RH HANDLE
from £2.42
from £2.42
# 005
MPN: 61506900
GASKET FOR LH HANDLE
from £2.42
from £2.42
# 006
MPN: 61506500
LOCK STRIKER COMPLETE
from £27.11
from £27.11
# 007
MPN: 95401152
BLANK KEY
from £15.43
from £15.43
This part replaces part number 61507100
# 008
MPN: 61507200
LOCK GASKET
from £0.54
from £0.54
# 009
MPN: 61507300
ROD
from £2.44
from £2.44
# 010
MPN: 61507400
SLEEVE
from £0.51
from £0.51
# 011
MPN: 12624101
WASHER
from £0.53
from £0.53
# 012
MPN: 13271811
SCREW
from £1.08
from £1.08
# 013
MPN: 62782800
SPONGE
from £0.56
from £0.56
# 014
MPN: 10615274
WASHER
from £0.53
from £0.53
This part replaces part number 10615270 - and 2 more. Click to view details
# 015
MPN: 61507600
ROD
from £9.39
from £9.39
# 016
MPN: 14578180
CLIP
from £8.77
from £8.77
This part replaces part number 14578283 - and 1 more. Click to view details
# 017
MPN: 61507700
LEVER
from £0.39
from £0.39
# 018
MPN: 62764500
SPECIAL SCREW
from £2.49
from £2.49
# 019
MPN: 12541874
WASHER
from £1.14
from £1.14
# 020
MPN: 61507800
STRIKER PROTECTION
from £5.83
from £5.83
# 021
MPN: 63402500
SECURITY ROD FOR DOOR
from £137.82
from £137.82
# 022
MPN: 63094700
RH ROD
from £28.81
from £28.81
# 022
MPN: 63101600
LH ROD
from £23.60
from £23.60
# 023
MPN: 63093500
ROD
from £24.09
from £24.09
# 024
MPN: 61508100
LEVER
from £3.34
from £3.34
# 025
MPN: 14084211
NUT
from £0.71
from £0.71
# 026
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 027
MPN: 12574115
NUT
from £1.08
from £1.08
# 028
MPN: 10977821
SCREW
Supersession
Supersession
# 029
MPN: 150040
LOCKING DEVICE
from £483.75
from £483.75
# 030
MPN: 61508500
STOP TIE ROD FOR DOOR
from £100.73
from £100.73
# 031
MPN: 148654
BELOWS FOR ELECTRIC CABLES
from £12.13
from £12.13
# 032
MPN: 14578180
SPRINGS
from £9.82
from £9.82
This part replaces part number 14578283 - and 1 more. Click to view details
# 033
MPN: 14569680
CLIP
from £0.54
from £0.54
# 034
MPN: 65859300
ROD PIN
from £9.42
from £9.42
This part replaces part number 60730200
# 035
MPN: 15210480
SCREW
from £0.47
from £0.47
# 036
MPN: 62790300
NUT
from £0.53
from £0.53
This part replaces part number 12574011 - and 1 more. Click to view details
# 037
MPN: 63677900
WASHER
from £0.47
from £0.47
# 038
MPN: 13312970
SCREW
from £0.53
from £0.53
# 039
MPN: 13577701
WASHER
from £0.53
from £0.53
