117 - Seats and Safety Belts -Not for USA-

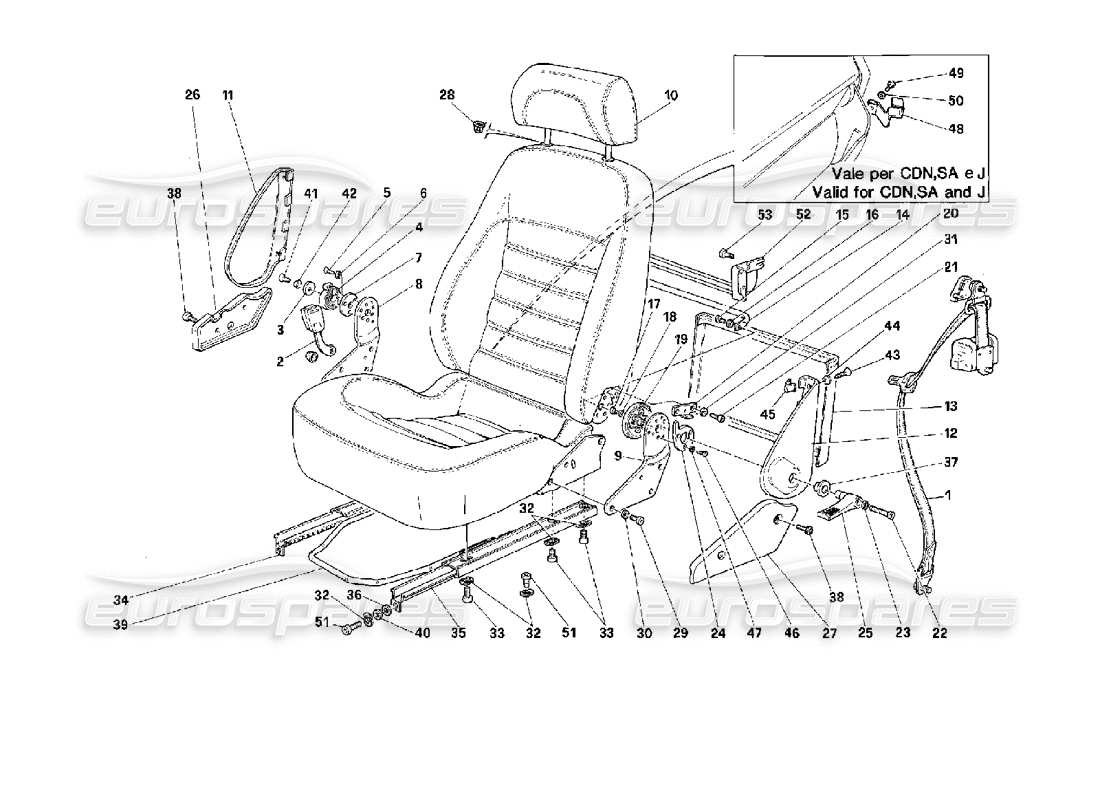

Ferrari 512 M Seats and Safety Belts -Not for USA- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 630157..
RH SEAT WITH GUIDES
- Valid for CDN
Supersession
Supersession
# 000
MPN: 630158..
LH SEAT WITH GUIDES
- Valid for CDN
Supersession
Supersession
# 000
MPN: 636505..
PILLOW LINING
Supersession
Supersession
# 000
MPN: 636524..
LH
Supersession
Supersession
# 000
MPN: 636621..
HEADREST LINING
- RH back seat lining
Supersession
Supersession
# 000
MPN: 646023..
RH SEAT WITH GUIDES
- Not for CDN
Supersession
Supersession
# 000
MPN: 646024..
LH SEAT WITH GUIDES
- Not for CDN
Supersession
Supersession
# 001
MPN: 63100000
ABDOMINAL BELT SET ASSEMBLY
- Not for CDN, SA, J
from £416.80
from £416.80
# 002
MPN: 63433900
BELTS WHIPS KIT
- Not for CDN
from £58.59
from £58.59
# 002
MPN: 63459200
BELTS WHIPS KIT
- Valid for CDN
from £54.80
from £54.80
# 003
MPN: 13578305
WASHER
from £0.53
from £0.53
# 004
MPN: 62651900
SPRING
from £10.61
from £10.61
# 005
MPN: 14441127
SCREW
from £0.54
from £0.54
# 006
MPN: 12606876
WASHER
from £0.71
from £0.71
# 007
MPN: 63314300
BUSH FOR SPRING
from £14.71
from £14.71
# 008
MPN: 63288900
RH JOINT FASTENING PLATE
- Valid for CDN
from £91.75
from £91.75
# 008
MPN: 64602100
RH JOINT FASTENING PLATE
- Not for CDN
from £94.61
from £94.61
# 009
MPN: 63289000
LH JOINT FASTENING PLATE
- Valid for CDN
from £91.75
from £91.75
# 009
MPN: 64602200
LH JOINT FASTENING PLATE
- Not for CDN
from £94.61
from £94.61
# 010
MPN: 630180..
LINED HEADREST
Supersession
Supersession
# 011
MPN: 630184..
RH INNER BACK SEAT JOINT COVER
Supersession
Supersession
# 011
MPN: 630187..
LH INNER BACK SEAT JOINT COVER
Supersession
Supersession
# 012
MPN: 630185..
LH OUTER BACK SEAT JOINT COVER
Supersession
Supersession
# 012
MPN: 630186..
RH OUTER BACK SEAT JOINT COVER
Supersession
Supersession
# 013
MPN: 630188..
BACK SEAT FOR REAR SIDE LINING
Supersession
Supersession
# 014
MPN: 63294300
JOINT CONNECTION
from £9.39
from £9.39
This part replaces part number 62651800
# 015
MPN: 14302931
SCREW
from £0.55
from £0.55
# 016
MPN: 160920
WASHER
from £0.66
from £0.66
# 017
MPN: 63325100
SCREW
from £2.88
from £2.88
# 018
MPN: 10615470
WASHER
Supersession
Supersession
# 019
MPN: 62652200
RH SIDE BACK SEAT ADJUSTER
from £128.56
from £128.56
# 019
MPN: 62652400
LH SIDE BACK SEAT ADJUSTER
from £39.76
from £39.76
# 020
MPN: 62887300
PLATE FOR BACK SEAT STOP
from £14.58
from £14.58
# 021
MPN: 40294308
SCREW
from £2.67
from £2.67
This part replaces part number 20293306 which we have in stock
# 022
MPN: 14358927
SCREW
from £0.53
from £0.53
# 023
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 024
MPN: 62955700
RH BACK SEAT LOCK
from £6.02
from £6.02
# 024
MPN: 62955800
LH BACK SEAT LOCK
from £23.97
from £23.97
# 025
MPN: 62743900
RH SEAT RELEASE HANDLE
Supersession
Supersession
# 025
MPN: 63294200
LH SEAT RELEASE HANDLE
from £50.91
from £50.91
This part replaces part number 62743800
# 026
MPN: 632396..
RH INNER PILLOW JOINT COVER
Supersession
Supersession
# 026
MPN: 632398..
LH INNER PILLOW JOINT COVER
Supersession
Supersession
# 027
MPN: 632397..
RH OUTER PILLOW JOINT COVER
Supersession
Supersession
# 027
MPN: 632399..
LH OUTER PILLOW JOINT COVER
Supersession
Supersession
# 028
MPN: 20058905
HEADREST PLASTIC INSERT
from £19.41
from £19.41
# 029
MPN: 40294308
SCREW
from £2.60
from £2.60
This part replaces part number 20293306 which we have in stock
# 030
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 031
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 032
MPN: 63395300
PLATE
from £0.87
from £0.87
# 033
MPN: 40294308
SCREW
from £2.60
from £2.60
This part replaces part number 20293306 which we have in stock
# 034
MPN: 62655200
RH GUIDE
- Valid for CDN
Supersession
Supersession
# 034
MPN: 64339300
RH GUIDE
- Not for CDN
from £204.84
from £204.84
This part replaces part number 62655200
# 035
MPN: 62655300
LH GUIDE
- Valid for CDN
from £88.02
from £88.02
# 035
MPN: 64339400
LH GUIDE
- Not for CDN
from £204.84
from £204.84
This part replaces part number 62655300 which we have in stock
# 036
MPN: 14496506
WASHER
Supersession
Supersession
# 037
MPN: 62752500
BUSH
from £3.19
from £3.19
# 038
MPN: 20297602
SCREW
from £5.65
from £5.65
# 039
MPN: 629838..
GUIDES CONTROL FORK
Supersession
Supersession
# 040
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 041
MPN: 14441127
SCREW
from £0.54
from £0.54
# 042
MPN: 12606876
WASHER
from £0.71
from £0.71
# 043
MPN: 15915277
SCREW
from £0.47
from £0.47
This part replaces part number 15915202 - and 1 more. Click to view details
# 044
MPN: 62823200
WASHER
from £0.71
from £0.71
# 045
MPN: 62773500
CLIP
from £0.47
from £0.47
# 046
MPN: 63622600
SCREW
from £1.09
from £1.09
# 046
MPN: 63622700
SCREW
from £1.00
from £1.00
# 047
MPN: 12606876
WASHER
from £0.71
from £0.71
# 048
MPN: 153982
BRACKET TO SUPPORT BELT CONNECTOR
- Valid for CDN, SA, J
from £9.17
from £9.17
# 049
MPN: 20297602
SCREW
- Valid for CDN, SA, J
from £5.65
from £5.65
# 050
MPN: 12601179
WASHER
- Valid for CDN, SA, J
Supersession
Supersession
This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
# 051
MPN: 20293306
SCREW
from £2.43
from £2.43
# 052
MPN: 62651700
ARTICULATED JOINTS TRANSM. COVER
# 053
MPN: 14302331
SCREW
Supersession
Supersession
